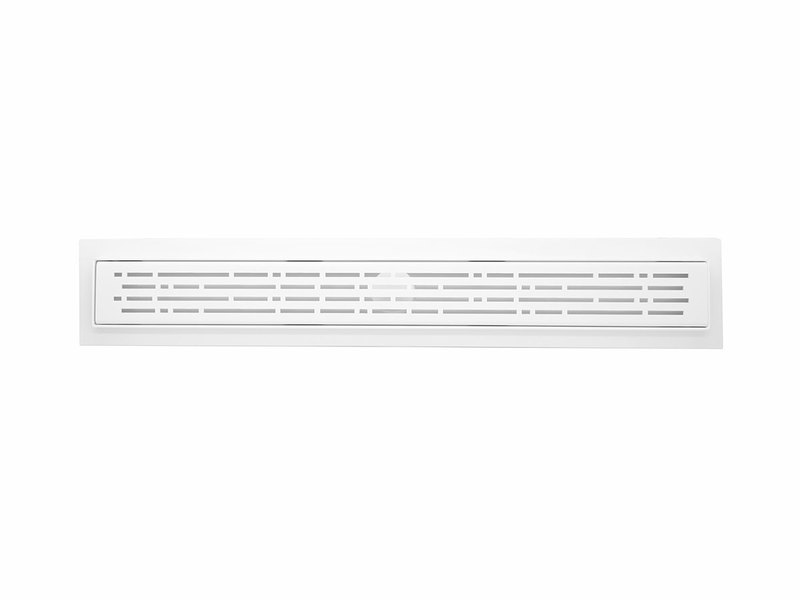

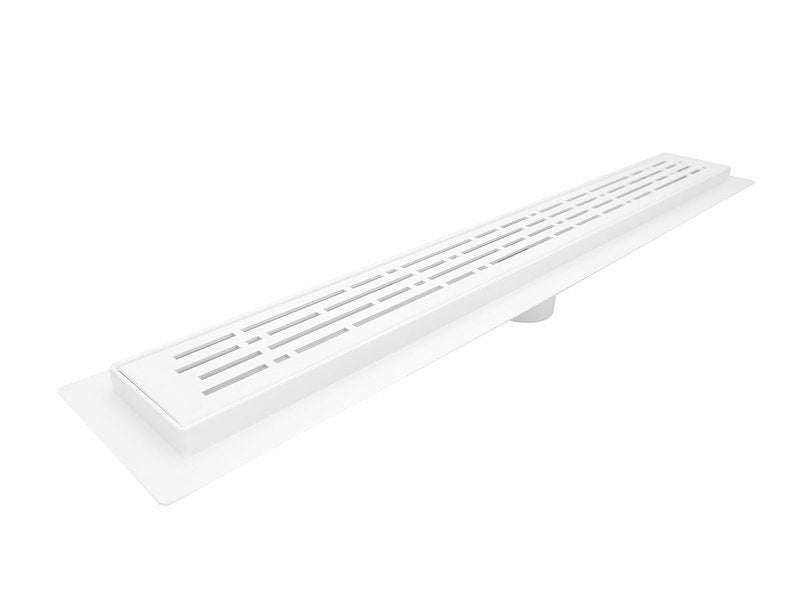

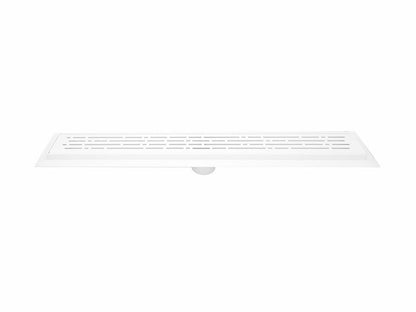

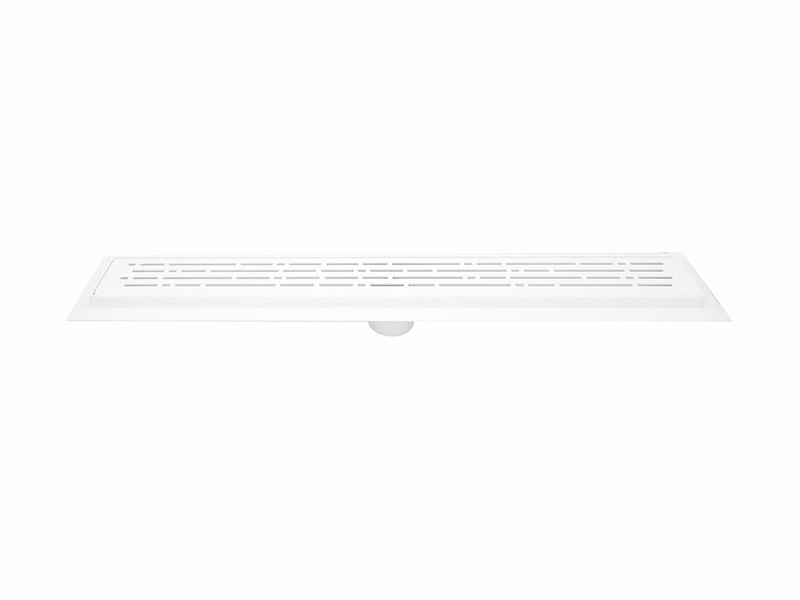

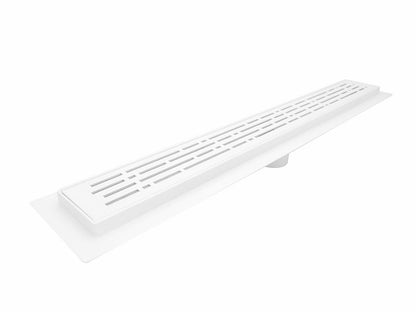

Matte White 16 Inch Linear Shower Drain, Luxurious Broken Lane Design by SereneDrains

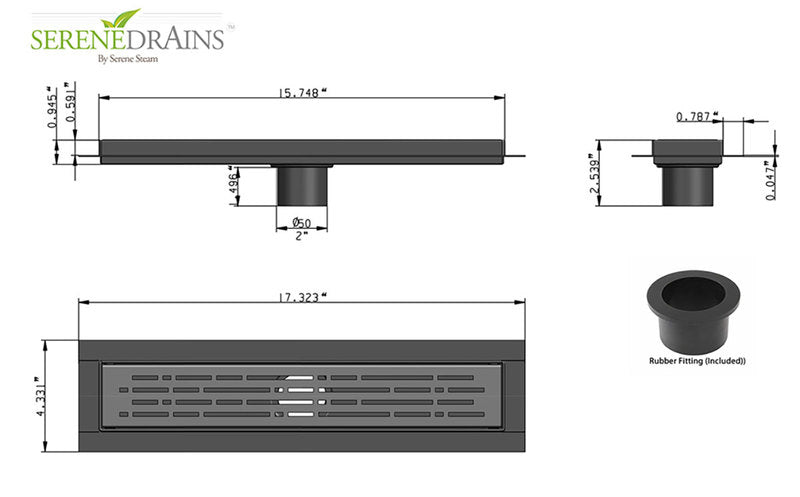

Overall Size 17 1/4" x 4 3/8" - Net Size 15 3/4" x 2 3/4"

Available In: 16", 24", 30", 35", 39", 47", 59".
In stock ready to ship. FREE SHIPPING

Approximate Dimensions:
Length 16" (400mm), Intake 7.80 sq. in.
Length 24" (600mm), Intake 11.67 sq. in.
Length 30" (762mm), Intake 14.82 sq. in.
Length 35.43" (900mm), Intake 17.48 sq. in.
Length 39.37" (1000mm), Intake 19.39 sq. in.
Length 47.25" (1200mm), Intake 23.20 sq. in.
Length 59.05" (1500mm), Intake 27.01 sq. in.

Drain Includes: 100% stainless steel channel body and grate, puller key, waterproofing membrane sheet around the drain flange (not required but included), and Installation Instructions.

High-quality materials: The linear shower drain is constructed from 16-gauge SS304 stainless steel for the flange, channel, and grate. The brushed steel finish protects the linear shower drain from corrosion and rust.

Water and leak-proof: The flange of the shower floor drain is designed for use with all waterproofing materials, such as "Hot-Mop," liquid membranes, sheet membranes, and vinyl waterproofing, among others. Bodies are fully welded and undergo leak testing prior to dispatch.

Easy installation: The shower drain doesn't have leveling feet, making it much more stable and facilitating installation by allowing you to rest the flange on the floor edge. The removable grate also makes cleaning of the linear drain easy.

Durable, solid, and smooth: The frame is rounded (folded, not welded), creating a frame that is twice as strong and provides a smooth touch for your feet. There are NO plastic parts involved.

Our Luxury white linear drains epitomize the fusion of form and function in modern interior design. Crafted with high-quality materials, they offer a sleek and seamless appearance, enhancing the aesthetics of any space while efficiently directing water away. Their flush design eliminates tripping hazards, and they're easy to maintain, ensuring that luxury doesn't come at the cost of convenience.

The SereneDrain Broken Lane design drain in a Matte White finish is a modern and eye-catching addition to your bathroom. It features a unique Broken Lane pattern on the cover, providing a dynamic visual element to the drain while maintaining efficient water drainage. Crafted from high-quality brushed 306 stainless steel, it offers both durability and a sleek, modern aesthetic. The Matte White finish adds sophistication to your shower or bathroom floor.

In addition to its stylish appearance, this drain ensures effective water flow, preventing water pooling and maintaining a clean and safe shower environment. The intermittent gaps in the cover also prevent debris or small objects from blocking the drain, making maintenance hassle-free. With the SereneDrain Broken Lane design drain, you can enhance your bathroom's overall appearance while enjoying efficient water drainage, seamlessly combining style and functionality.

Applications: Shower & bath, kitchen, pools, balconies, hotel rooms, gym, spa etc.
Perfect for wheelchair access & barrier-free showers (walk in floor plans).

Features:

• Stainless steel Matte White finish.
• Superior quality laser cut electro-polish finish.
• Bodies are fully welded and leak tested prior to dispatch.
• 2 Inch diameter central vertical outlet.
• Designed to be installed into any 2" shower drain flange.
• Compatible with tiles up to 10mm depth (14mm lip).
• Sized to match standard 1/2", 1", 2, and 4" tile without cutting.
• Pre-Slope channel. Channel width: 2 3/4" (70 mm).
• Drain grate is 16 gauge 304 stainless steel.
• Flow rate: at entrance of shower - 6.3GPM (0.4 l/s); against the wall - 9.5GPM (0.6 l/s).
• Flange body edge designed for use with all types of waterproofing: hot mop, painted or liquid membranes, sheet membrane, vinyl waterproofing etc.


Available accessories include plumbing connectors (ABS/ PVC flange) and debris strainer.

30 day return policy. Money back guarantee.
Contact us for quantity discounts
