24 Inch Offset Linear Shower Drain, Full Shower Drain Assembly Kit
Offset Linear Drain 24 Inch, Hair Trap, Square PVC Drain Flange, Shower Drain Assembly Set by SereneDrains
Save $29.99 plus free shipping with this complete drain assembly installation kit.

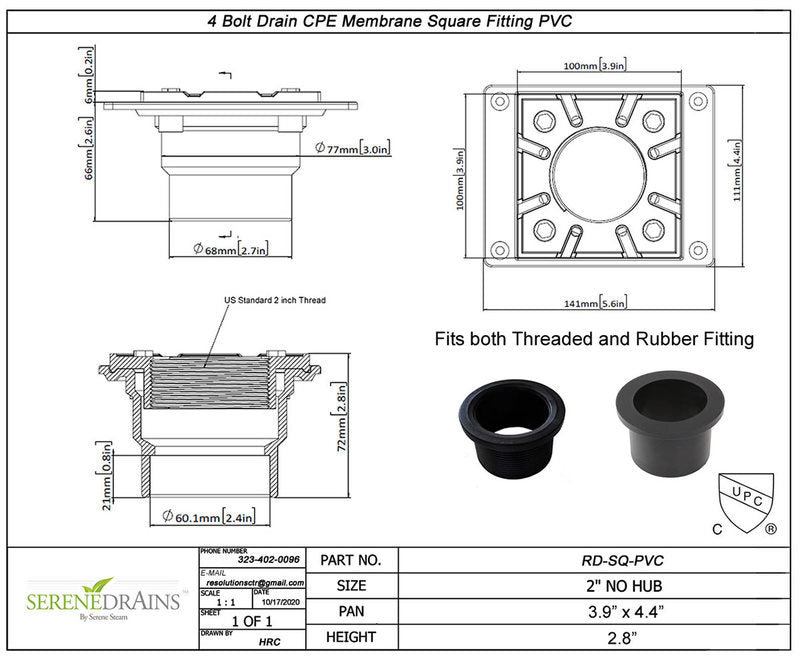

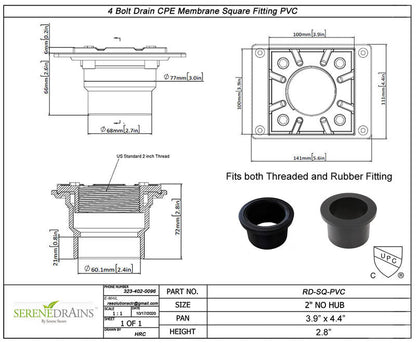

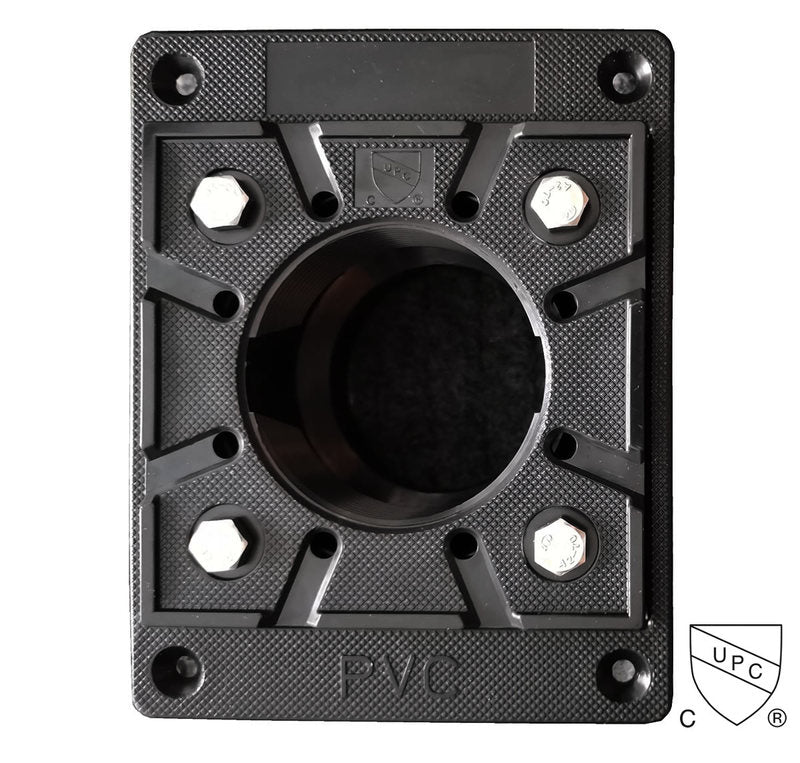

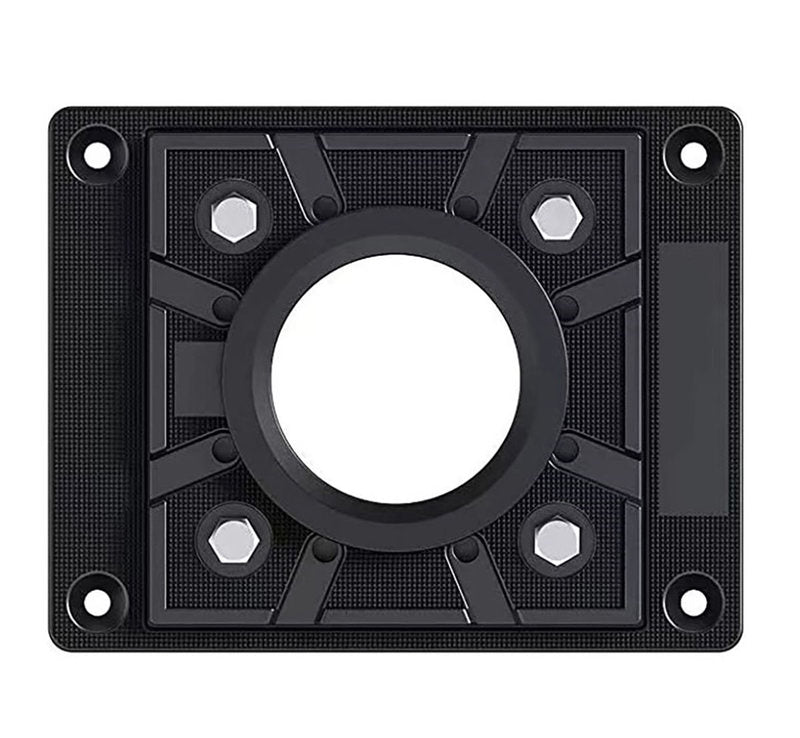

4 Bolt Drain CPE Membrane Square Fitting Connector PVC. Fits both Threaded and Rubber Fitting. CPE Membrane Fitting - typically used with the plain body channel. Allows connection and clamping of a CPE flexible membrane. Square PVC drain flange can be used for both PVC or ABS shower drains fittings applications (Consult a professional).
24 inch Offset Drain Net Size: 23" 1/2" x 2 3/4" 600mm | Overall Size 25.2" x 4 3/8" | Intake sq. in: 14.96 (Additional sizes available).
Drain can be bought separately - SereneDrains Offset Linear Shower Drains
Choose an Offset Outlet Linear Drain if the shower’s joist is centered and notching or drilling is not an option, if the shower is built on a concrete base of 4 inches or more, making drain relocation costly, or if the drain outlet is already located on the side of the shower (consult a professional for guidance)

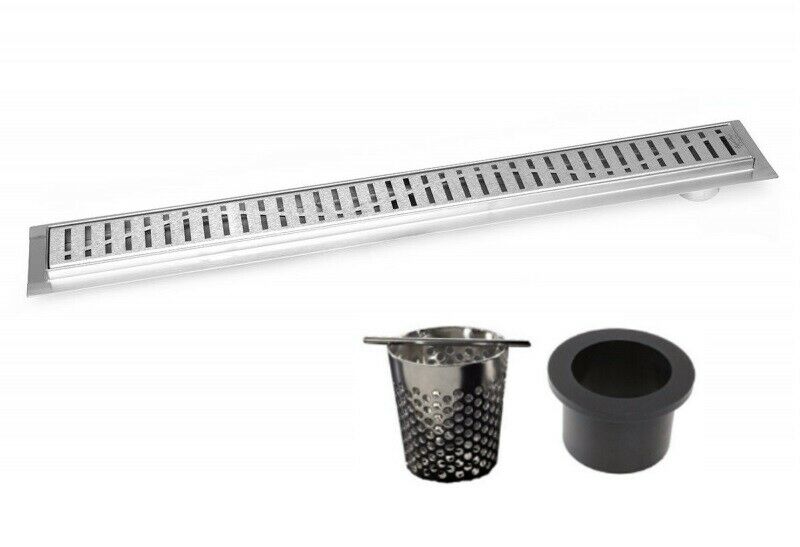

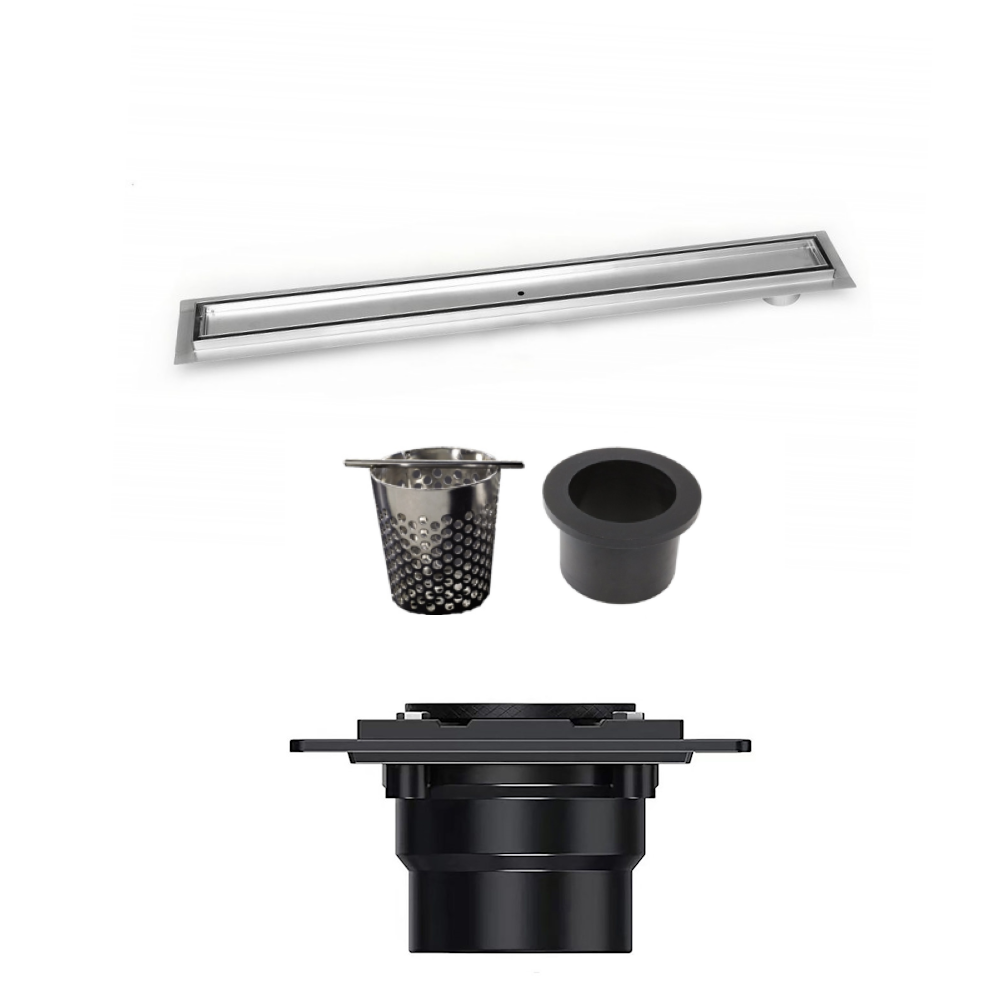

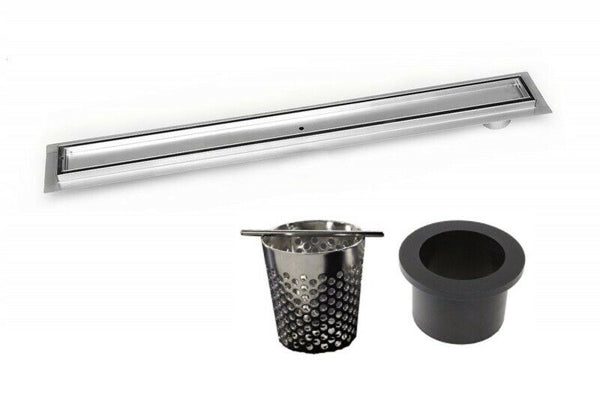

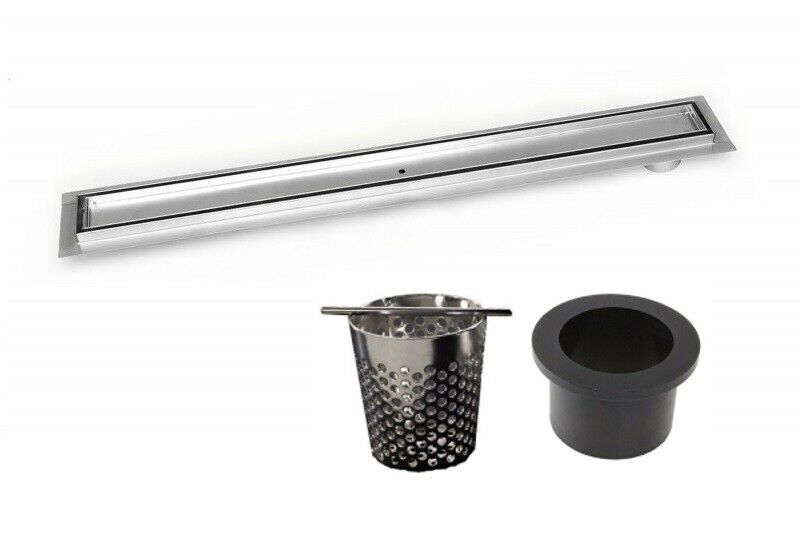

Drain Includes: 304 Stainless Steel Channel Body & Grate, 4 Bolt Drain CPE Membrane Square Fitting PVC, Hair/Debris Strainer, Rubber Gasket, Puller Key, Waterproofing Membrane Sheet around the Drain Flange (not required but included), Installation Instruction.

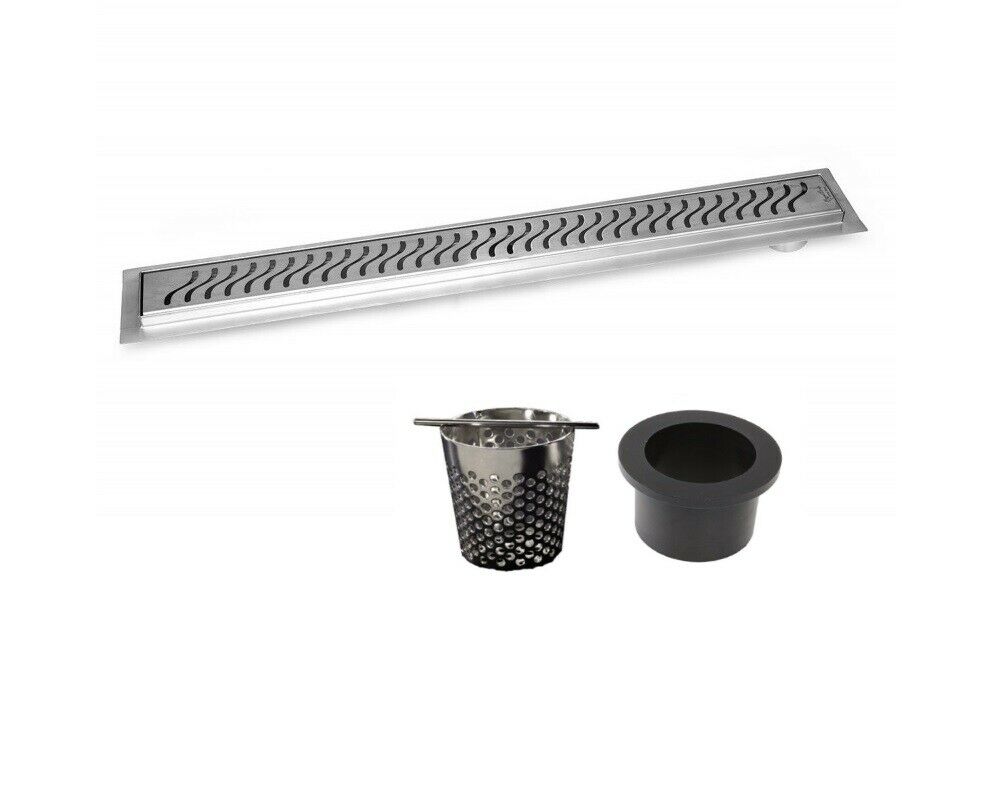

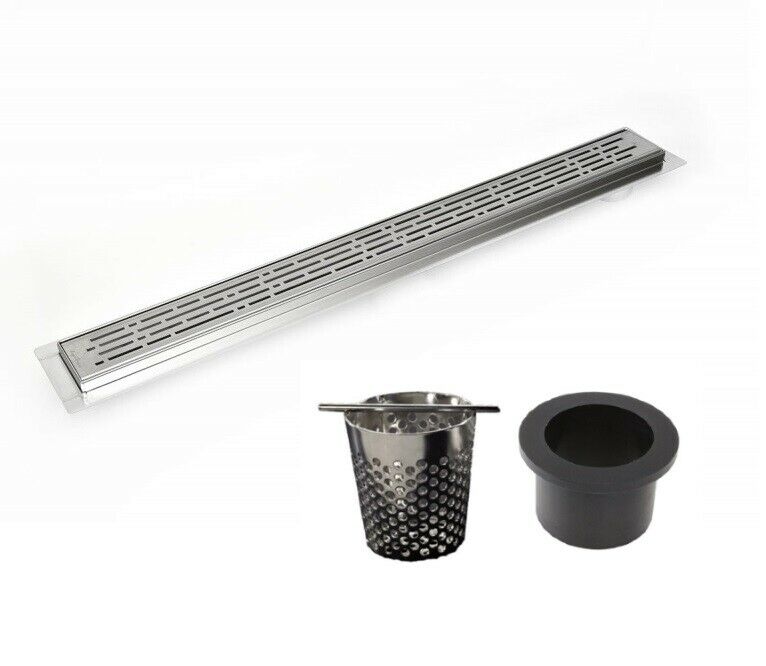

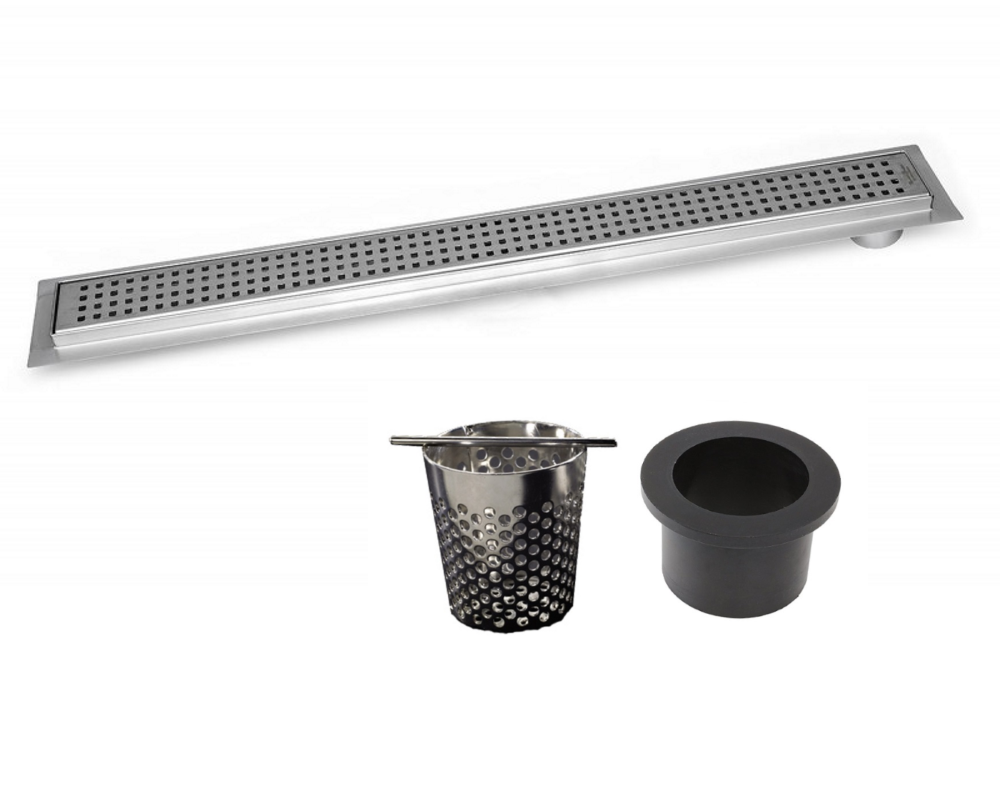

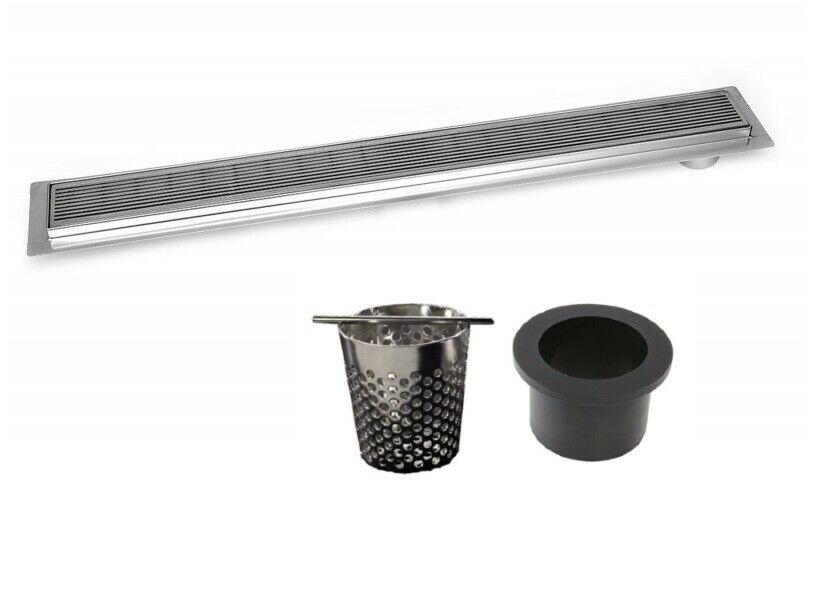

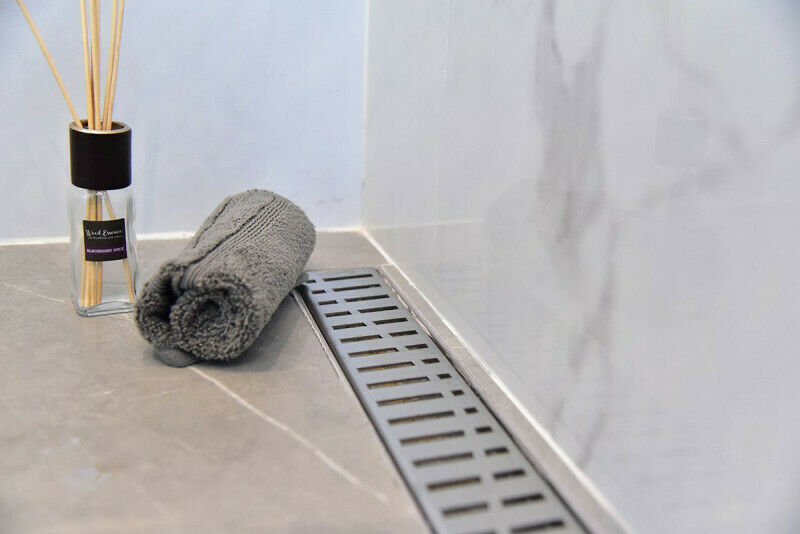

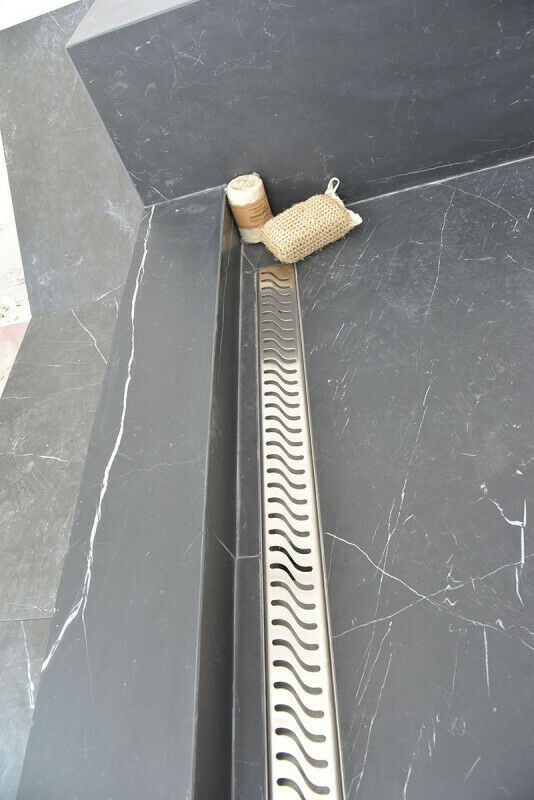

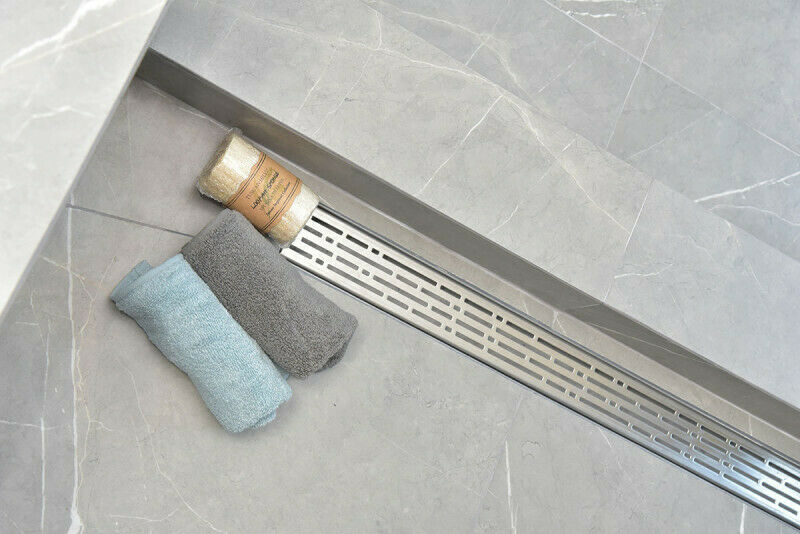

4 Luxurious Designs: Ocean Wave Design, Traditional Square Design, Broken Lane Design, Tile Insert Design.
Construction:
- Side outlet drain apex 2.8" oc of drain end
- Designed to be installed into any 2" shower drain flange.
- Bodies are fully welded and leak tested prior to dispatch.
- Compatible with tiles up to 10mm depth (14mm lip).
- Pre-Slope channel - Channel width: 2 3/4" (70 mm).
- Electro polished finish. Drain Grade is 16 Gauge 304 Stainless Steel.
- Sized to match standard 1/2", 1", 2, and 4" tile without cutting.
- Flow rate: at entrance of shower - 6.3GPM (0.4 l/s); against the wall - 9.5GPM (0.6 l/s).
- Flange body edge designed for use with all types of waterproofing: hot mop, painted or liquid membranes, sheet membrane, vinyl waterproofing etc.
- Superior Quality, Most Durable Finishes, Easily Maintained. No Special Cleaning.
Dimensions:
Net Size 15" 3/4" x 2 3/4" 400mm | Overall Size 17" 1/4" x 4 3/8" | Intake sq. in: 12.38
Net Size 23" 1/2" x 2 3/4" 600mm | Overall Size 25.2" x 4 3/8" | Intake sq. in: 14.96
Net Size 30" x 2 3/4" 762mm | Overall Size 31.57" x 4 3/8" | Intake sq. in: 17.62
Net Size 35" 3/8" x 2 3/4" 900mm | Overall Size 37.01" x 4 3/8" | Intake sq. in: 20.03.
Net Size 39" 3/8" x 2 3/4" 1000mm | Overall Size 40.95" x 4 3/8" | Intake sq. in: 21.12
Net Size 47 1/4" x 2 3/4" 1200mm | Overall Size 48.82" x 4 3/8" | Intake sq. in: 26.68
Net Size 59.05" x 2 3/4" 1500mm | Overall Size 60.63" x 4 3/8" | Intake sq. in: 31.67
Contact us for quantity and contractors discounts.
