6 inch Tile Insert Invisible Square Shower Drain SereneDrains

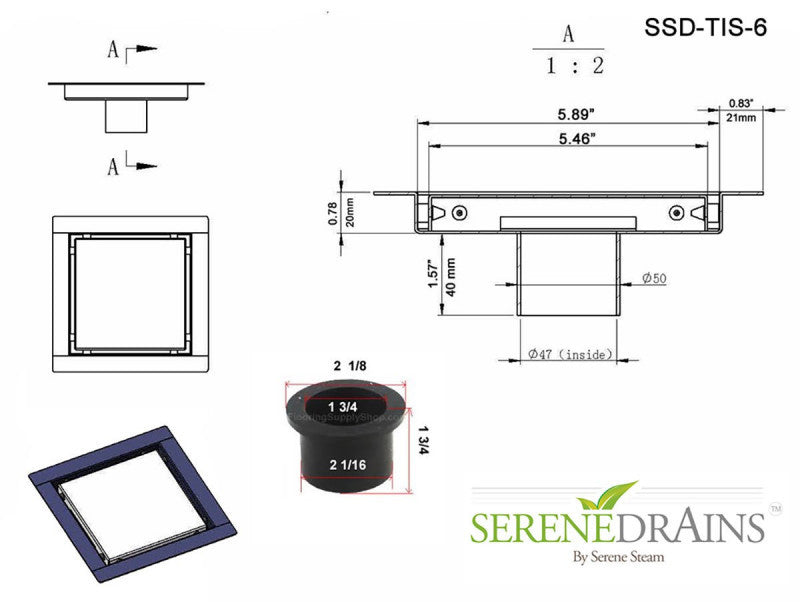

Serene Drains Square Shower Drain Invisible 6 inchApproximate dimensions: Net Size 5 1/2" x 5 1/2" - Overall Size 6 3/4" x 6 3/4"

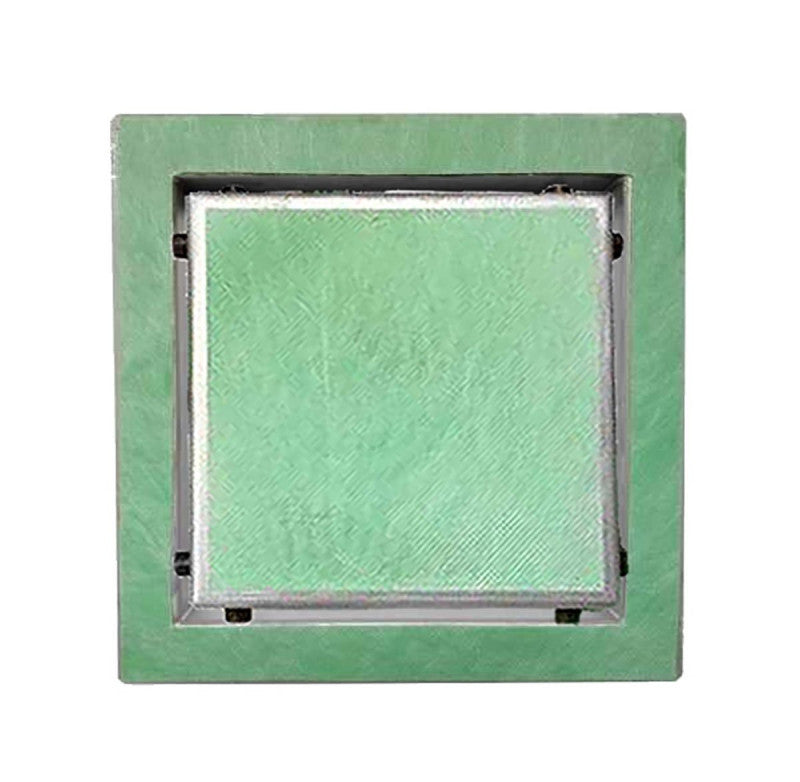

The new trend in shower construction - the Invisible Slim design Shower drain that can be faced with the same tile you are installing on the shower floor to hide the drain completely under the tile.

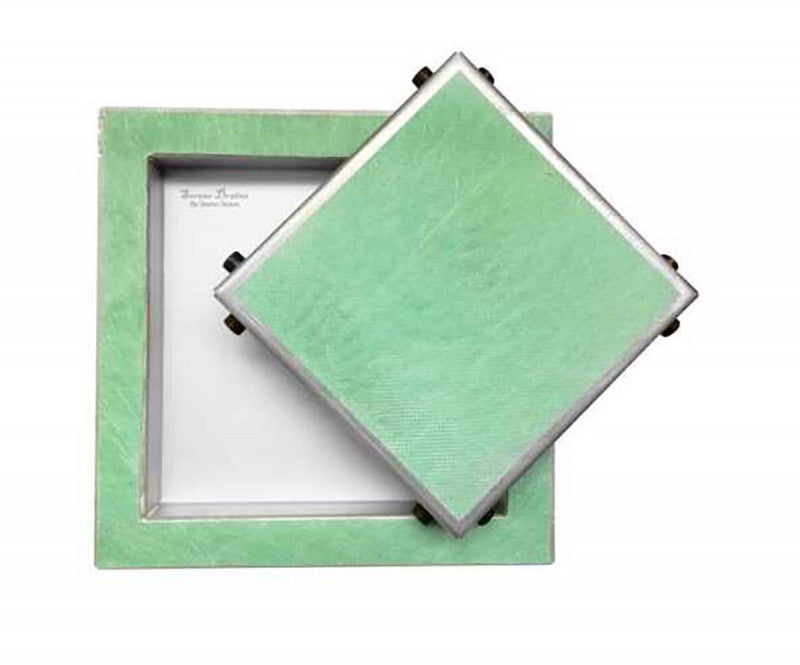

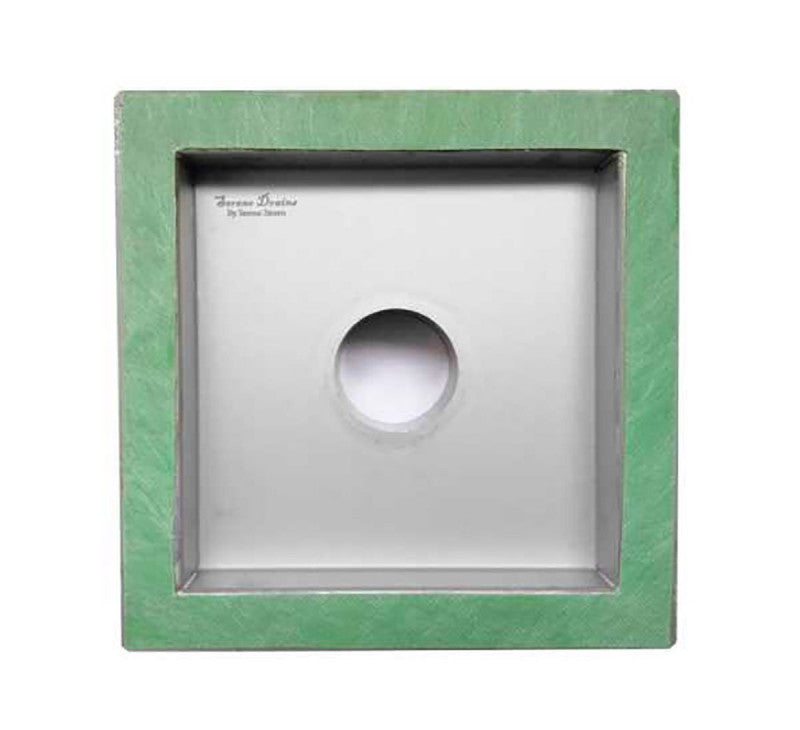

Included: Drain Body, Invisible Square Grate, Drain Rubber Fitting, Drain puller key, Waterproofing membrane on drain flange and center
- Shower channel Grate is grade 16 gauge 304 stainless steel.
- Bodies are fully welded and leak tested prior to dispatch.
- Flange Body Edge designed for use with any and all types of waterproofing.
- Flow rate: 6.36-7.92 GPM US gal /s (0.4 ~ 0.5 l/s)
- 2" diameter Central vertical outlet
Sized to match standard 1/2", 1", 2”, and 4" tile without cutting. When cutting is needed, cuts are straight saw cuts.
Superior Quality. Easily Maintained. No Special Cleaning
Optional: ABS or PVC CPE Membrane Fitting, Clad Flexible Coupling, Stainless Steel Hair Trap
