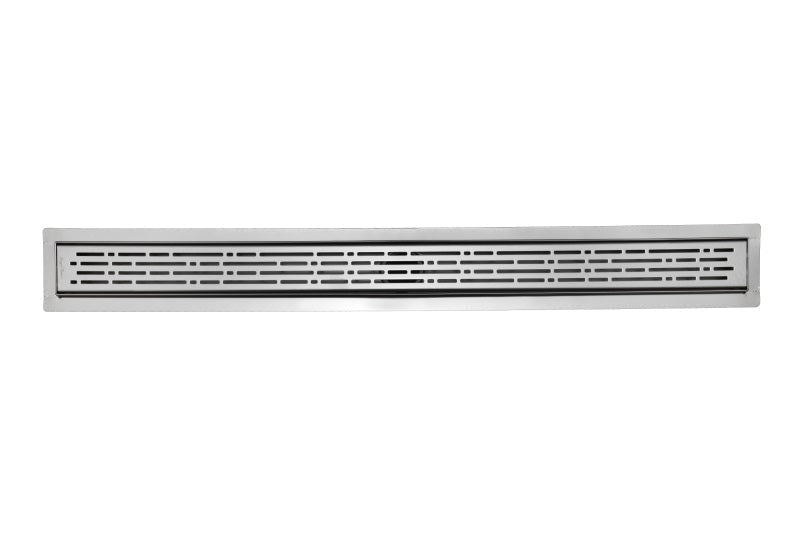

90 Inch Large Linear Shower Drain, Broken Lane Design, Complete Installation Kit

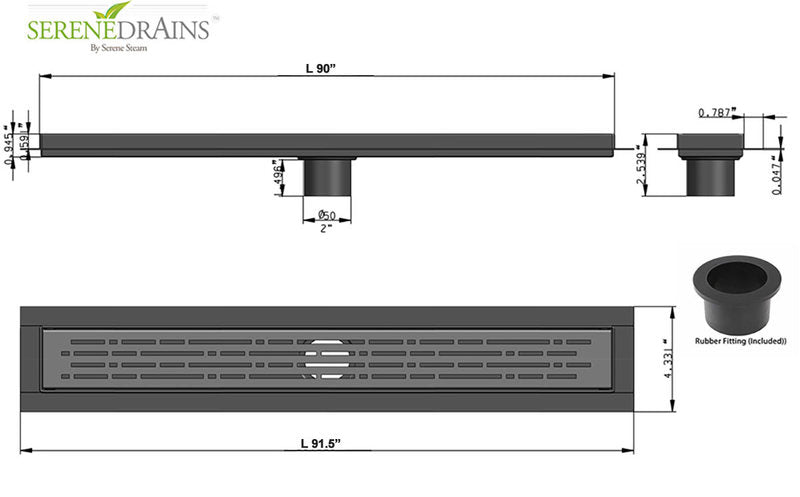

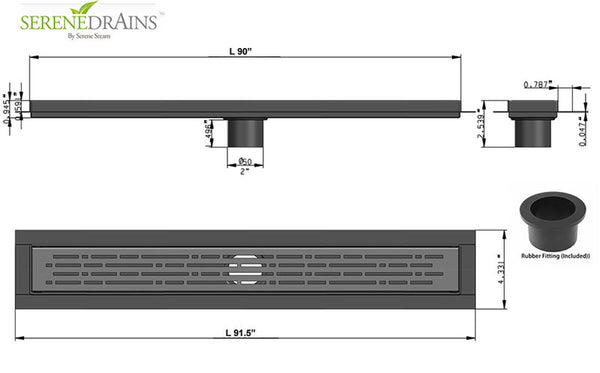

Large Linear Drains, Complete Installation Set: 90 Inch Linear Shower Drain, 2 Inch ABS Shower Drain Base, Hair trap, Broken Lane Brushed Nickel Design, by SereneDrainsNet Size 90" x 2 3/4" | Overall Size 91.5" x 4 3/8" | Intake sq. in: 31.67.
Also Available In: 16", 24", 30", 35", 39", 47", 59", 72", 90".
In stock ready to ship. FREE SHIPPING

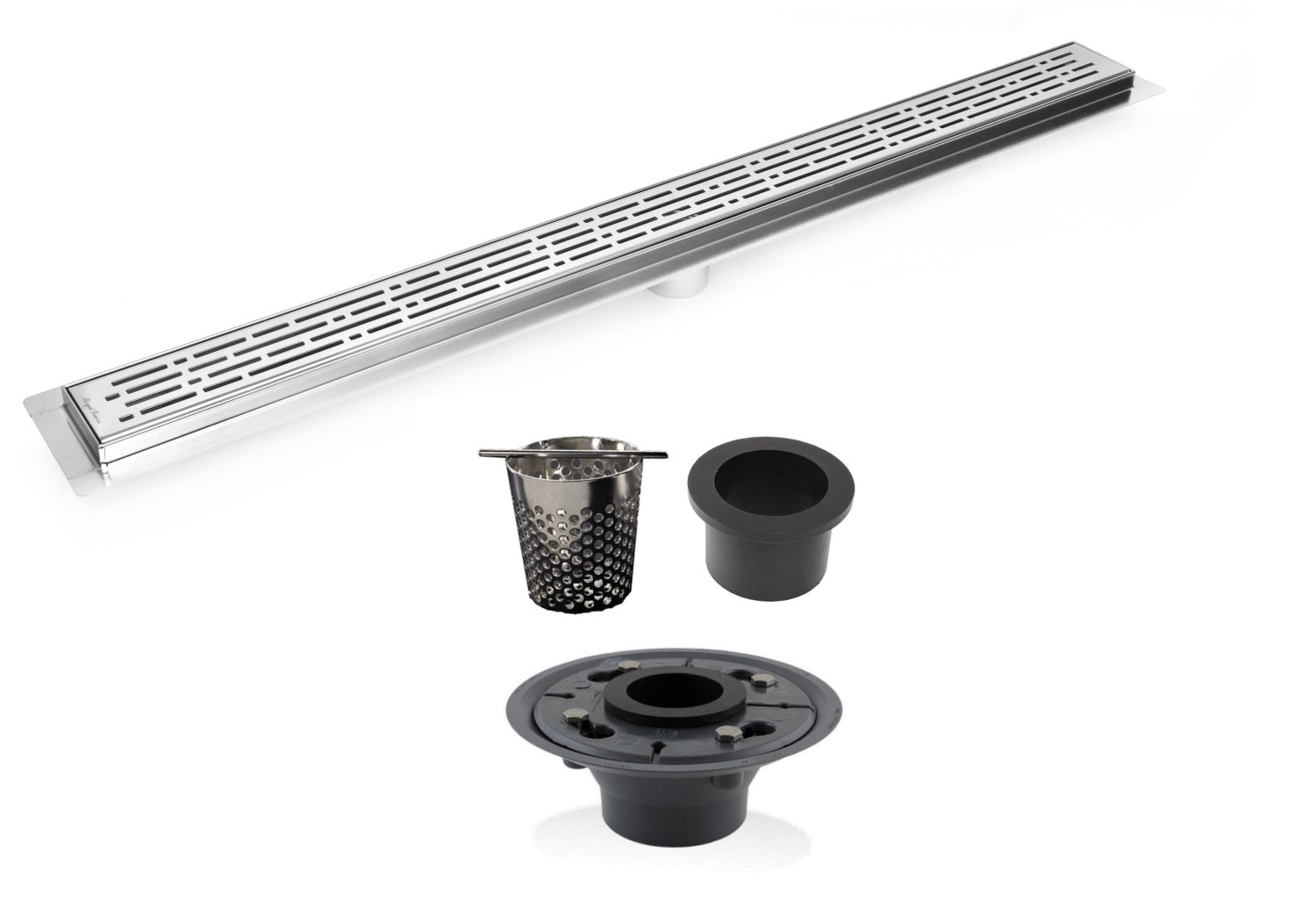

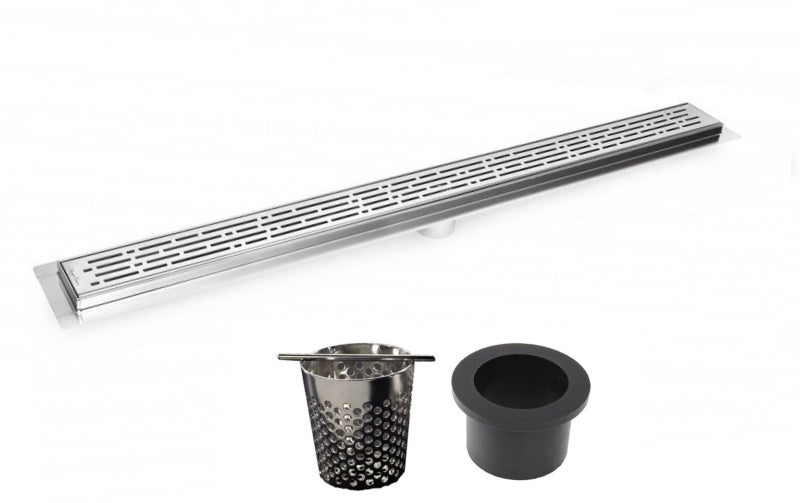

Drain Includes: 100% stainless steel brushed nickel channel body & grate, ABS shower drain base, rubber gasket, hair trap, puller key, waterproofing membrane sheet around the drain flange (not required but included), Installation Instruction. (Hair Trap is a stainless steel strainer that sits inside the 2" diameter outlet. Clean strainer regularly).
Consult your contractor if construction code in your state requires ABS or PVC drain flange (PVC available).
Applications: Shower & bath, kitchen, pools, balconies, hotel rooms, gym, spa etc.
Extra large liner drains - Perfect for wheelchair access & barrier-free showers (walk in floor plans).
- Stainless steel brushed nickel finish.
- Superior quality laser cut electropolish finish.
- Bodies are fully welded and leak tested prior to dispatch.
- 2 Inch diameter central vertical outlet.
- Designed to be installed into any 2" shower drain flange.
- Compatible with tiles up to 10mm depth (14mm lip).
- Sized to match standard 1/2", 1", 2, and 4" tile without cutting.
- Pre-Slope channel. Channel width: 2 3/4" (70 mm).
- Drain grate is 16 gauge 304 stainless steel.
- Flow rate: at entrance of shower - 6.3GPM (0.4 l/s); against the wall - 9.5GPM (0.6 l/s).
- Flange body edge designed for use with all types of waterproofing: hot mop, painted or liquid membranes, sheet membrane, vinyl waterproofing etc.
Available accessories include plumbing connectors (ABS/ PVC flange) and debris strainer. Drain Accessories
30 day return policy. Money back guarantee.
Contact us for quantity discounts
