Lauxes Grates Linear Drain Cut to Size, 8ft Tile Insert Grate Design, 94 Inch Custom Drain for Shower
Available Colors: Brushed Nickel, Silk Silver, Midnight Black, and Matte Gold
Material: Anodized Aluminum

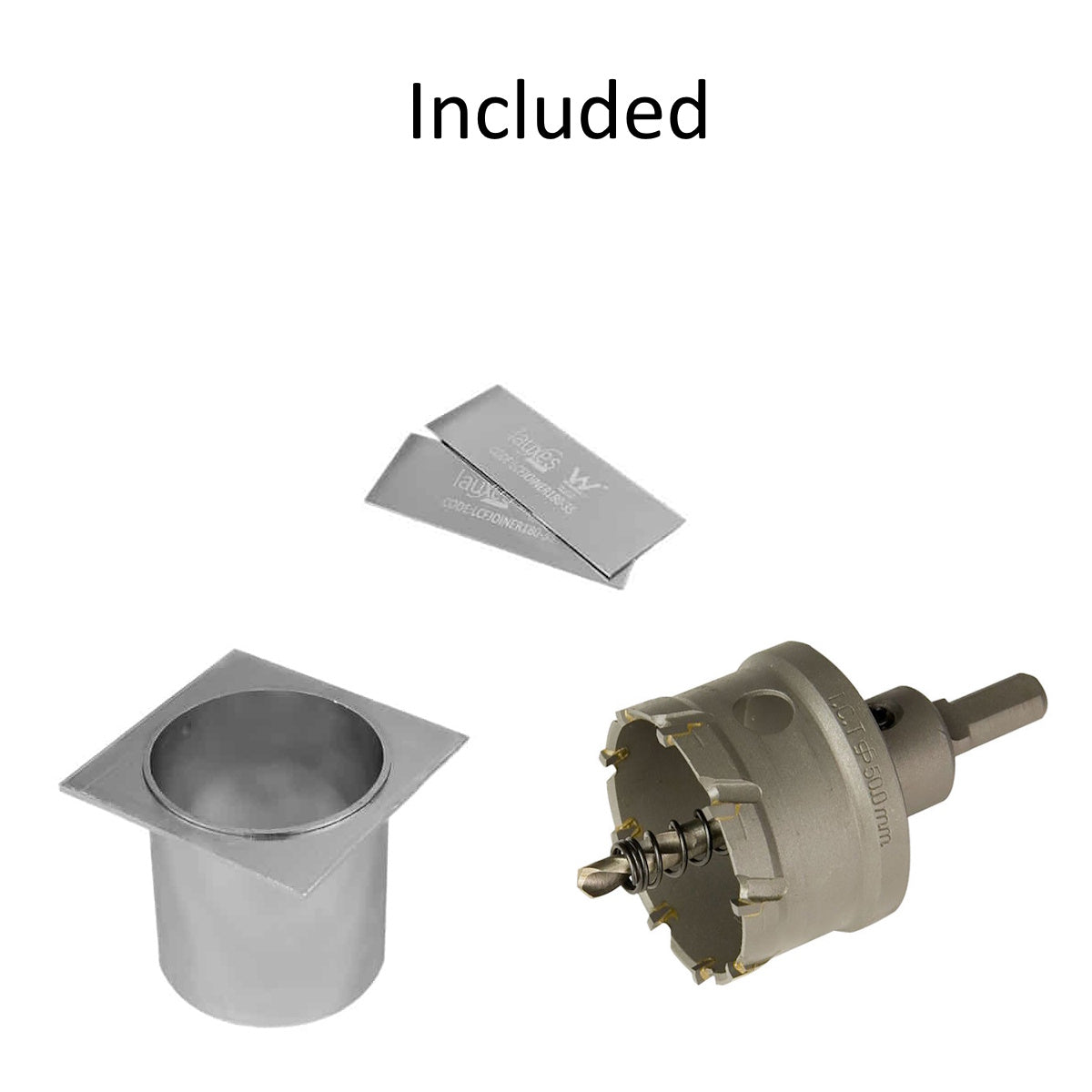

Included: Channel & Grate, Pair of End Caps, Joiners as needed, 2" Waste Outlet, 1 Hole Saw (Per Order). By default, a 2" outlet is supplied. A 3 inch drain outlet with a matching 3" hole saw is available upon request.
If the drain length exceeds 94 inches, multiple shorter drains are shipped and will be joined together at the job site during installation (Easy to cut onsite for desired length).
Lauxes Grates Slimline Tile Insert 26 is the world’s thinnest tile insert grate, ideal for new builds and renovations with height restrictions, making it easier to achieve the proper slope for effective drainage.
Made from anodized aluminum, it is UV-stable and backed by a warranty against fading and rust. Suitable for indoor and outdoor use, it offers a practical, durable, and customizable drainage solution.
This tile insert customized linear drain lets you place the same tile over the drain cover for a hidden, seamless look. It blends into the shower floor while still providing efficient drainage.
Dimensions
-
Length: 94" (2388mm)
-
Width: 4" (100mm)
-
Depth: 1" (26mm)
-
Weight Load Capacity: 10.2 ton – medium duty
Features
- Available in lengths up to 18 ft (ability to extend further using Lauxes joiners)
- Waste outlet can be positioned anywhere along the bottom tray (recommended outlet sizes: 72mm and 80mm)
- Suitable for tiles up to 7/16" (10mm) thick
- Joiners for easy extension
- Applications – Indoor and Outdoor
- Easy roll-out system for cleaning
- UV stable
Key Features
- Rustproof
- Lightweight
- Top grate easily removed for cleaning
- Different color choices to suit application
- Easy to cut to desired length
- No welding required
- No major plumbing involved as waste can be positioned anywhere along the bottom tray
- Ability to extend beyond 5.6m with the use of Custom joiners
CUTTING INSTRUCTIONS AND INSTALLATION
For ease of cutting Custom grates, we recommend using a compound miter saw fitted with a multi-material cutting blade 80 tooth or more. We also recommend using a Custom TCT hole saw to drill the hole for the waste outlet.
- Cut the bottom tray 1/8” (3mm) shorter than desired length to allow end caps to be fitted.
- Cut the top grate 1/32” (1mm) shorter than the bottom tray to allow for easy roll-in of top grate and tidy fit.
- Using a suitable size Custom hole saw for your waste outlet, drill out the hole at the required position to align with the waste pipe in the floor.
- Insert the end caps into bottom tray and secure with a bead of silicone on the outside of tray.
- Place silicone around the lip of the waste outlet and secure to the underside of bottom tray at the recently drilled hole.
- During installation use a template to ensure the grate does not come in contact with any wet cement based products.
- Regular, gentle cleaning with soapy water is recommended. Do not use abrasive cloths or acidic chemicals on the grates.
- When gluing tile, use a neutral cure silicone.
Warranty
Damages arising from improper, insufficient, or negligent care or installation not in accordance with AS/NZS 3500.2 or manufacturer’s specifications will void the product warranty.
If at any time the product itself should develop any defect, Custom Grates agrees to correct the defect(s) without charge to the registered purchaser. This guarantee does not provide coverage of repairs necessitated by normal wear, misuse, accidental damage, or as a result of changes in temperature.
Note: Custom Grates products do not form part of the waterproofing.
All Custom grates and accessories hold UPC Certification.
