SereneDrains Offset Linear Shower Drain Kit with Hair Catcher and Flange Base, 16 Inch Length

Suitable for a variety of shower plans, including:

• The floor joist runs through the center of the shower space, and cutting or drilling into it isn’t possible or allowed.
• The shower floor is made of thick concrete—around 4 inches or more—and moving the drain outlet would be difficult or expensive.
• The existing drain outlet is already positioned to one side of the shower.

Everything you need for a smooth, hassle-free installation is included in this offset linear drain shower kit. It features a secure flange base for compatible installation and a removable hair trap to help prevent clogs. Whether you're a contractor or a DIYer, this kit makes it easy to create a clean, modern look in any bathroom. Designed to work with most waterproofing systems, it’s a smart and reliable choice for streamlined shower upgrades—now available at a discounted price for even greater value.

Note: Consult a plumber if construction code in your state requires ABS, PVC, or cast iron drain flange.

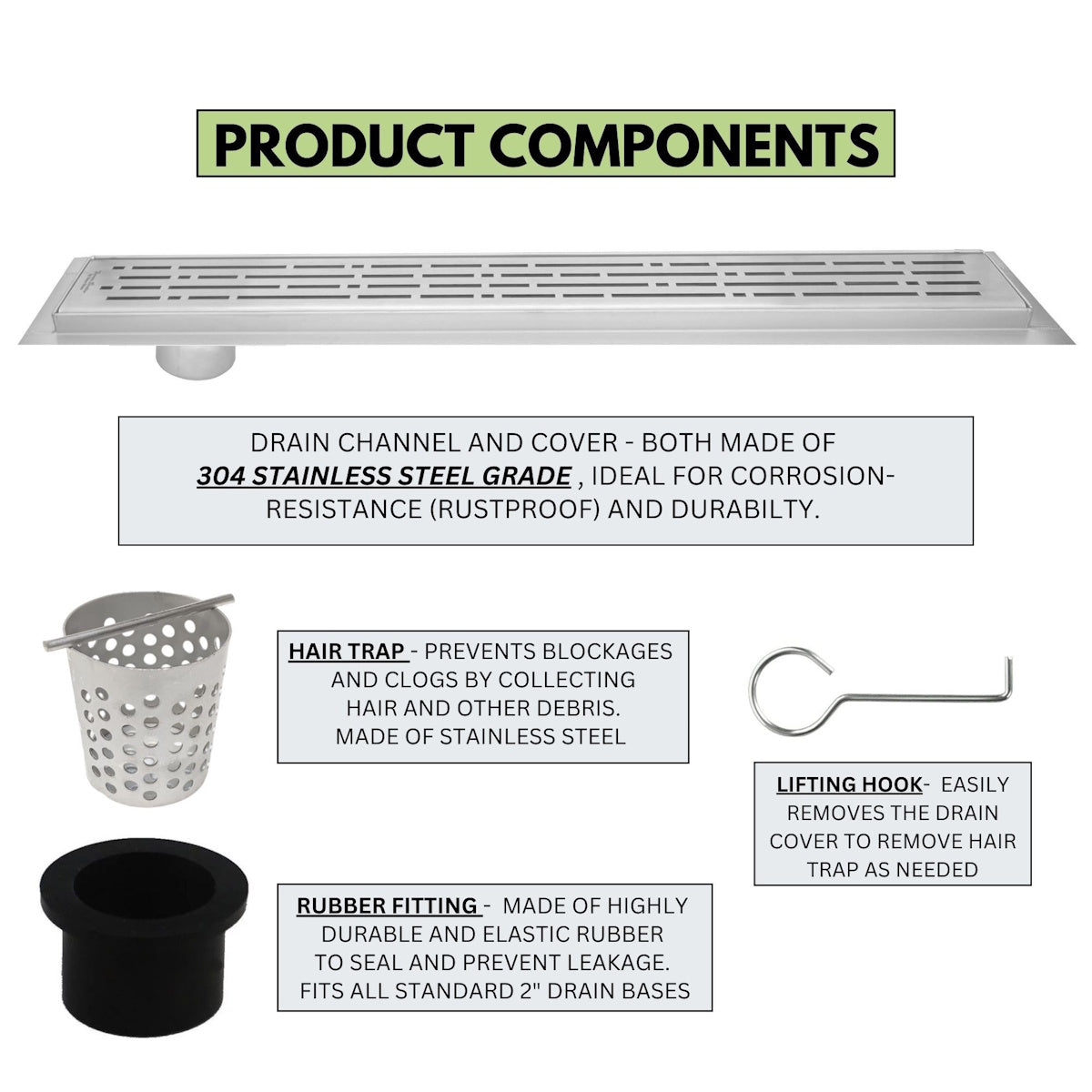

Drain Kit Includes:

• Stainless steel channel body & grate (side outlet located 2.8" on center from drain end)
• Drain flange base with rubber gasket

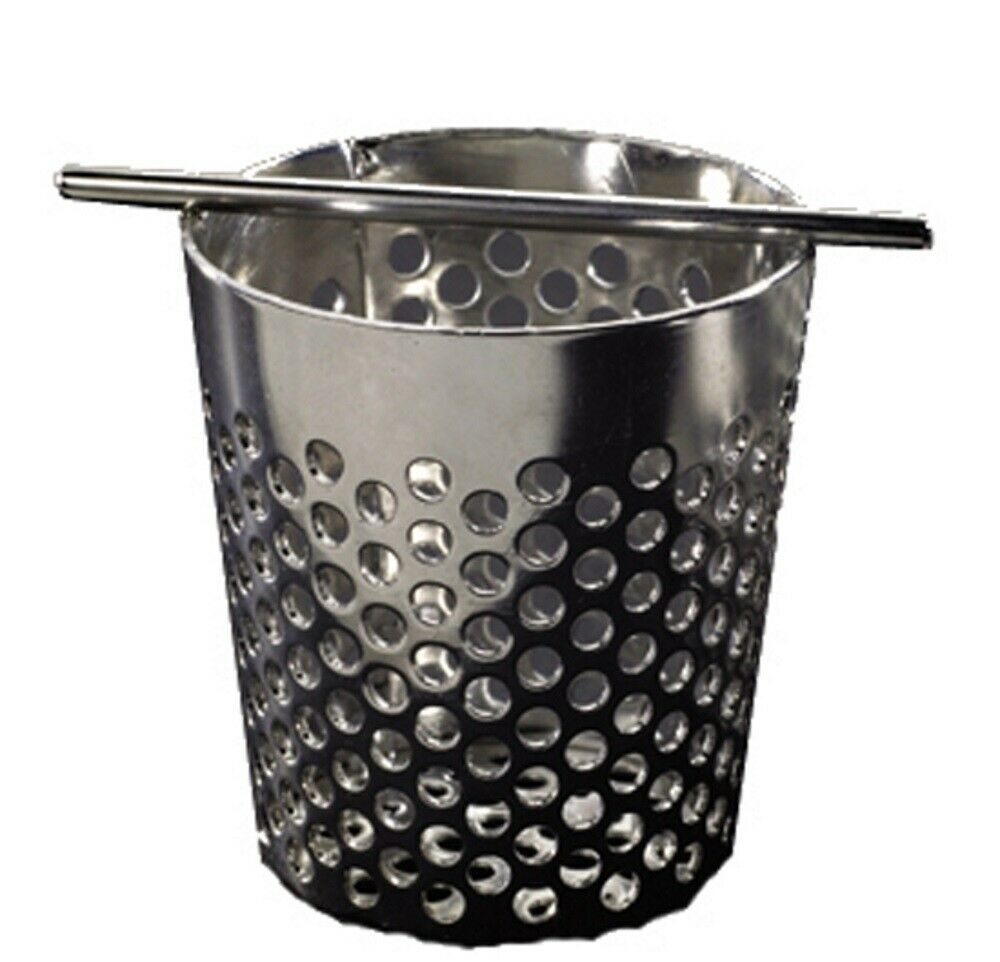

• Hair trap
• Puller key
• Waterproofing membrane sheet for flange (included, but optional)
• Installation instructions

Decorative Grate Designs Available:

• Wave Design
• Square Design
• Broken Lane Design
• Tile Insert Design

Features:

• Brushed stainless steel finish
• Superior quality laser-cut design
• Fully welded bodies, leak-tested prior to shipping
• 2-inch diameter vertical offset outlet; fits any 2" drain flange
• Compatible with tile depths up to 10mm (14mm lip)
• Pre-sloped channel for efficient drainage
• Channel width: 2 3/4" (70 mm)
• Matches standard tile sizes: 1/2", 1", 2", and 4" without cuts
• Drain body is made from 16-gauge 304 stainless steel
  • (Wedge design uses 6-gauge 304 stainless steel)
• Flow rate:
  • At shower entrance – 6.3 GPM (0.4 L/s)
  • Against the wall – 9.5 GPM (0.6 L/s)

Perfect for wheelchair-accessible and barrier-free (walk-in) showers.

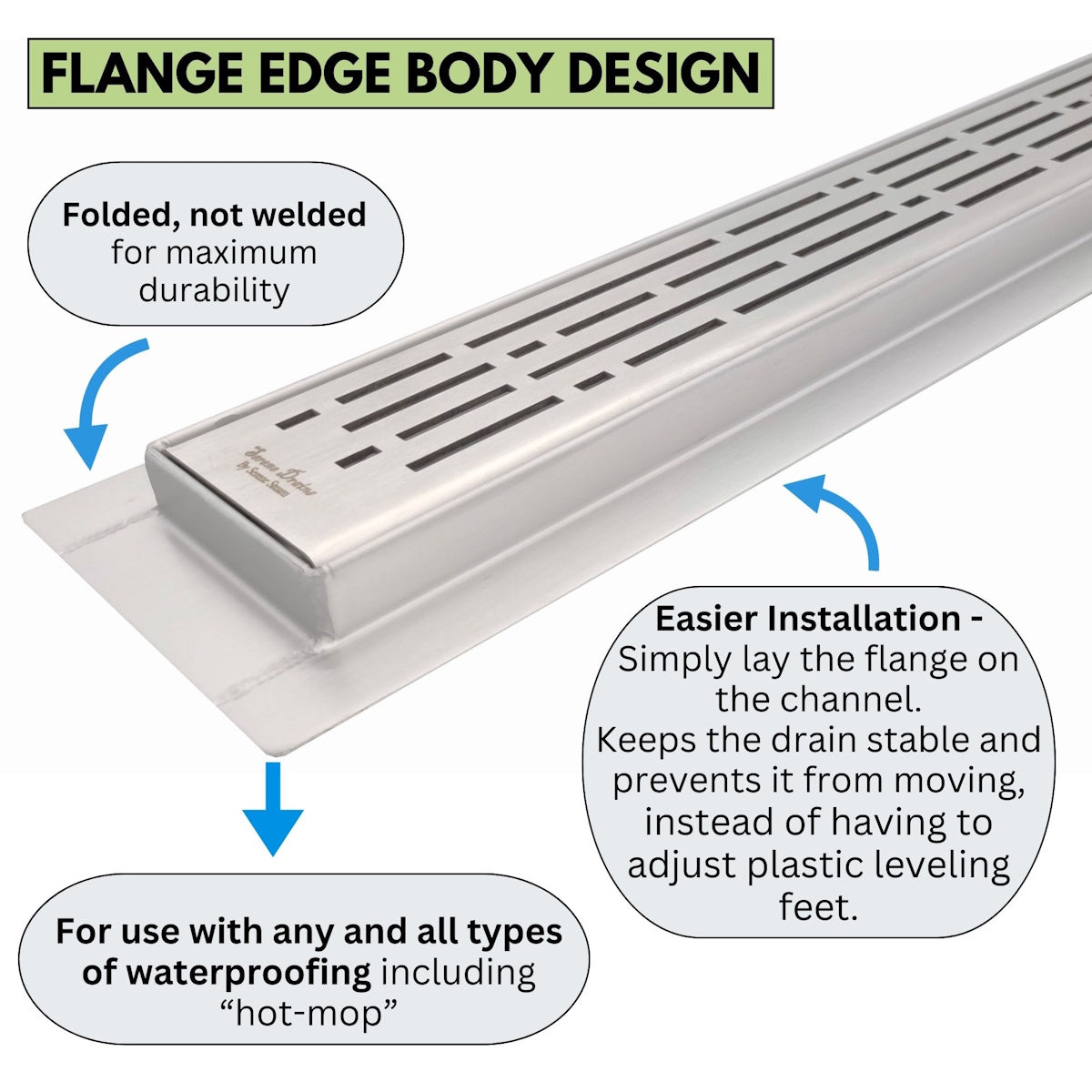

The flange body edge is compatible with all types of waterproofing: hot mop, liquid membranes, sheet membranes, vinyl liners, and more.

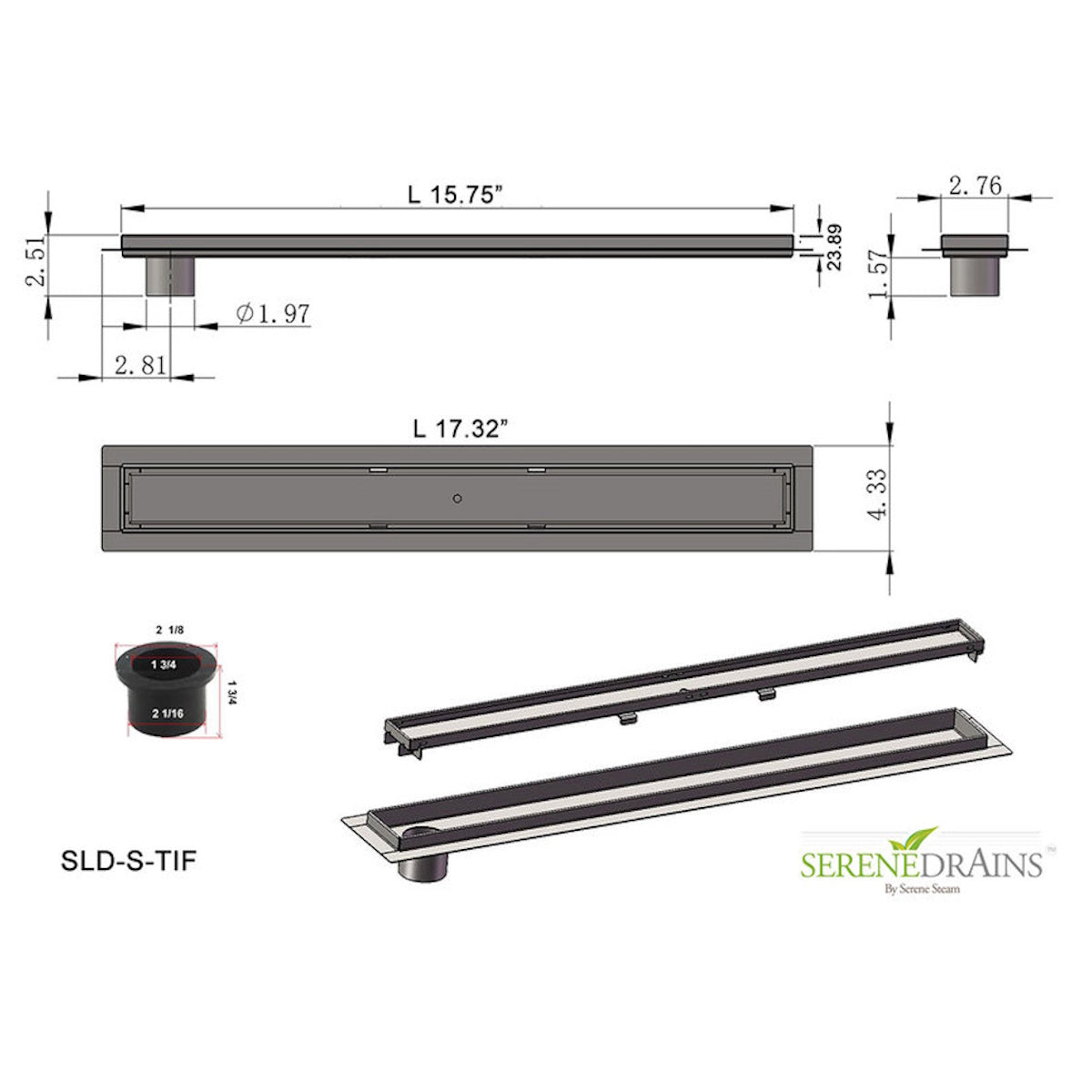

Drain Dimensions (Net Size | Overall Size | Intake Area):

• 15 3/4" x 2 3/4" (400 mm) | 17 1/4" x 4 3/8" | 12.38 sq. in.
• 23 1/2" x 2 3/4" (600 mm) | 25.2" x 4 3/8" | 14.96 sq. in.
• 30" x 2 3/4" (762 mm) | 31.57" x 4 3/8" | 17.62 sq. in.
• 35 3/8" x 2 3/4" (900 mm) | 37.01" x 4 3/8" | 20.03 sq. in.
• 39 3/8" x 2 3/4" (1000 mm) | 40.95" x 4 3/8" | 21.12 sq. in.
• 47 1/4" x 2 3/4" (1200 mm) | 48.82" x 4 3/8" | 26.68 sq. in.
• 59.05" x 2 3/4" (1500 mm) | 60.63" x 4 3/8" | 31.67 sq. in.

In stock and ready to ship from the USA. Free shipping included.
