SereneDrains 24 Inch Linear Shower Drain Kit with Hair Trap & Flange for Easy Installation, 2 Foot Shower Drains

A complete set for a hassle-free installation is included with this 2 foot linear shower drain. It features a flange base for easy, compatible installation and a removable hair trap to help prevent clogs. Whether you're a contractor or a DIY enthusiast, this 2 foot drain makes it simple to create a modern, upscale look in any bathroom. SereneDrains are designed to work with most waterproofing systems, making them a smart and reliable choice for streamlined shower upgrades—and now available at a reduced, discounted price for even greater value.

Drain Includes:

• Stainless steel channel body & grate
• Drain flange base with rubber gasket

• Hair trap
• Puller key
• Waterproofing membrane sheet around the drain flange (not required but included)
• Installation instruction

Note: Consult your contractor if construction code in your state requires ABS, PVC, or Cast Iron drain flange.

6 Decorative Designs Available:

• Wind Design
• Wave Design
• Square Design
• Broken Lane Design
• Tile Insert Design
• Linear Wedge Design

Features:

• Stainless steel brushed nickel finish 2 foot linear drain
• Superior quality laser cut electropolish finish
• Bodies are fully welded and leak tested prior to dispatch
• 2 Inch diameter central vertical outlet, designed to be installed into any 2" shower drain flange
• Compatible with tiles up to 10mm depth (14mm lip)
• Pre-slope channel. Channel width: 2 3/4" (70 mm)
• Drains are sized to match standard 1/2", 1", 2", and 4" tile without cutting
• Drain grade is 16 gauge 304 stainless steel (The Wedge design grade is 6 gauge 304 stainless steel)
• Flow rate: at entrance of shower – 6.3 GPM (0.4 l/s); against the wall – 9.5 GPM (0.6 l/s)

Perfect for: Wheelchair access & barrier-free showers (walk-in floor plans)

Flange body edge designed for use with all types of waterproofing: hot mop, painted or liquid membranes, sheet membrane, vinyl waterproofing, etc.

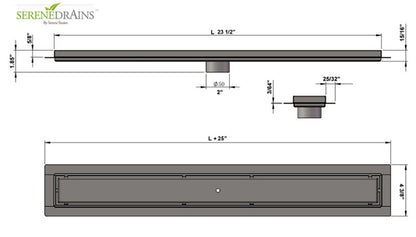

Drain Dimensions:

• Net Size 15" 3/4" x 2 3/4" (400mm) | Overall Size 17" 1/4" x 4 3/8" | Intake sq. in: 12.38
• Net Size 23" 1/2" x 2 3/4" (600mm) | Overall Size 25.2" x 4 3/8" | Intake sq. in: 14.96
• Net Size 30" x 2 3/4" (762mm) | Overall Size 31.57" x 4 3/8" | Intake sq. in: 17.62
• Net Size 35" 3/8" x 2 3/4" (900mm) | Overall Size 37.01" x 4 3/8" | Intake sq. in: 20.03
• Net Size 39" 3/8" x 2 3/4" (1000mm) | Overall Size 40.95" x 4 3/8" | Intake sq. in: 21.12
• Net Size 47 1/4" x 2 3/4" (1200mm) | Overall Size 48.82" x 4 3/8" | Intake sq. in: 26.68
• Net Size 59.05" x 2 3/4" (1500mm) | Overall Size 60.63" x 4 3/8" | Intake sq. in: 31.67

Also available:

If you need to customize the size of a linear drain or the location of the outlet, we’ve got you covered! Explore our excellent line of Custom Length Linear Shower Drains.

We also offer Side Outlet Linear Shower Drains in a variety of sizes, providing versatile options to suit any bathroom style and installation need.

In stock, ready to ship from the USA. Free Shipping.
