SereneDrains 24" Side Outlet Linear Shower Drain for Barrier-Free, Curbless & Showers with Center Floor Joists

A 24" linear shower drain with a side (offset) outlet, designed for installations where the drain cannot be centered due to joists, concrete slabs, or existing plumbing.

When to Use an Offset Outlet Linear Drain

An offset outlet linear drain is the right choice in the following situations:

Joist in the Center of the Shower

If a floor joist runs through the center of the shower opening and drilling or notching is not an option, an offset outlet allows the waste line to be moved toward the side without structural changes.

Concrete Slab Showers (4" or Thicker)

When the shower is built on a 4-inch or thicker concrete slab, relocating the drain can be expensive and invasive. A side outlet drain works with the existing slab layout and avoids unnecessary concrete cutting.

Existing Side Drain Location

If the plumbing stub-out is already positioned along the side of the shower, an offset outlet drain aligns directly with the existing pipe, saving time and labor.

Additional Notes

• Always confirm proper slope and waterproofing before selecting drain placement
• Consult a qualified professional if unsure which drain configuration is best
• Central vertical outlet linear drains and other configurations are also available

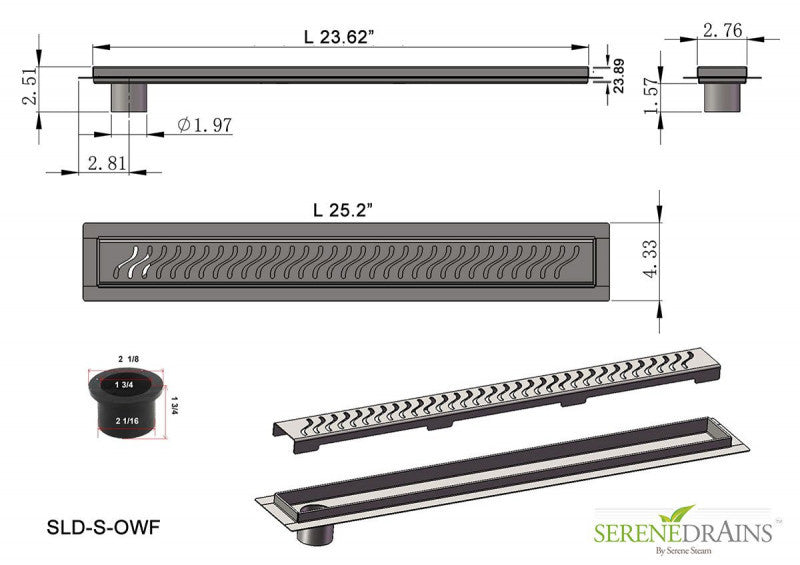

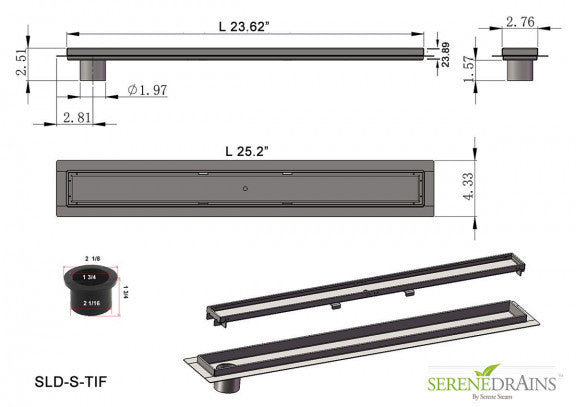

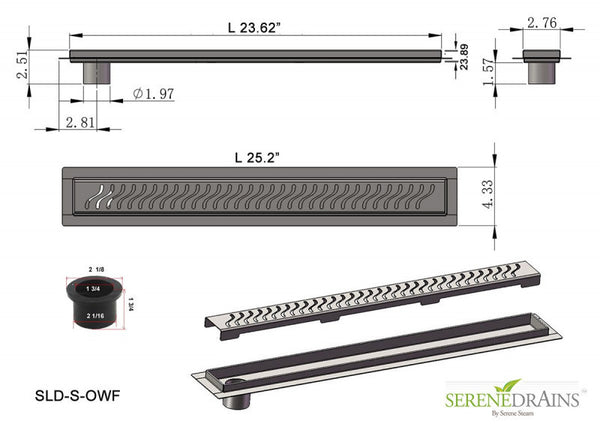

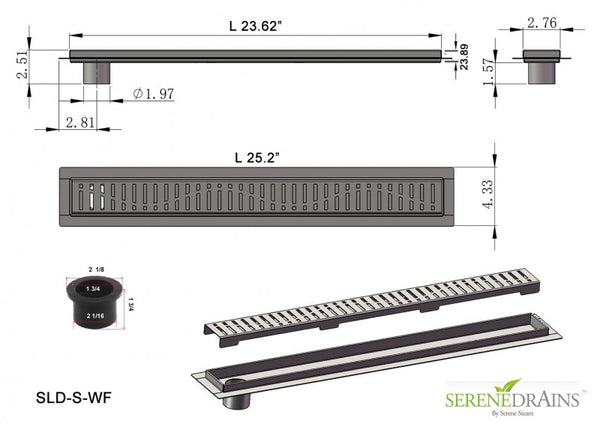

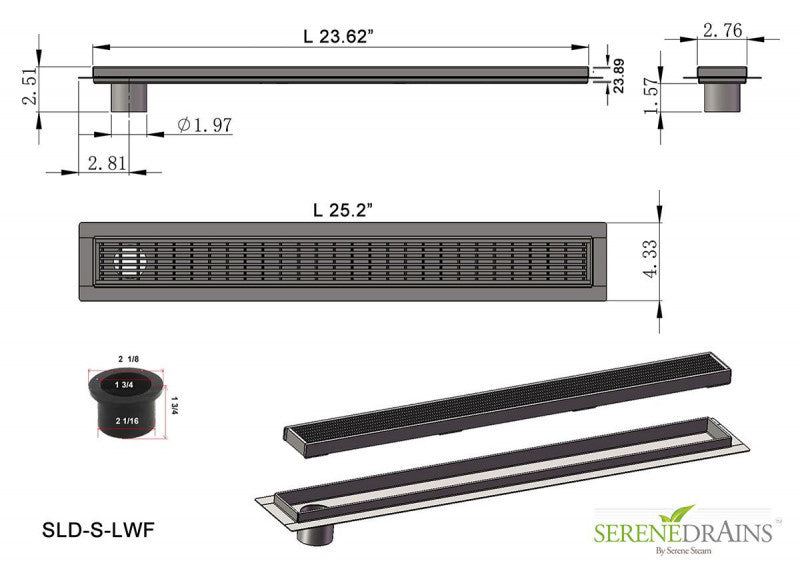

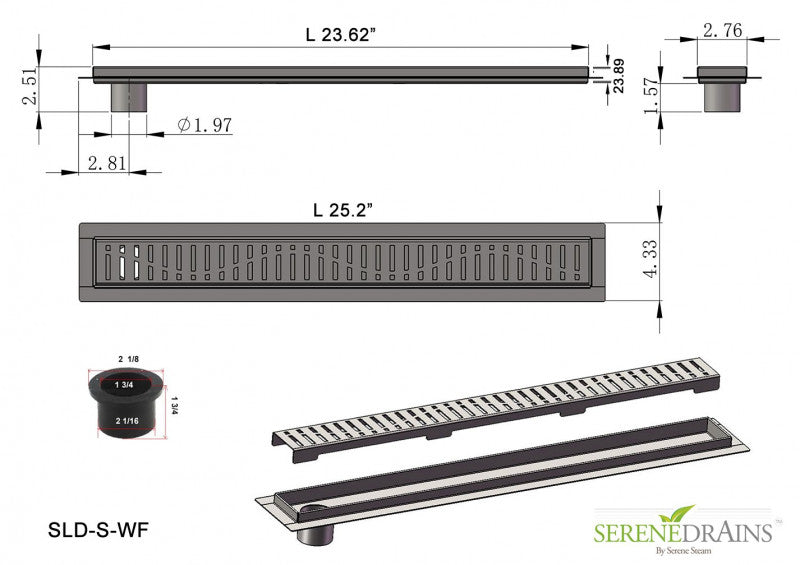

Size Details

• Marketed size: 24" linear drain
• Actual drain channel length: 23 1/2"
• Channel width: 2 3/4"
• Overall outside size: 25.2" × 4 3/8"
• Open grate intake area: 14.96 sq. in.

Sizes Available

16", 24", 30", 36", 40", 48", 60"

Available Grate Designs (6)

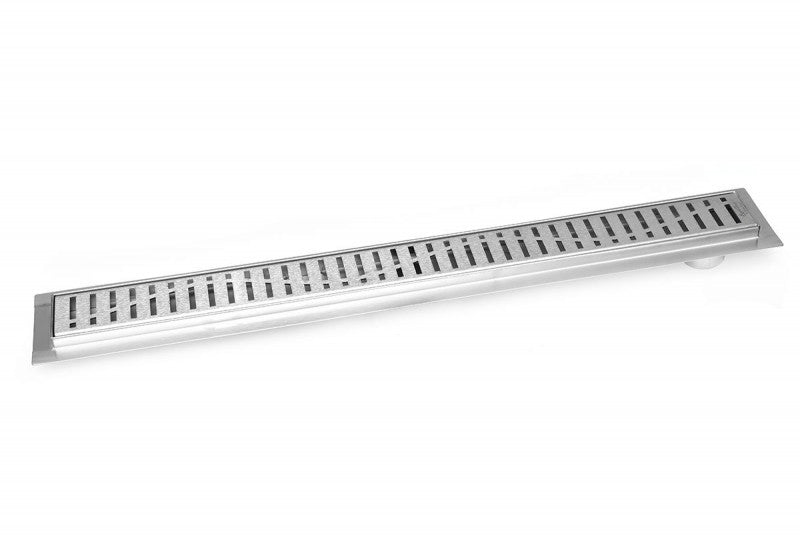

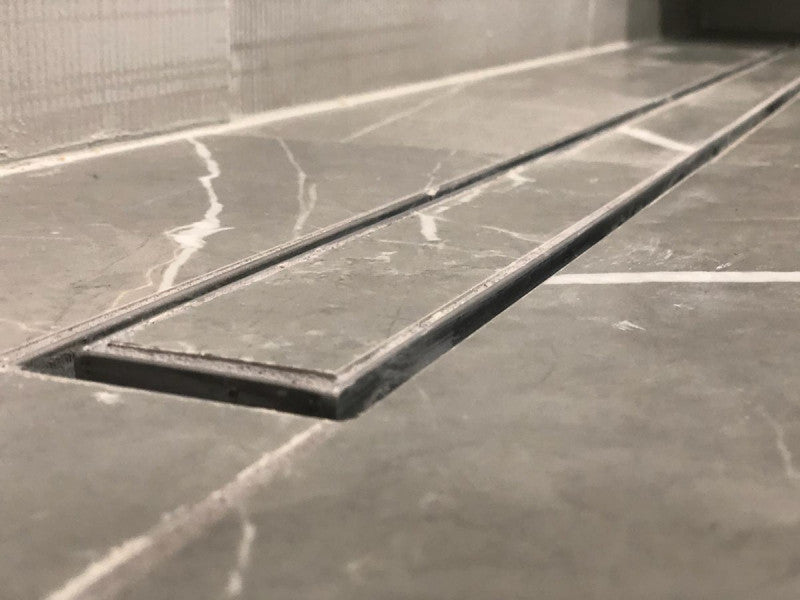

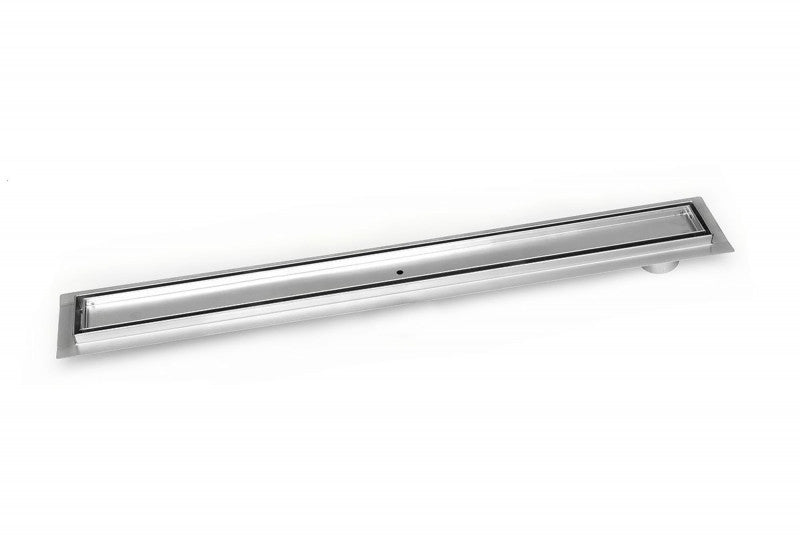

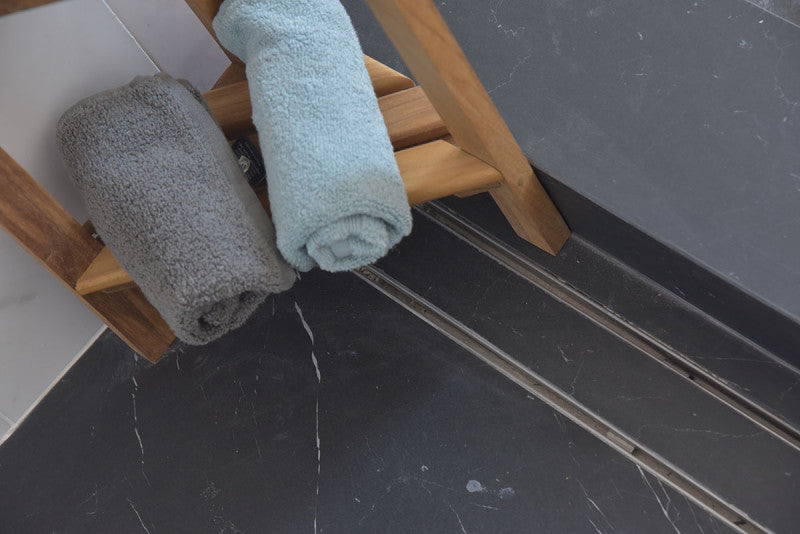

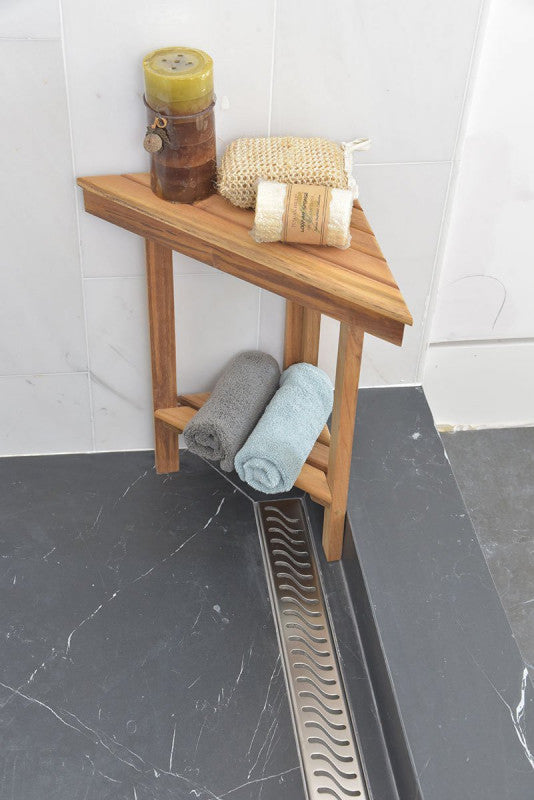

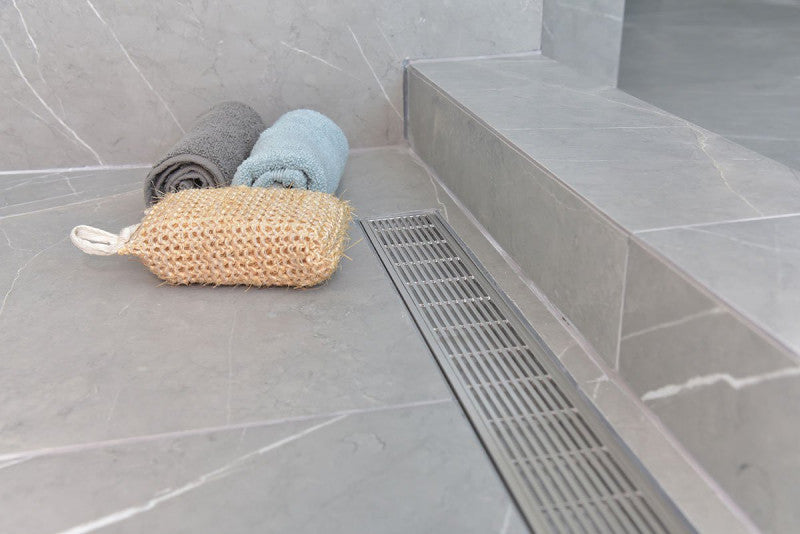

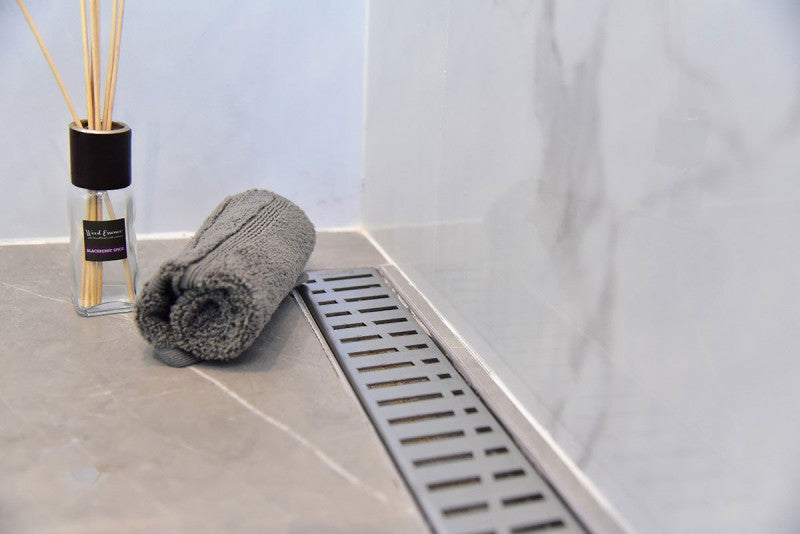

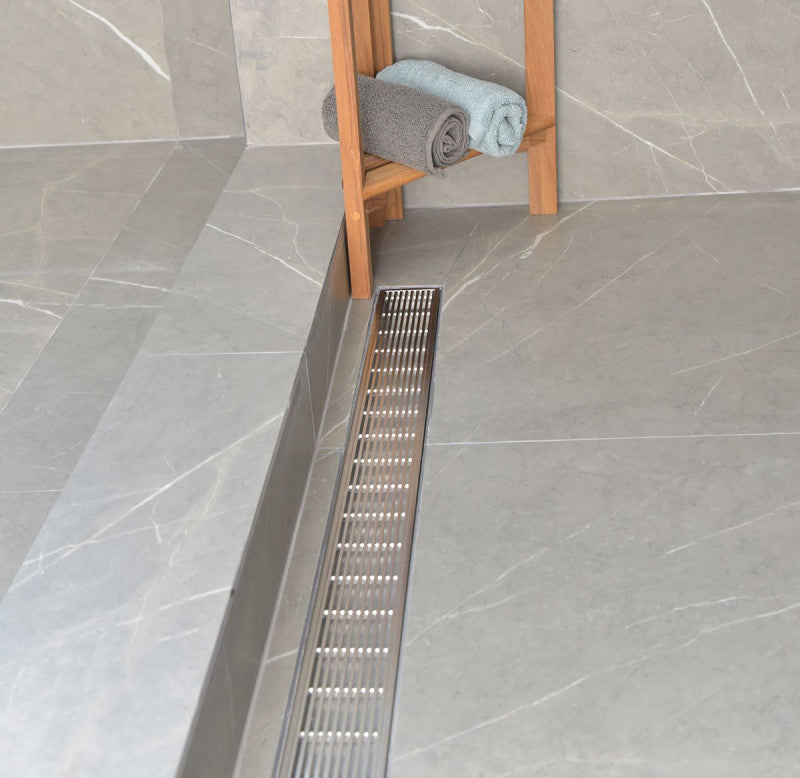

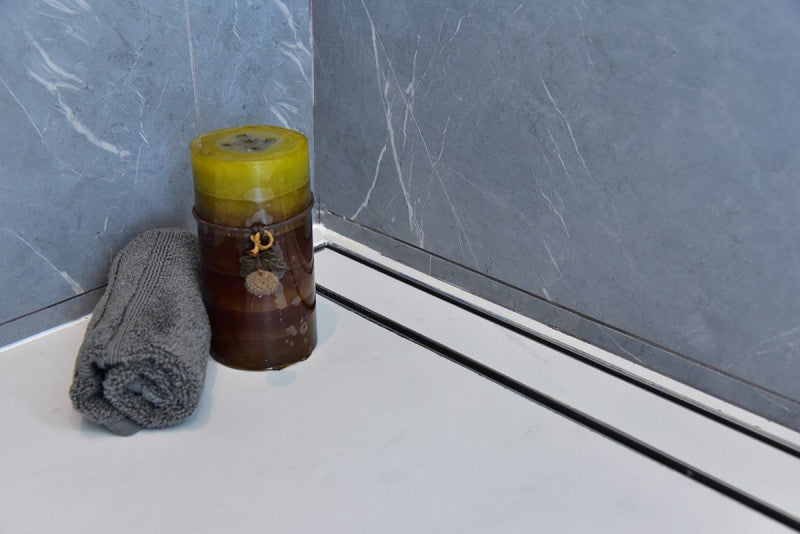

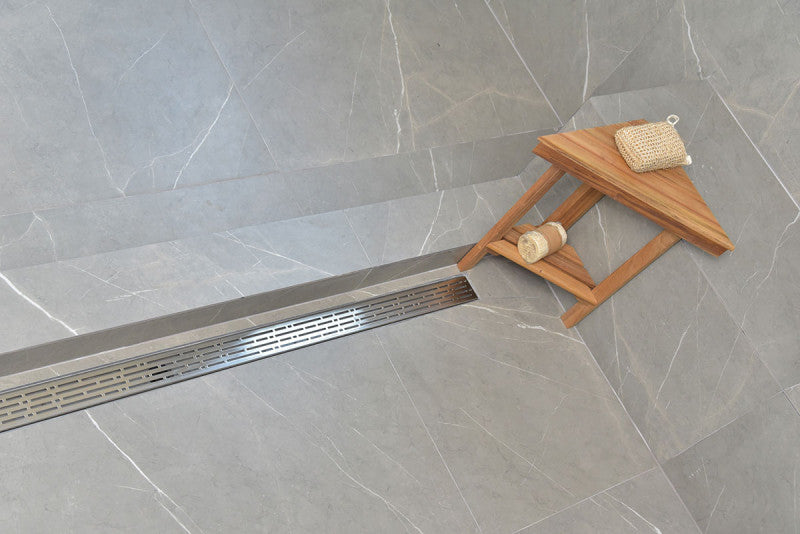

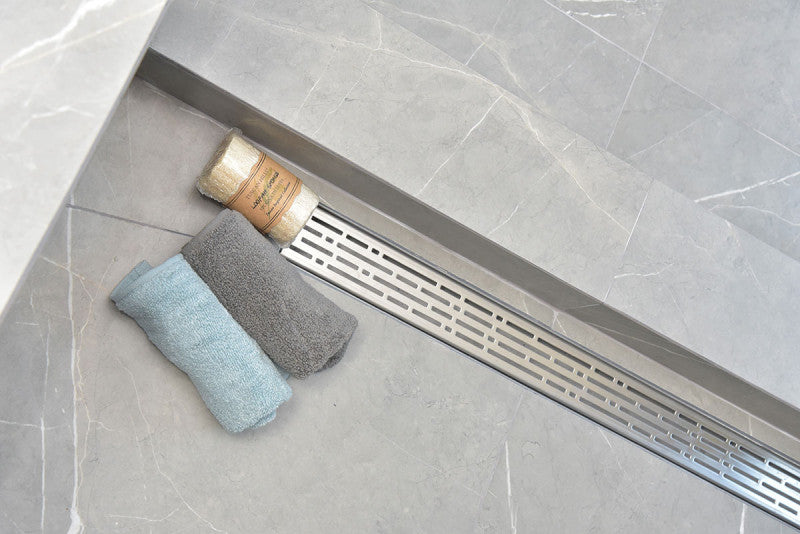

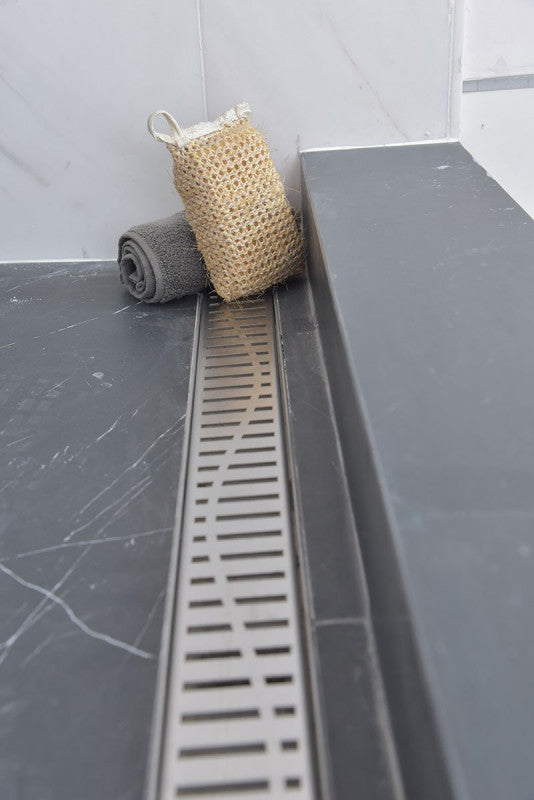

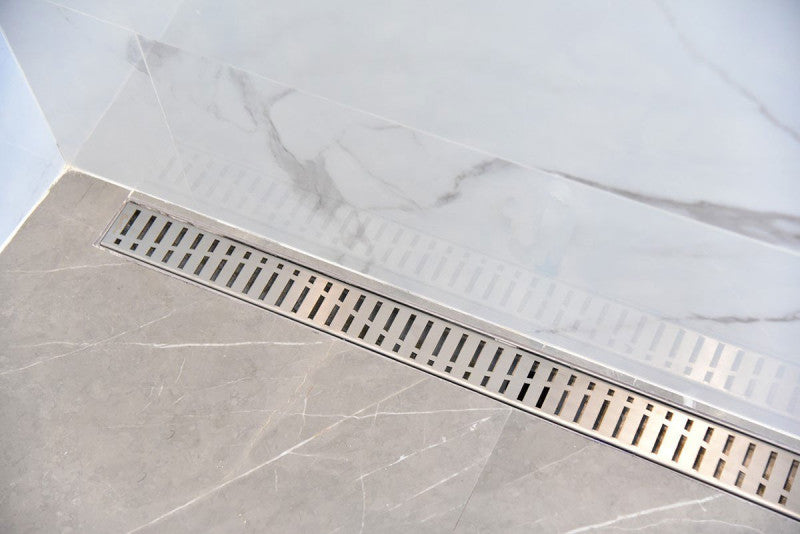

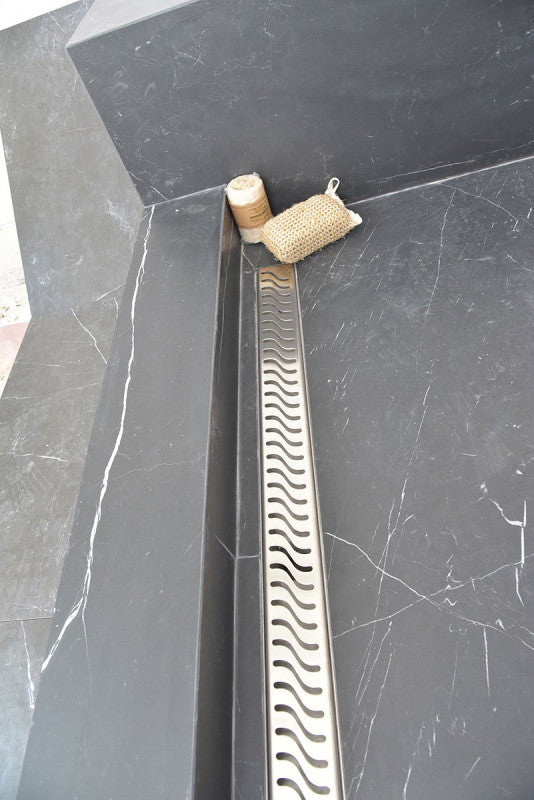

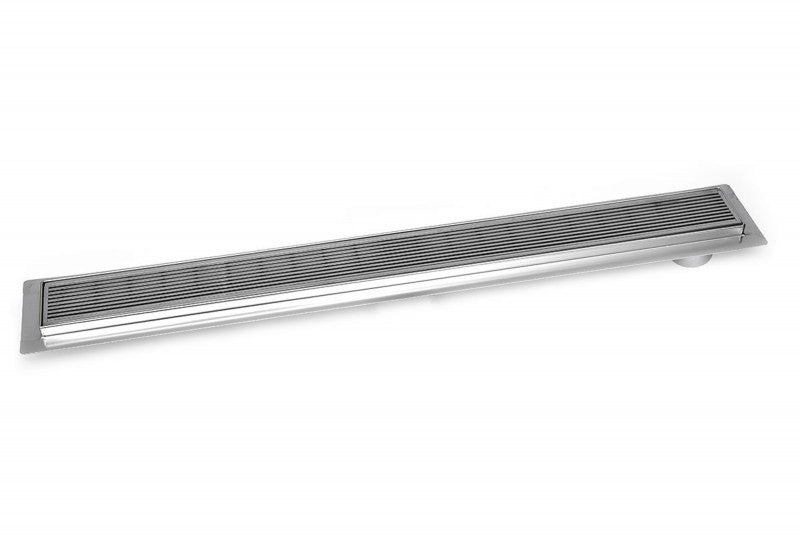

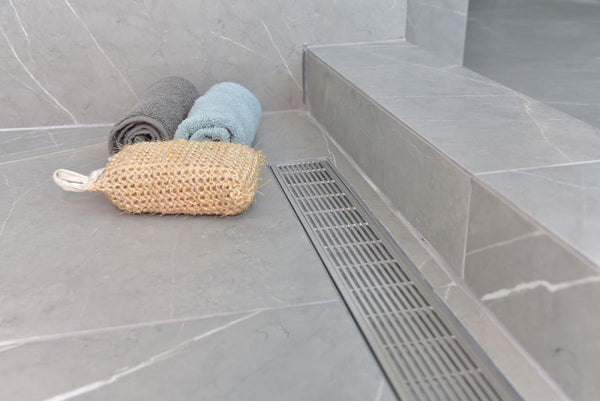

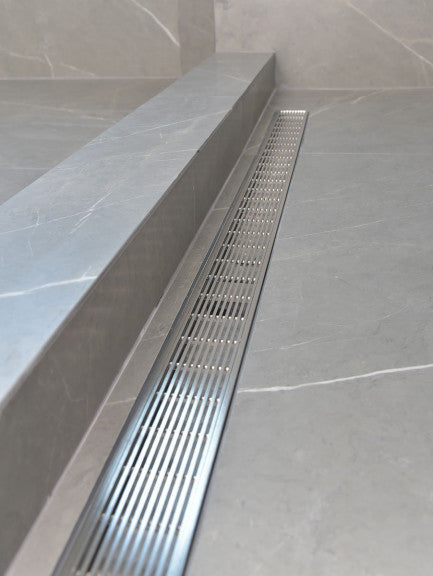

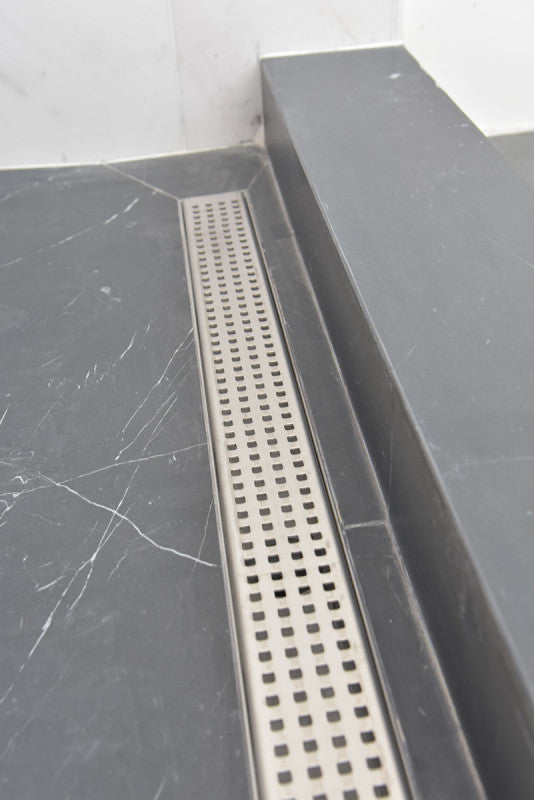

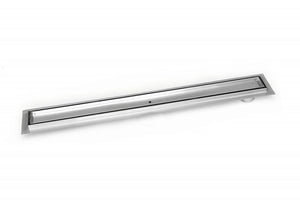

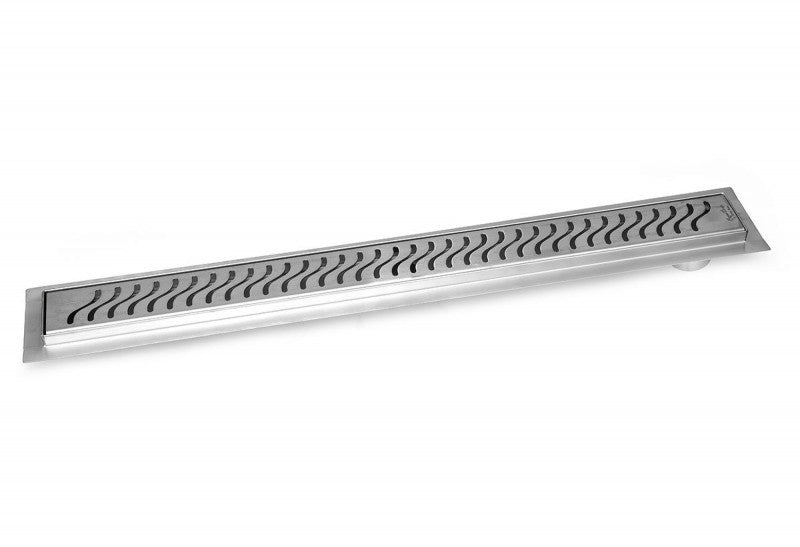

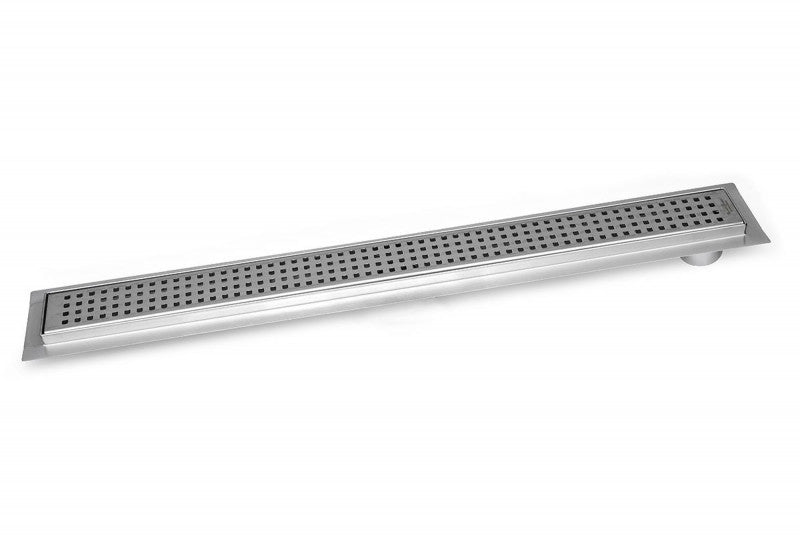

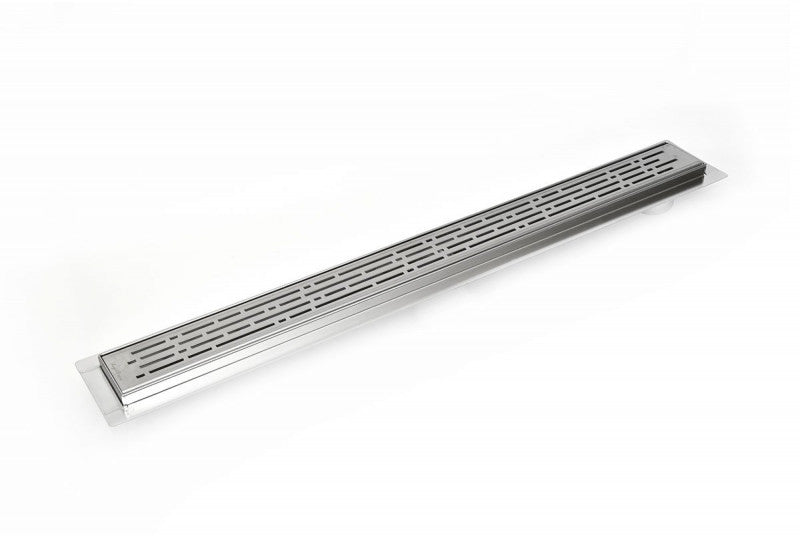

Tile Insert Design · Ocean Wave Design · Traditional Square Design · Broken Lane Design · Linear Wedge Design · Wind Design

What’s Included

• Stainless steel channel body and grate
• Puller key
• Waterproofing membrane sheet around the drain flange (optional to use, included for convenience)
• Rubber gasket
• Installation instructions

Applications

• Barrier-free and wheelchair-accessible showers, including curbless and walk-in designs, when properly sloped
• Residential showers in new construction or remodels where floor joists prevent a centered drain outlet

Key Features

• 2" side outlet with drain apex 2.8" off-center from the drain end
• Fits standard 2" shower drain flanges
• Brushed stainless steel finish
• Laser-cut, electropolished surface
• Fully welded body, leak-tested before shipping
• Compatible with tile up to 10 mm thickness (14 mm lip)
• Pre-sloped channel for efficient drainage
• Channel width: 2 3/4" (70 mm)
• Designed to align with standard 1/2", 1", 2", and 4" tile layouts
• Constructed from 16-gauge 304 stainless steel

Flow Rate

• At shower entrance: 6.3 GPM (0.4 l/s)
• Against the wall: 9.5 GPM (0.6 l/s)

Flow depends on slope, piping, and installation conditions.

Flange edge compatible with all common waterproofing systems: liquid-applied, sheet membrane, hot mop, vinyl, and more.

Optional Accessories (Not Included)

• ABS or PVC drain base flange.
• Debris strainer to prevent clogs and simplify cleaning
• Full linear drains installation kit available, including a hair trap and base flange for a complete, ready-to-install solution
