30" Invisible Linear Shower Drain – Hidden Tile-Over Design | SereneDrains

30" Invisible Linear Shower Drain – Hidden Tile-Over Design by SereneDrains

Create a Seamless Shower Floor with an Invisible Tile-Over Linear Shower Drain

The SereneDrains 30" Invisible Linear Shower Drain is designed to disappear into your shower floor. Instead of a traditional exposed metal grate, this hidden tile-over linear shower drain allows your shower tile to continue over the drain, creating a clean, uninterrupted floor with no visible drain grate or surrounding metal frame.

Perfect for custom tile showers, walk-in showers, curbless bathrooms, and ADA-compliant barrier-free showers, this slim linear shower drain combines modern design with professional-grade performance and long-lasting durability.

Product Details

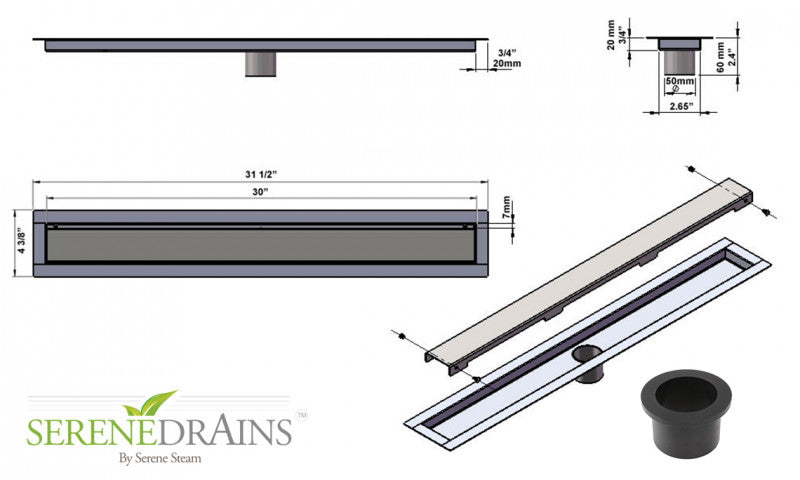

• Net Size: 30" × 2 3/4" (762 mm)
• Overall Size: 31.57" × 4 3/8"
• Intake Area: 17.62 sq. in.
• Outlet: 2" Central Vertical Outlet
• Channel Width: 2 3/4" (70 mm)
• Available Sizes: 16", 24", 30", 35", 39", 47", and 59"
• Availability: In Stock – Ready to Ship
• Shipping: Free Shipping

What's Included

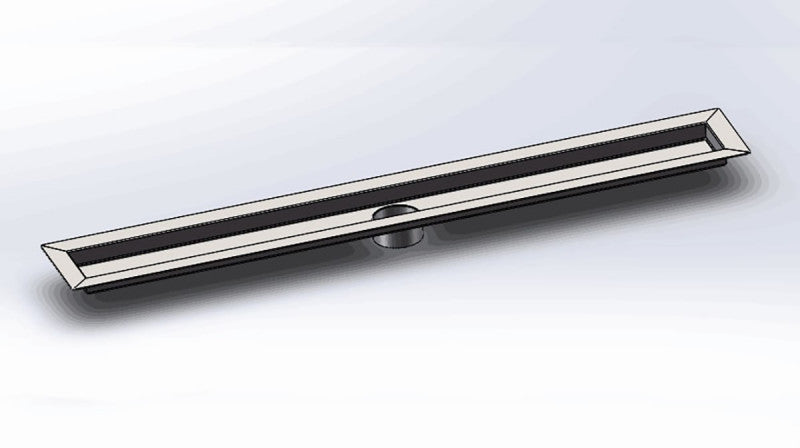

• 16-gauge 304 stainless steel channel body

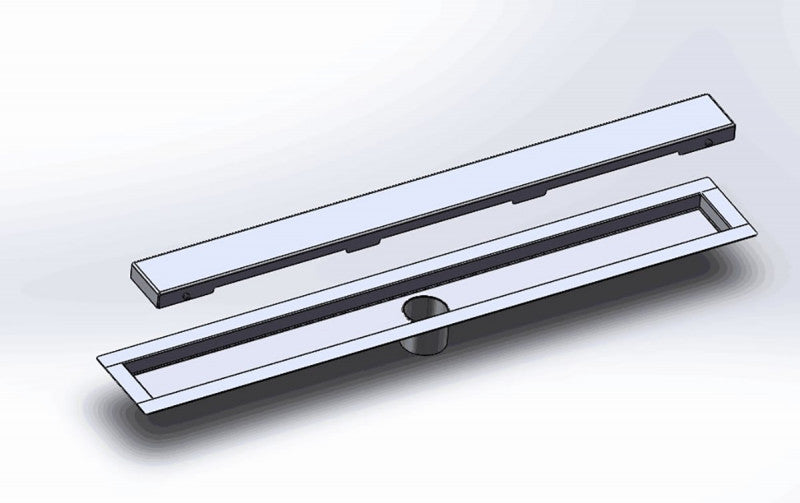

• Hidden tile-over grate
• Puller key
• Free Hair Strainer
• Rubber Sealing Gasket

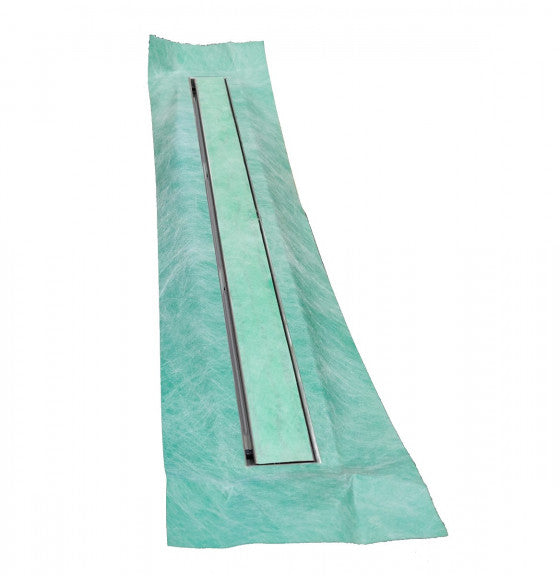

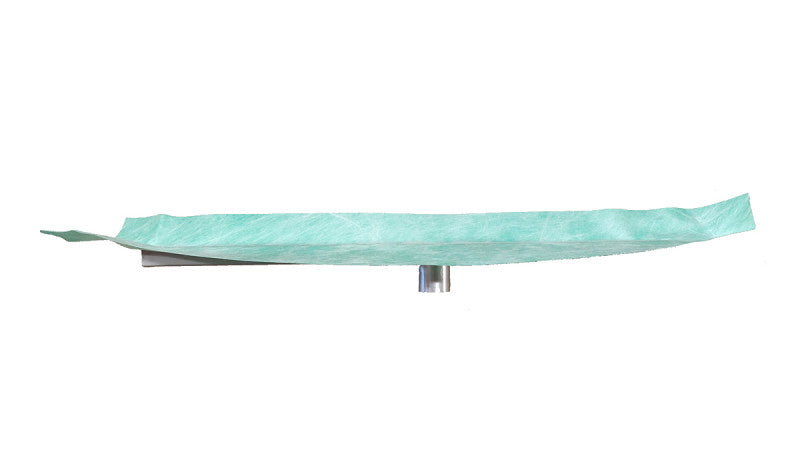

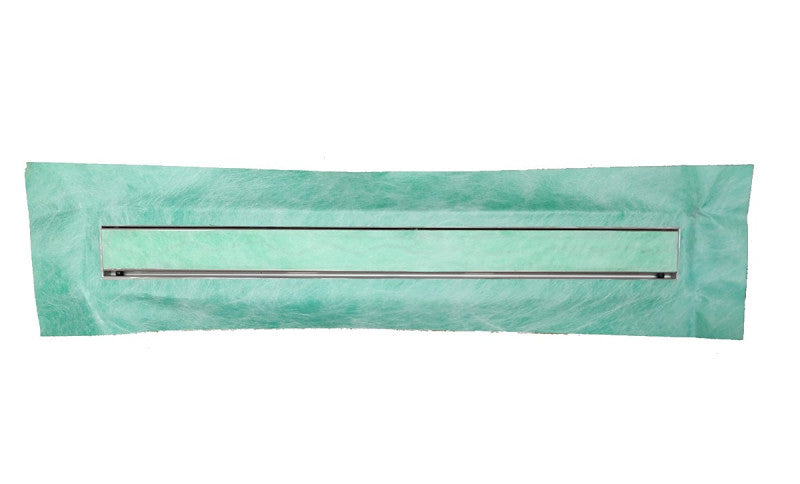

• Waterproofing membrane sheet around the drain flange (not required but included)
• Installation instructions

Why Choose a Tile-Over Linear Shower Drain?

Unlike traditional linear shower drains with a visible stainless steel grate, the SereneDrains Invisible Linear Shower Drain is designed so the shower tile becomes the visible surface of the drain. The hidden tile-over grate blends into the surrounding floor, creating a seamless appearance that highlights your tile instead of the drain.

The result is a clean, uninterrupted shower floor with no visible metal grate or surrounding frame. This minimalist look has become a popular choice for homeowners, designers, architects, and contractors creating modern bathrooms, custom tile showers, curbless showers, and barrier-free walk-in showers.

The slim 2 3/4" channel provides efficient drainage while maintaining the clean, contemporary appearance today's bathrooms demand.

Built to Last

Manufactured from 16-gauge 304 stainless steel, this invisible linear shower drain is built for years of dependable performance in residential and commercial showers.

Features include:

• Fully welded construction
• Leak-tested before shipment
• Corrosion-resistant 304 stainless steel
• Precision laser-cut electropolished finish
• Pre-sloped channel for efficient water flow

Compatible with Any Shower Waterproofing Method

The drain flange is engineered to work with virtually every professional waterproofing system, making it suitable for both new construction and shower remodels.

Compatible with:

• Hot mop waterproofing
• Painted or liquid membranes
• Sheet membranes
• Vinyl waterproofing

Designed to fit standard 2-inch shower drain flanges.

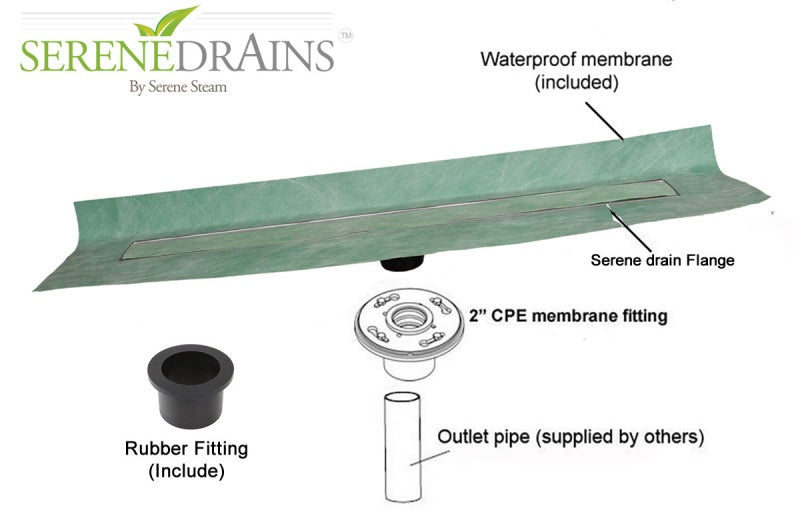

The included waterproofing membrane sheet around the drain flange (not required but included) provides additional installation flexibility.

Designed for Modern Tile Installations

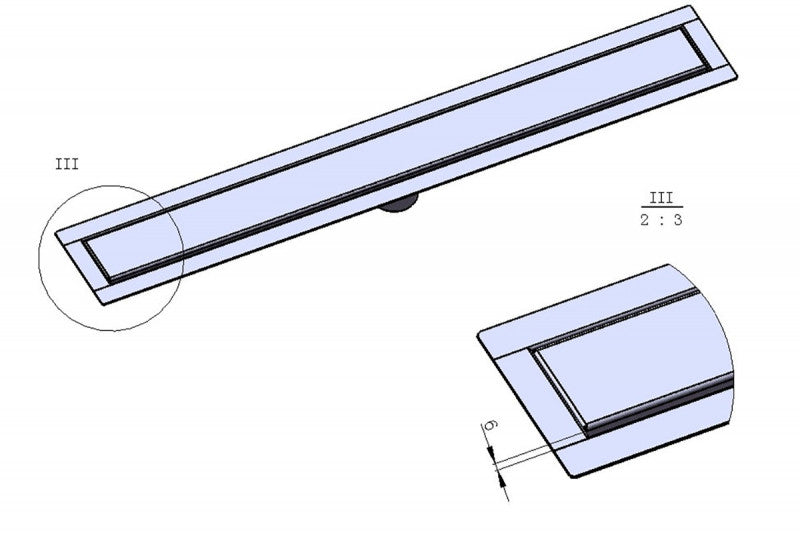

The tile-over grate supports tiles up to 10 mm thick with a 14 mm support lip and works with common tile sizes: 1/2", 1", 2", and 4".

The narrow channel profile helps create a continuous tile layout without distracting from your shower design.

Ideal Applications

• Residential bathrooms
• Custom tile showers
• Walk-in showers
• Curbless showers
• ADA-compliant barrier-free showers
• Hotels
• Gyms
• Spas

Technical Specifications

Why Choose SereneDrains?

• Hidden tile-over design creates a seamless shower floor with no visible drain grate or surrounding metal frame.
• Built from durable 16-gauge 304 stainless steel for long-lasting performance.
• Compatible with hot mop, painted or liquid membranes, sheet membranes, and vinyl waterproofing systems.
• Includes a Hair Strainer, Rubber Sealing Gasket for a watertight outlet connection, and waterproofing membrane sheet (not required but included) to help simplify installation.
• Fits standard 2-inch shower drain flanges.
• Ideal for custom tile showers, walk-in showers, curbless showers, and ADA-compliant barrier-free showers.
• In stock and ready to ship with Free Shipping.
• Backed by a 30-Day Return Policy.

Shop drain accessories and adapters - ABS, PVC, and cast iron flanges, plus debris strainers.

Complete your shower build with our shower shelves collection.

Explore the complete collection of SereneDrains linear shower drains, available in decorative patterns, multiple sizes, and finishes.

Quantity discounts available for contractors, designers, architects, builders, and remodeling professionals.
