30 Inch Linear Shower Drain Matte Black Broken Lane Design by SereneDrains

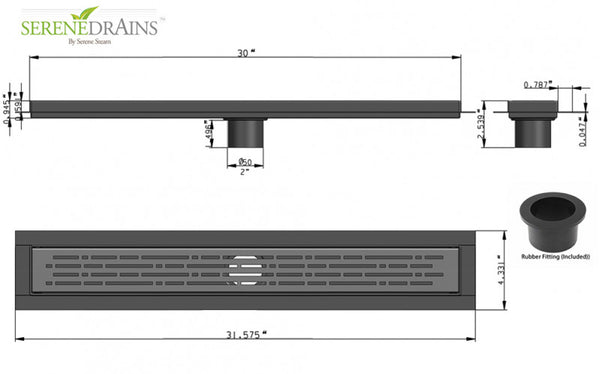

30 Inch Linear Shower Drain Matte Black Broken Lane Design by SereneDrainsNet Size 30" x 2 3/4" (762mm) | Overall Size 31.57" x 4 3/8" | Intake sq. in: 17.62.
Also Available In: 16", 24", 30", 35", 39", 47", 59".
In stock ready to ship. FREE SHIPPING
Drain Includes: 100% stainless steel channel body & grate, puller key, waterproofing membrane sheet around the drain flange (not required but included), Installation Instruction.
Applications: Shower & bath, kitchen, pools, balconies, hotel rooms, gym, spa etc.
Perfect for wheelchair access & barrier-free showers (walk in floor plans).
- Stainless steel Matte Black finish.
- Superior quality laser cut electropolish finish.
- Bodies are fully welded and leak tested prior to dispatch.
- 2 Inch diameter central vertical outlet.
- Designed to be installed into any 2" shower drain flange.
- Compatible with tiles up to 10mm depth (14mm lip).
- Sized to match standard 1/2", 1", 2, and 4" tile without cutting.
- Pre-Slope channel. Channel width: 2 3/4" (70 mm).
- Drain grate is 16 gauge 304 stainless steel.
- Flow rate: at entrance of shower - 6.3GPM (0.4 l/s); against the wall - 9.5GPM (0.6 l/s).
- Flange body edge designed for use with all types of waterproofing: hot mop, painted or liquid membranes, sheet membrane, vinyl waterproofing etc.
Available accessories include plumbing connectors (ABS/ PVC flange) and debris strainer.
30 day return policy. Money back guarantee.
Contact us for quantity discounts
