31 Inch Tile Insert Linear Floor Drain - Drains Unlimited DUFB Series

Minimalist profile tile-in linear drain that’s nearly invisible once installed.

Main Features: No-hub coupling Installation, 2-3/8 inches (outside diameter) no hub center outlet, Textured bonding flange, 14-gauge AISI304 stainless steel, 2-1/2" width grate cover with 'V'-shape bottom, Rust-resistant and electro-passivated.

Available Size: 29", 31", 33", 35", 39", 41", 43", 47", 53", 59", 65", 71" (Full length measured between finish face of sheathing)

Drains Unlimited Tile-in Linear Floor Drains are crafted to enhance the aesthetic appeal of any single-pane slope shower installation. Constructed with robust 304 stainless steel and featuring a textured flange, our drains ensure effortless installation and prolonged durability in your shower.

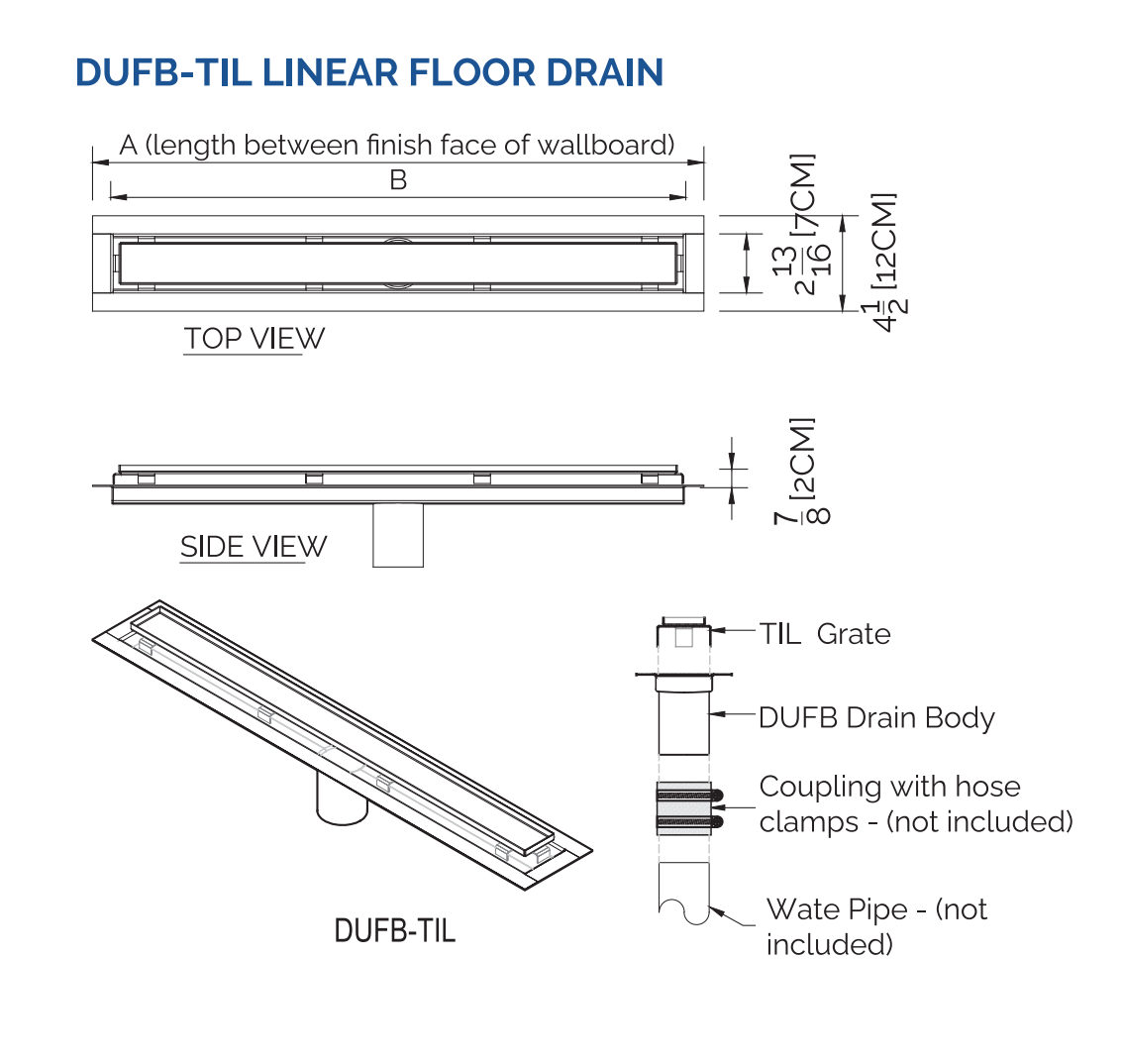

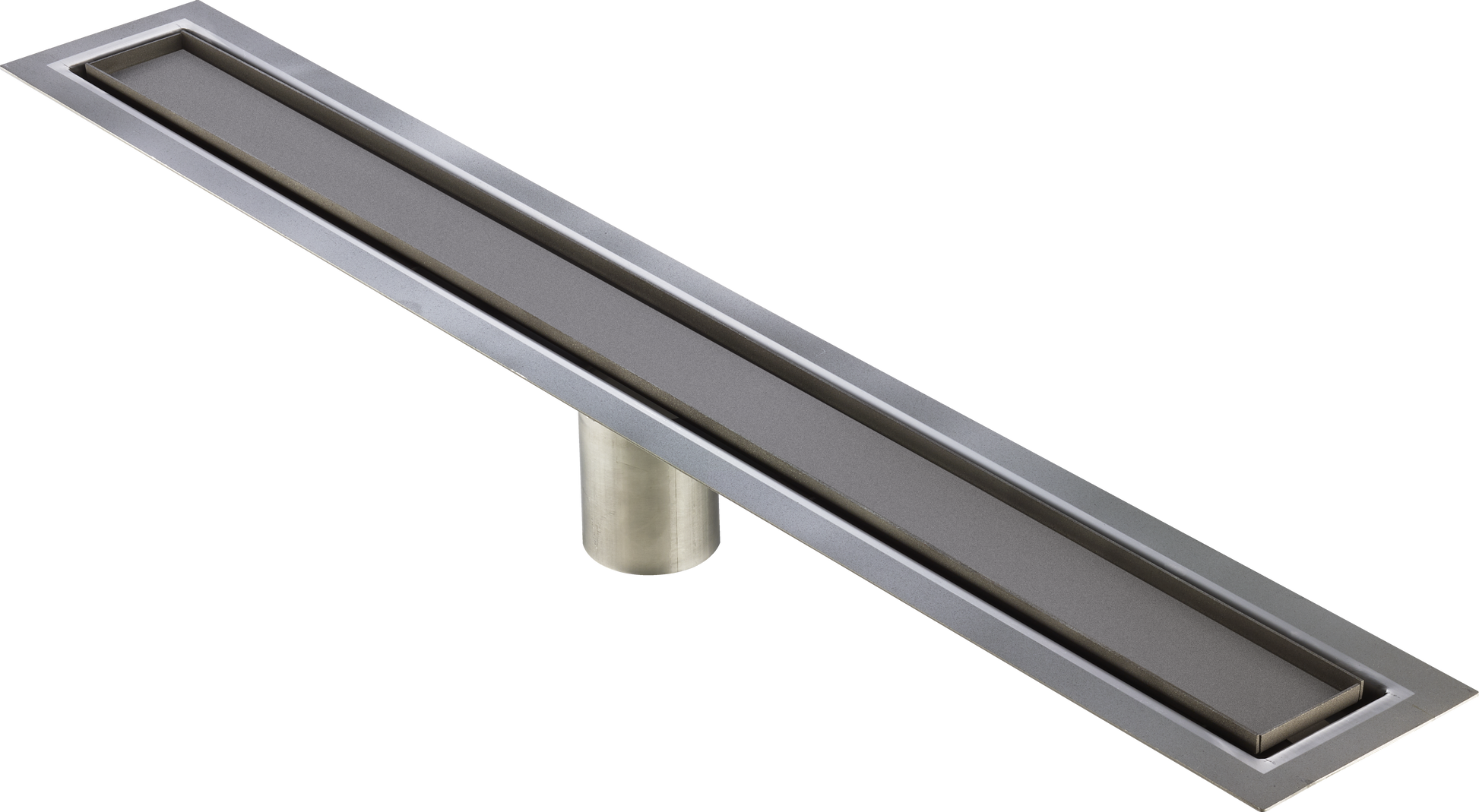

The linear drain is a two-piece, low-profile system specifically designed for easy installation and bonded waterproofing membrane application. The DUFB Linear Drain accommodates large or small-format tiles and stone installations in showers with a single-plane slope leading to the drain. Suitable for both commercial and residential projects, this linear drain is intended for interior and exterior applications.

Package Includes: Drain body, Grate, Hair Strainer, Puller Key.

Features:

Designed to be compatible with all major water-resistant adhesive material manufacturers such as Blanke Aqua-Shield, Laticrete, Mapei, and Schluter.

• Made from heavy duty 304 stainless steel.
• Textured flange ensures tight waterproof membrane seal.

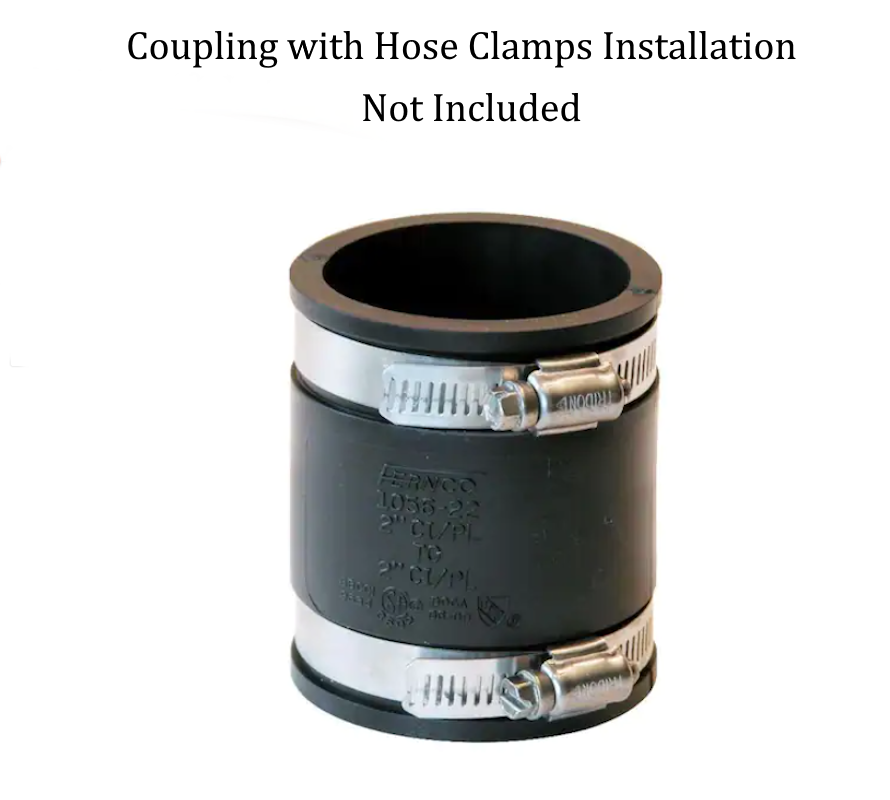

• Coupling with Hose Clamps (not included).

• Removable grate for easy cleaning and maintenance.
• Single slope to drain.
• UPC, CSA and ASME certified.
• Rust resistant passivated finish.
• Hygienic barrier free design.
• Application: Commercial, Residential.

• Perfect for: Shower, bath, kitchen, balconies, hotel rooms, gym, spa etc.
• Suitable Substrates: Concrete, Exterior glue, Plywood (Interior only), Cement backer board, Cement mortar bed.

Drains Unlimited DUFB Drain Grates are available in 8 different designs and 5 finishes, to match any tile or stone installation in any shower.

Designs: Square Perforated, Weave Perforated, Ice Perforated, Honey Perforated, Earth Perforated, Tile in Tray, Solid Bar, Wedgewire.

Finishes: Polished Stainless Steel, Brushed Stainless Steel , Black Powder Coated, Brass Matte, Brass Polished.

This tileable linear drain, or our one-of-a-kind wall recessed tile-in linear drains, is the perfect choice for any luxury shower installation. With a wide array of styles, sizes, and custom configurations to choose from, our drains offer a reliable choice for any shower installation.
