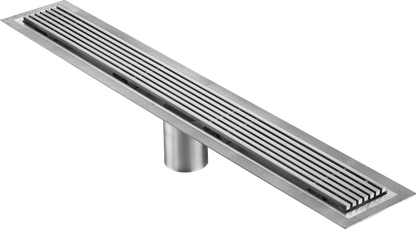

35 Inch Linear Shower Drain Wedge Wire Grate Design in Brushed Stainless Steel, Drains Unlimited DUFB Series

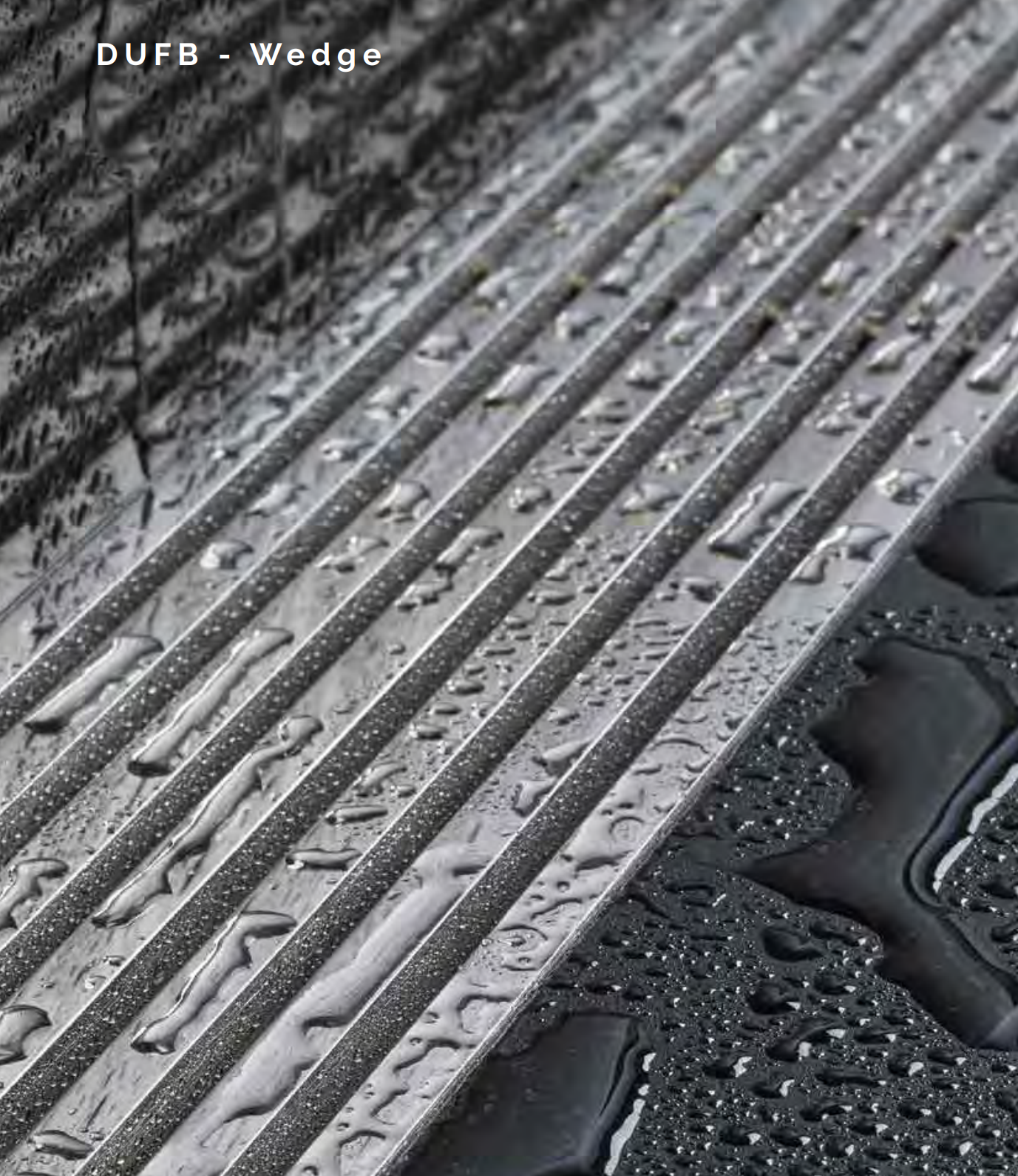

Our Wedgewire Grate design linear drains upgrade your shower ambiance with a touch of richness and modern sophistication. Available in brushed, polished, black and brass matte finishes, these drains ensure efficient water drainage while infusing a contemporary feel into your shower.

Main Features: No-hub coupling Installation, 2-3/8 inches (outside diameter) no hub center outlet, Textured bonding flange, 14-gauge AISI304 stainless steel, 2-1/2" width grate cover with 'V'-shape bottom, Rust-resistant and electro-passivated.

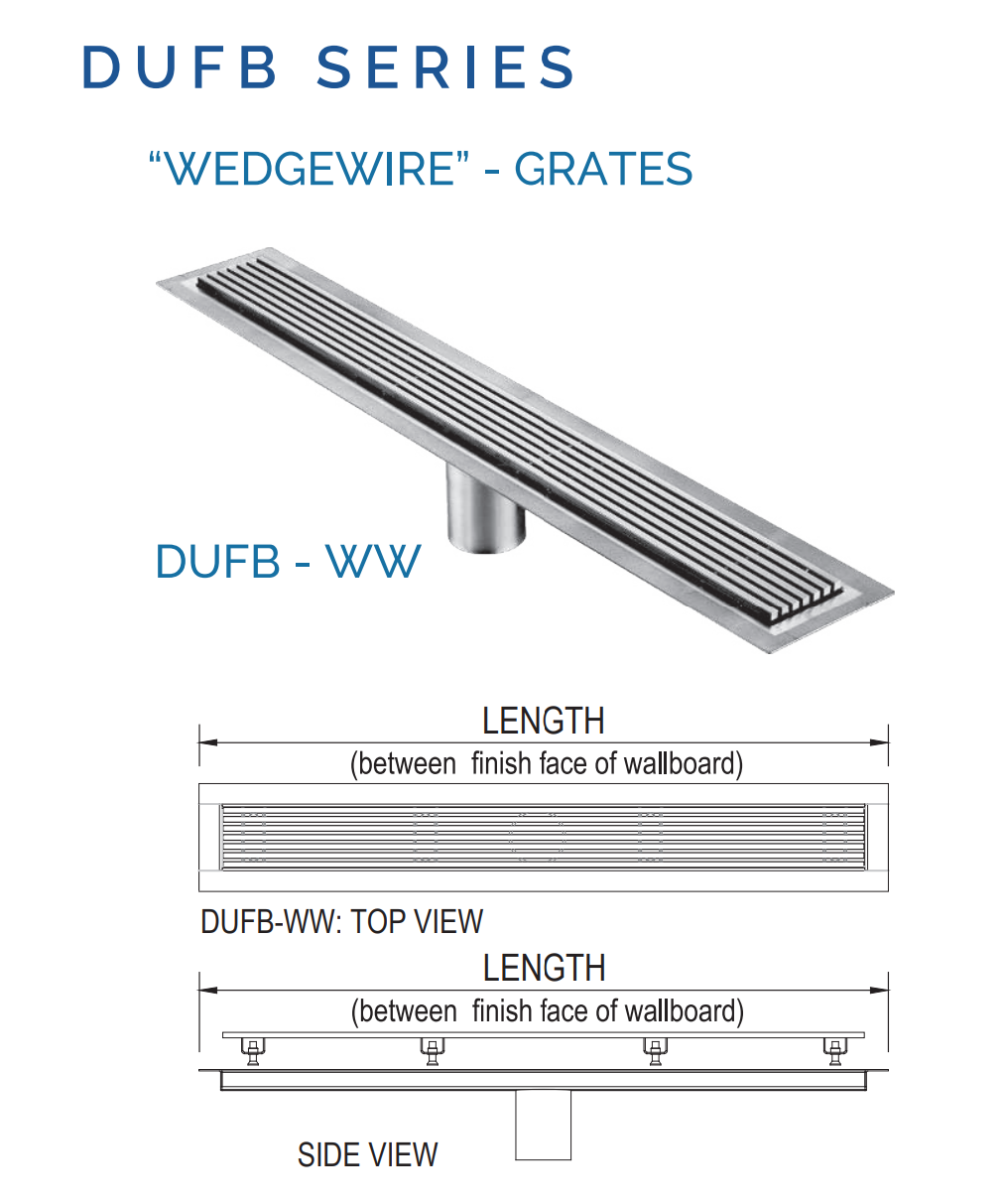

Available Size: 29", 31", 33", 35", 39", 41", 43", 47", 53", 59", 65", 71" (Full length measured between finish face of sheathing)

Drains Unlimited luxury linear floor drains are made to enhance the aesthetics of any single-plane slope shower installation. Constructed with robust 304 stainless steel and featuring a textured flange, our drains ensure effortless installation and prolonged durability in your shower.

The linear drain is a two-piece, low-profile system specifically designed for easy installation and bonded waterproofing membrane application. The DUFB Series Linear Drains accommodate large or small-format tiles and stone installations in showers with a single-plane slope leading to the drain. Suitable for both commercial and residential projects, this linear drain is intended for interior and exterior applications.

Drains are designed to be highly compatible for the North American market's shower construction industry, and with all major water-resistant adhesive material manufacturers such as Blanke Aqua-Shield, Laticrete, Mapei, and Schluter.

Package Includes: Drain body, Grate, Hair Strainer, Puller Key.


  • Made from heavy duty 304 stainless steel.
  • No-hub Coupling Installation.
  • Textured flange ensures tight waterproof membrane seal.
  • Removable grate for easy cleaning and maintenance.
  • Single slope to drain.
  • UPC, CSA and ASME certified.
  • Rust resistant passivated finish.
  • Hygienic barrier free design.
  • Application: Commercial, Residential.
  • 2 3/8" Drain Outlet.
  • Perfect for: Shower, bath, kitchen, balconies, hotel rooms, gym, spa etc.
  • Suitable Substrates: Concrete, Exterior glue, Plywood (Interior only), Cement backer board, Cement mortar bed.

Drains Unlimited DUFB Drain Grates are available in 8 different styles and 5 different finishes, to match any tile or stone installation in any shower. Designs: Square Perforated, Weave Perforated, Ice Perforated, Honey Perforated, Earth Perforated, Tile in Tray, Solid Bar, Wedgewire. Finishes: Polished Stainless Steel, Brushed Stainless Steel , Black Powder Coated, Brass Matte, Brass Polished.

Drains Unlimited linear shower drains and our one-of-a-kind wall recessed tile-in linear drains are the perfect choice for any luxury shower installation. With a wide array of styles and sizes to choose from, our drains seamlessly blend to any surroundings to preserve your shower’s natural beauty and add a touch of royalty

Drains customization available including: Side outlet, Horizontal side outlet, 316-gauge stainless steel, etc. Contact for more information.
