35" Linear Shower Drain in Oil Rubbed Bronze, Tile Insert Grate | SereneDrains

35" Oil Rubbed Bronze Linear Shower Drain, Tile Insert Grate, Matches Bronze Faucets & Shower Hardware | SereneDrains

Net Size: 35 3/8" x 2 3/4" | Overall Size: 37.01" x 4 3/8" | Intake: 17.48 sq. in.
Outlet: 2" Central Vertical | Flow Rate: 6.3 GPM Center / 9.5 GPM Wall Placement

In Stock, Ships Same Day. Free Shipping.

Also Available In: 16", 24", 30", 39", 47", 59" | Brushed Nickel, Matte Black, Satin Gold, Matte White, Oil Rubbed Bronze

What's Included: Stainless steel channel body, tile insert grate, stainless steel hair trap, drain rubber fitting, puller key, waterproofing membrane sheet, and installation instructions.

Designed for modern bathrooms, curbless walk-in showers, wet rooms, and custom tile showers, the SereneDrains 35" Tile Insert linear shower drain allows you to install the same tile used on your shower floor inside the grate. This creates a seamless, low-profile appearance while the Oil Rubbed Bronze finish adds a warm, distinctive architectural accent to the shower.

The tile insert design combines the clean appearance of a concealed drain with the practical performance of a linear shower drain. The removable grate provides easy access for cleaning, while the included stainless steel hair trap helps catch hair and debris before they enter the drain.

Built to Last

Constructed from 16-gauge 304 stainless steel, the channel body and grate provide durable, corrosion-resistant performance for long-term use. The drain is fully welded and leak-tested before shipping for dependable performance in daily shower use.

The Oil Rubbed Bronze finish provides a distinctive designer look that works particularly well with bronze shower fixtures, faucets, and bathroom hardware.

Easier Tile Installation

The long, rectangular opening simplifies tile installation by allowing straight tile cuts along the drain instead of the curved cuts, nipping, and grinding required around a traditional round drain. This can help speed installation and improve fitting accuracy.

The grate accommodates tile up to 10mm deep with a 14mm lip.

Compatible With Major Waterproofing Systems

The drain flange is designed for use with a wide range of shower waterproofing methods, including hot-mop, liquid membrane, sheet membrane, and vinyl waterproofing systems.

A waterproofing membrane sheet around the drain flange is included, providing added flexibility for different shower installation methods.

Efficient Drainage & Easy Maintenance

The pre-slope channel is designed to promote efficient water drainage. The 2" central vertical outlet provides a standard connection point for shower drainage.

Flow Rate: 6.3 GPM with center placement / 9.5 GPM with wall placement.

Ideal Applications

• Curbless and barrier-free walk-in showers
• Modern and contemporary bathrooms
• Wet rooms
• Custom tile showers
• Residential bathroom renovations
• Commercial bathroom projects

• Bathrooms using bronze faucets, shower fixtures, and hardware

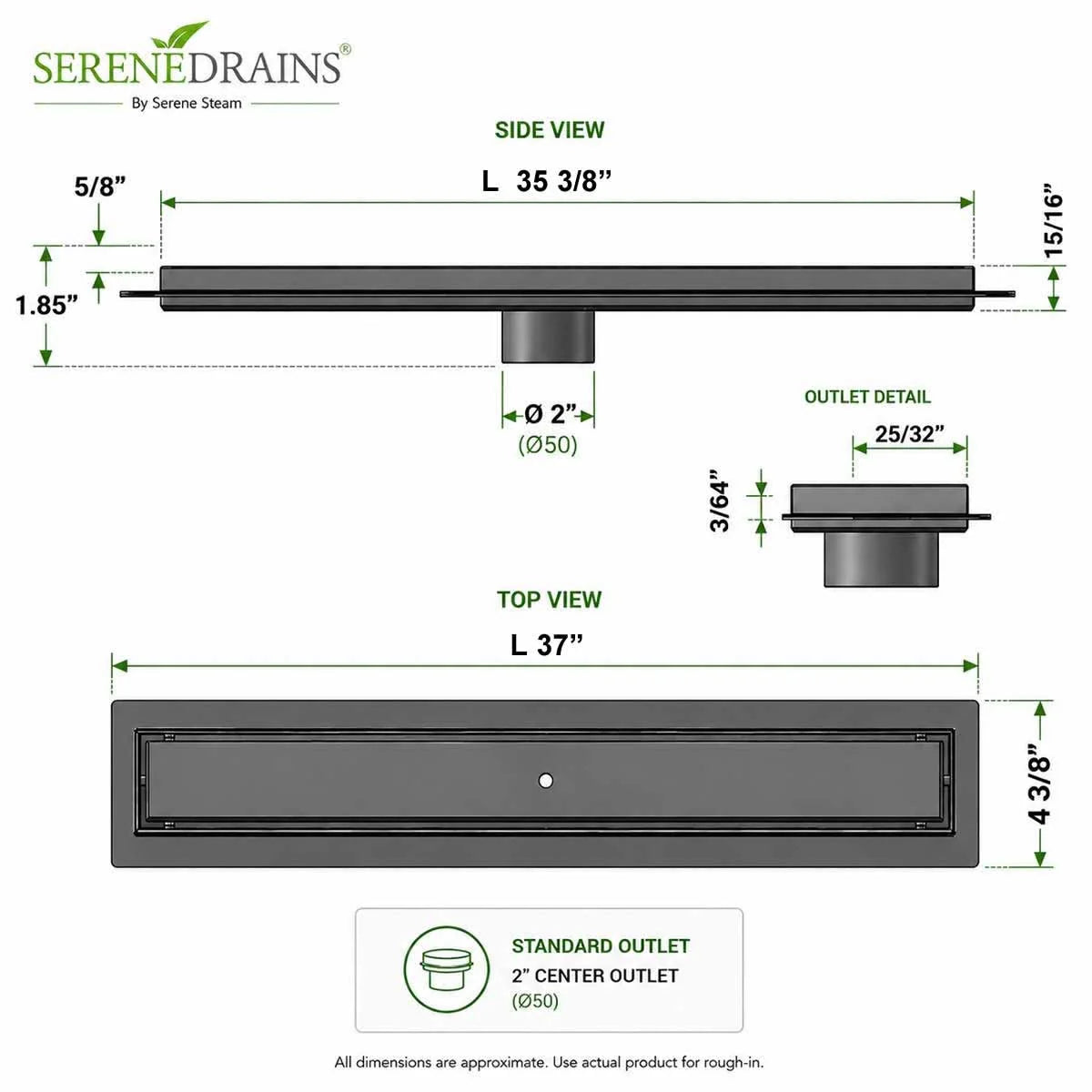

Specifications

• Nominal Size: 35"
• Net Size: 35 3/8" x 2 3/4"
• Overall Size: 37.01" x 4 3/8"
• Intake: 17.48 sq. in.
• Channel Width: 2 3/4" (70mm)
• Outlet: 2" diameter central vertical outlet
• Construction: 16-gauge 304 stainless steel
• Finish: Oil Rubbed Bronze
• Grate: Tile insert design
• Channel: Pre-slope
• Flow Rate: 6.3 GPM center / 9.5 GPM wall placement
• Tile Compatibility: Up to 10mm tile depth with 14mm lip
• Waterproofing Compatibility: Hot-mop, liquid membrane, sheet membrane, and vinyl waterproofing
• Testing: Fully welded and leak-tested
• Maintenance: Removable grate and included stainless steel hair trap

Why Choose SereneDrains

• Premium 16-gauge 304 stainless steel construction
• Tile insert grate allows the same tile as the shower floor to be installed inside the grate
• Distinctive Oil Rubbed Bronze finish
• Fully welded and leak-tested
• Pre-slope channel designed for efficient drainage
• 2" central vertical outlet
• Compatible with major waterproofing systems
• Rubber drain fitting and waterproofing membrane sheet included
• Removable grate for easy cleaning
• Free shipping
• 30-day money-back guarantee

Shop drain accessories and adapters – ABS, PVC, and cast iron flanges, plus hair traps and debris strainers.

Explore the complete collection of SereneDrains linear shower drains, available in multiple sizes, decorative patterns, and finishes.

Complete the Look With Matching Shower Shelves

Pair your Oil Rubbed Bronze linear shower drain with matching Oil Rubbed Bronze shower shelves for a coordinated shower design. Available in 12", 16", and 24" sizes, these stainless steel wall-mount shelves are designed to complement bronze faucets, fixtures, and hardware.

Contact us for quantity discounts.
