36 Inch Best Linear Shower Drain Kits with Hair Trap and Flange Base, 3 Foot Linear Drain for Modern Bathrooms by SereneDrains

Everything you need for a smooth, hassle-free installation is included in this 3 foot linear shower drain kits. It features a flange base for secure, compatible installation and a removable hair trap to help prevent clogs. Whether you're a contractor or a DIY enthusiast, this kit makes it easy to achieve a clean, modern look in any bathroom. Designed to work with most waterproofing systems, it’s a smart and reliable choice for streamlined shower upgrades—and now available at a reduced, discounted price for even greater value.

Note: Consult a plumber if construction code in your state requires ABS, PVC, or Cast Iron drain flange.

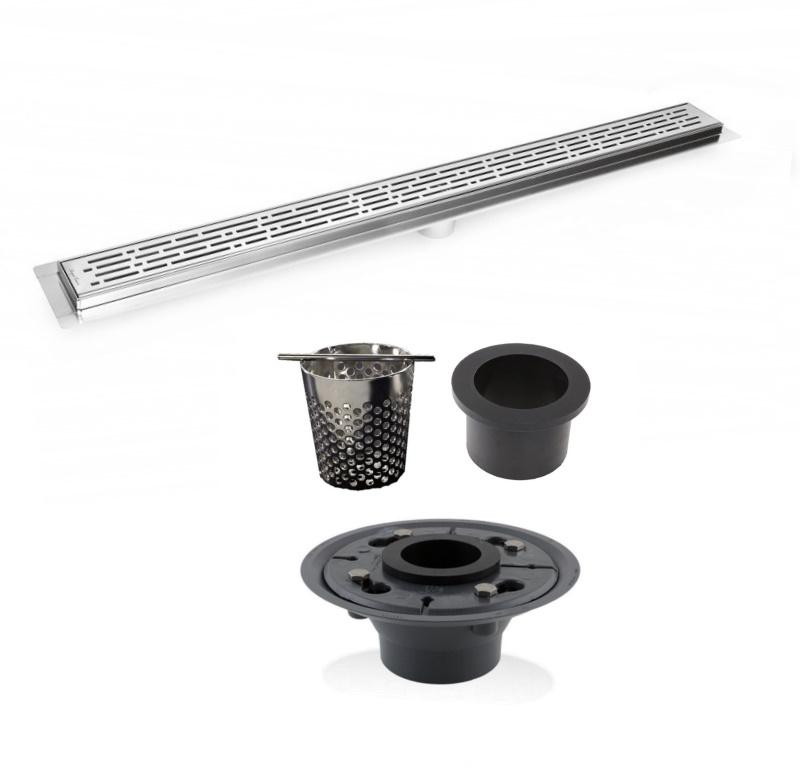

Drain Includes:

Stainless steel channel body & grate
Drain flange base with rubber gasket
Hair trap
Puller key
Waterproofing membrane sheet around the drain flange (not required but included)
Installation instruction

6 Decorative Designs Available:

Wind Design
Wave Design
Square Design
Broken Lane Design
Tile Insert Design
Linear Wedge Design

Features:

Stainless steel brushed nickel 3 foot linear drains
Superior quality laser cut electropolish finish
Bodies are fully welded and leak tested prior to dispatch
2 Inch diameter central vertical outlet, designed to be installed into any 2" shower drain flange
Compatible with tiles up to 10mm depth (14mm lip)
Pre-slope channel. Channel width: 2 3/4" (70 mm)
Drains are sized to match standard 1/2", 1", 2", and 4" tile without cutting
Drain grade is 16 gauge 304 stainless steel (The Wedge design grade is 6 gauge 304 stainless steel)
Flow rate: at entrance of shower – 6.3 GPM (0.4 l/s); against the wall – 9.5 GPM (0.6 l/s)

Perfect for: Wheelchair access & barrier-free showers (walk-in floor plans)

Flange body edge designed for use with all types of waterproofing: hot mop, painted or liquid membranes, sheet membrane, vinyl waterproofing, etc.

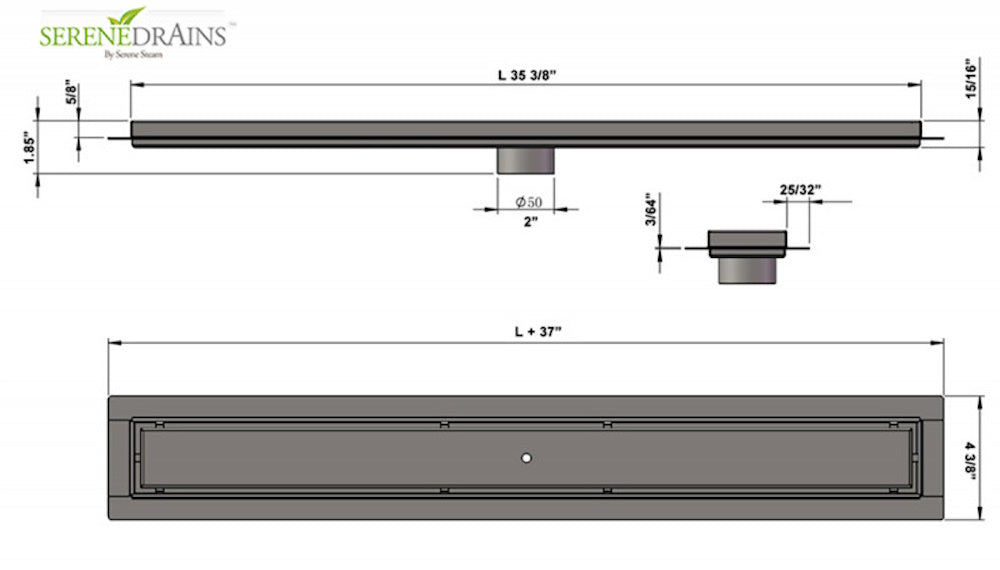

Drain Dimensions:

Net Size 15" 3/4" x 2 3/4" (400mm) | Overall Size 17" 1/4" x 4 3/8" | Intake sq. in: 12.38
Net Size 23" 1/2" x 2 3/4" (600mm) | Overall Size 25.2" x 4 3/8" | Intake sq. in: 14.96
Net Size 30" x 2 3/4" (762mm) | Overall Size 31.57" x 4 3/8" | Intake sq. in: 17.62
Net Size 35" 3/8" x 2 3/4" (900mm) | Overall Size 37.01" x 4 3/8" | Intake sq. in: 20.03
Net Size 39" 3/8" x 2 3/4" (1000mm) | Overall Size 40.95" x 4 3/8" | Intake sq. in: 21.12
Net Size 47 1/4" x 2 3/4" (1200mm) | Overall Size 48.82" x 4 3/8" | Intake sq. in: 26.68
Net Size 59.05" x 2 3/4" (1500mm) | Overall Size 60.63" x 4 3/8" | Intake sq. in: 31.67

Also available:

If you need to customize the size of a linear drain or the location of the outlet, we’ve got you covered! Explore our excellent line of Custom Length Linear Shower Drains.

We also offer Side Outlet Linear Shower Drains in a variety of sizes, providing versatile options to suit any bathroom style and installation need.

In stock, ready to ship from the USA. Free Shipping.
