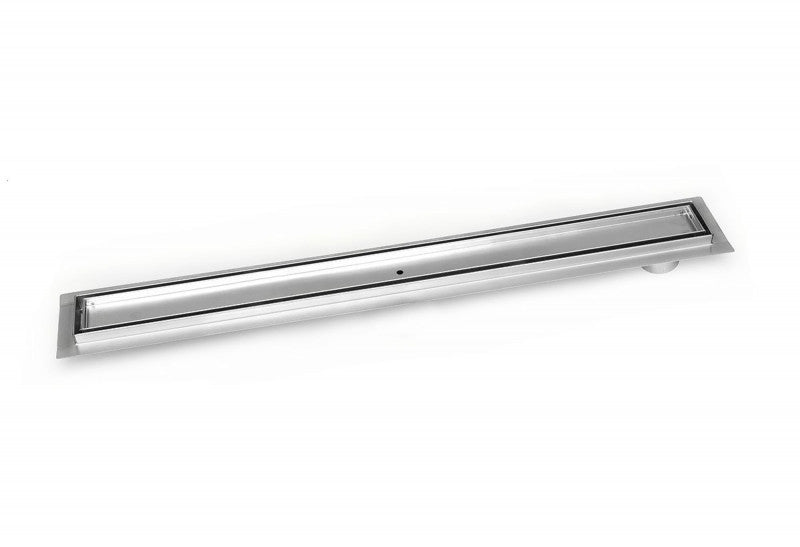

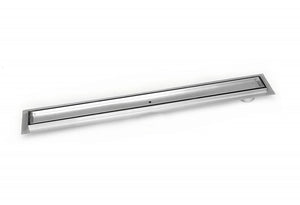

SereneDrains 36" Side Outlet Linear Shower Drain
The Professional Solution for Center Floor Joists and Side Rough-in Drain Points
The 36-Inch Offset Outlet Linear Drain by SereneDrains is specifically engineered to solve complex shower layout challenges. By placing the outlet on the side rather than the center, it allows for a high-end installation without moving existing plumbing or cutting structural floor joists. Featuring a 100% stainless steel construction with no plastic parts, it delivers industrial-grade durability for residential and commercial settings.
The Problem-Solver for Challenging Installs
Standard center drains aren't always an option. Our side-outlet design provides the necessary offset to work around floor joists, offering a more stable and leak-proof alternative to plastic adjustable-outlet drains. This offset design is the professional choice for:
-
Structural Obstructions: When a floor joist sits directly where your center drain should be and cannot be notched.
-
Fixed Plumbing: Ideal for 4" concrete slabs or high-rise buildings where relocating a drain point is impossible.
-
Side Rough-ins: Perfect for remodels where the existing plumbing rough-in is already located along the perimeter.

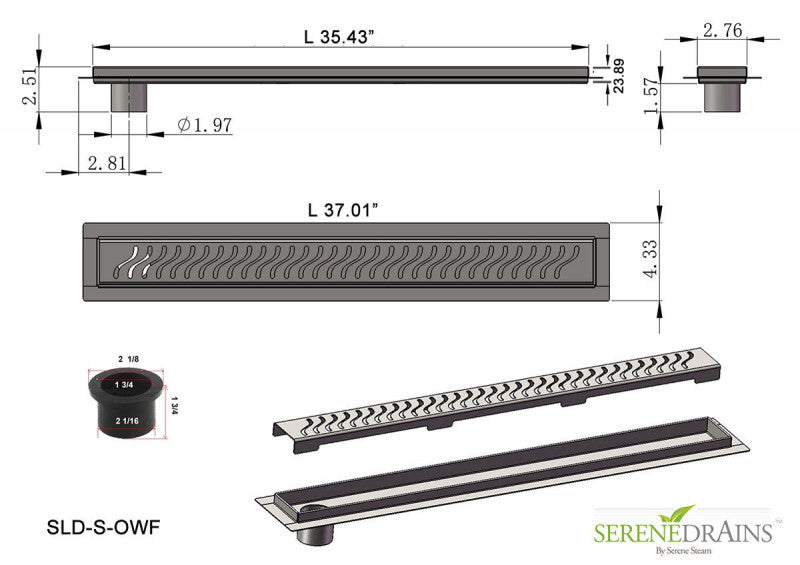

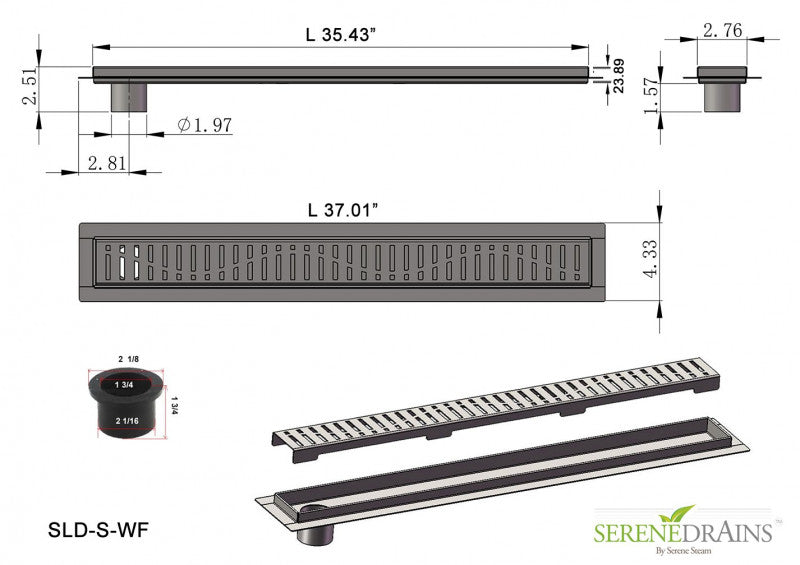

Technical Specifications
| Feature |
Detail |
| Marketed Size |
36" |
| Net Size (Channel) |
35 ⅜" x 2 ¾" (900mm) |
| Intake Area |
20.03 sq. in. |
| Material |
16-Gauge 304 Stainless Steel (Flange & Channel) |
| Outlet |
2" Side Outlet (Apex 2.8" oc from end) |
| Finish |
Brushed Steel (Corrosion & Rust Resistant) |
Superior Build & Easy Installation
-
Folded Frame Design: The frame is rounded and folded, not welded. This makes the drain twice as strong, eliminates sharp edges for a smooth feel on the feet, and ensures a leak-proof body.
-
No-Feet Stability: Unlike drains with flimsy leveling feet, this model is designed to rest directly on the floor edge/subfloor. This provides a much more stable foundation and a faster installation process.
-
No Plastic Parts: A solid 16-gauge SS304 construction ensures the drain will never crack, warp, or degrade over time.
-
Universal Waterproofing: Integrated flange works with all types: hot mop, liquid-applied, sheet membranes, and vinyl.
-
High-Flow Intake: Efficiently handles 6.3 GPM to 9.5 GPM, even with high-pressure showerheads.
What’s Included
- Stainless steel channel body & designer grate
- Grate lifting hook (puller key)
- Rubber fitting/gasket
- Waterproofing membrane sheet (for around the flange)
- Installation instructions
Options & Applications

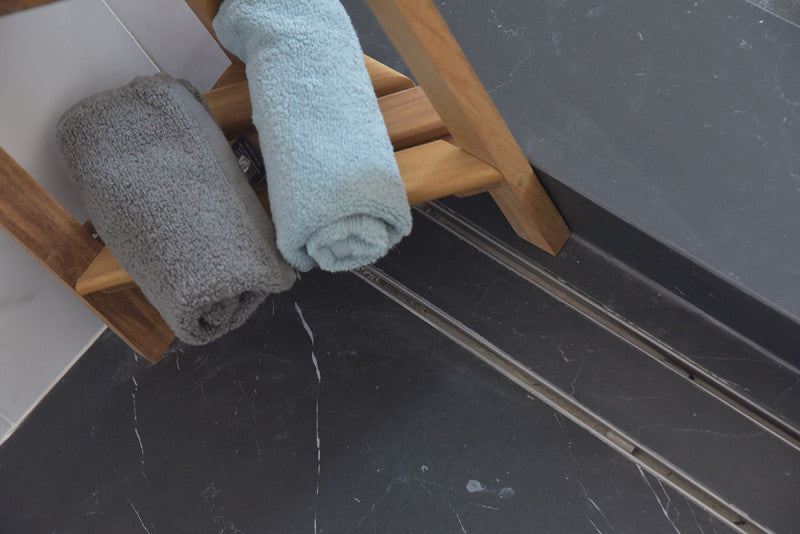

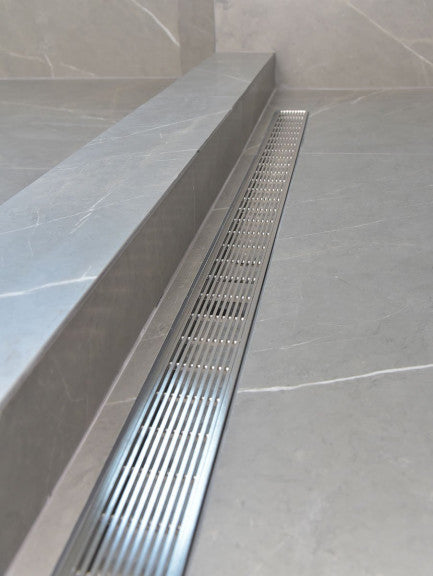

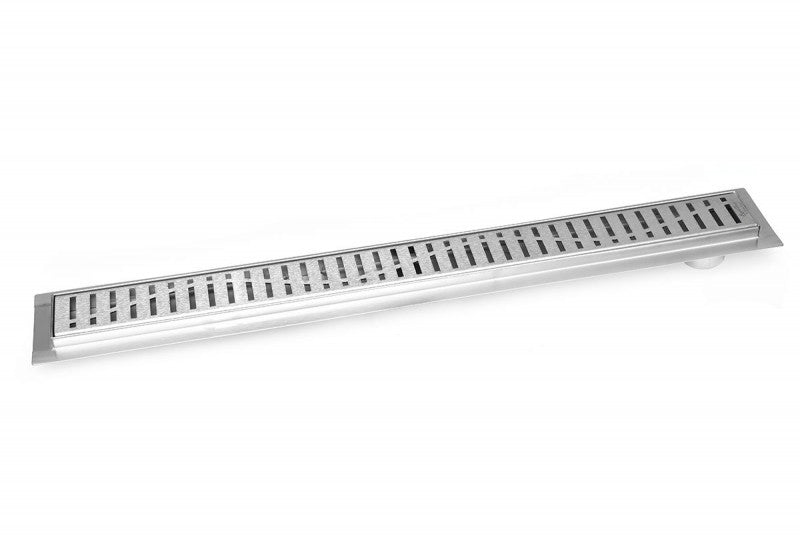

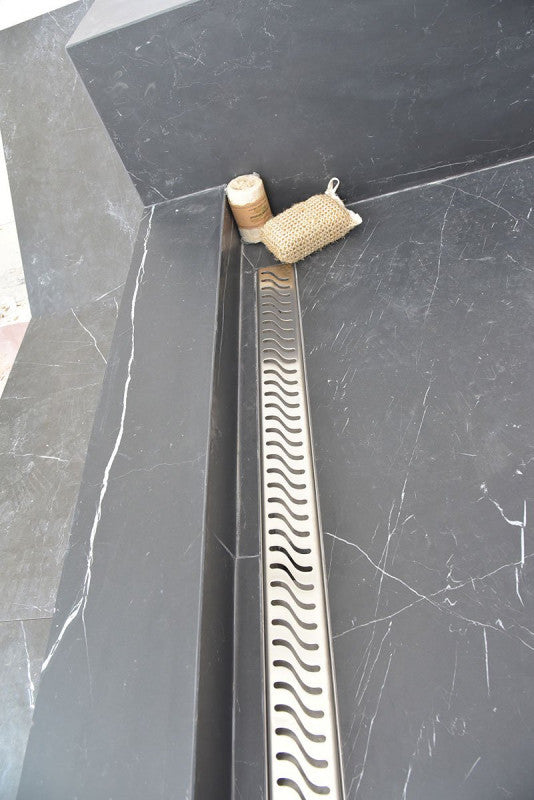

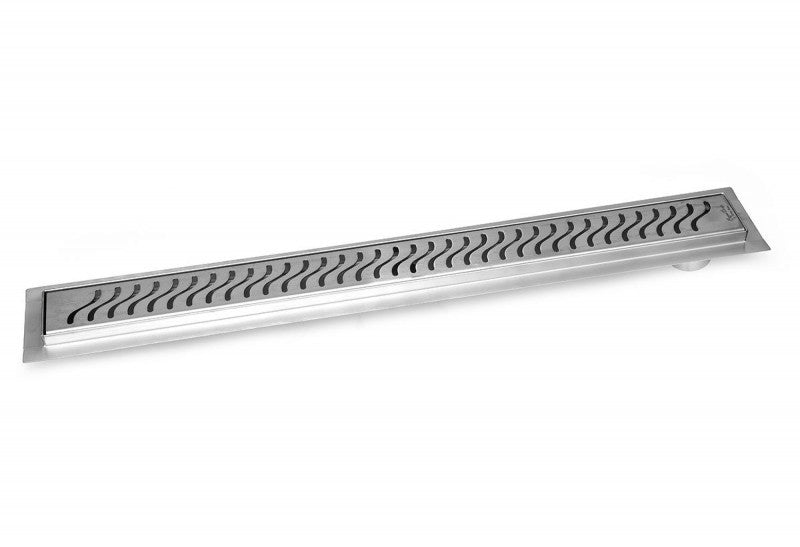

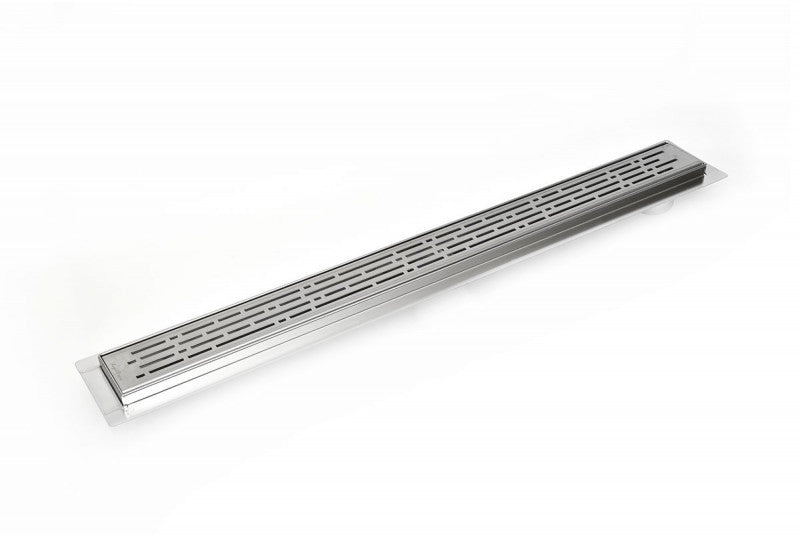

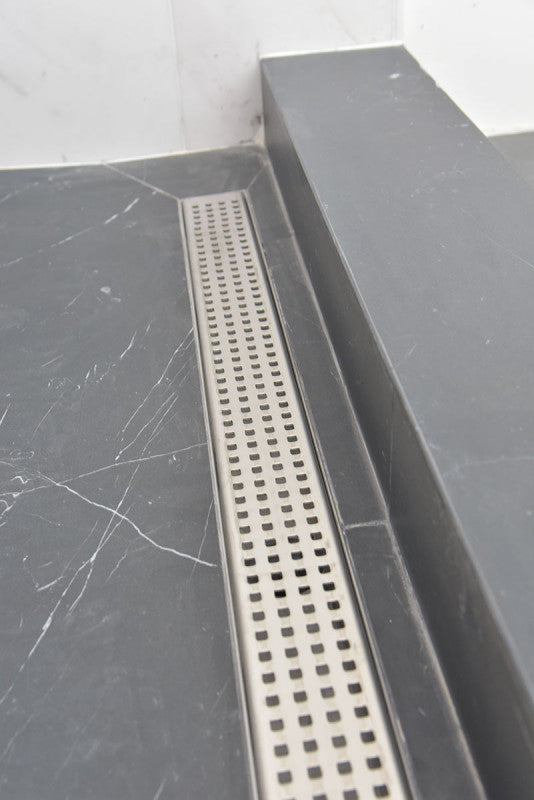

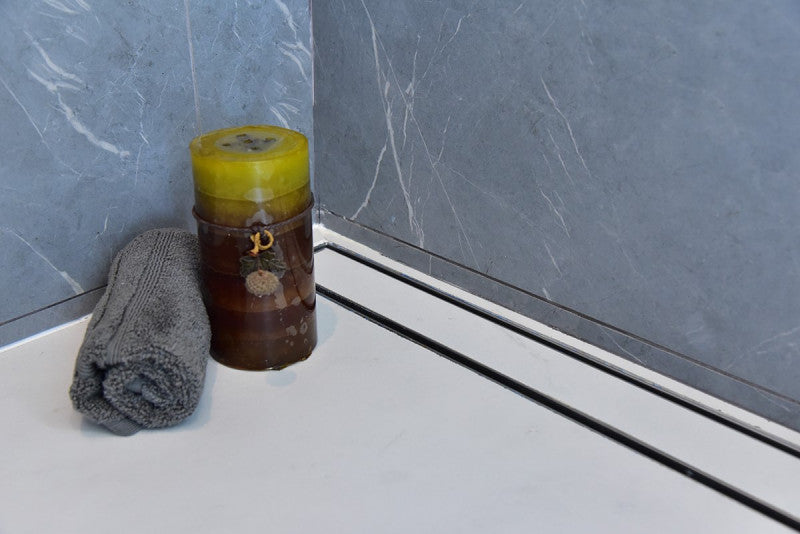

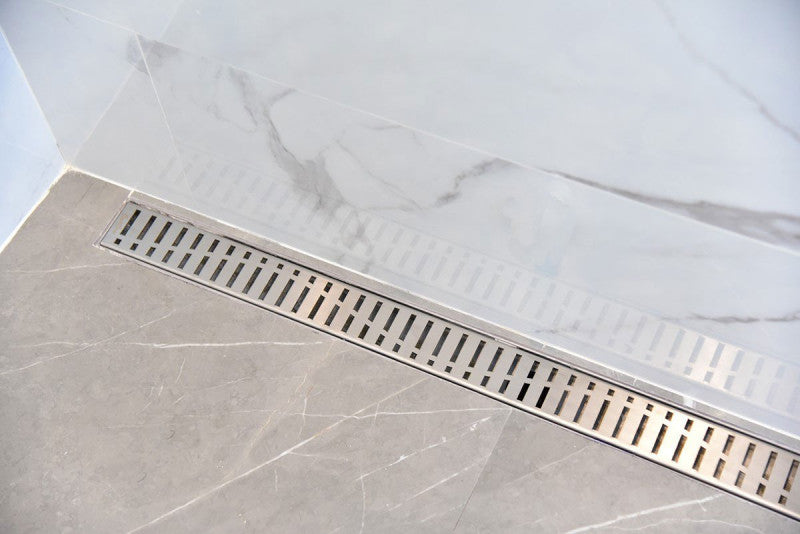

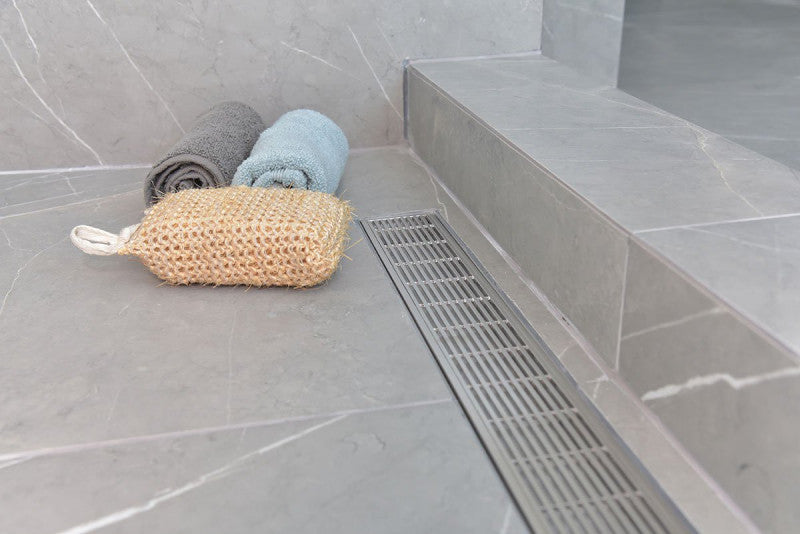

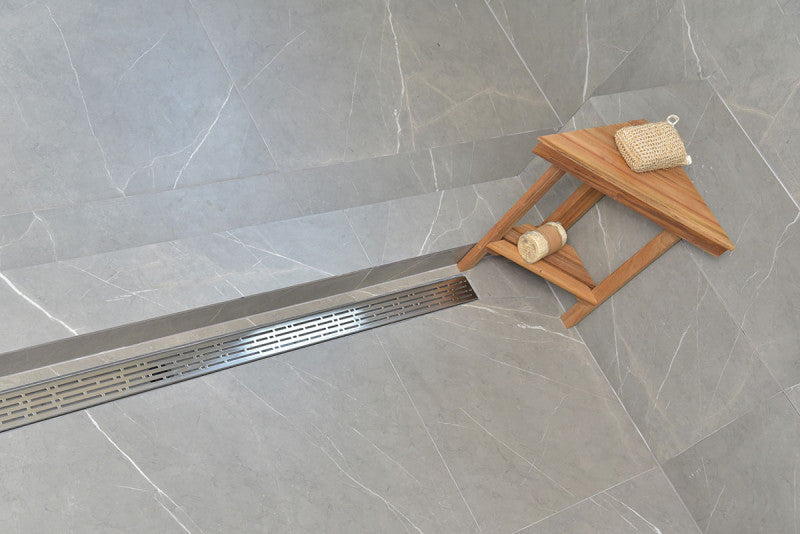

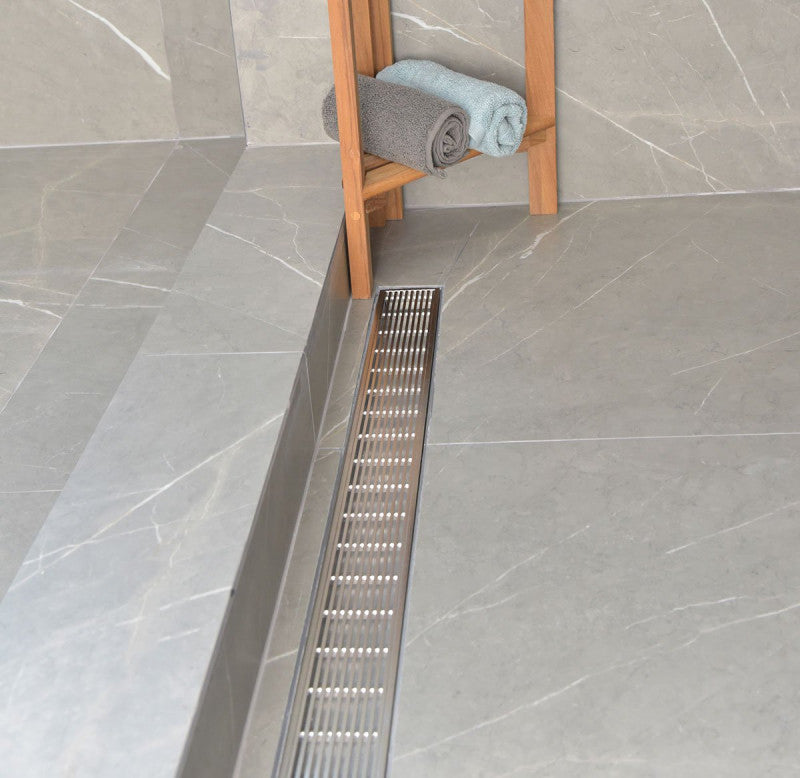

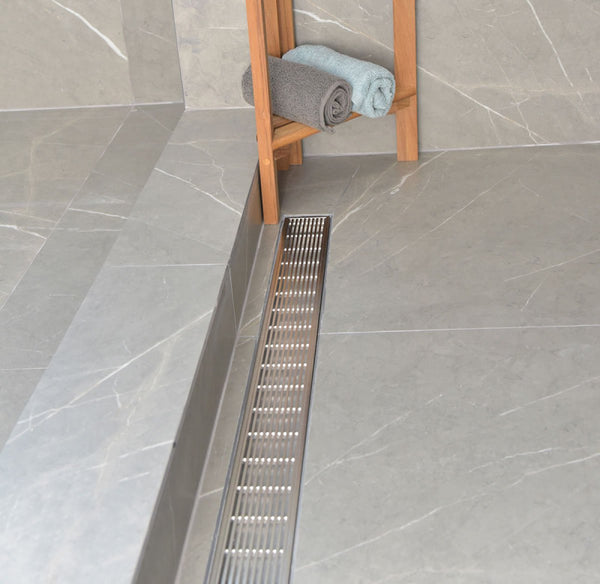

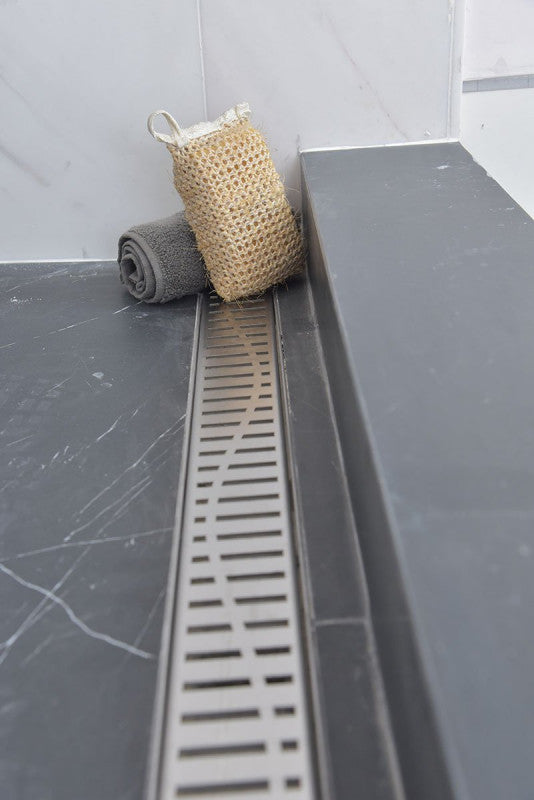

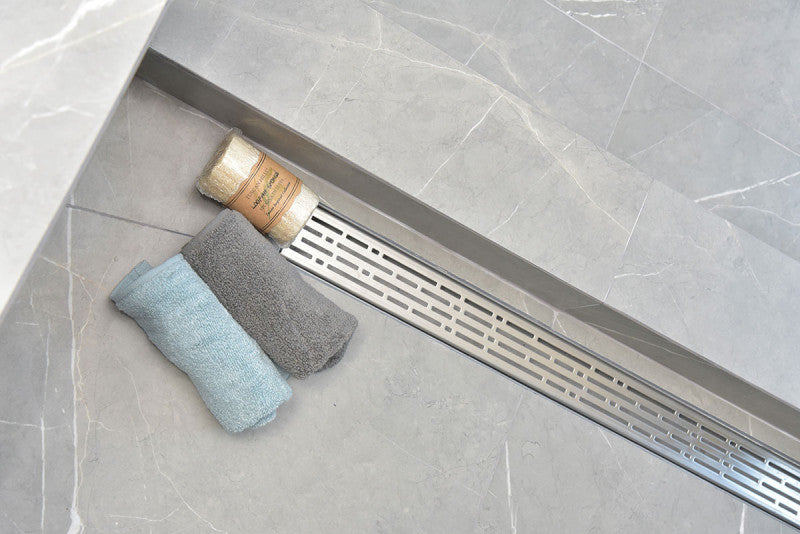

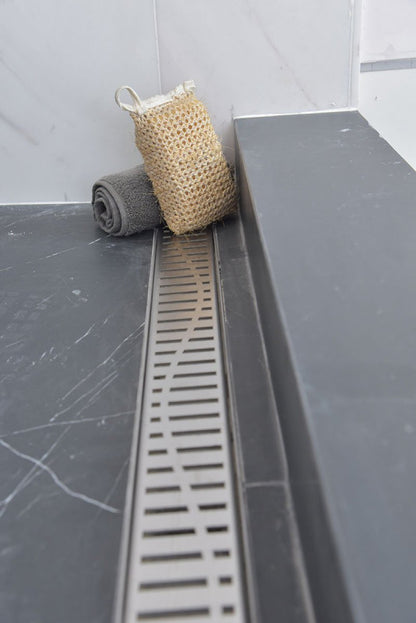

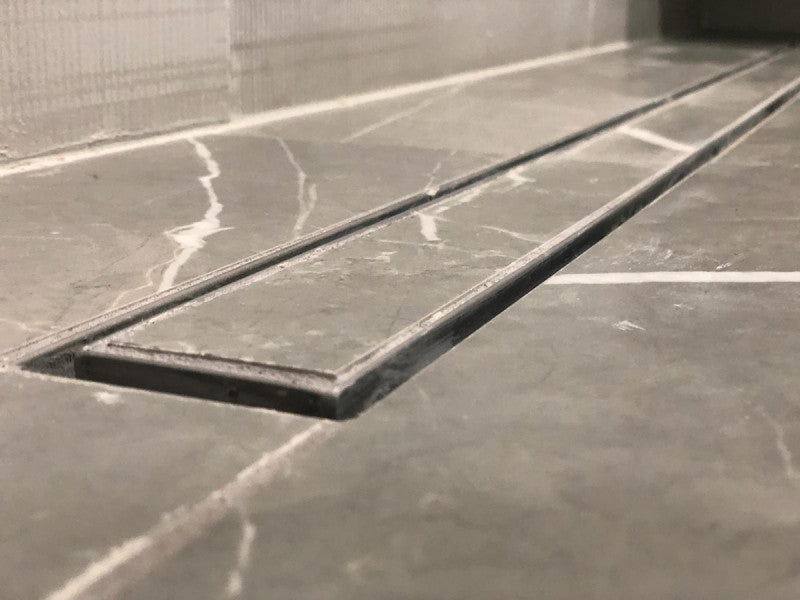

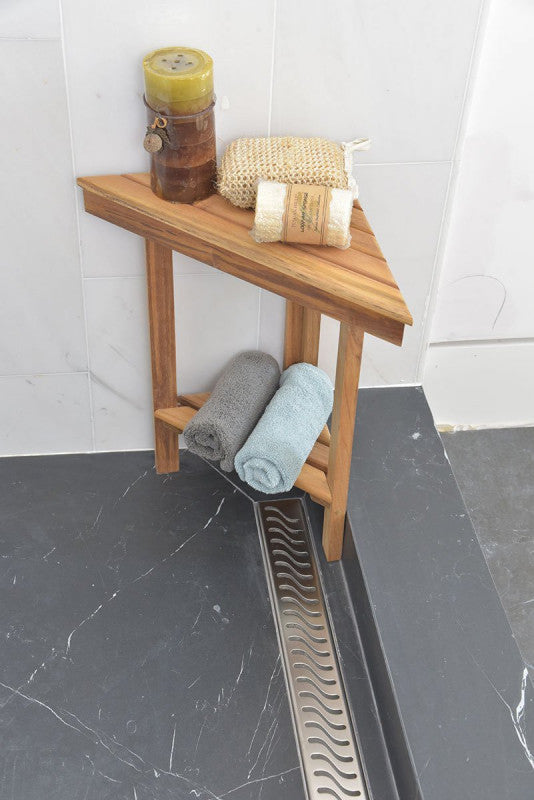

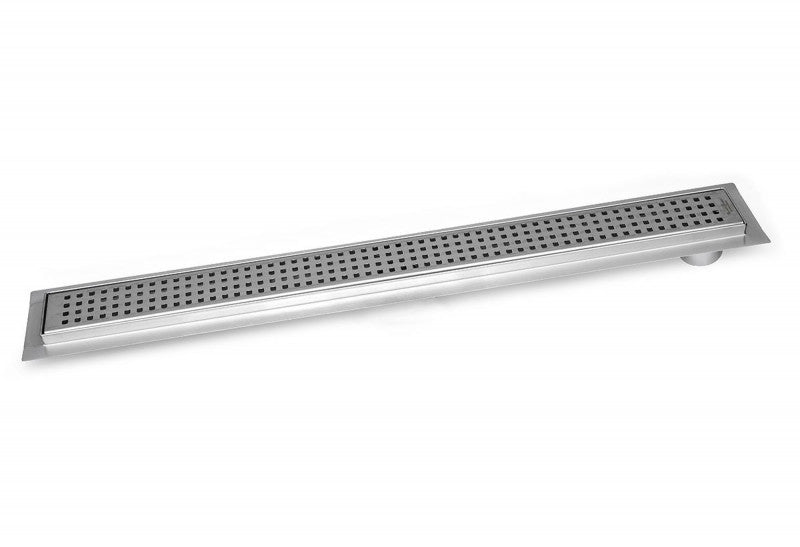

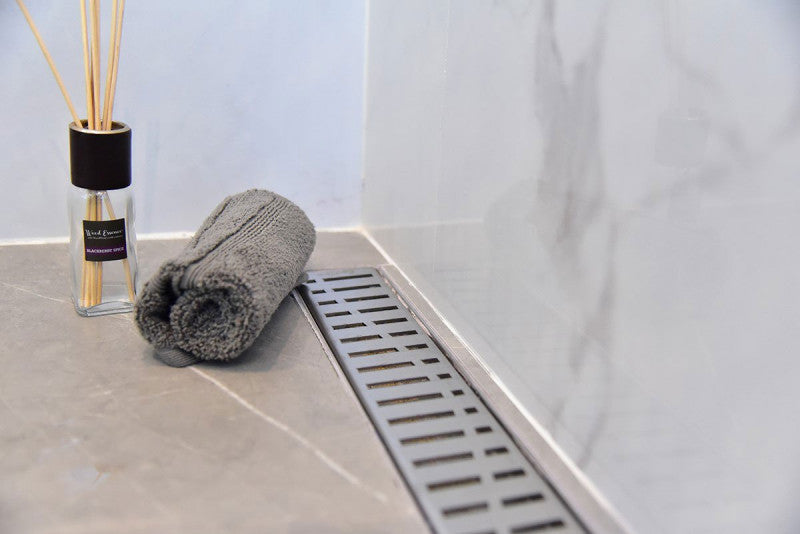

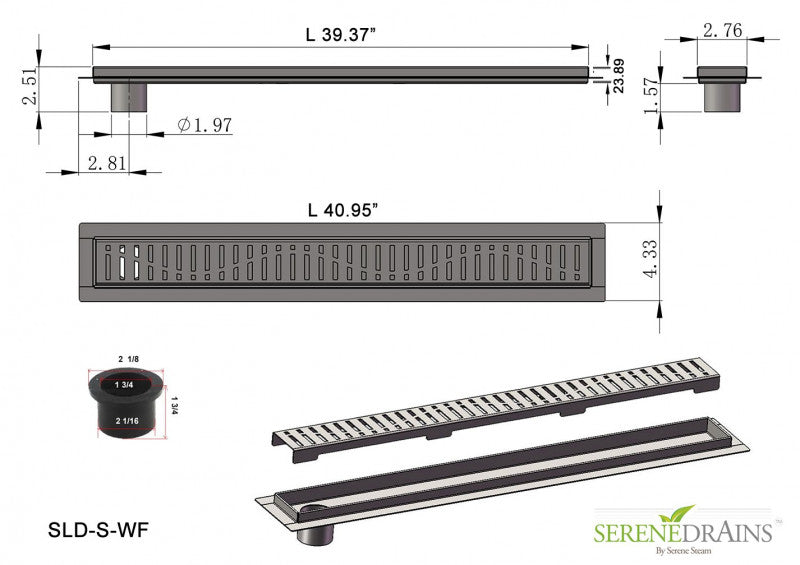

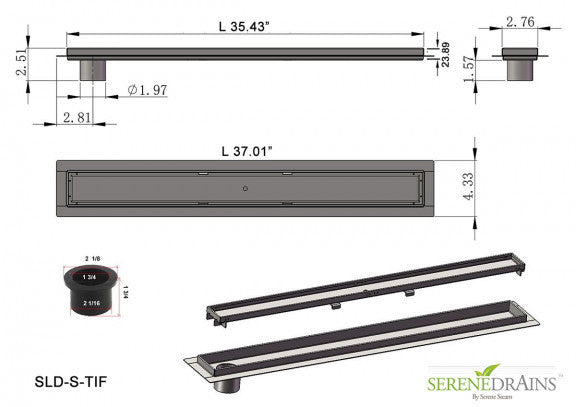

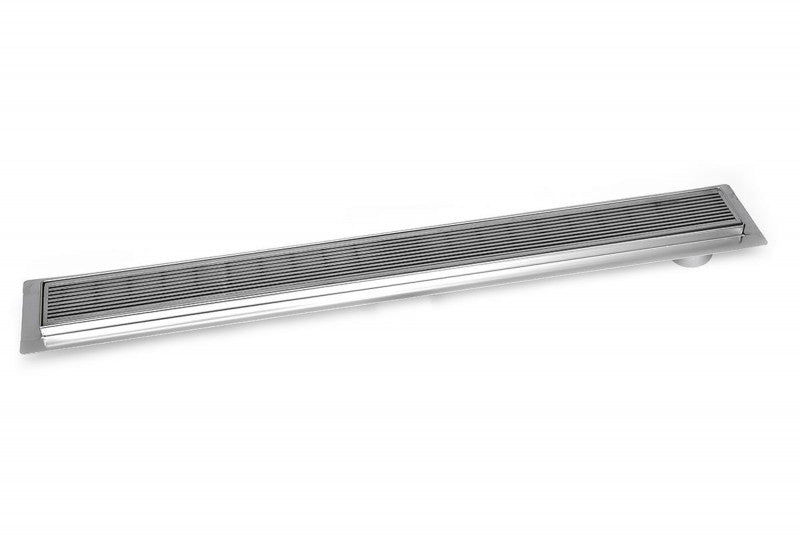

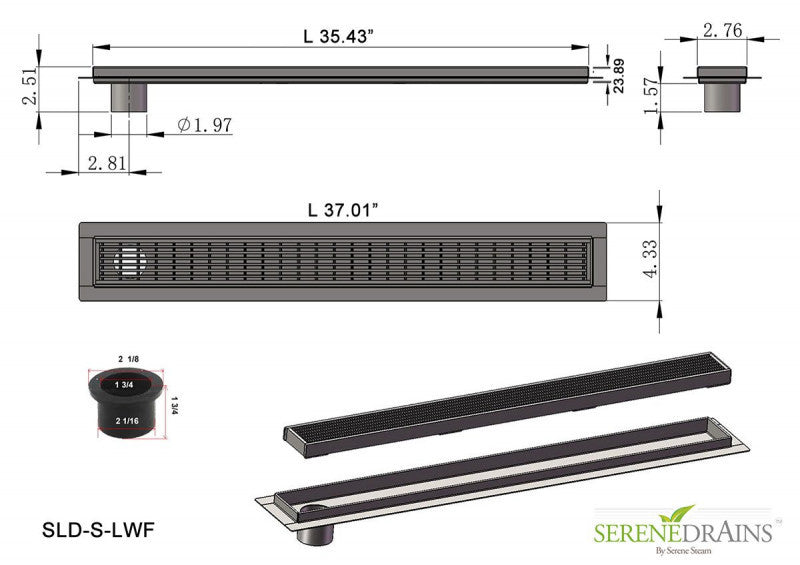

6 Designer Grate Styles: Tile Insert, Ocean Wave, Traditional Square, Broken Lane, Linear Wedge, and Wind Design.
Available Sizes: 16", 24", 30", 36", 40", 48", 60" (Custom lengths available).
Applications: Residential showers, hotels and barrier-free/wheelchair-accessible wet rooms.
Pro Tip: By resting the flange directly on the floor edge, you ensure a rock-solid install that won't shift over time. Always verify local plumbing codes regarding side rough-in locations.
Optional Accessories (Not Included)
- ABS or PVC drain base flange.
- Debris strainer to prevent clogs and simplify cleaning
- Full linear drains installation kit available, including a hair trap and base flange for a complete, ready-to-install solution
-
In Stock: Ready for immediate dispatch.
-
Return Policy: 30-day money-back guarantee.
