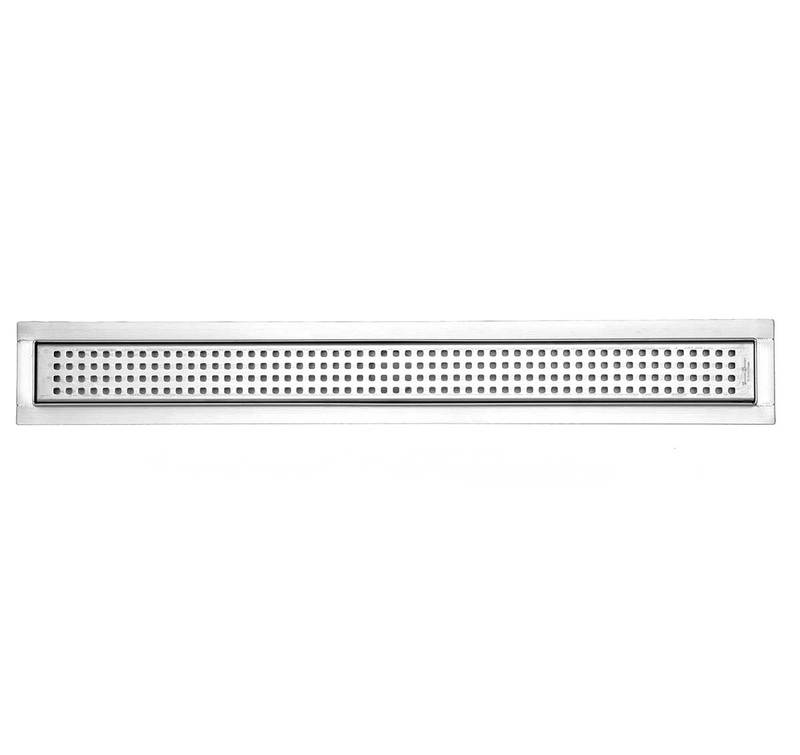

47 Inch Linear Shower Drain, Brushed Finish Traditional Square Design, SereneDrains
SereneDrains 47 Inch Linear Shower Drains, Brushed Stainless Steel Traditional Square Design, Free Hair Trap Included

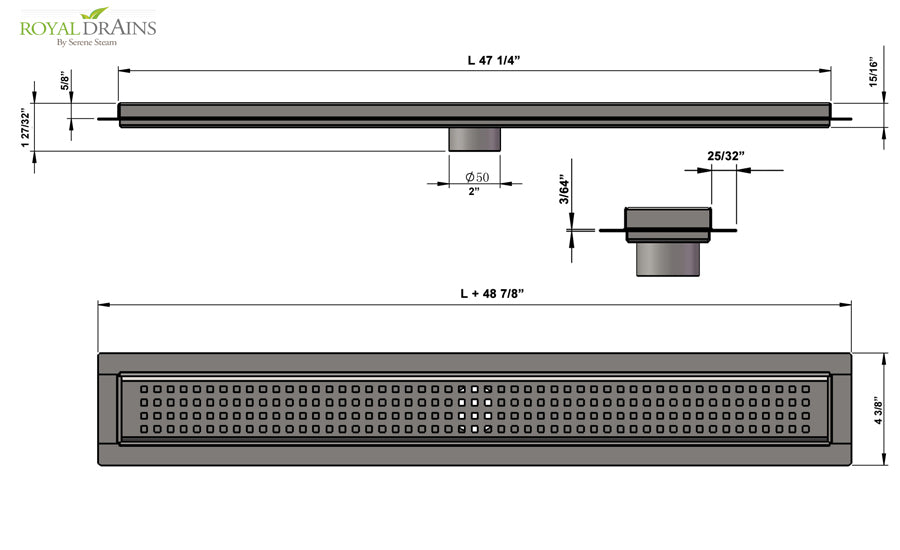

Net Size 47 1/4" x 2 3/4" (1200mm) | Overall Size 48.82" x 4 3/8" | Intake sq. in: 26.68
In Stock, Ready to Ship. Free Shipping
Available In: 16", 24", 30", 35", 39", 47", 59"

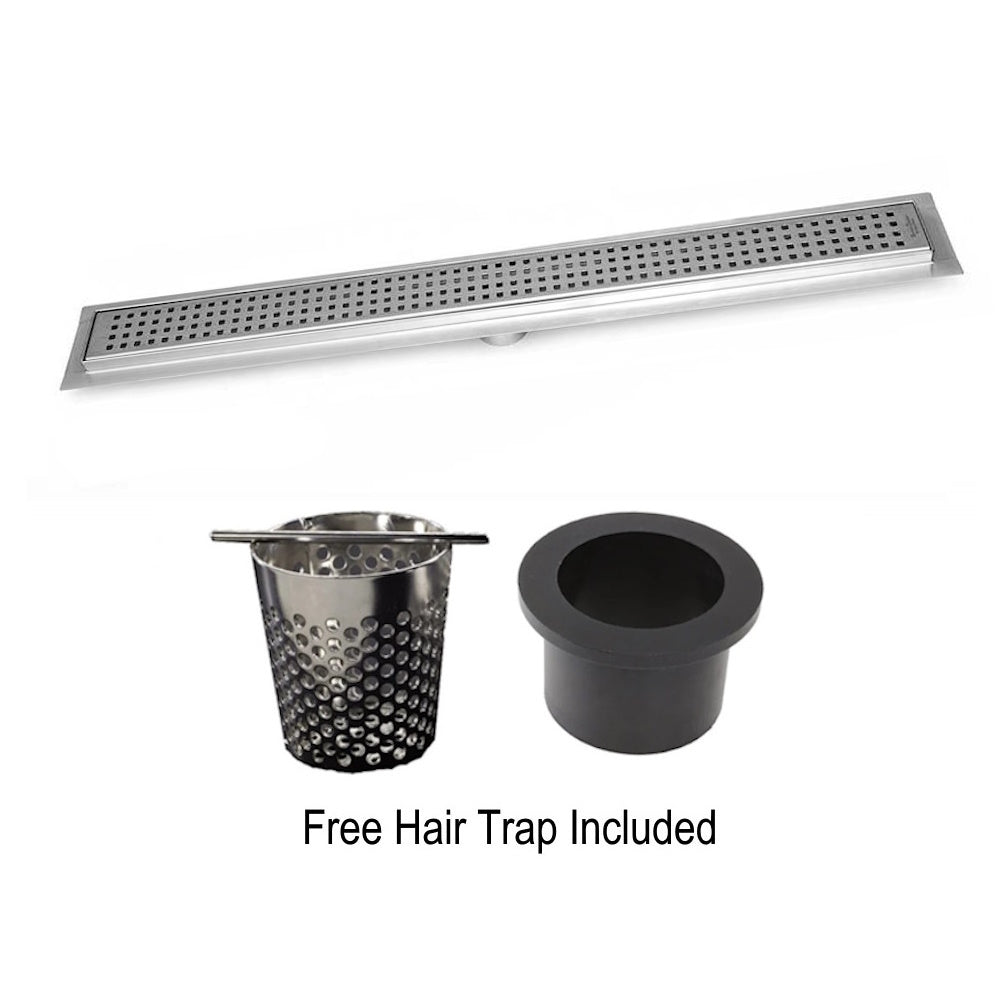

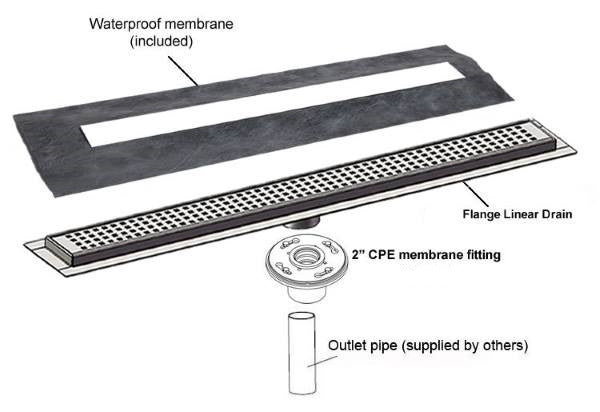

Drain Includes: stainless steel channel body & grate, puller key, rubber fitting, hair trap, waterproofing membrane sheet around the drain flange (not required but included), Installation Instructions.

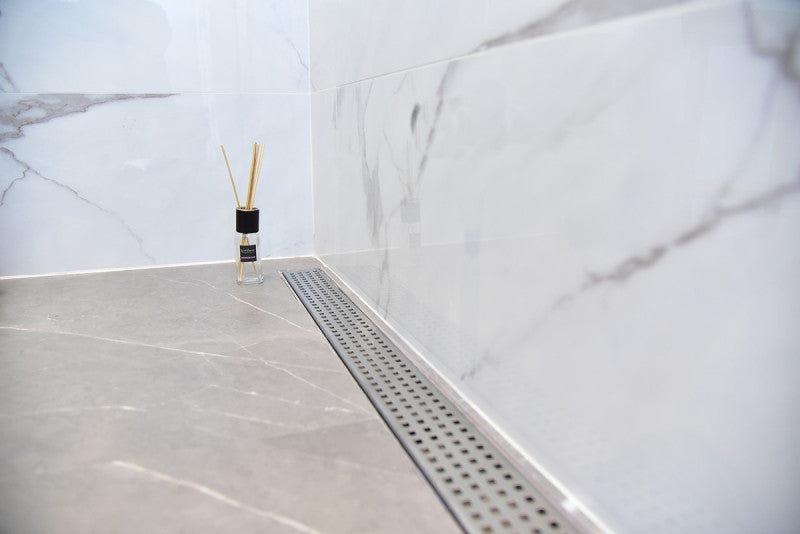

SereneDrains Traditional Square Design Linear Drains in a brushed finish offer a perfect combination of modernity and performance for your shower or bathroom. These high-quality shower drains seamlessly complement your space, adding a touch of elegance to your shower's appearance and ambiance, as well as providing excellent drainage performance. Additionally, the removable tray makes cleaning easy, ensuring your shower remains fresh and inviting for years to come.

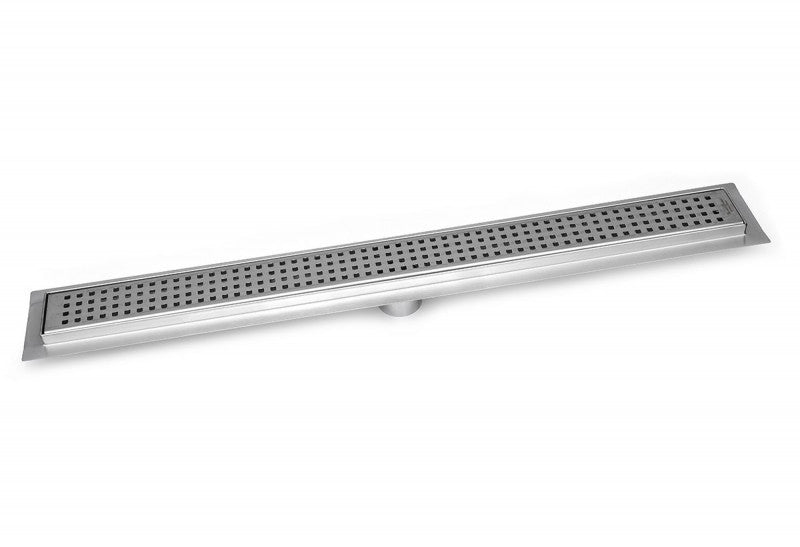

Why Choose SereneDrains: Our linear shower drain is constructed from 16-gauge 304 stainless steel, including the flange, channel, and grate, providing superior protection against corrosion and rust. The flange is designed for easy installation with all types of waterproofing materials such as 'Hot-Mop,' liquid membranes, sheet membranes, and vinyl waterproofing. Additionally, the shower drain is built without leveling feet, offering greater stability and simplifying installation by allowing the flange to rest directly on the floor edge. The frame is rounded (folded, not welded), making it twice as strong and ensuring a smooth touch underfoot. Plus, it’s entirely free of plastic parts.

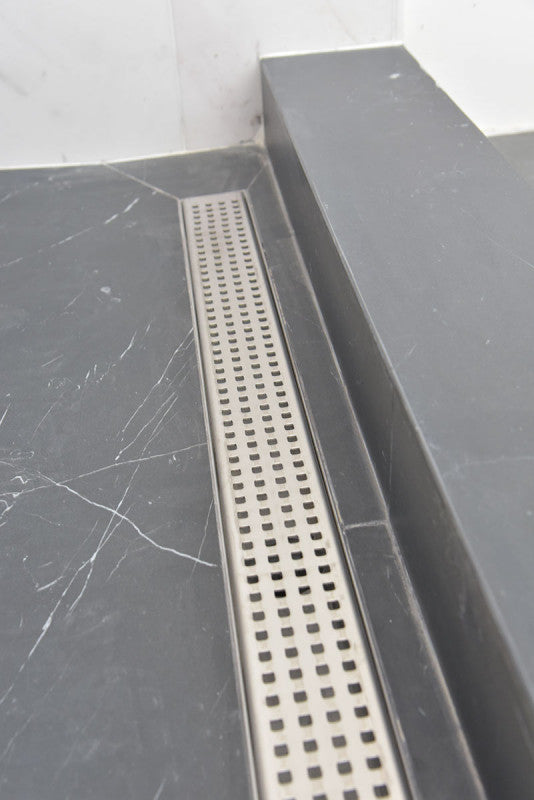

Applications: Shower & bath, kitchen, balconies, hotel rooms, gym, etc. Perfect for wheelchair access (ADA compliant) & barrier-free showers (walk-in floor plans).
Main Features:
- Stainless steel brushed finish.
- Superior quality laser-cut electropolish finish.
- Bodies are fully welded and leak-tested before dispatch.
- 2-inch diameter central vertical outlet.
- Designed to be installed into any 2" shower drain flange.
- Compatible with tiles up to 10mm in depth (14mm lip).
- Sized to match standard 1/2", 1", 2", and 4" tiles without cutting.
- Pre-slope channel. Channel width: 2 3/4" (70 mm).
- Drain grate is 16-gauge 304 stainless steel.
- Flow rate: at the entrance of the shower - 6.3 GPM (0.4 l/s); against the wall - 9.5 GPM (0.6 l/s).
- Flange body edge designed for use with all types of waterproofing: hot mop, painted or liquid membranes, sheet membrane, vinyl waterproofing, etc.
