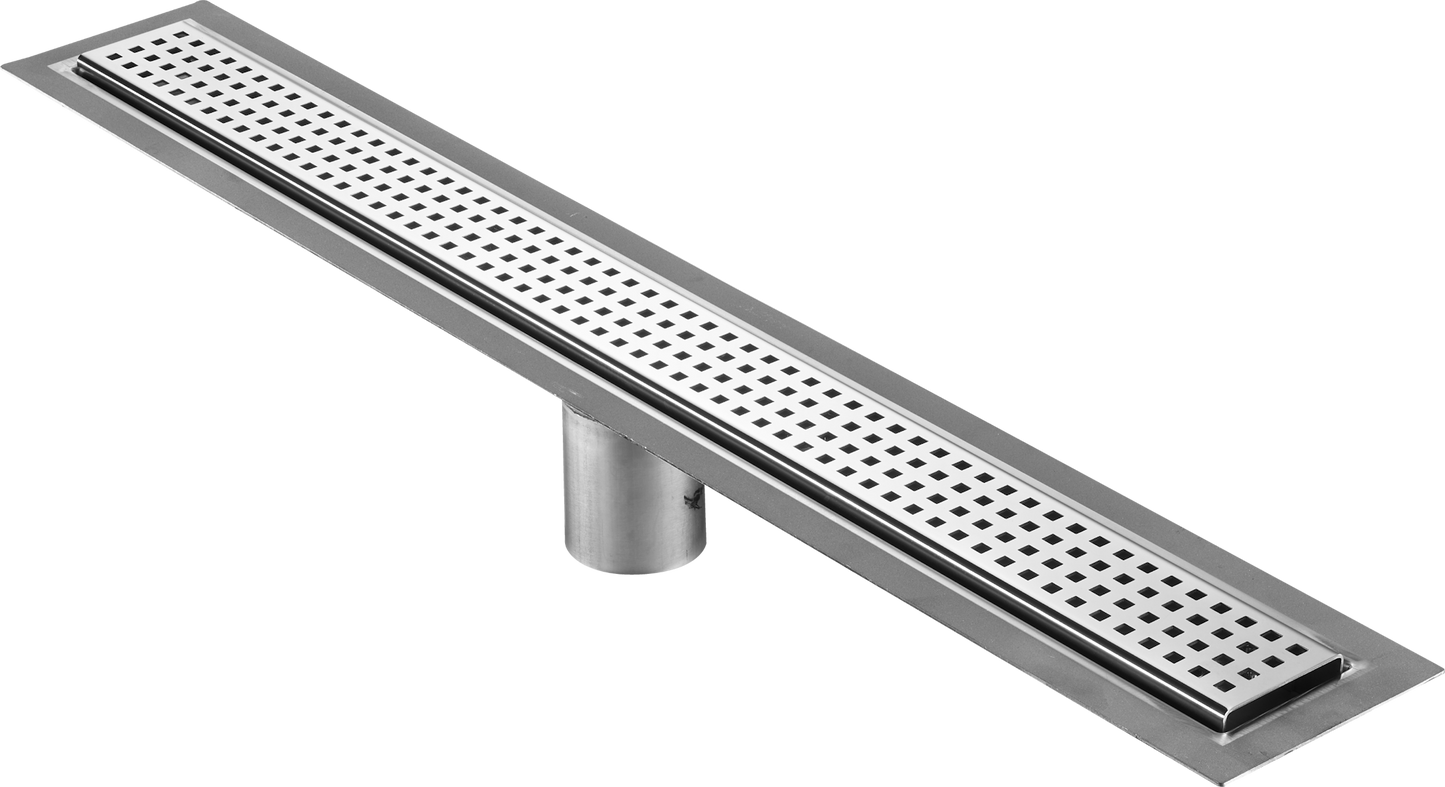

53 Inch Linear Shower Drain, Square Design Perforated Grate in Polished Stainless Steel, Drains Unlimited DUFB Series

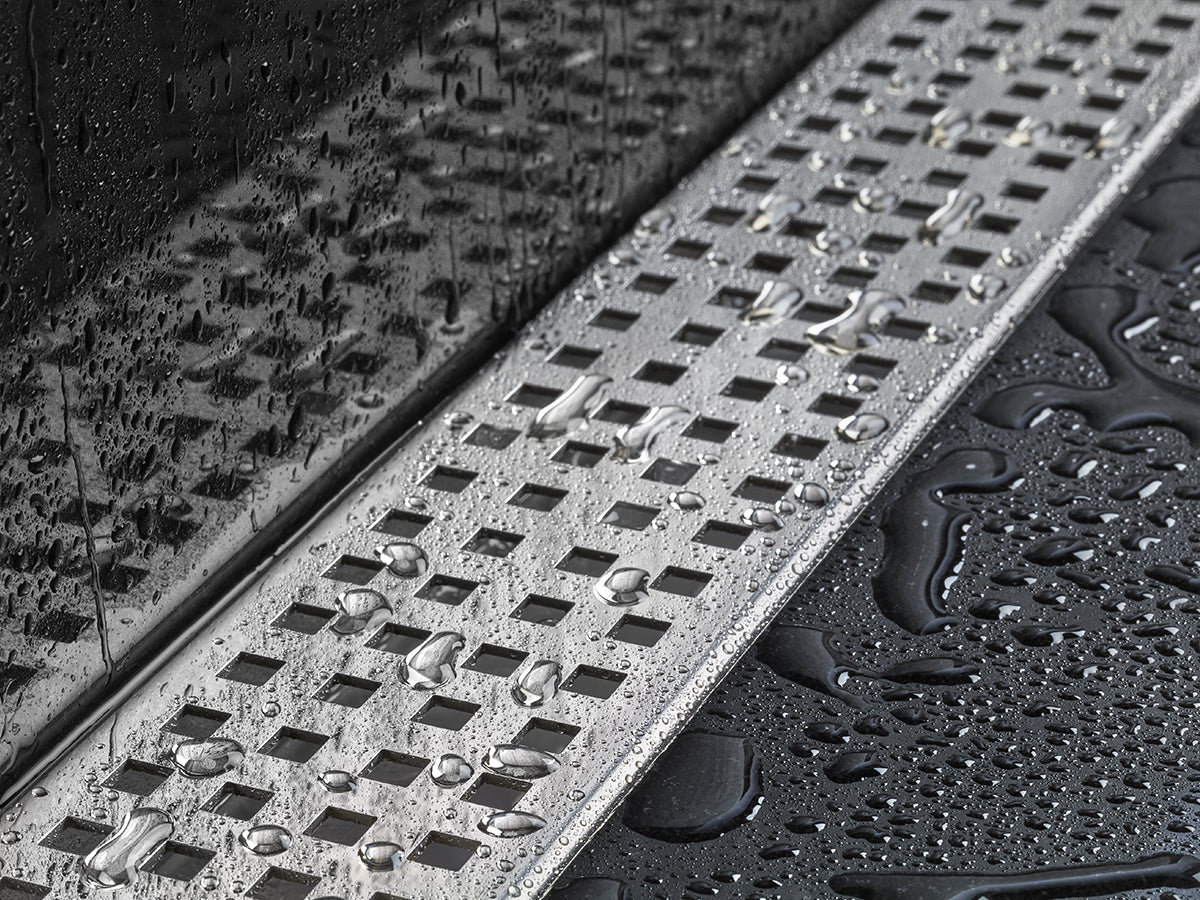

Our Square Design Grate linear drains will upgrade your shower ambiance with a touch of richness and sophistication. Available in brushed, polished, and black finishes, these drains ensure efficient water drainage while infusing a contemporary feel into your shower.

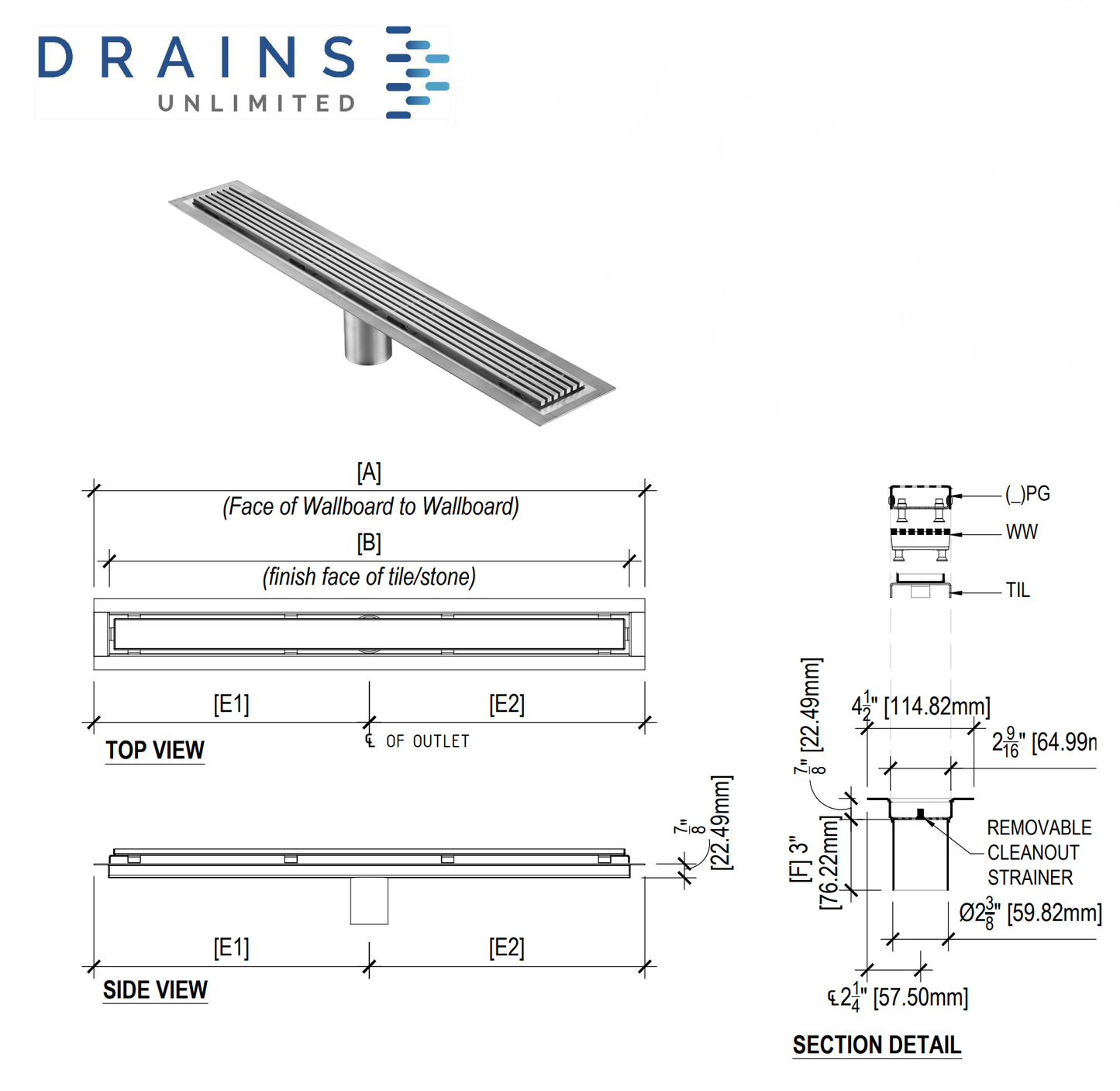

Main Features: No-hub coupling Installation, 2-3/8 inches (outside diameter) no hub center outlet, Textured bonding flange, 14-gauge AISI304 stainless steel, 2-1/2" width grate cover with 'V'-shape bottom, Rust-resistant and electro-passivated.

Available Size: 29", 31", 33", 35", 39", 41", 43", 47", 53", 59", 65", 71" (Drains are measured at the outer edge of the flange. The visible grate is approximately 2" shorter than the total drain size).

Drains Unlimited linear floor drains are made to enhance the aesthetics of any single-plane slope shower installation. Constructed with robust 304 stainless steel and featuring a textured flange, our drains ensure effortless installation and prolonged durability in your shower.

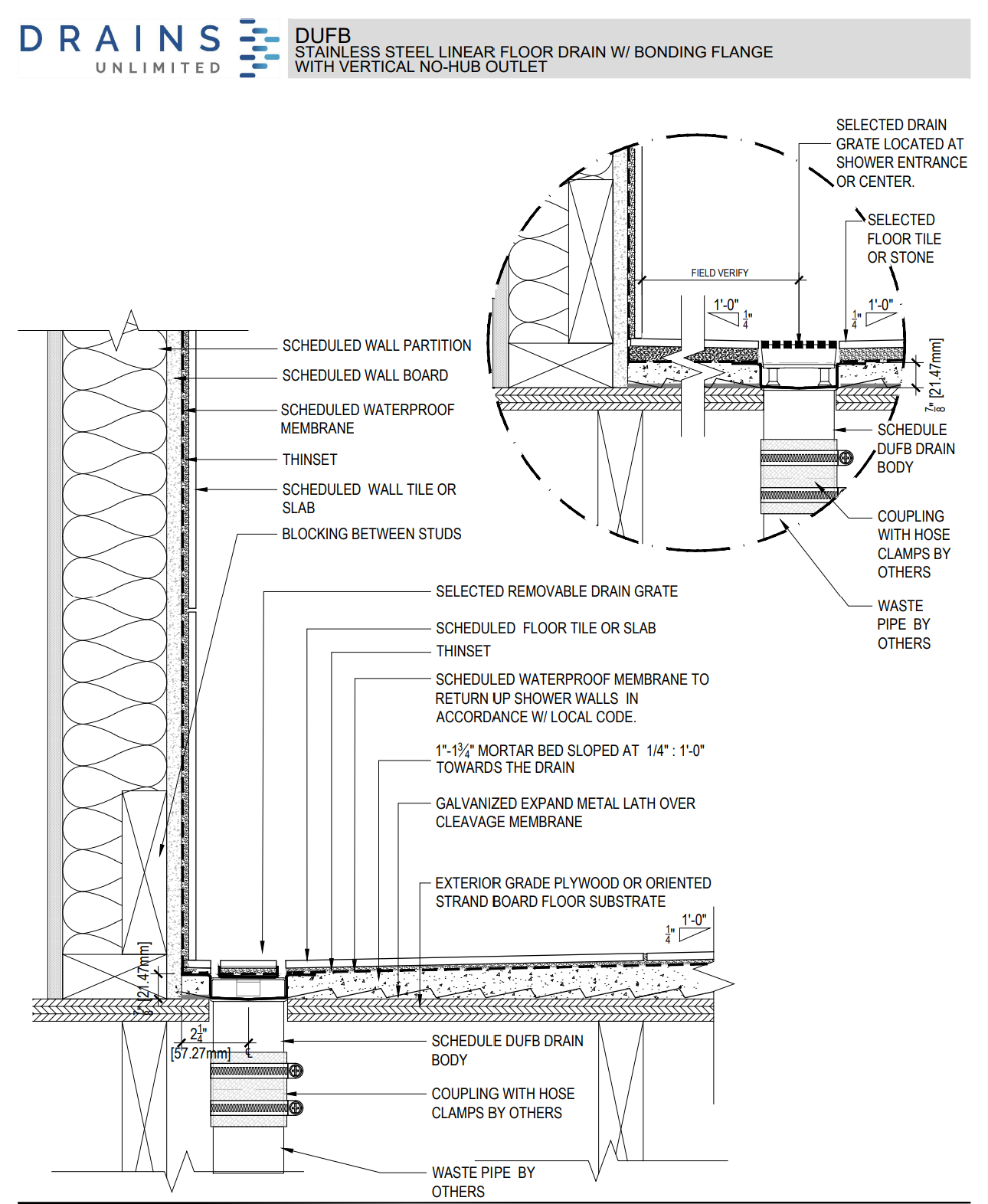

The DUFB Series linear drain is a two-piece, low-profile system specifically designed for easy installation and bonded waterproofing membrane application. These drains perfectly accommodate large or small-format tiles and stone installations in showers with a single-plane slope leading to the drain. Additionally, they are suitable for both commercial and residential projects, as well as for interior and exterior applications.

Package Includes: Drain body, Grate, Hair Strainer, Puller Key.

Features:

Drains are designed to be highly compatible for the North American market's shower construction industry, and with all major water-resistant adhesive material manufacturers such as Blanke Aqua-Shield, Laticrete, Mapei, and Schluter.

  • Made from heavy duty 304 stainless steel.

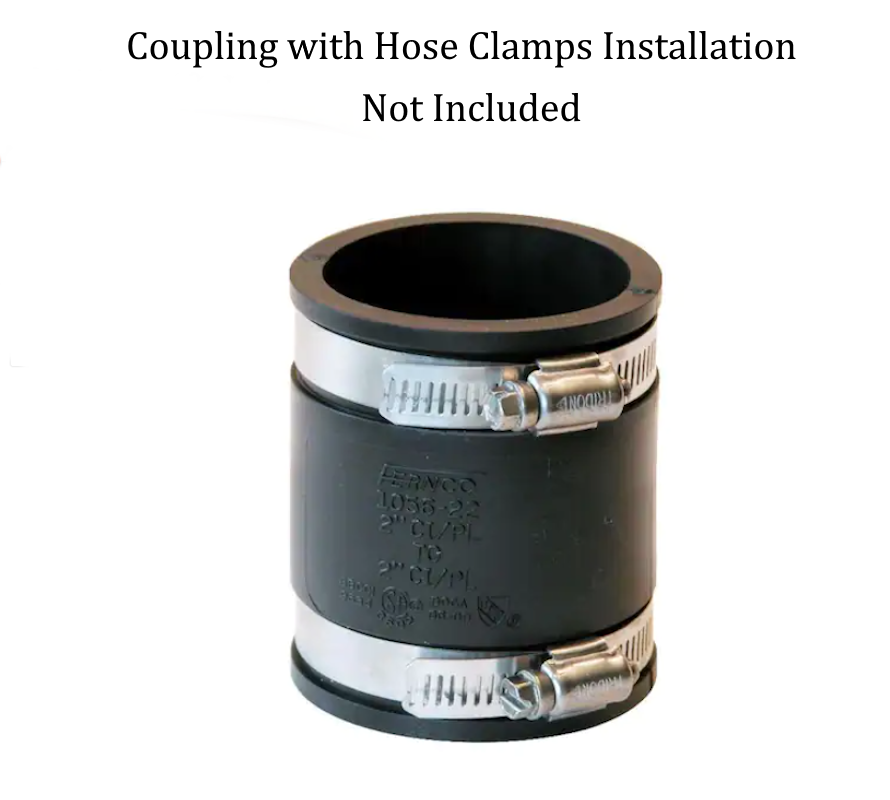

  • No-hub Coupling Installation. 2 3/8" Drain Outlet.
  • Textured flange to ensure a tight waterproof membrane seal to the drain body
  • Removable grate for easy cleaning and maintenance.
  • Single slope to drain.
  • UPC, CSA and ASME certified.
  • Excellent corrosion resistance passivated finish.
  • Hygienic barrier free design.
  • Application: Commercial, Residential.
  • Perfect for: Shower, bath, kitchen, balconies, hotel rooms, gym, spa etc.
  • Suitable substrates: concrete, exterior glue plywood, cement board, cement mortar bed, pre-sloped foam shower pans
  • Shallow V-bottom design for better water flow to drain outlet
  • High flow rate performance
  • SANS10400 compliant 75mm water seal
  • Accommodates any size tile format
  • Interior Use
  • Additional grate options available with wide variety of standard sizes (Custom sizes available)

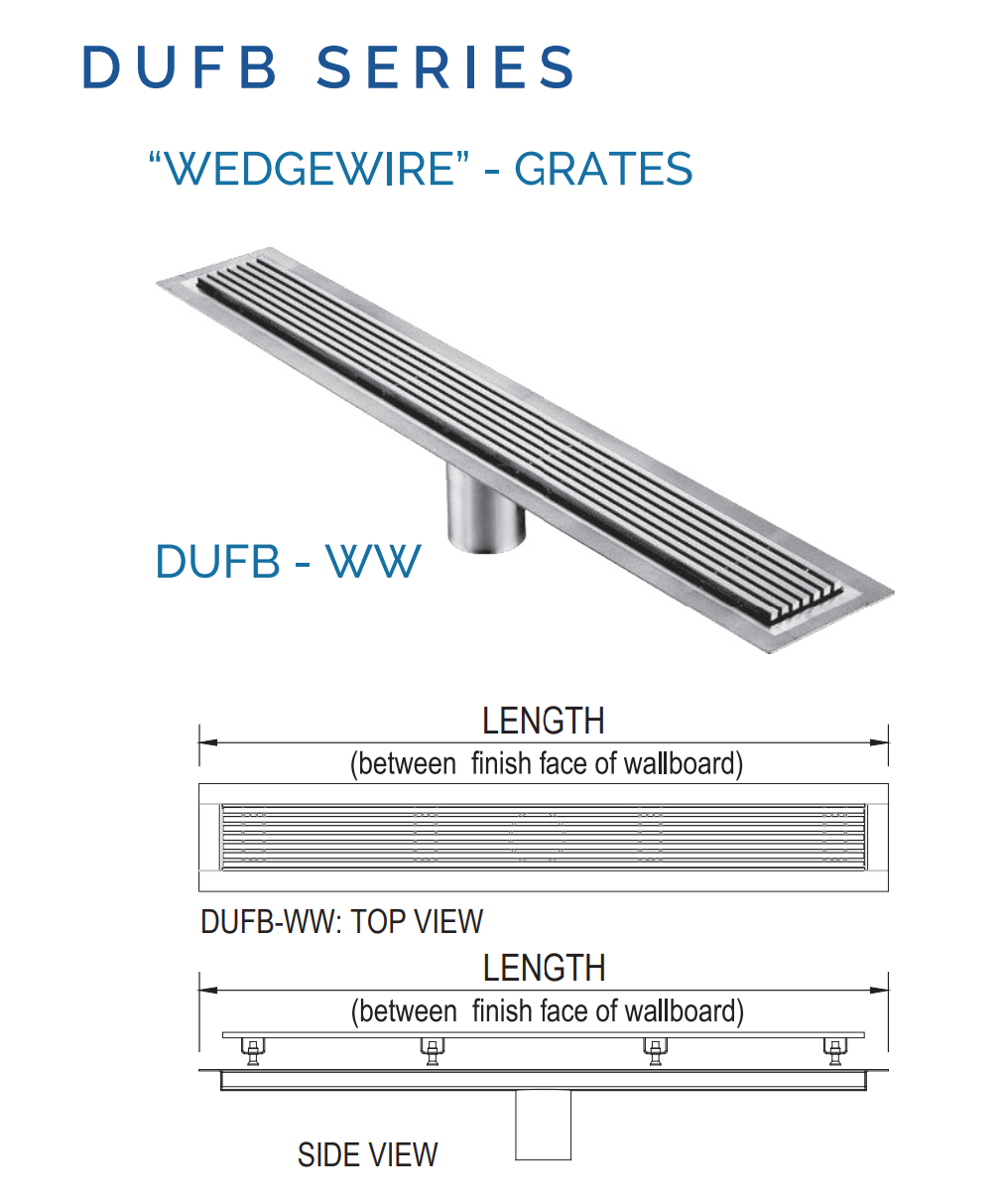

Drains Unlimited DUFB Drain Grates are available in 8 different styles and 5 different finishes, to match any tile or stone installation in any shower. Designs: Square Perforated, Weave Perforated, Ice Perforated, Honey Perforated, Earth Perforated, Tile in Tray, Solid Bar, Wedgewire. Finishes: Polished Stainless Steel, Brushed Stainless Steel , Black Powder Coated, Brass Matte, Brass Polished.

Drains Unlimited linear shower drains and our one-of-a-kind wall recessed tile-in linear drains are the perfect choice for any luxury shower installation.

Customization available including: Side outlet, Horizontal side outlet, 316-gauge stainless steel, etc. Contact for more information.
