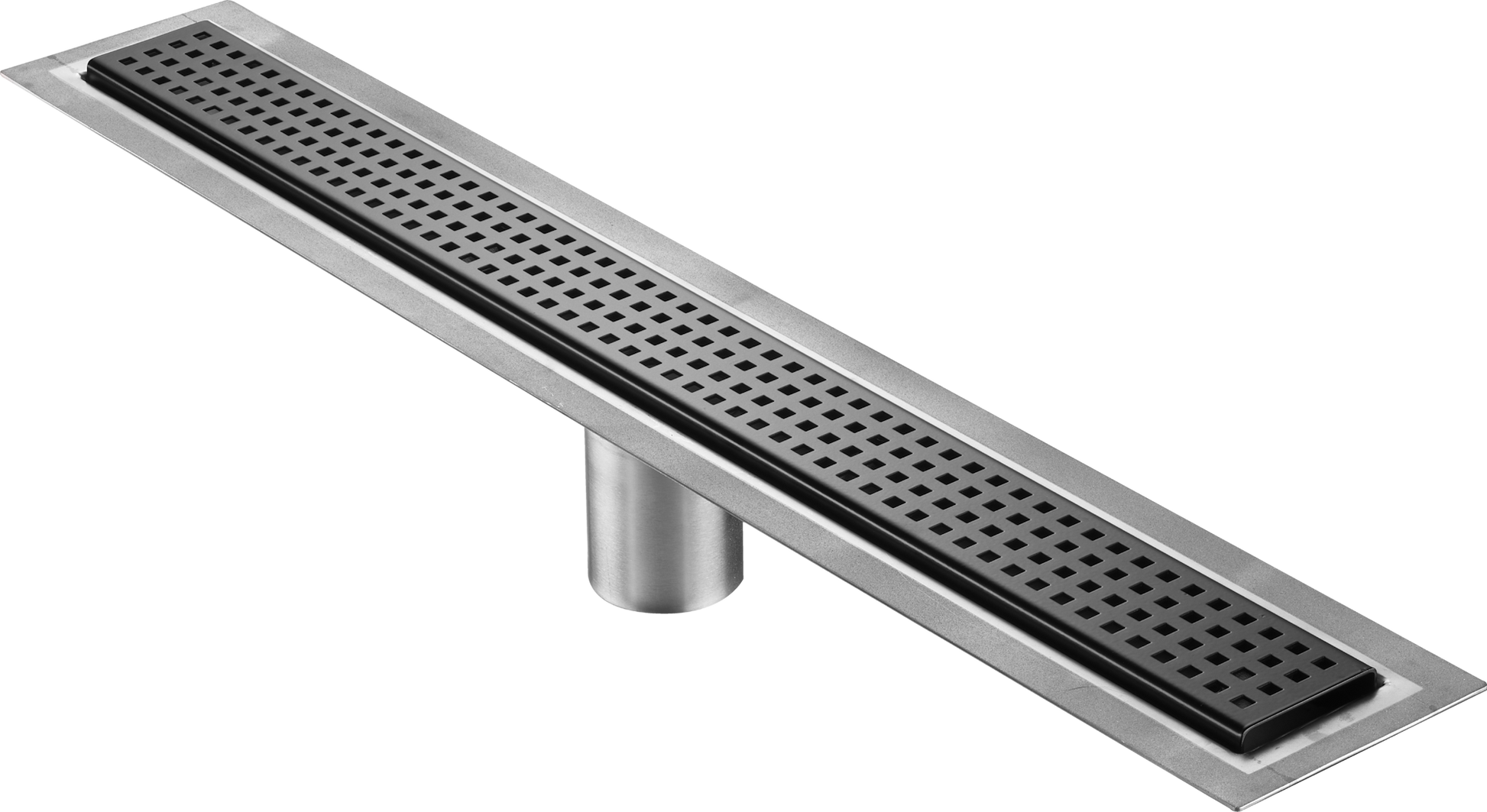

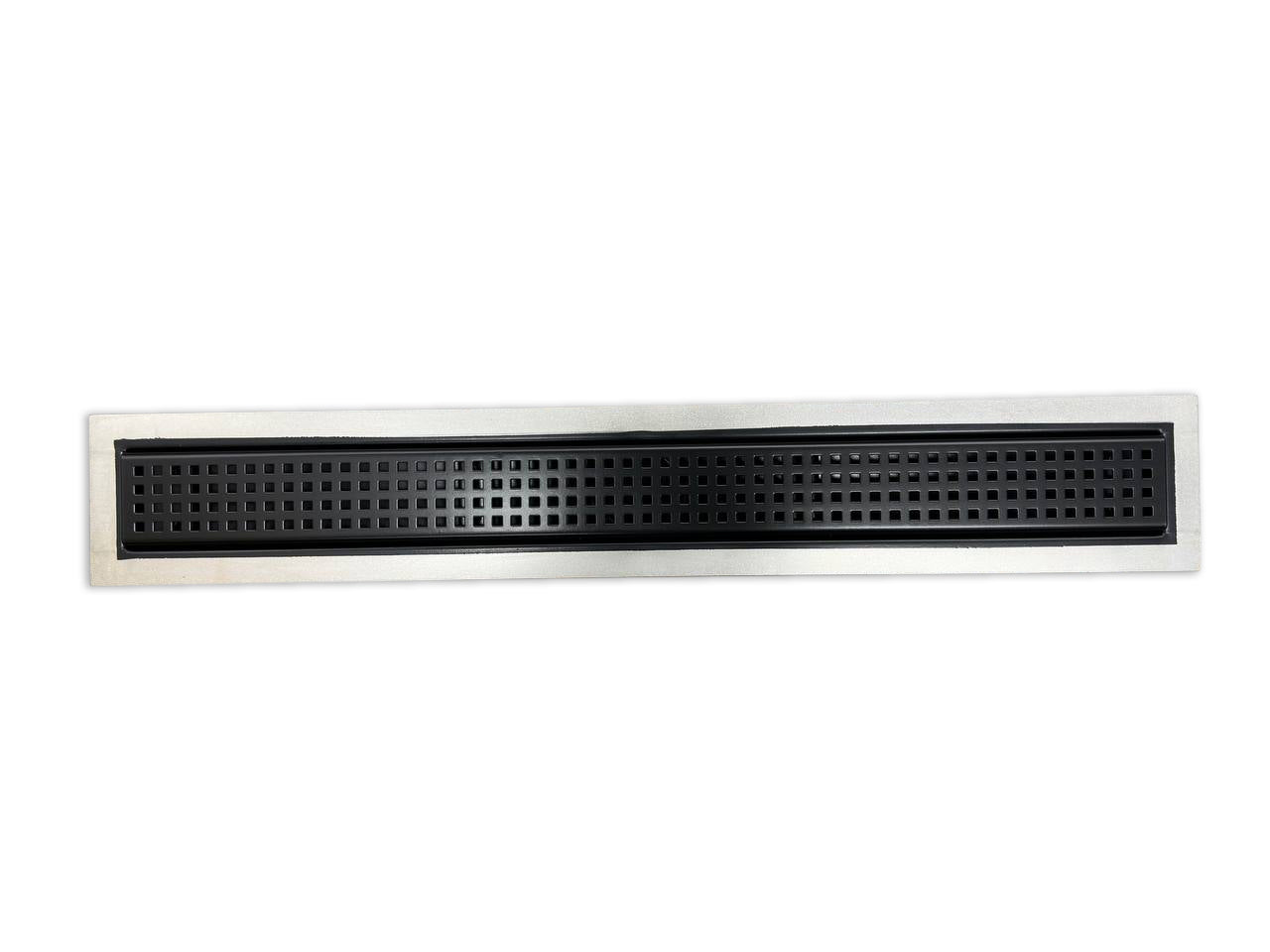

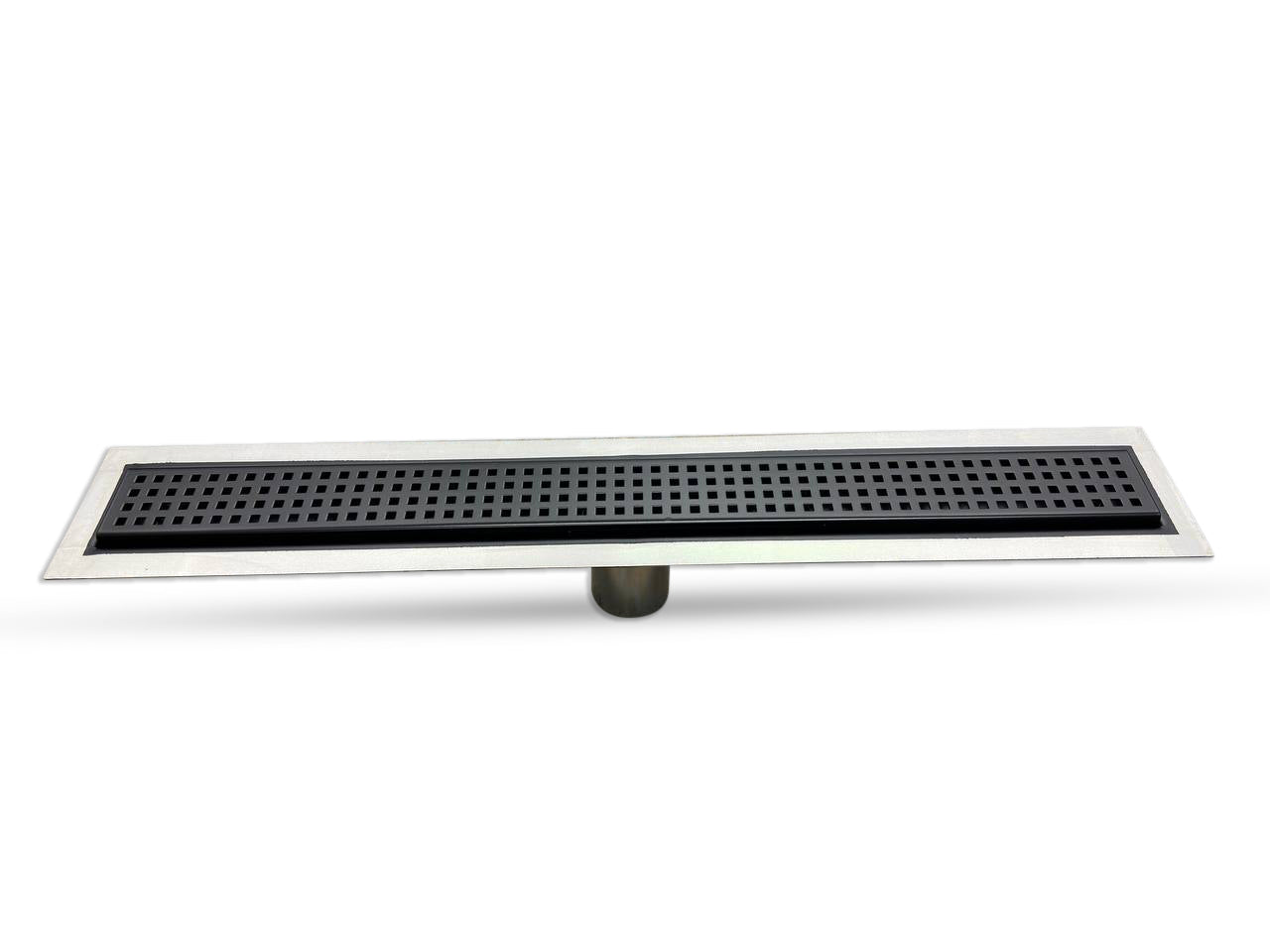

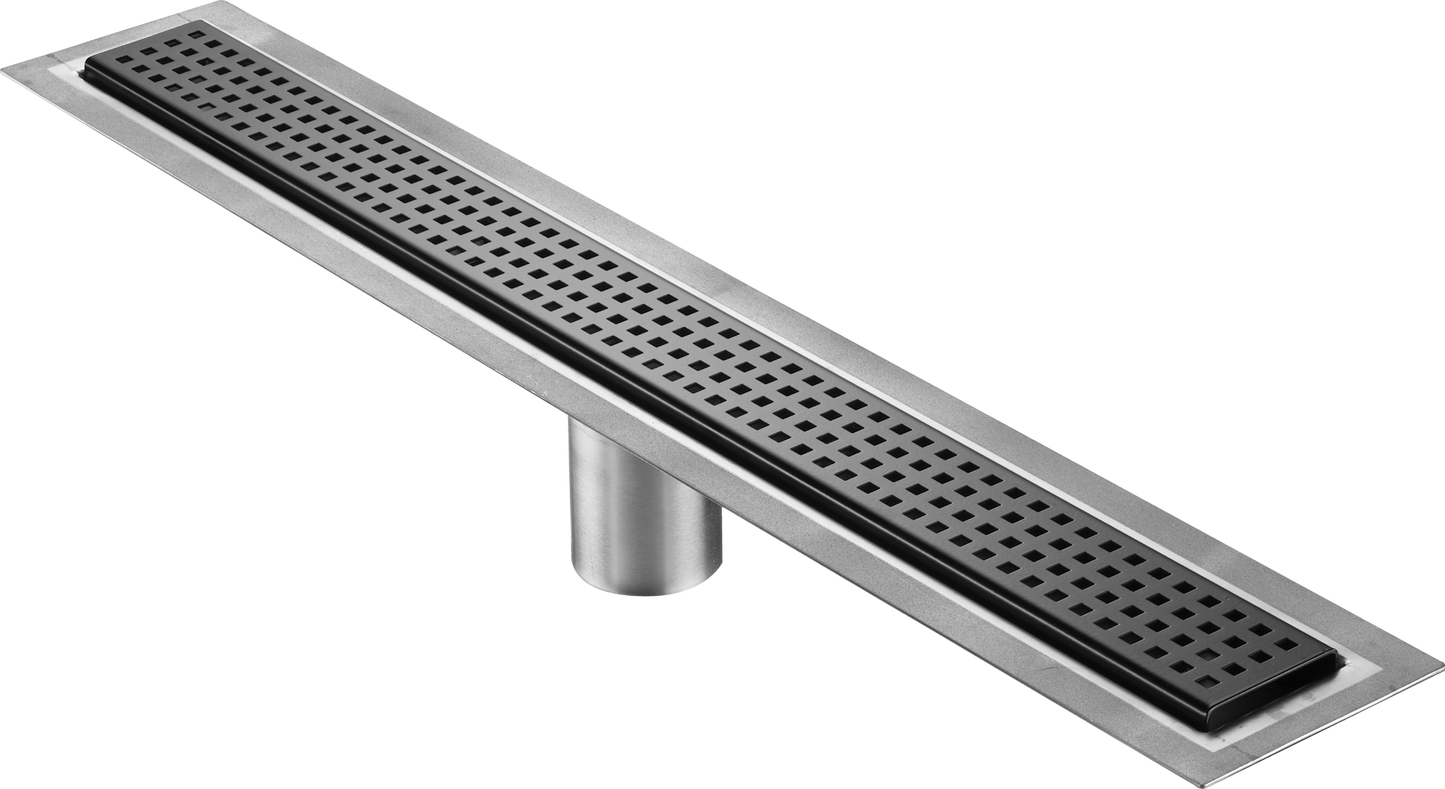

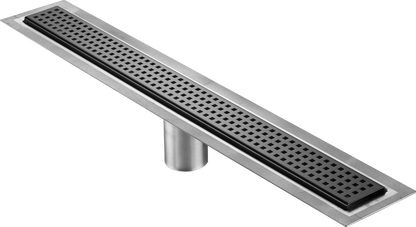

59 Inch Black Linear Drains, Square Grate Design, Drains Unlimited DUFB Series
Upgrade your shower experience with our upscale linear drains, now available in a luxurious black powder-coated finish. With options in brushed, polished, or black, these drains not only ensure effective water drainage but also bring a touch of modern sophistication to your bathroom décor.
Main Features: 2-3/8 inches center outlet no-hub coupling Installation, Textured bonding flange for tight seal, 14-gauge AISI304 stainless steel, 2-1/2" width grate cover with 'V'-shape bottom for best water flow, Rust-resistant and electro-passivated for longevity.

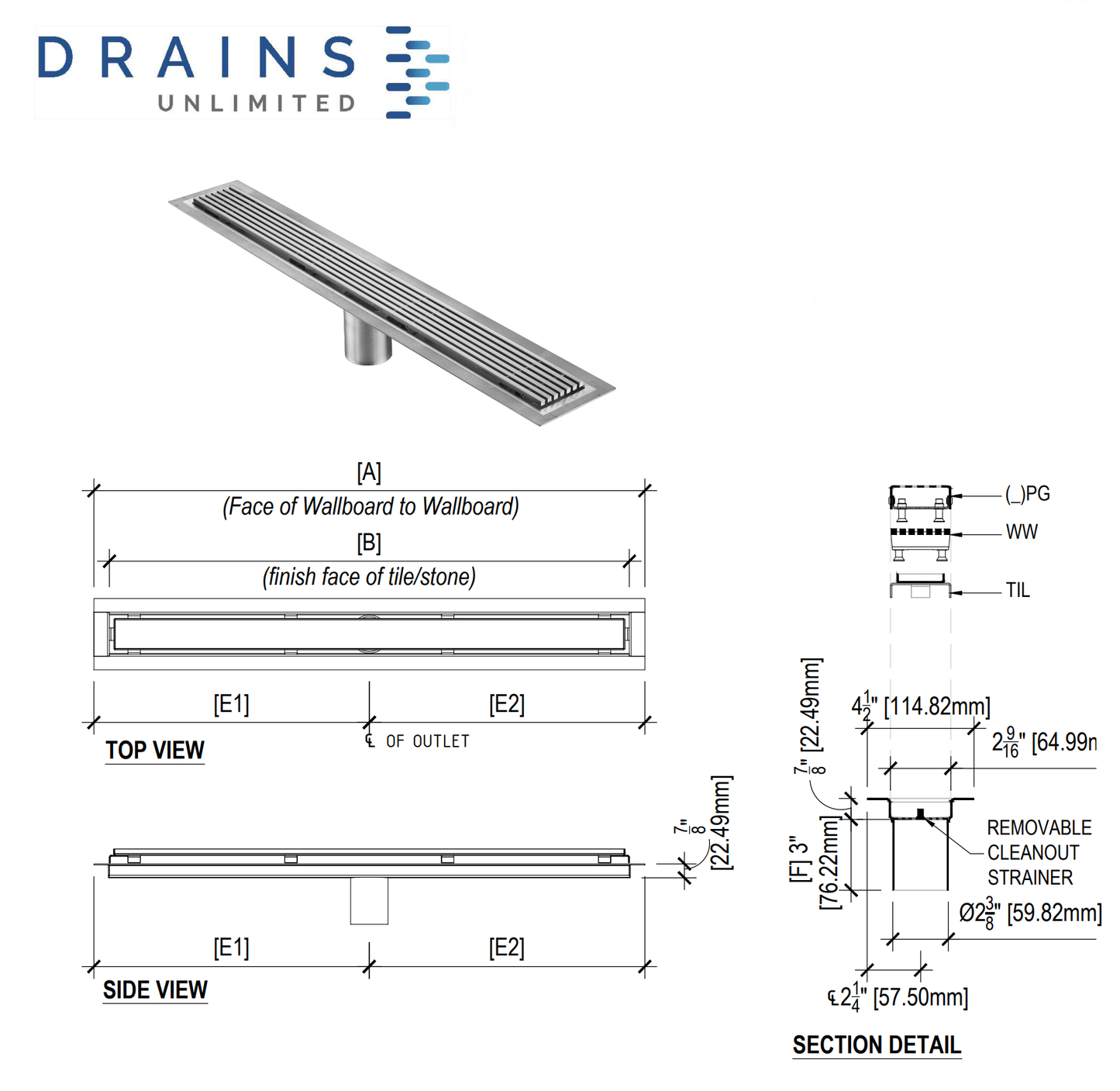

Available Size: 29", 31", 33", 35", 39", 41", 43", 47", 53", 59", 65", 71" (Drains are measured at the outer edge of the flange. The visible grate is approximately 2" shorter than the total drain size).

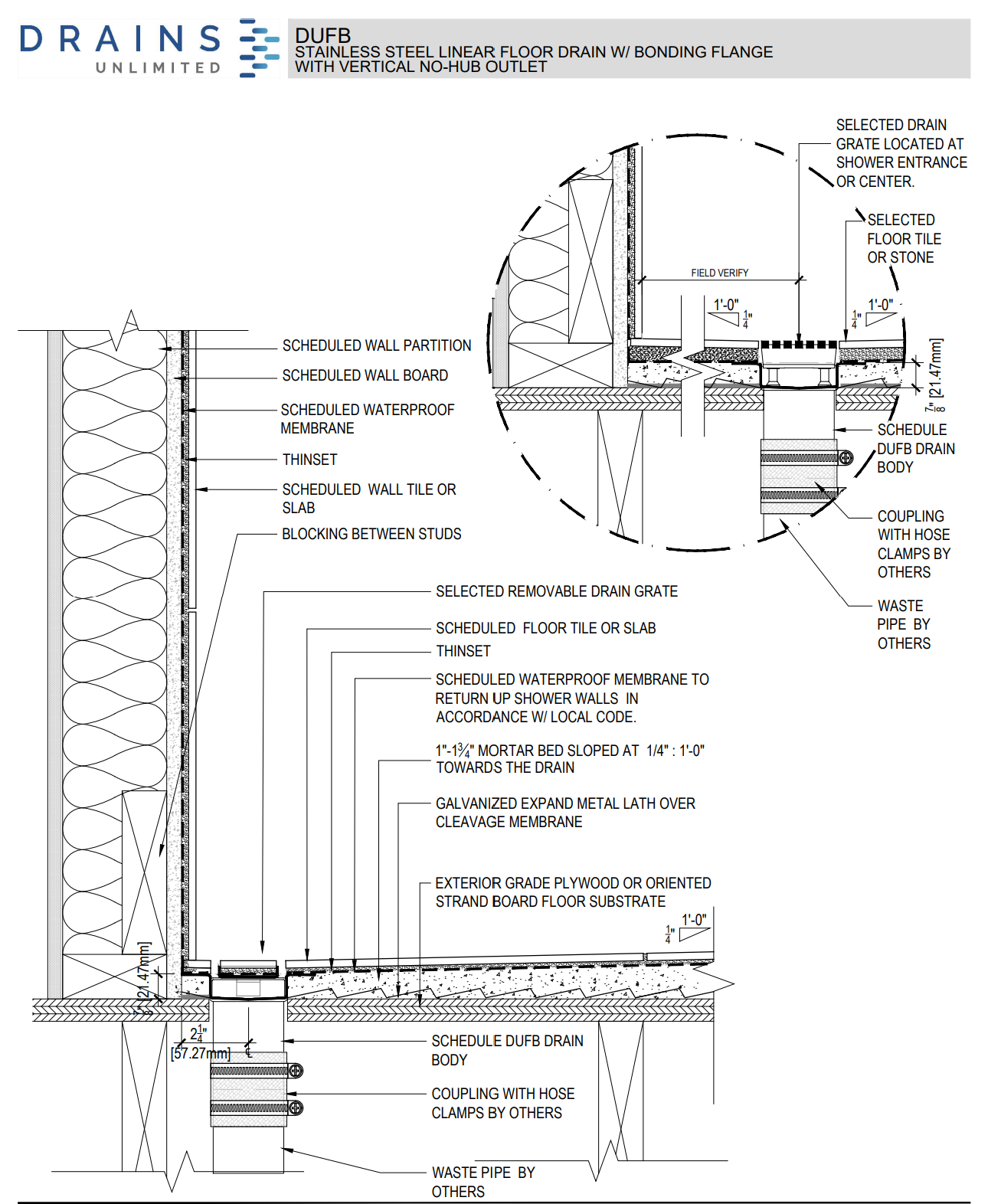

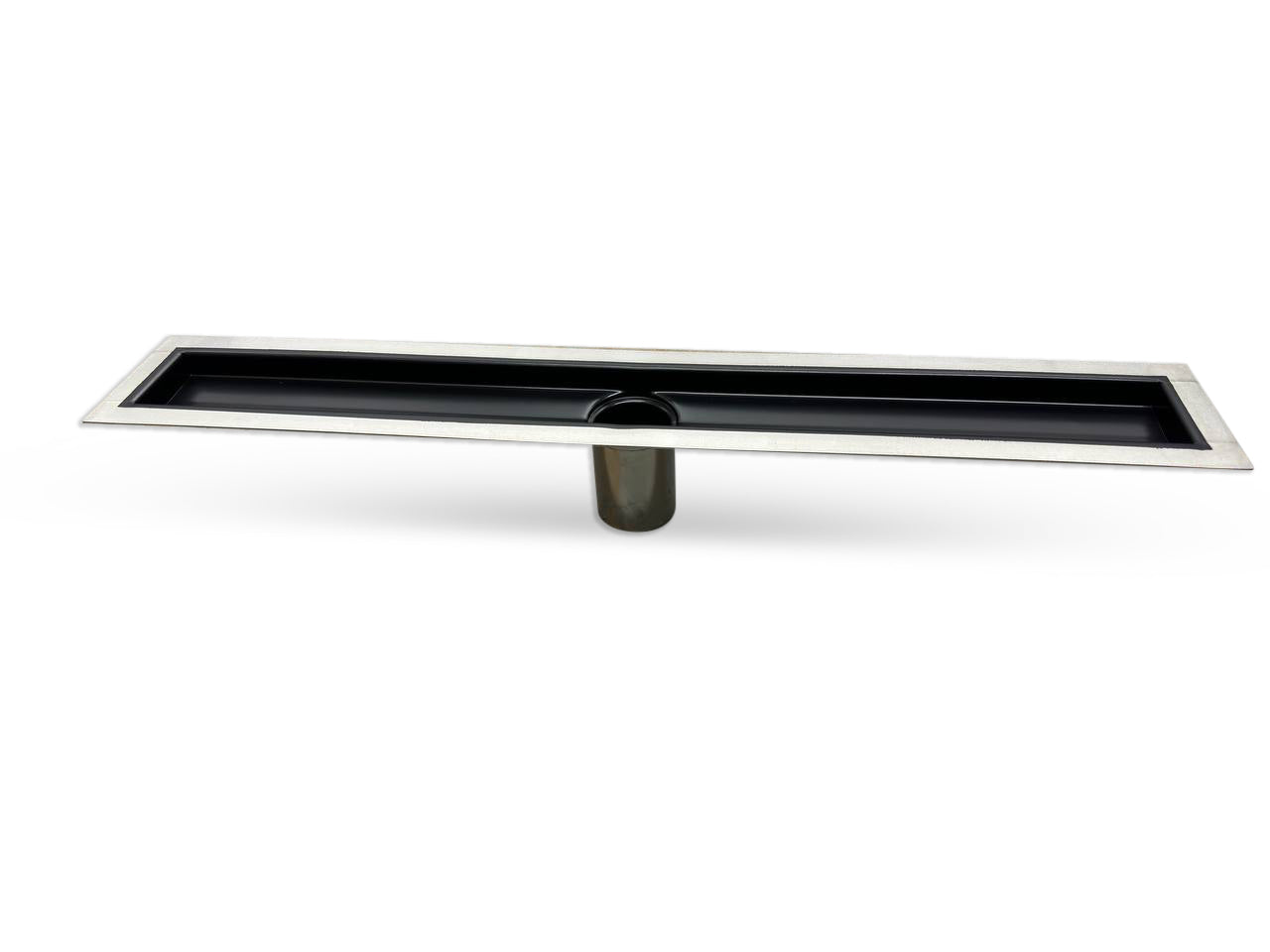

The DUFB Series linear drain in black is a two-piece, low-profile drain specifically designed for easy installation and bonded waterproofing membrane application. These drains perfectly accommodate large or small-format tiles and stone installations in showers with a single-plane slope leading to the drain. Additionally, they are suitable for both commercial and residential projects, as well as for interior and exterior applications.

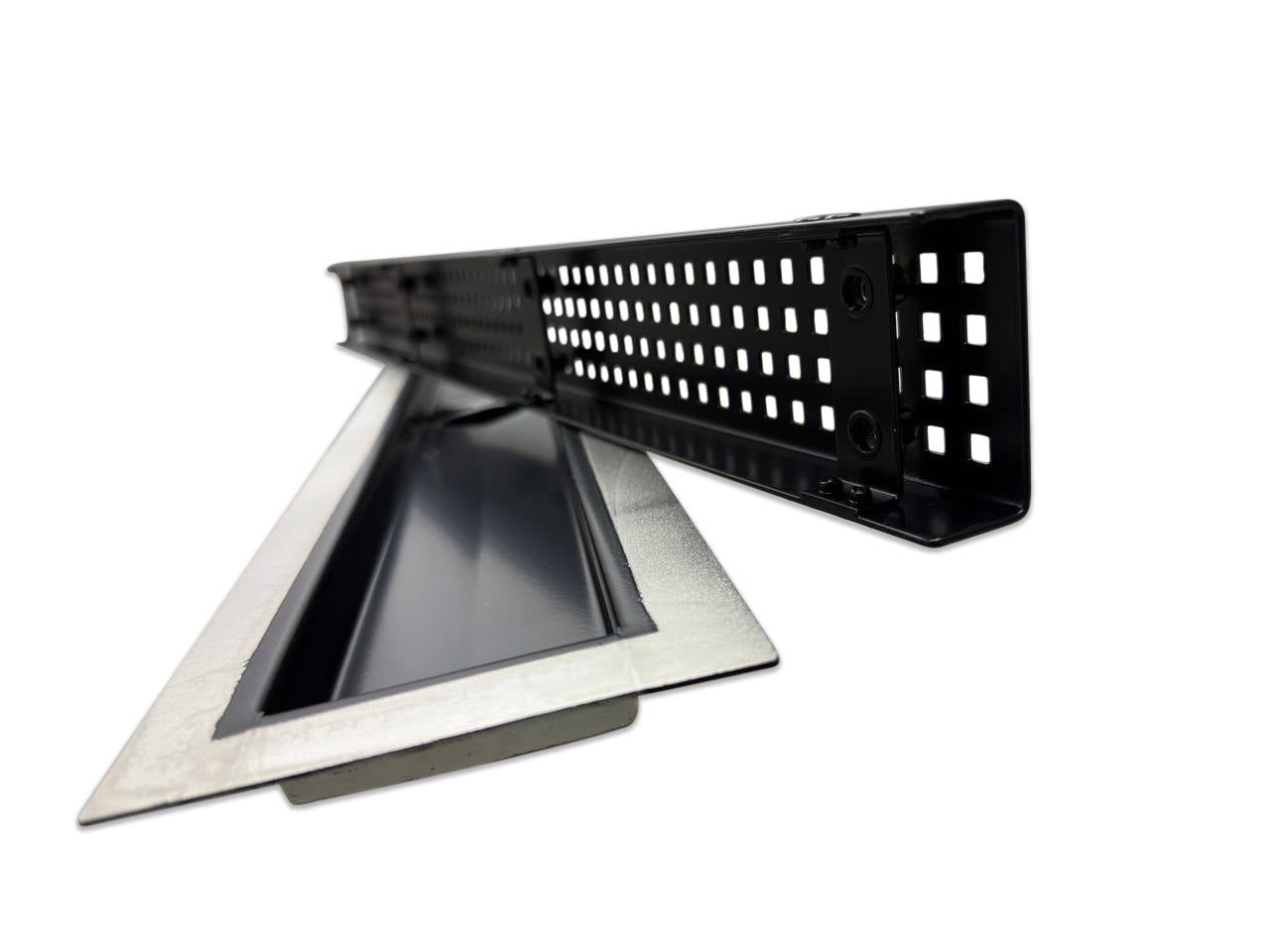

Package Includes: Drain body, Grate, Hair Strainer, Puller Key.
Features:
Drains are designed to be highly compatible all major water-resistant adhesive material manufacturers such as Blanke Aqua-Shield, Laticrete, Mapei, and Schluter.
- Made from heavy duty 304 stainless steel.

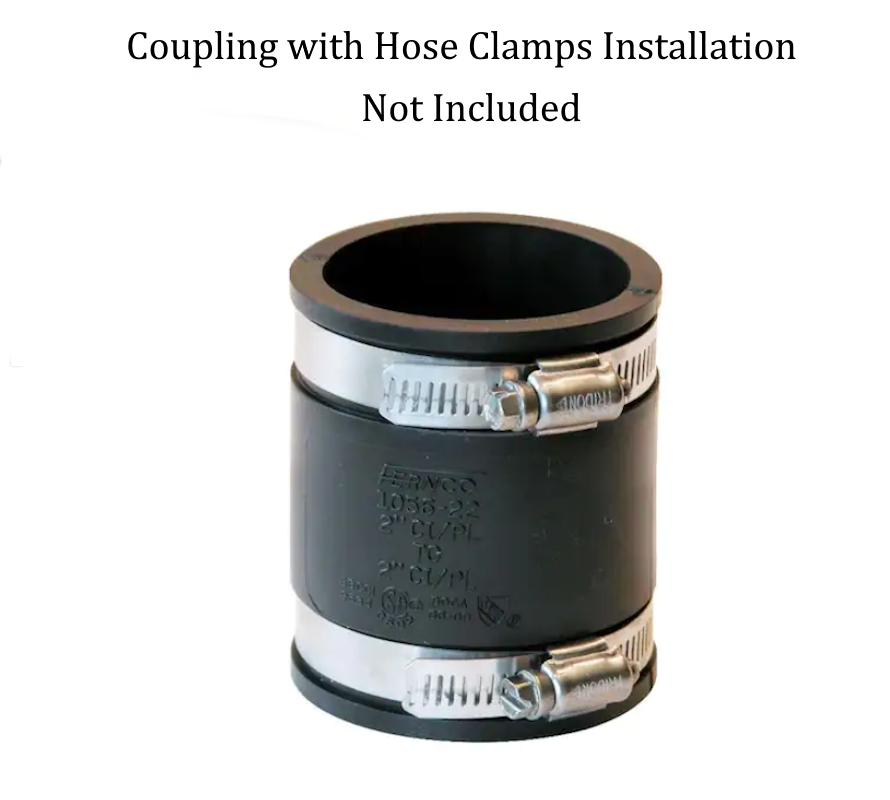

- No-hub Coupling Installation. 2 3/8" Drain Outlet.
- Textured flange to ensure a tight waterproof membrane seal to the drain body
- Removable grate for easy cleaning and maintenance.
- Single slope to drain.
- UPC, CSA and ASME certified.
- Excellent corrosion resistance passivated finish.
- Hygienic barrier free design.
- Application: Commercial, Residential.
- Perfect for: Shower, bath, kitchen, hotel rooms, etc.
- Suitable substrates: concrete, exterior glue plywood, cement board, cement mortar bed, pre-sloped foam shower pans

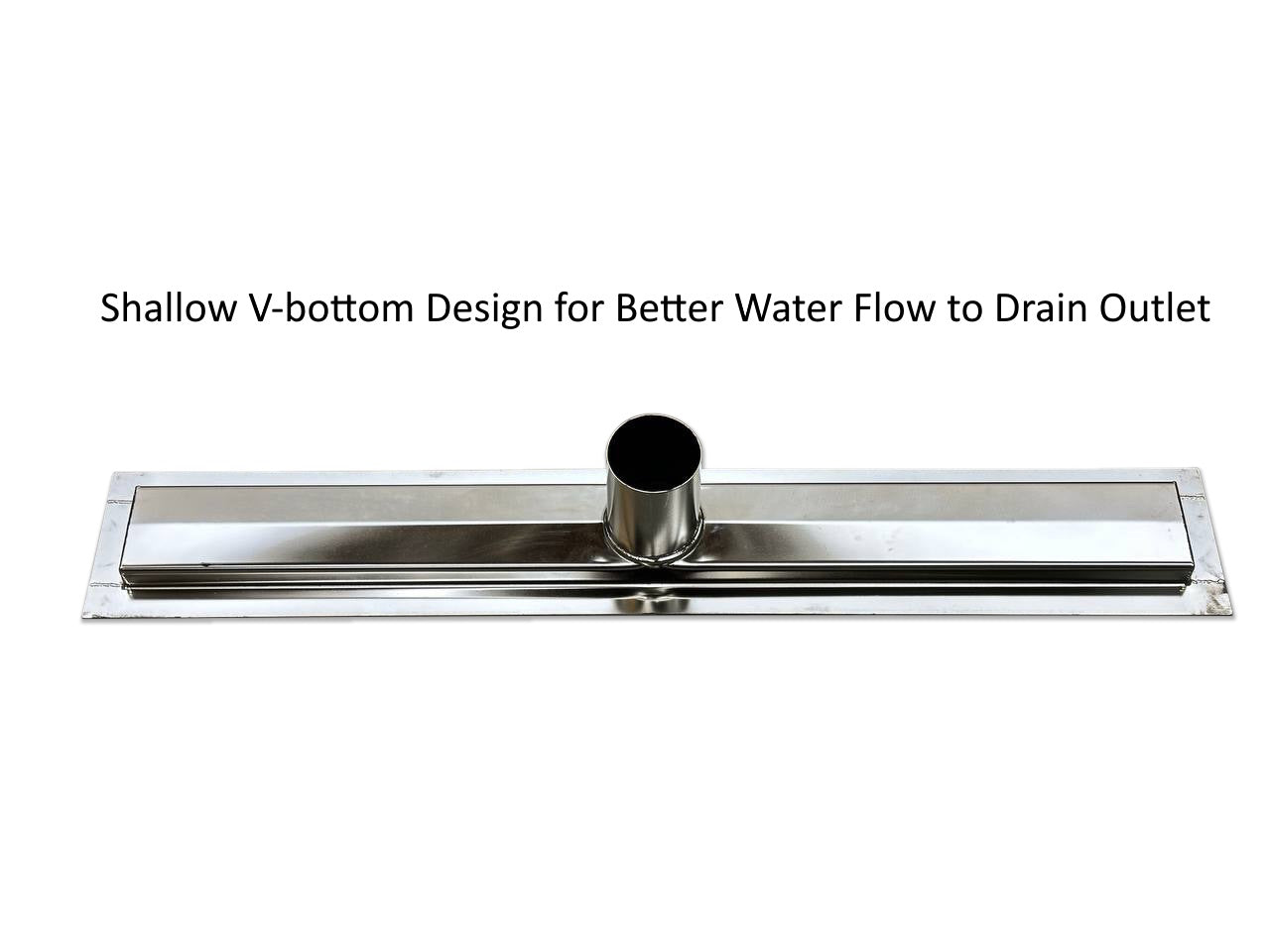

- Shallow V-bottom design for better water flow to drain outlet
- High flow rate performance
- SANS10400 compliant 75mm water seal
- Accommodates any size tile format
- Additional grate options available with wide variety of standard sizes (Custom sizes available)
Drains Unlimited is a manufacturer of high-quality shower drains for various shower designs. The DUFB Series standard Linear Drains are available in 8 different styles and 5 different finishes to complement any tile or stone installation in any shower. Additionally, Drains Unlimited offers the one-of-a-kind DUWR Series wall-recessed linear drains for a more concealed drain installation, making them the perfect choice for upscale luxury shower construction. Furthermore, the DUFR Series Linear Floor Drain is a unique linear drain that is installed flush with the wall for a clean, seamless look. These linear drains are designed similarly to standard linear drains but offer the added benefit of close wall installation. This is achieved with its innovative wall-mounted design, which eliminates the strip of tile between the back wall and the drain
Customization available including: Side outlet, Horizontal side outlet, 316-gauge stainless steel, etc. Contact for more information.
