59" Polished Chrome Linear Shower Drain – Linear Wedge Design | SereneDrains

59" Polished Chrome Linear Shower Drain – Linear Wedge Design with Heavy-Duty 5 mm 304 Stainless Steel Grate | SereneDrains

Modern Style Meets Heavy-Duty Performance

The SereneDrains 59" Polished Chrome Linear Shower Drain combines a clean Linear Wedge Design with exceptional strength and drainage performance. Its polished chrome finish and precision laser-cut grate create a contemporary look, while its heavy-duty construction delivers long-lasting durability.

Designed for custom tile showers, walk-in showers, curbless bathrooms, and ADA-compliant barrier-free showers, this linear shower drain is an excellent choice for both residential and commercial projects.

Product Details

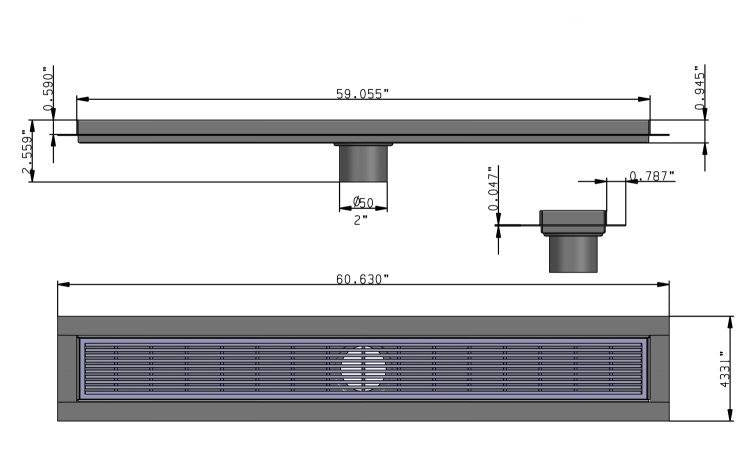

• Net Size: 59" × 2 3/4"
• Overall Size: 60.63" × 4 3/8"
• Intake Area: 44.74 sq. in.
• Outlet: 2" Central Vertical Outlet
• Channel Width: 2 3/4" (70 mm)
• Available Sizes: 16", 24", 30", 35", 39", 47", and 59"
• Availability: In Stock – Ready to Ship
• Shipping: Free Shipping

What's Included

• Stainless steel channel body
• Heavy-duty 5 mm (6-gauge) 304 stainless steel Linear Wedge grate
• Puller key
• Hair Strainer
• Rubber Sealing Gasket
• Waterproofing membrane sheet around the drain flange (not required but included)
• Installation instructions

Why Choose a Linear Wedge Shower Drain?

The Linear Wedge Design features precision-machined parallel drainage openings that create a clean, contemporary appearance while allowing efficient water flow. The polished chrome finish complements modern bathroom fixtures, making it a popular choice for homeowners, designers, architects, and contractors.

Unlike many standard linear shower drains that use thinner grates, the SereneDrains Linear Wedge Design features a heavy-duty 5 mm (6-gauge) 304 stainless steel grate for outstanding strength, durability, and easy maintenance. The removable grate provides convenient access for cleaning while preserving the drain's clean, contemporary appearance.

Built to Last

Manufactured from corrosion-resistant 304 stainless steel, this linear shower drain is engineered for years of dependable performance.

• Heavy-duty 5 mm (6-gauge) 304 stainless steel grate
• Fully welded channel body
• Leak-tested before shipment
• Pre-sloped channel for efficient water flow
• Rounded folded frame for added strength and a smooth, foot-friendly edge
• No leveling feet for greater installation stability

Compatible with Any Shower Waterproofing Method

The drain flange is engineered to work with virtually every professional waterproofing system, making it suitable for both new construction and shower remodels.

Compatible with:

• Hot mop waterproofing
• Painted or liquid membranes
• Sheet membranes
• Vinyl waterproofing

Designed to fit standard 2-inch shower drain flanges.

The included waterproofing membrane sheet around the drain flange (not required but included) provides additional installation flexibility.

Designed for Modern Tile Installations

Compatible with tiles up to 10 mm thick using the integrated 14 mm tile support lip.

Works with common tile sizes: 1/2", 1", 2", and 4"

Ideal Applications

• Residential bathrooms
• Custom tile showers
• Walk-in showers
• Curbless showers
• ADA-compliant barrier-free showers
• Hotels
• Gyms
• Spas
• Commercial shower installations

Technical Specifications

Why Choose SereneDrains?

• Heavy-duty 5 mm (6-gauge) 304 stainless steel Linear Wedge grate provides superior strength and durability.
• Polished chrome finish complements modern bathroom fixtures and custom tile showers.
• Compatible with hot mop, painted or liquid membranes, sheet membranes, and vinyl waterproofing systems.
• Includes a Hair Strainer, Rubber Sealing Gasket for a watertight outlet connection, and waterproofing membrane sheet (not required but included) to help simplify installation.
• Fits standard 2-inch shower drain flanges.
• Fully welded, leak-tested construction for dependable long-term performance.
• Foot-friendly grate with anti-slip nodules for added comfort and traction.
• In stock and ready to ship with Free Shipping.
• Backed by a 30-Day Return Policy.

Frequently Asked Questions

Will this linear shower drain cause water to pool?

Standing water is usually caused by improper shower floor slope rather than the drain itself. The SereneDrains Linear Wedge Shower Drain features a pre-sloped internal channel designed to direct water efficiently toward the outlet. With flow rates up to 6.3 GPM at the shower entrance and 9.5 GPM against the wall, it is designed to handle normal shower water flow when installed according to the included instructions.

What makes this different from lower-cost linear shower drains?

The SereneDrains Linear Wedge Design is built for long-term performance with a heavy-duty 5 mm (6-gauge) 304 stainless steel grate, fully welded channel body, leak-tested construction, and no plastic components. These features provide greater strength, durability, and reliability compared with many standard lightweight linear drains.

Is this drain compatible with my shower waterproofing system?

Yes. The flange design is compatible with common professional waterproofing methods, including hot mop, painted or liquid membranes, sheet membranes, and vinyl waterproofing systems. A waterproofing membrane sheet around the drain flange is included (not required but included) for additional installation flexibility.

How do I clean and maintain this linear shower drain?

The removable Linear Wedge grate allows easy access for cleaning and maintenance. The included Hair Strainer helps collect debris before it reaches the plumbing system, making routine shower maintenance easier.

Can this linear shower drain be used for a curbless or ADA shower?

Yes. Linear shower drains are an excellent choice for curbless showers, barrier-free bathrooms, and ADA-compliant shower designs because they allow a single-direction floor slope while creating a clean, modern appearance.

What size linear shower drain do I need for my shower?

A linear shower drain does not need to span the entire width of your shower. In most installations, the drain is selected to cover approximately 80–90% of the shower width along the wall where it is installed. For example, a 30" shower often works well with a 24" drain, while a larger 36" shower may use a 30" or 35" drain.

The drain does not need to reach the corners. Leaving approximately 2–4 inches of space on each side is common and will not affect drainage when the shower floor is properly sloped toward the channel.

SereneDrains Linear Shower Drains are available in 16", 24", 30", 35", 39", 47", and 59" sizes to accommodate a wide range of shower designs.

Need help choosing the right drain? Read our complete linear shower drain buyer guide to learn about sizes, designs, installation considerations, and what to look for when selecting a shower drain.

Shop drain accessories and adapters including ABS, PVC, and cast iron flanges, plus debris strainers.

Complete your shower build with our shower shelves collection.

Explore the complete collection of SereneDrains linear shower drains, available in multiple sizes, decorative grate designs, and finishes.

Quantity discounts available for contractors, designers, architects, builders, and remodeling professionals.
