60 Inch Side Outlet Linear Shower Drain by Serene Drains
60" Offset Linear Drain
Serene Drains Side Outlet Linear Shower Drain With Rubber Gasket & Hair/Debris Strainer Set. Drain apex 2.8" oc of drain end.

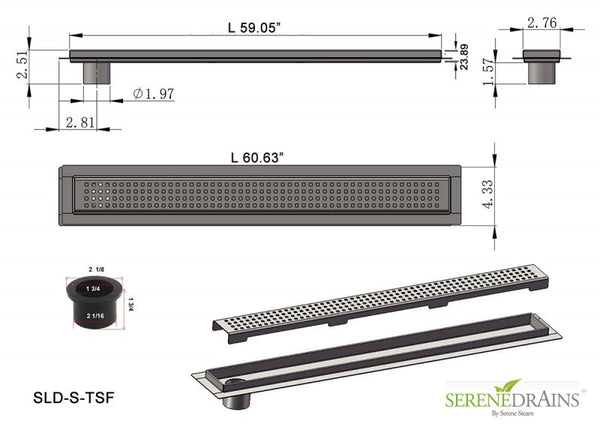

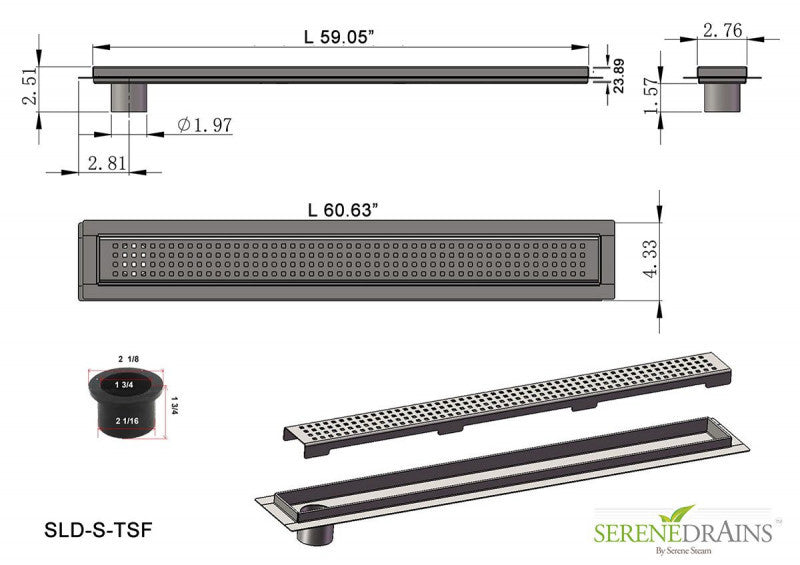

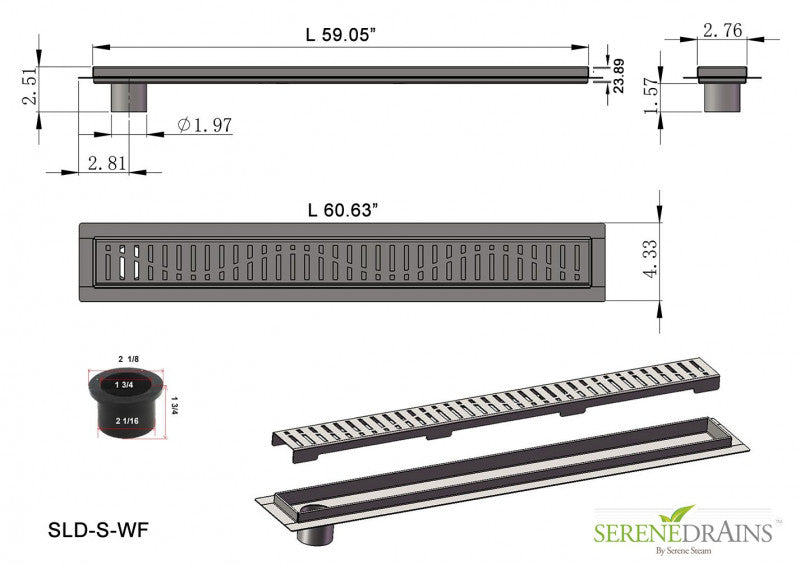

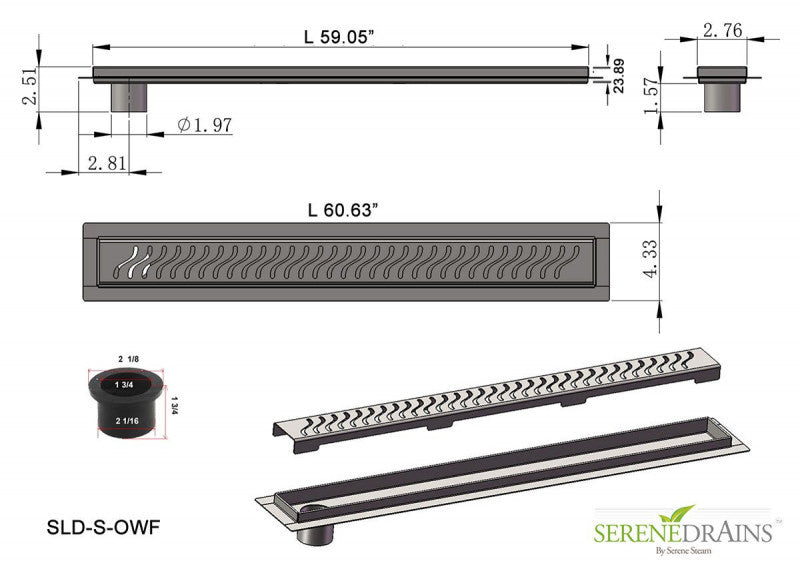

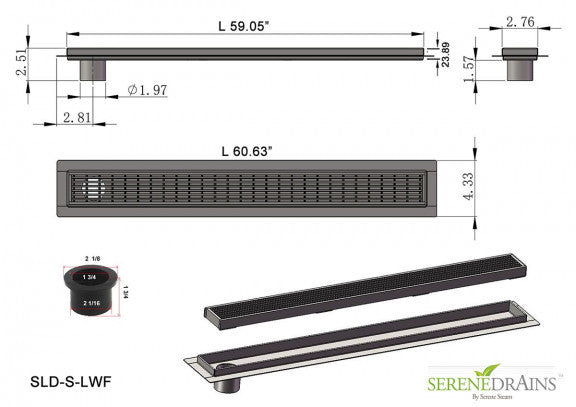

Net Size 59.05" x 2 3/4" (1500mm) | Overall Size 60.63" x 4 3/8" | Intake sq. in: 31.67.
When to use the Offset Outlet Linear Drain: If joist is in the center of the shower opening and notching or drilling is not an option. If shower is set on a 4 inch or more concrete and relocation of the drain outlet is costly. If drain outlet already exists on the side of the shower. As well as other shower construction plans. Consult a professional (Central vertical outlet linear drains also available)
Sizes Available: 16", 24:, 30", 36", 40", 48", 60".

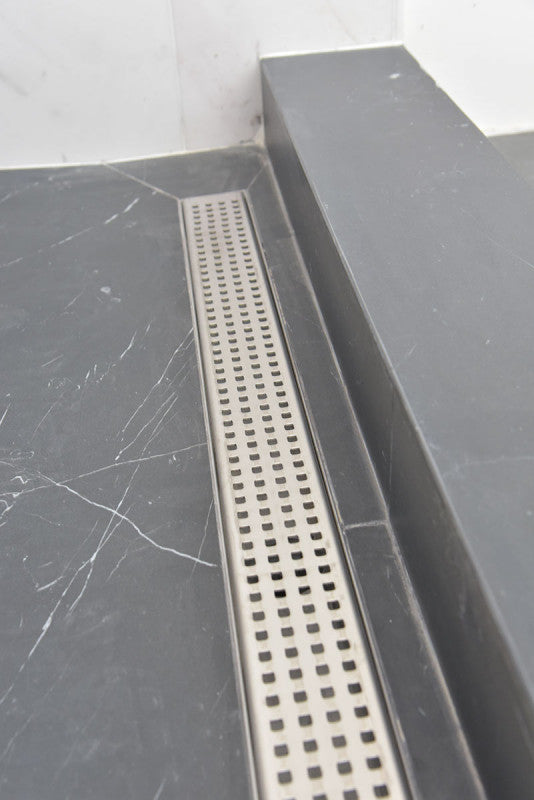

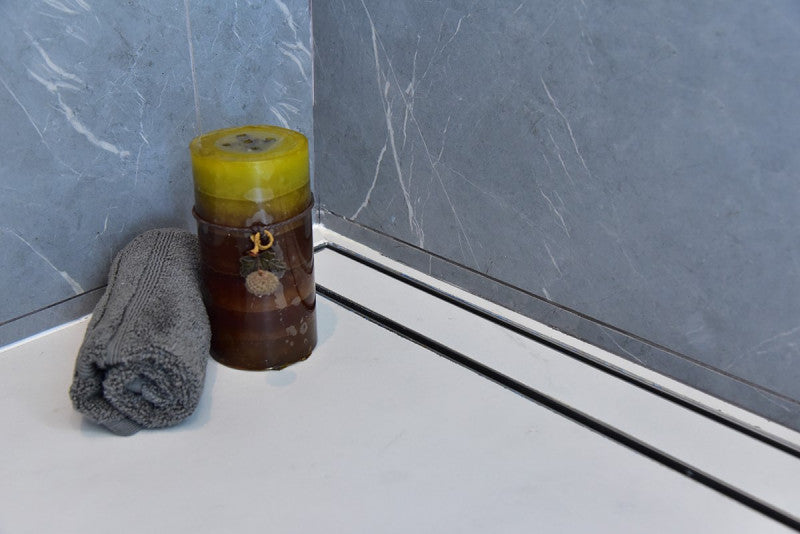

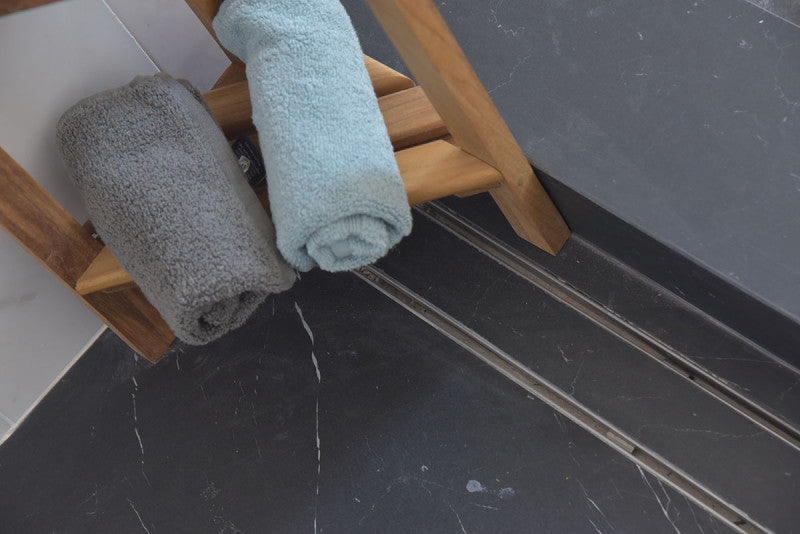

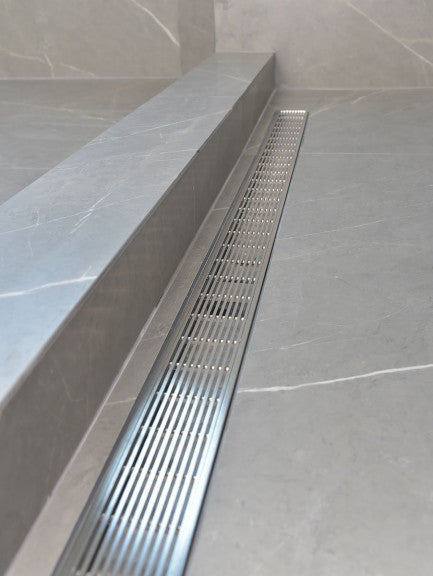

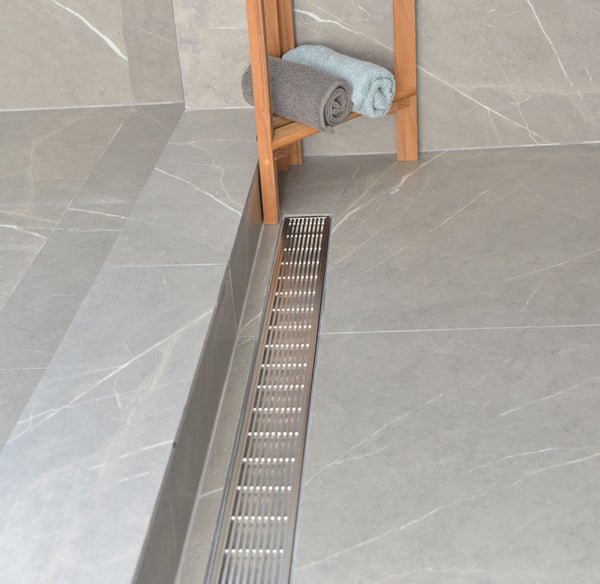

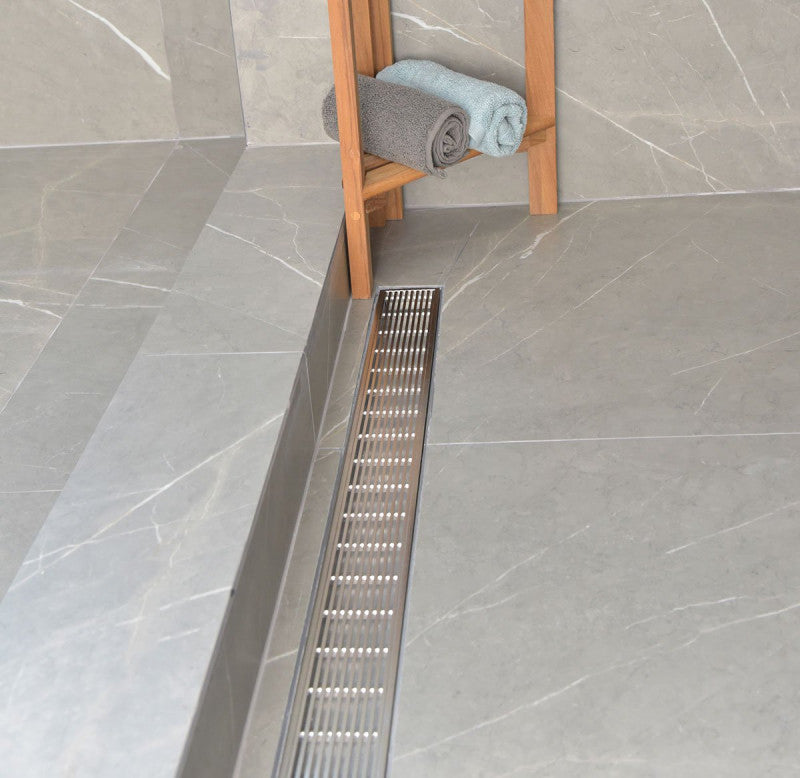

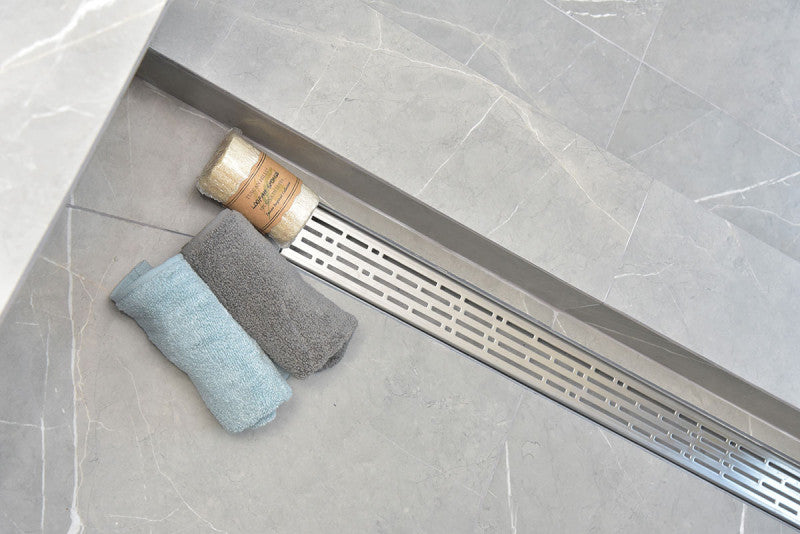

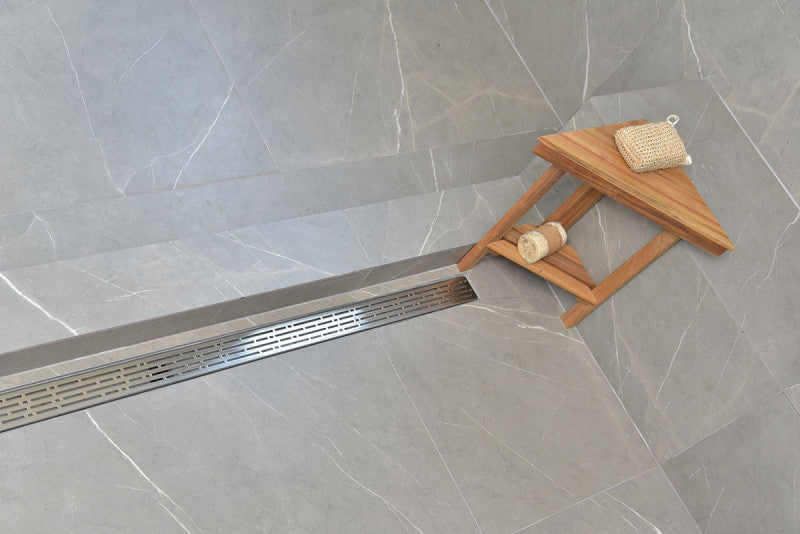

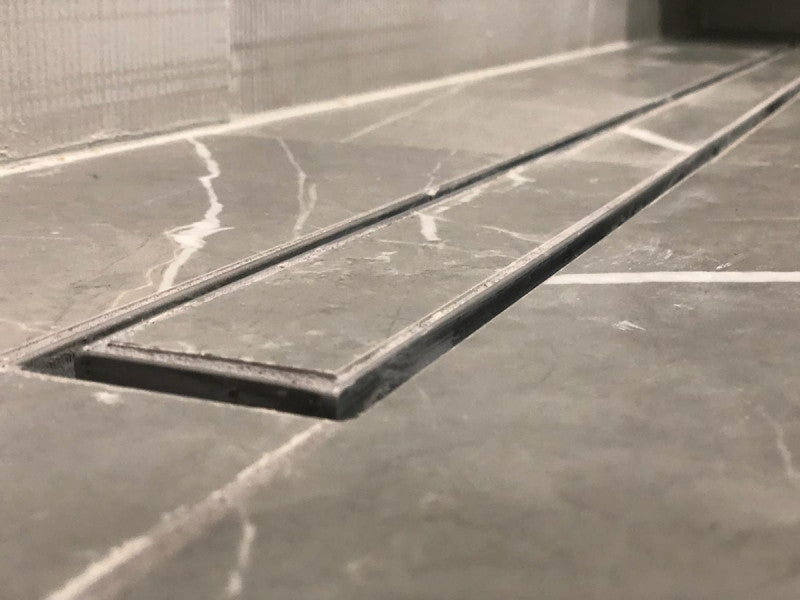

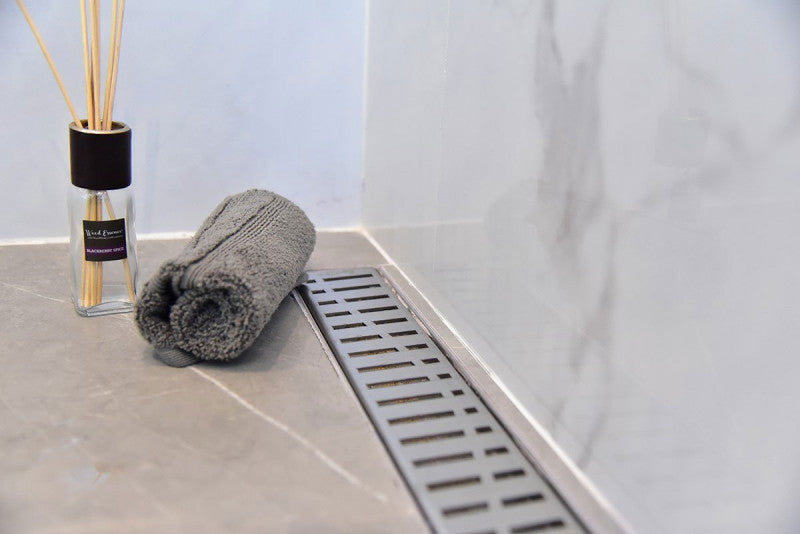

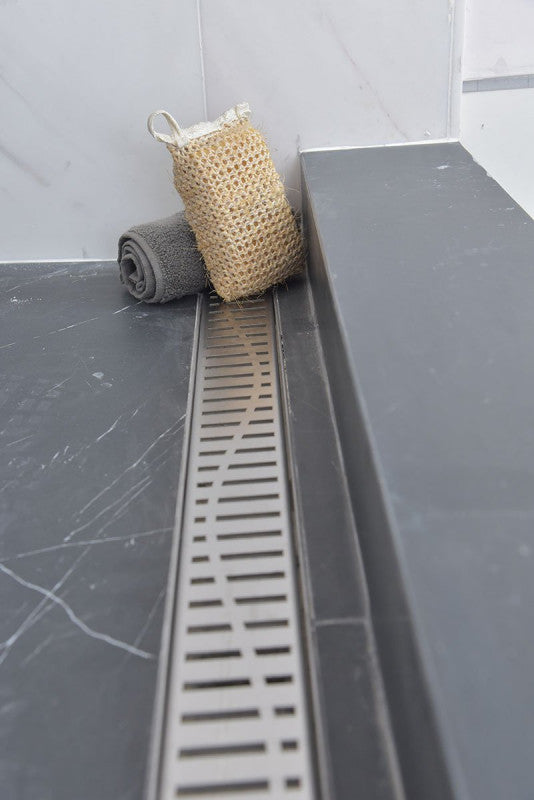

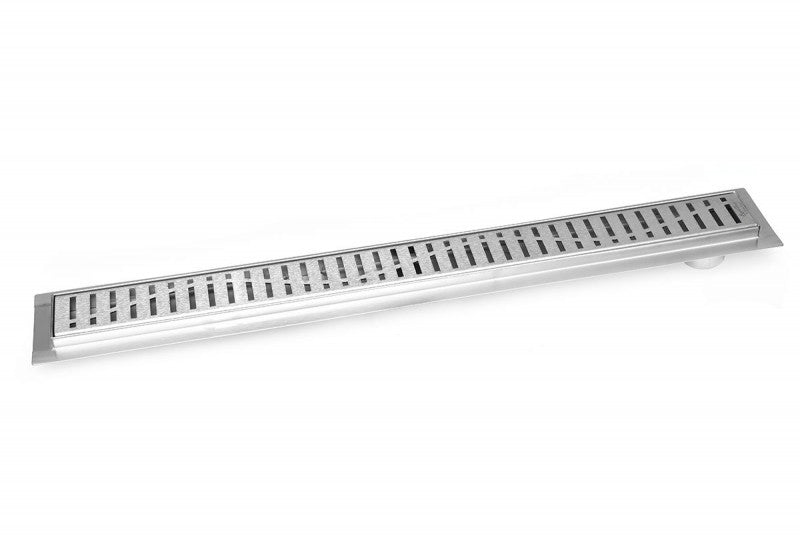

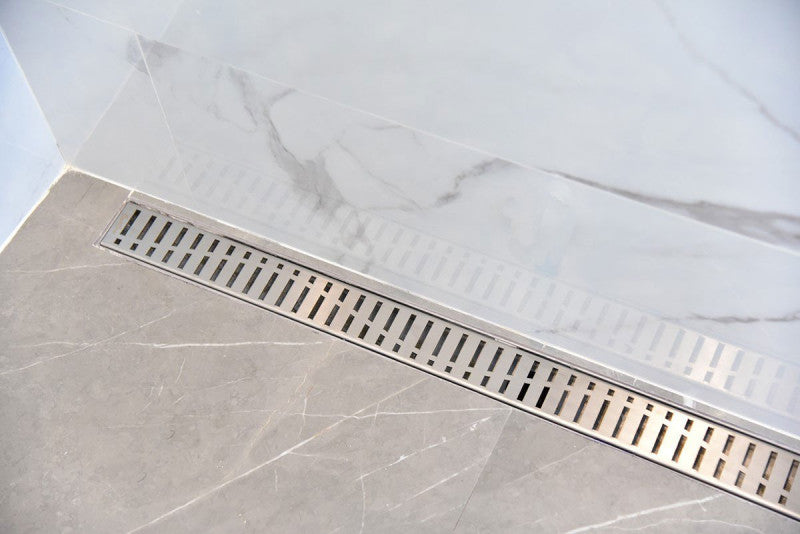

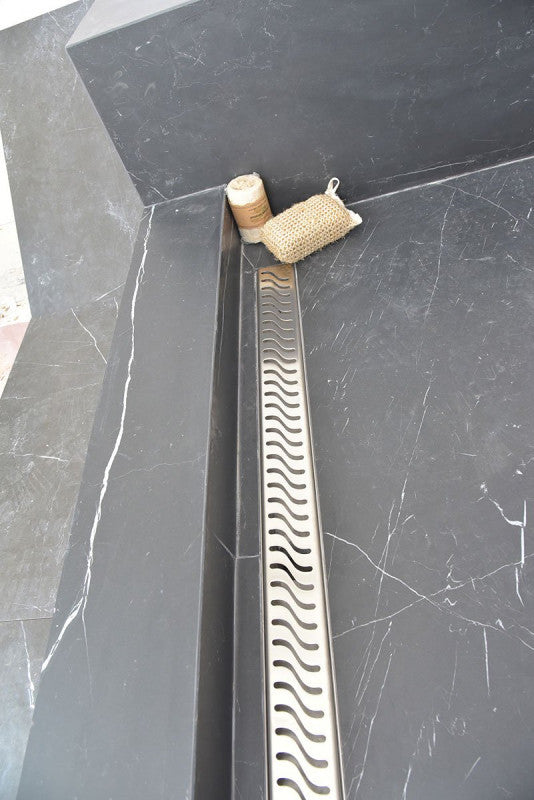

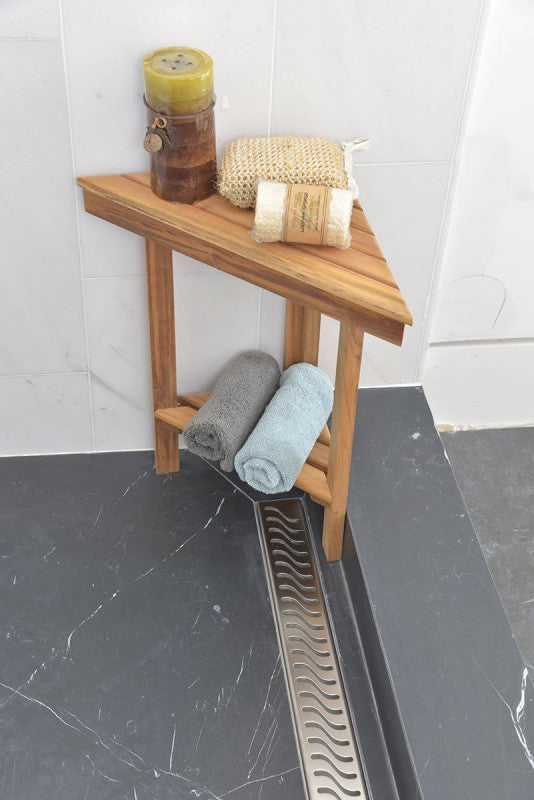

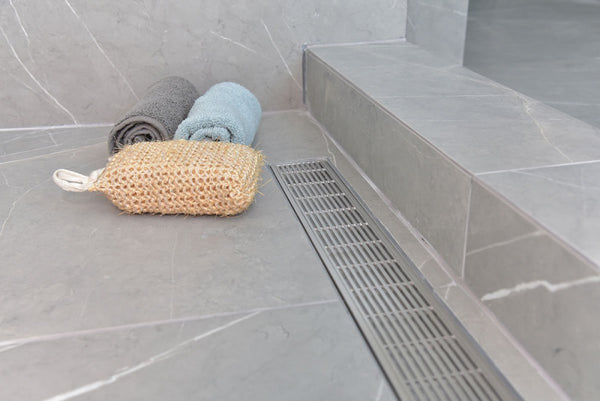

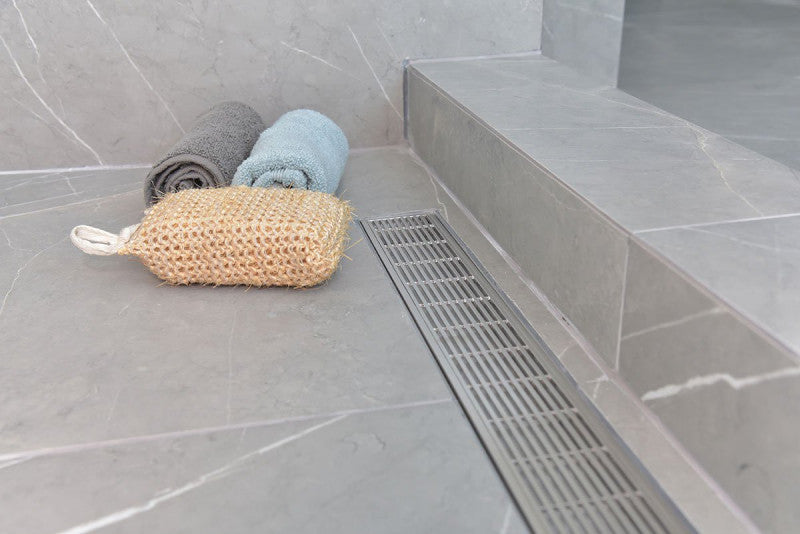

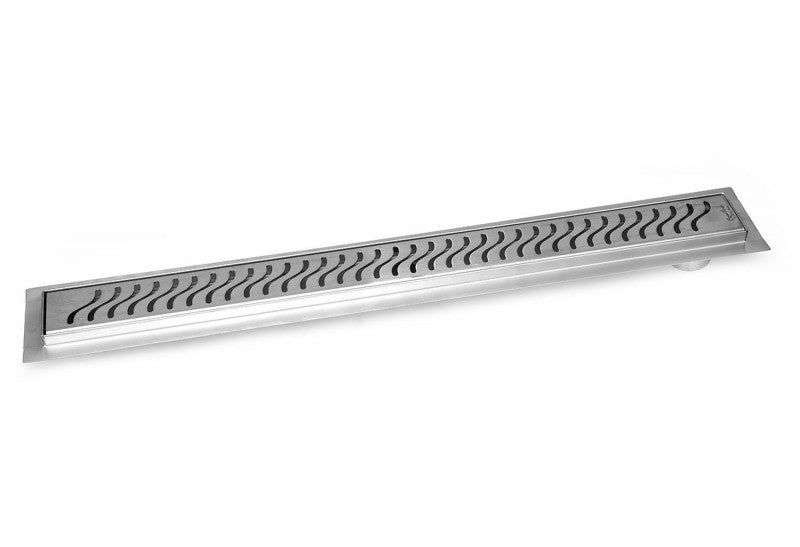

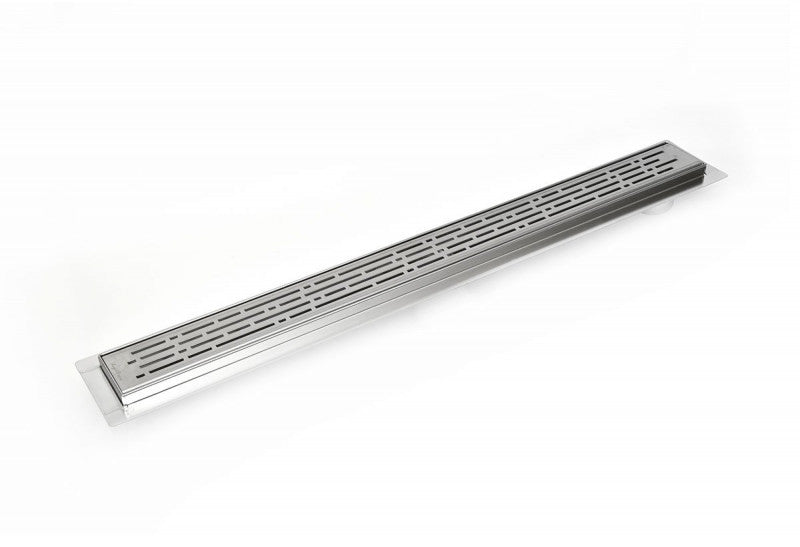

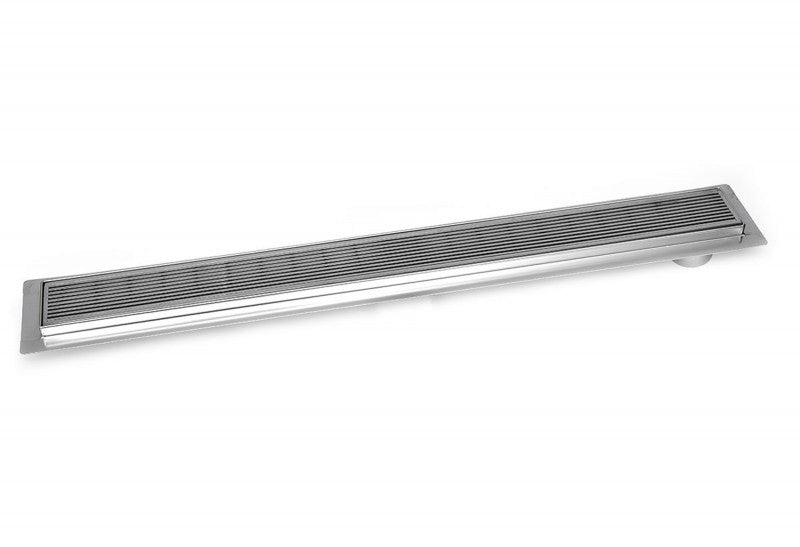

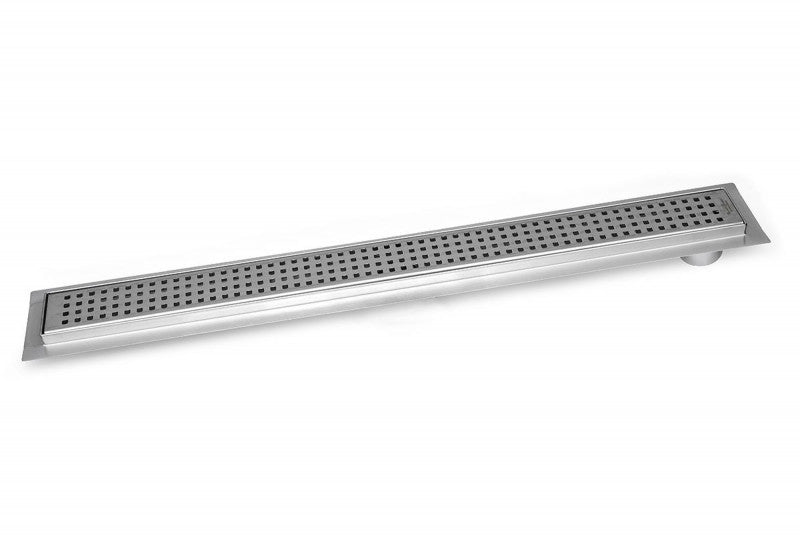

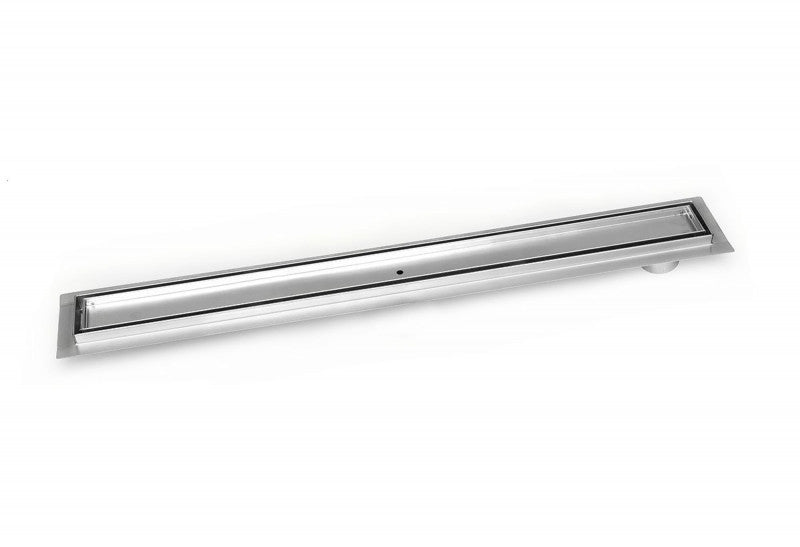

6 Designs: Tile Insert Design, Ocean Wave Design, Traditional Square Design, Broken Lane Design, Linear Wedge, Wind Design.
Drain Includes: Stainless steel channel body & grate, puller key, waterproofing membrane sheet around the drain flange (not required but included), rubber gasket, hair trap, Installation Instruction. Side outlet drain apex 2.8" oc of drain end.
Perfect for wheelchair access & barrier-free showers (walk in floor plans).
Applications: Shower & bath, kitchen, pools, balconies, hotel rooms, gym, spa etc.
Side outlet drain apex 2.8" oc of drain end.
Designed to be installed into any 2" shower drain flange.
Stainless steel brushed nickel finish.
Superior quality laser cut electropolish finish.
Bodies are fully welded and leak tested prior to dispatch.
Compatible with tiles up to 10mm depth (14mm lip).
Pre-Slope channel. Channel width: 2 3/4" (70 mm).
Sized to match standard 1/2", 1", 2, and 4" tile without cutting.
Drain grade is 16 gauge 304 stainless steel.
Flow rate: at entrance of shower - 6.3GPM (0.4 l/s); against the wall - 9.5GPM (0.6 l/s).
Flange body edge designed for use with all types of waterproofing: hot mop, painted or liquid membranes, sheet membrane, vinyl waterproofing etc.
Optional accessories include plumbing connectors (ABS/ PVC drain base flange) and debris strainer
30 day return policy. Money back guarantee.
Contact us for quantity discounts
