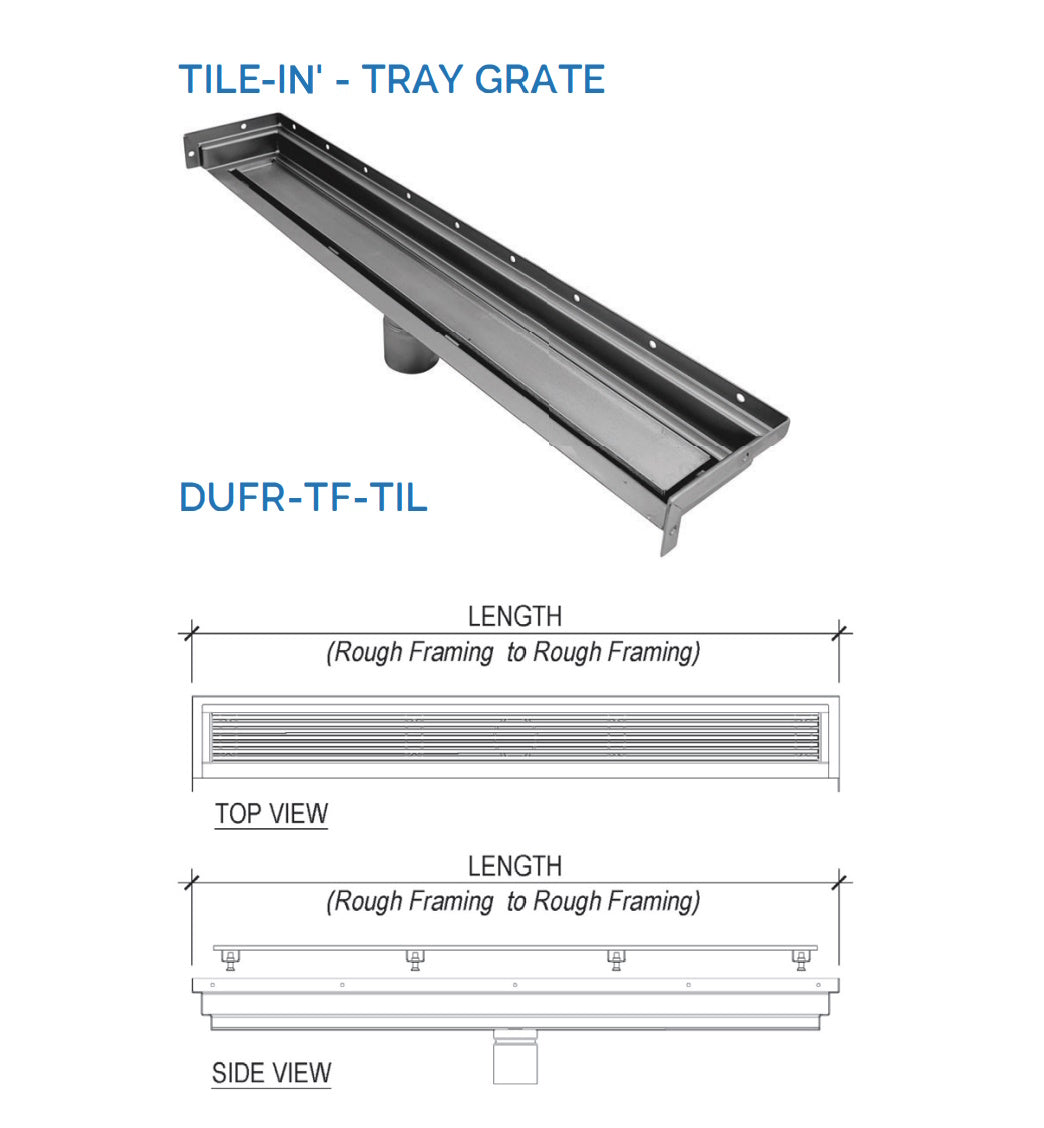

60 Inch Tile Insert Linear Floor Drain, Three Side Return Flange for Wall-to-Wall Installation, Drains Unlimited DUFR-TF Series

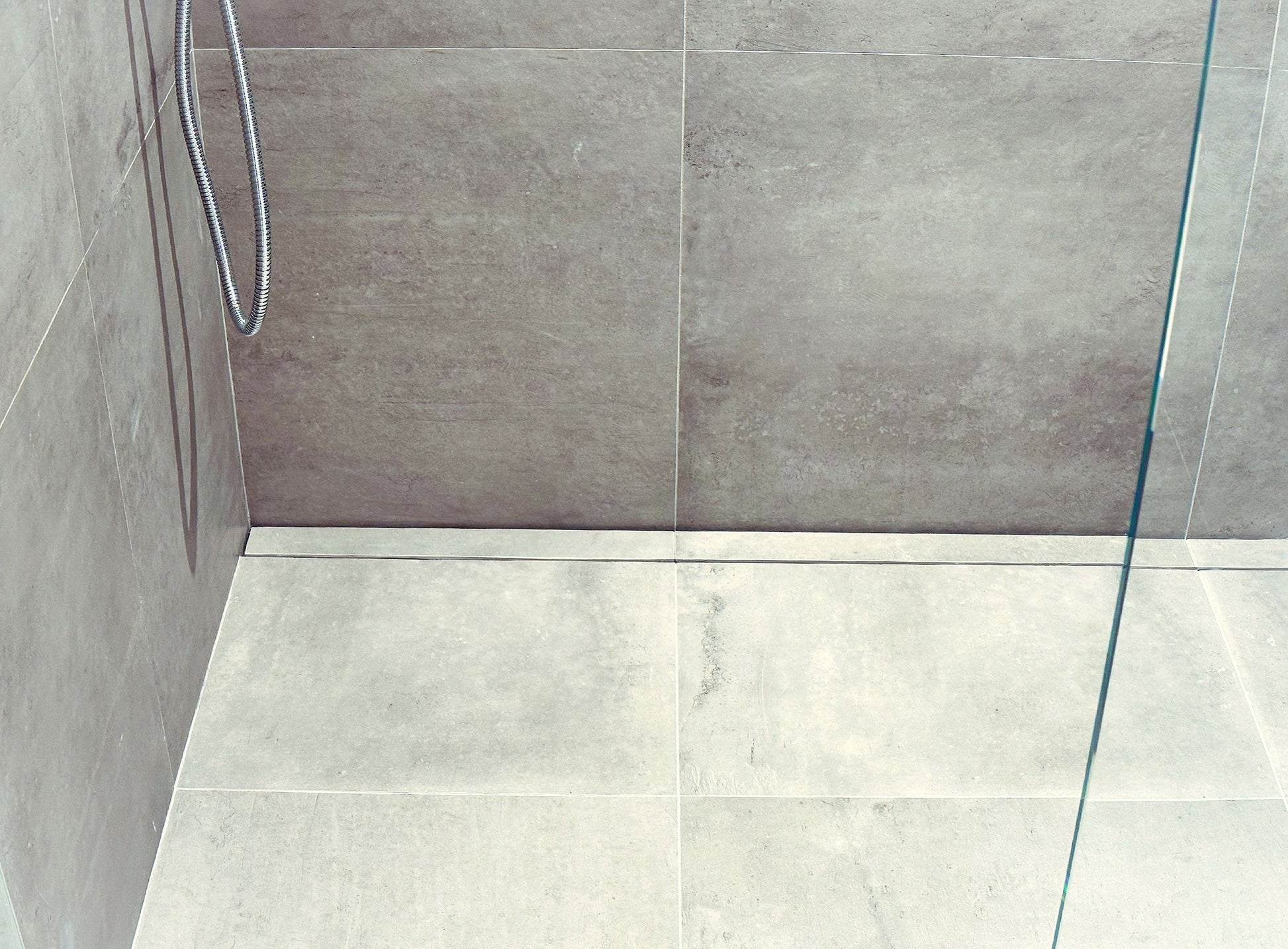

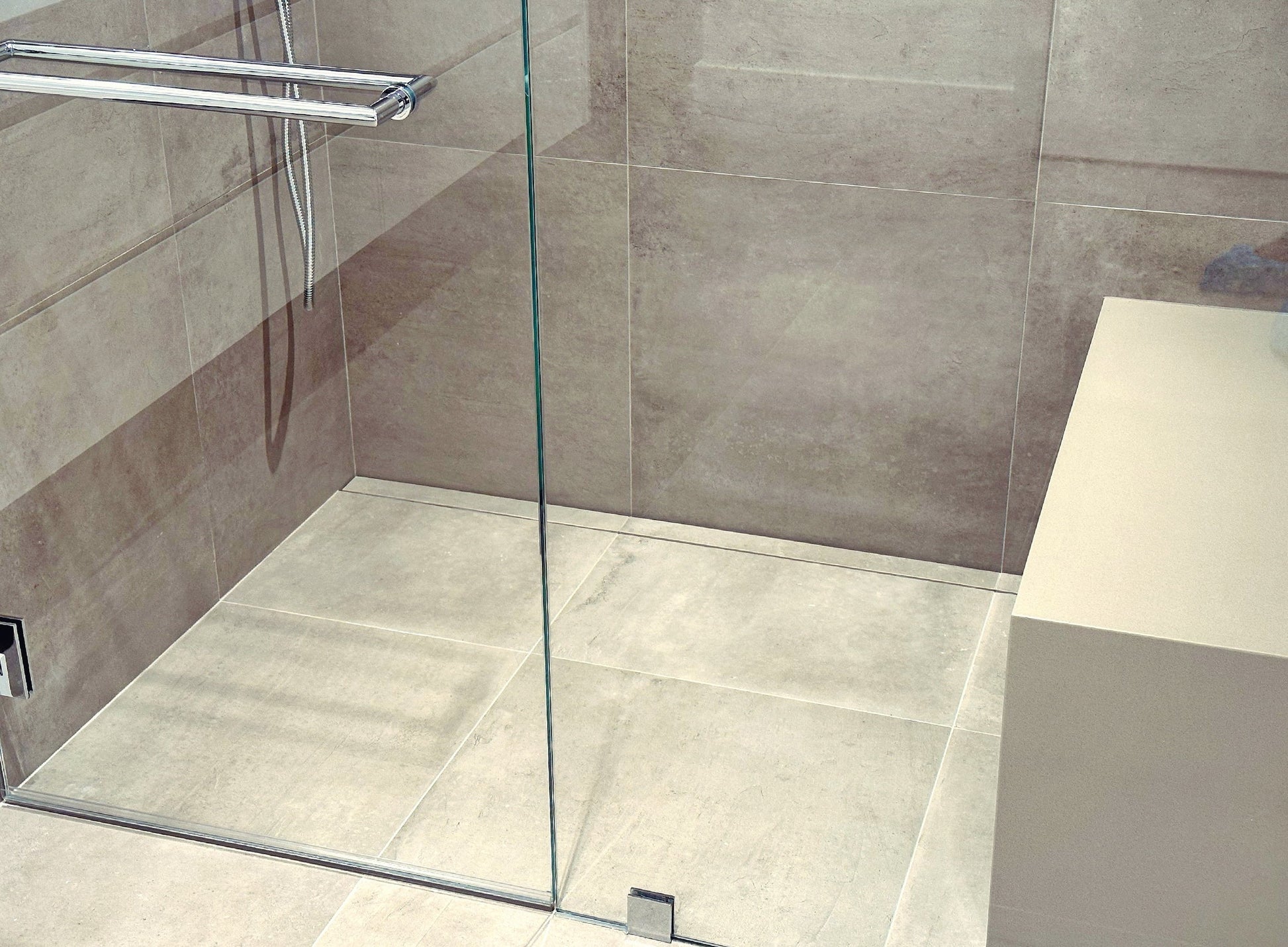

Unique linear drain that's Installed flush with the wall for a clean finished seamless look

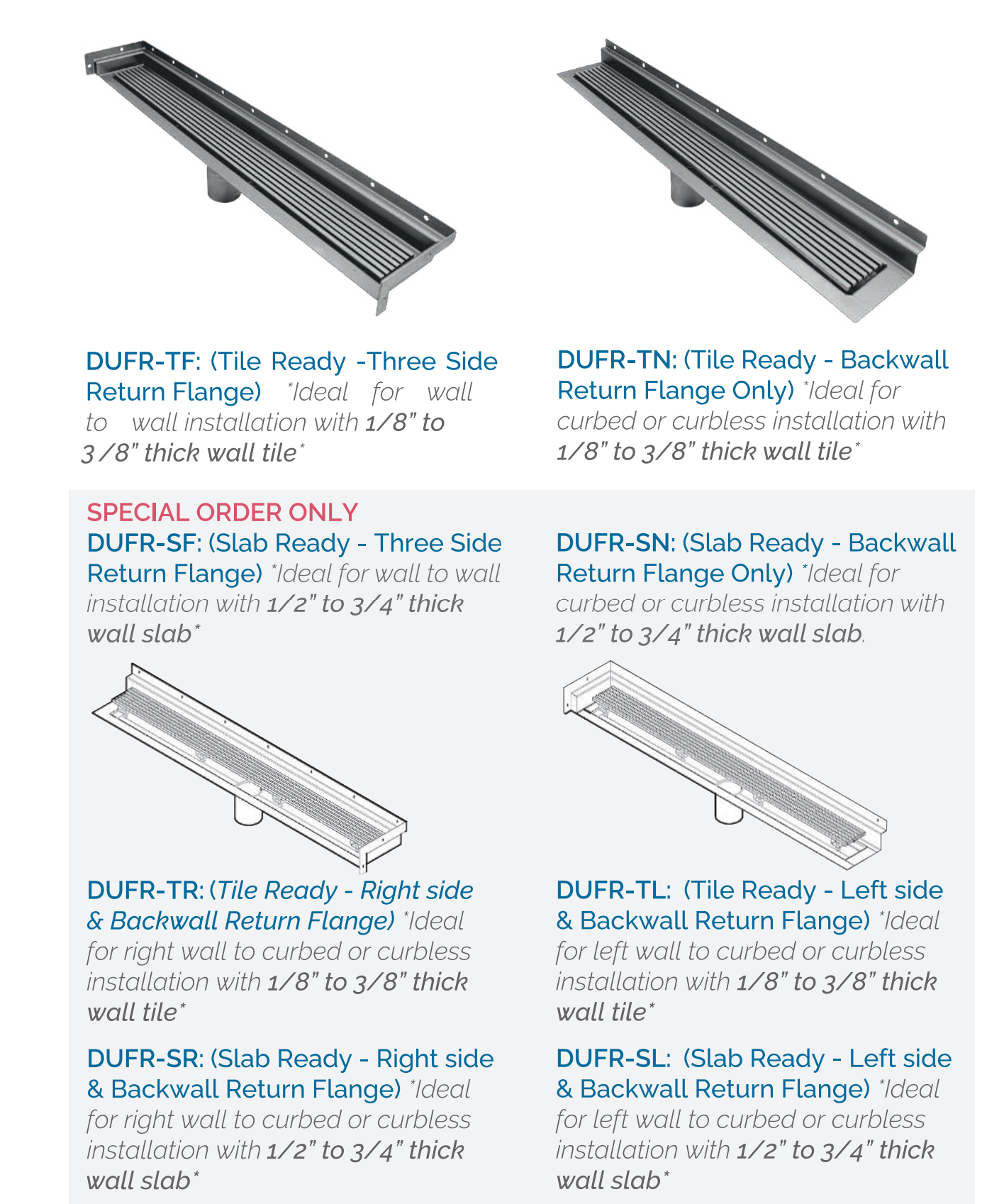

Important Note! The DUFR Linear Drains are available in two flange options:

1. The Backwall Return Flange Only is ideal for curbed or curb less installations with 1/8" to 3/8" thick wall tiles

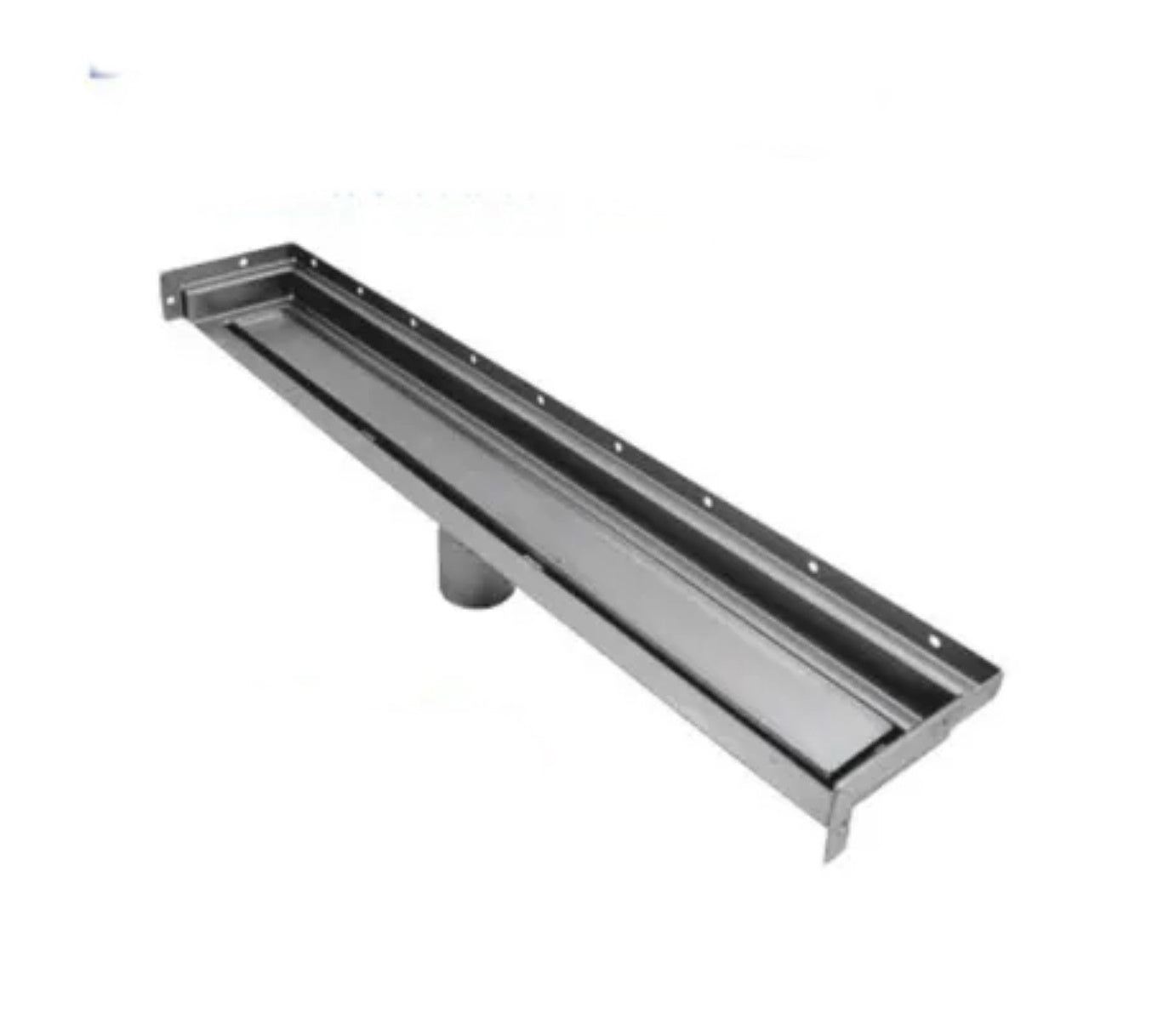

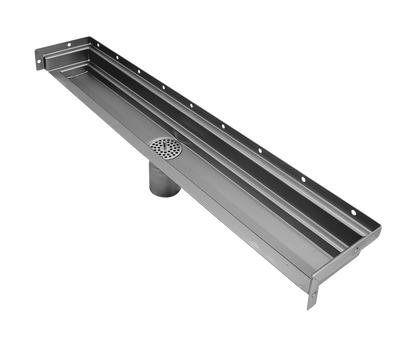

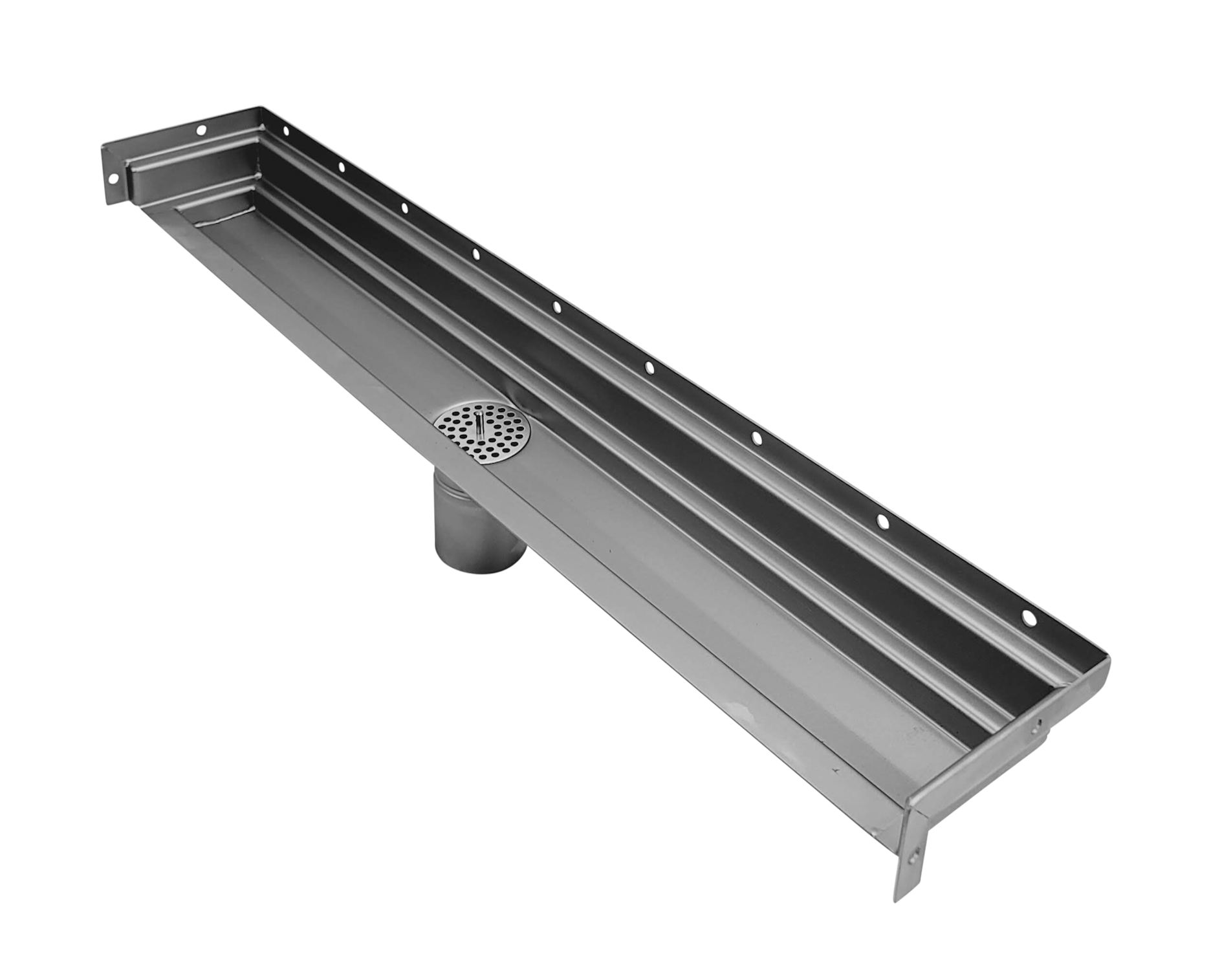

2. The Three Side Return Flange is ideal for wall-to-wall installations with 1/8" to 3/8" thick wall tiles

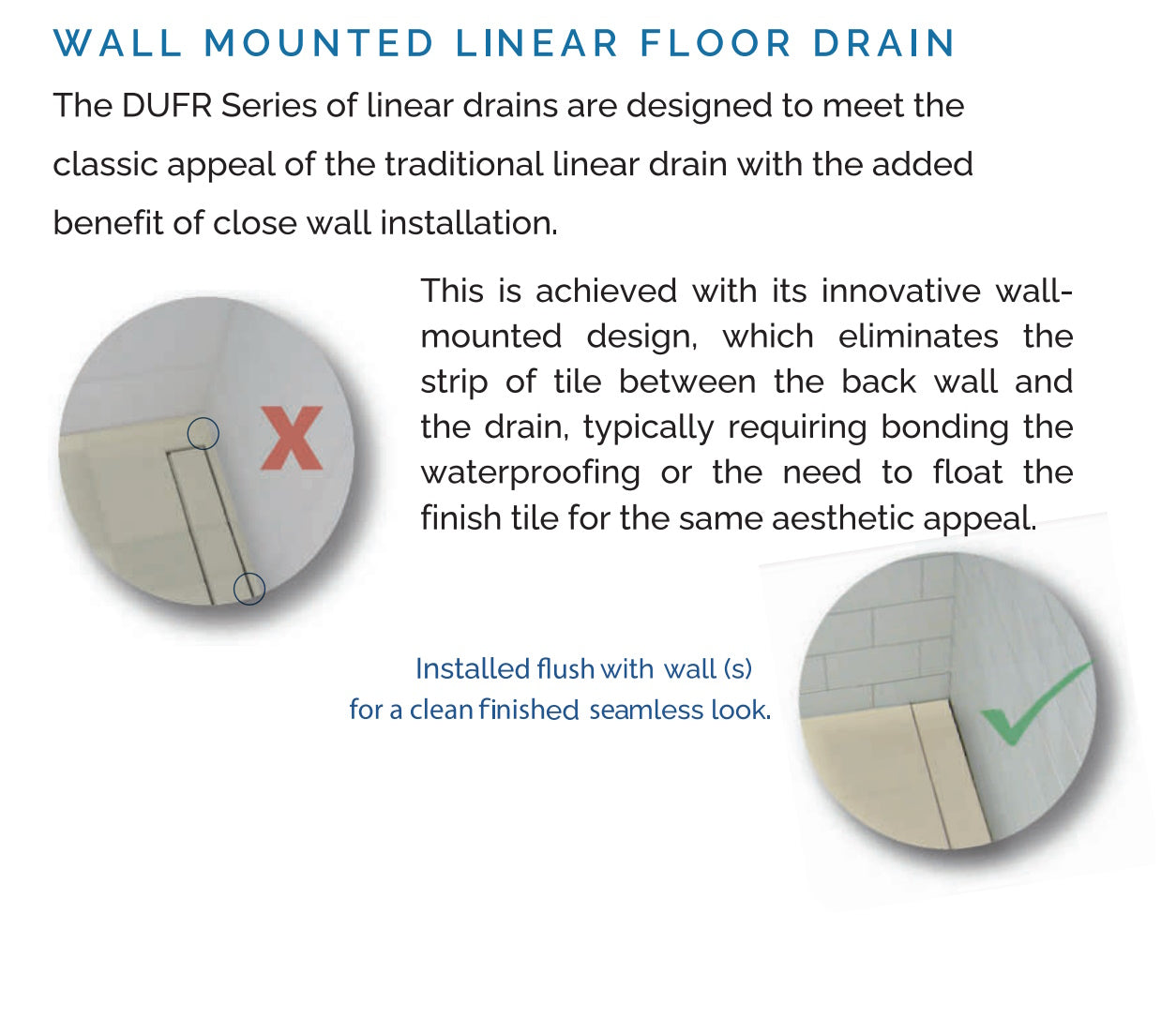

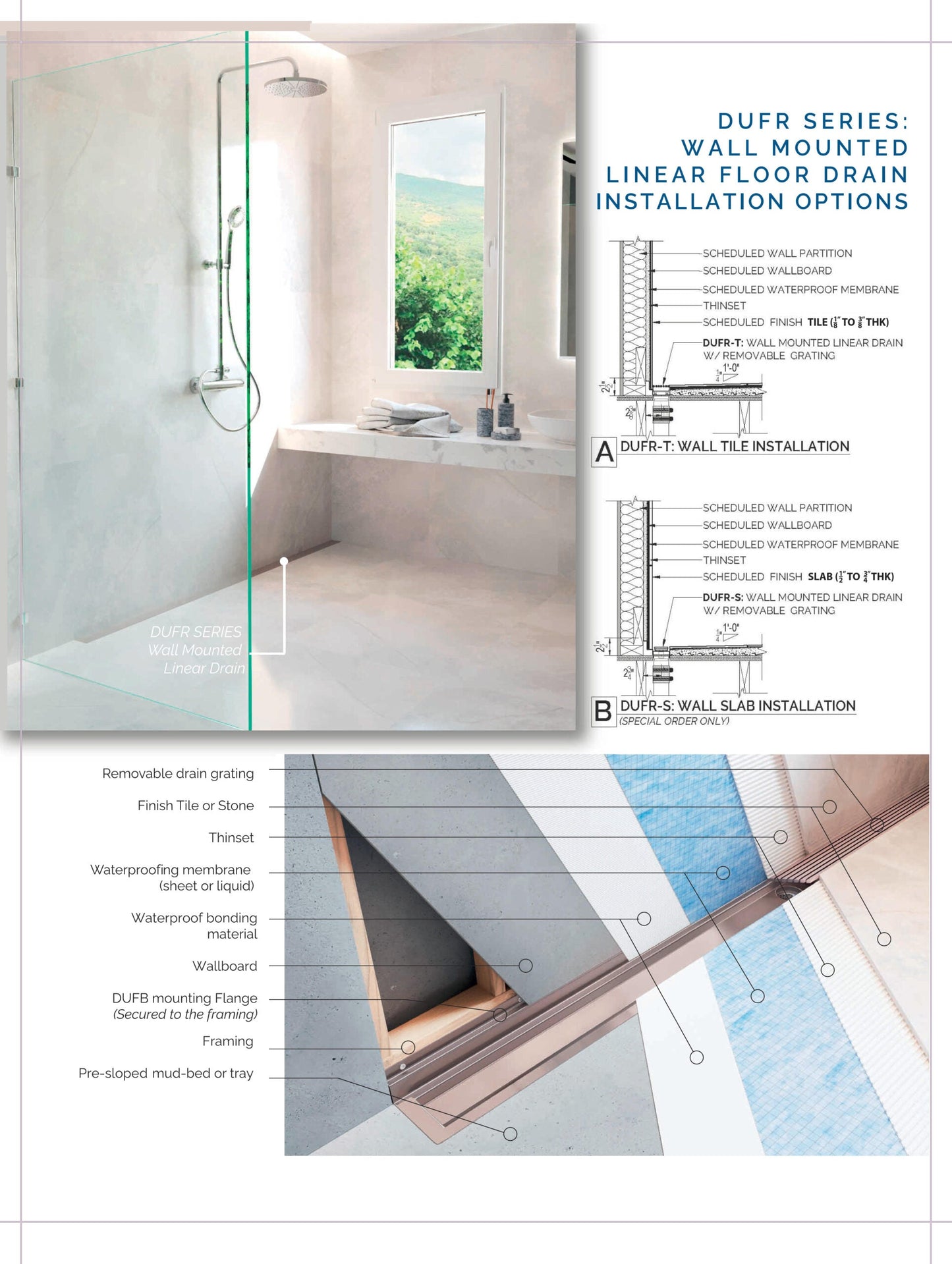

The DUFR Series of linear drains are designed to meet the classic beauty of the traditional linear drain with the added benefit of close wall installation. This is achieved with its innovative wall-mounted design, which eliminates the strip of tile between the back wall and the drain, typically requiring bonding the waterproofing or the need to float the finish tile for the same aesthetic appeal.

Main Features:

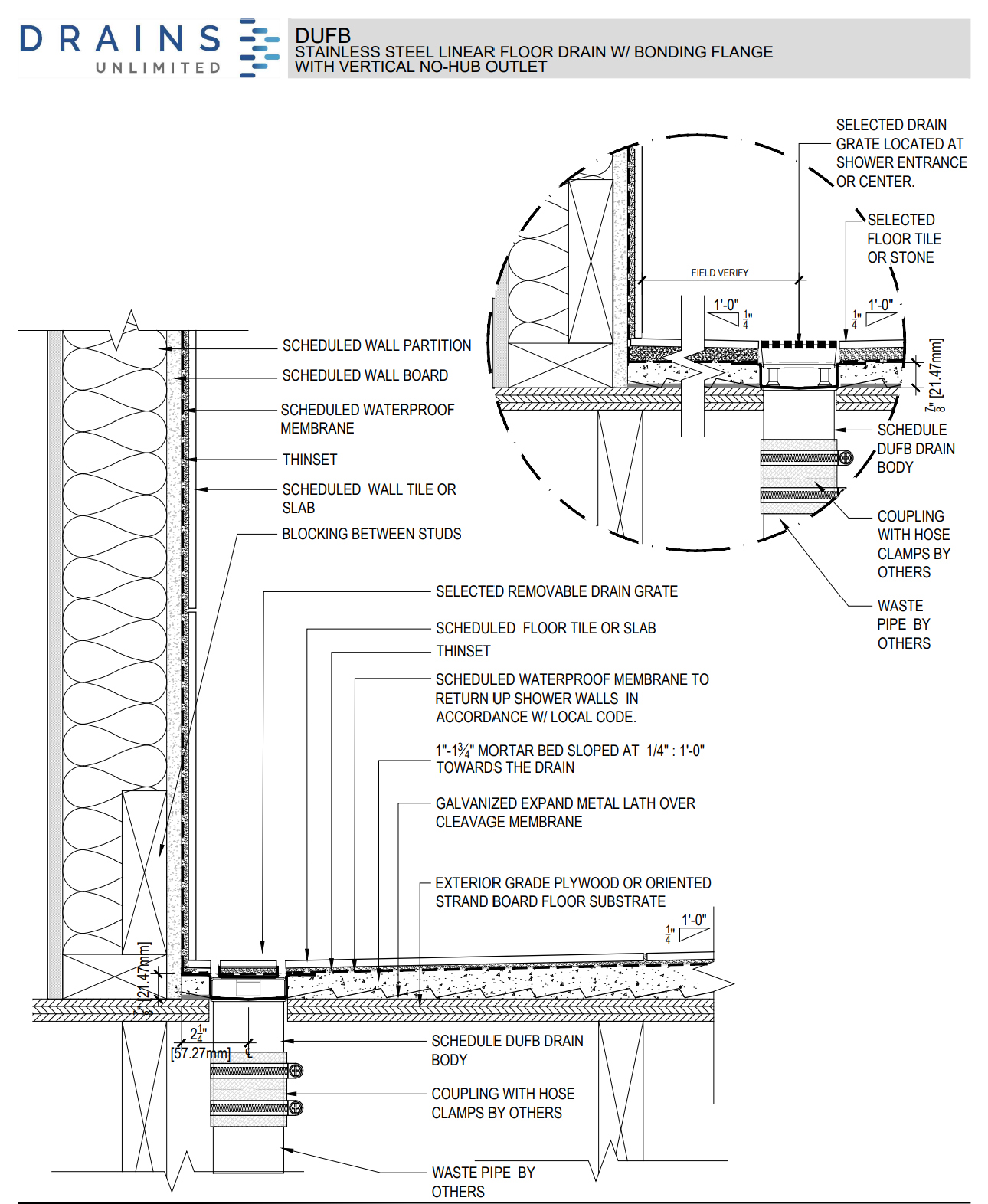

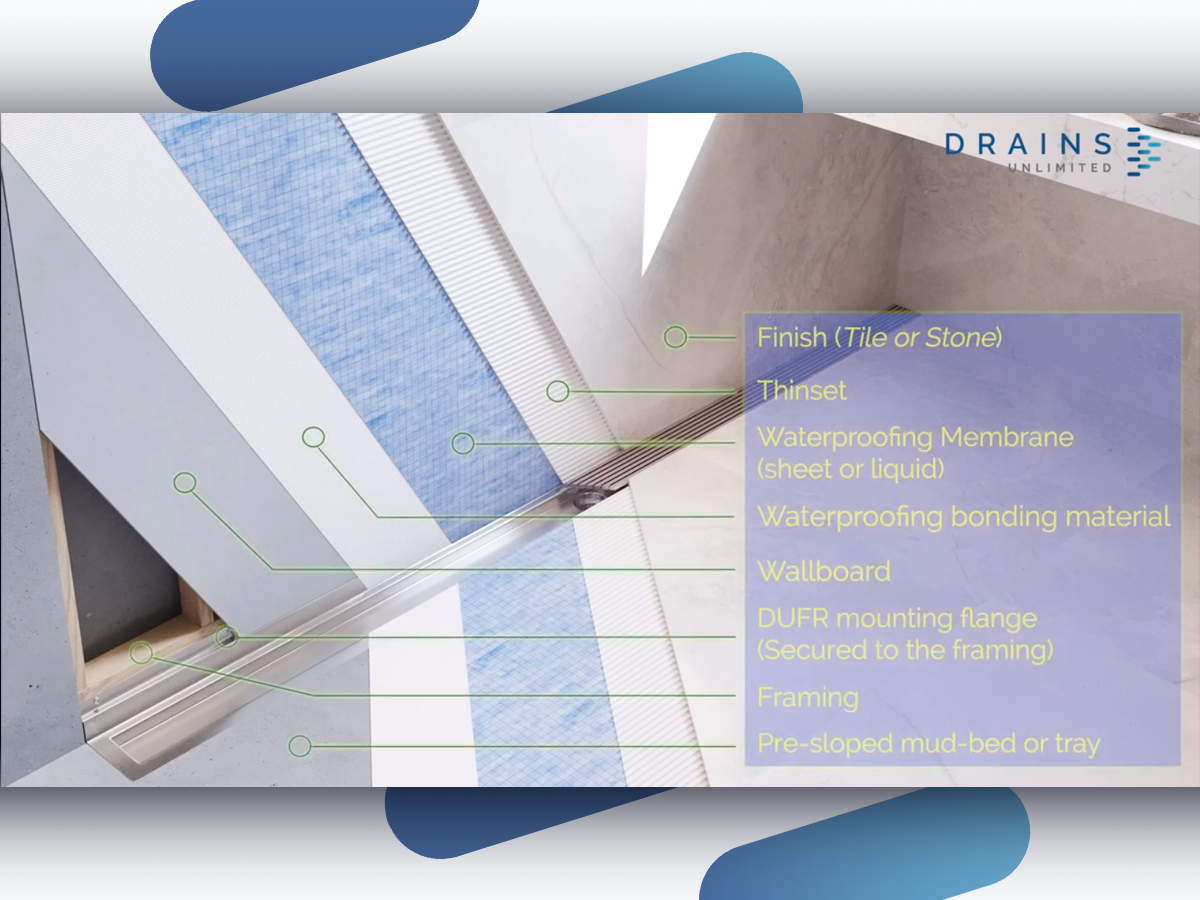

  • Must be secured to the stud (wall framing).
  • Installs flush with wall(s) for a clean finish and seamless look.
  • *Full length measured between finish face of the framing (from Stud to Stud)
  • Available in 3 different styles and with 3 different finishes.

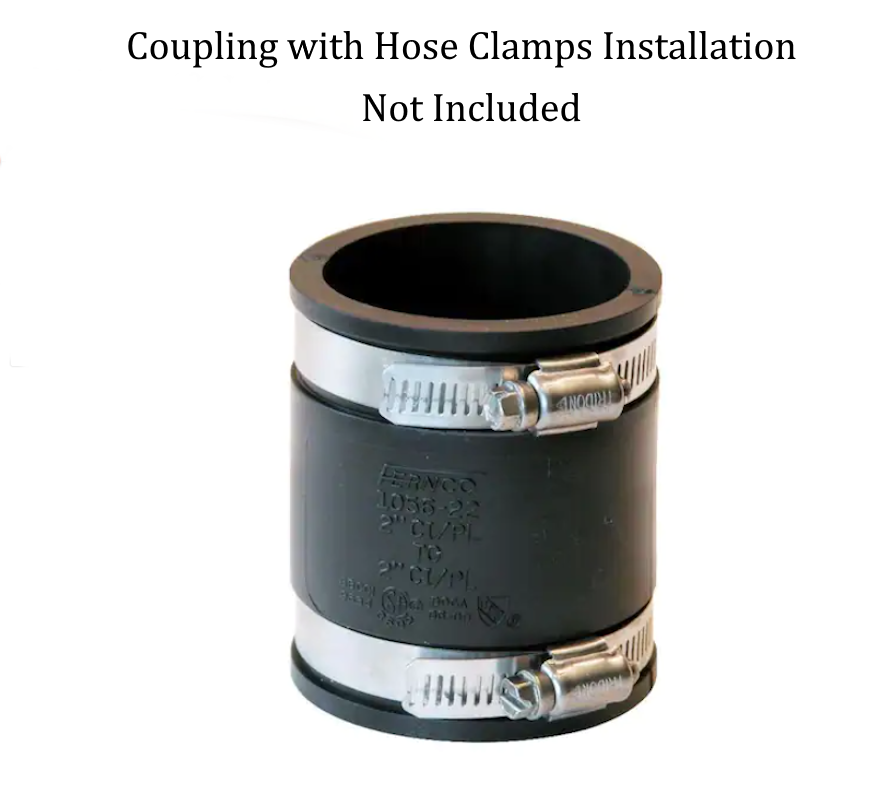

  • No-hub coupling Installation.

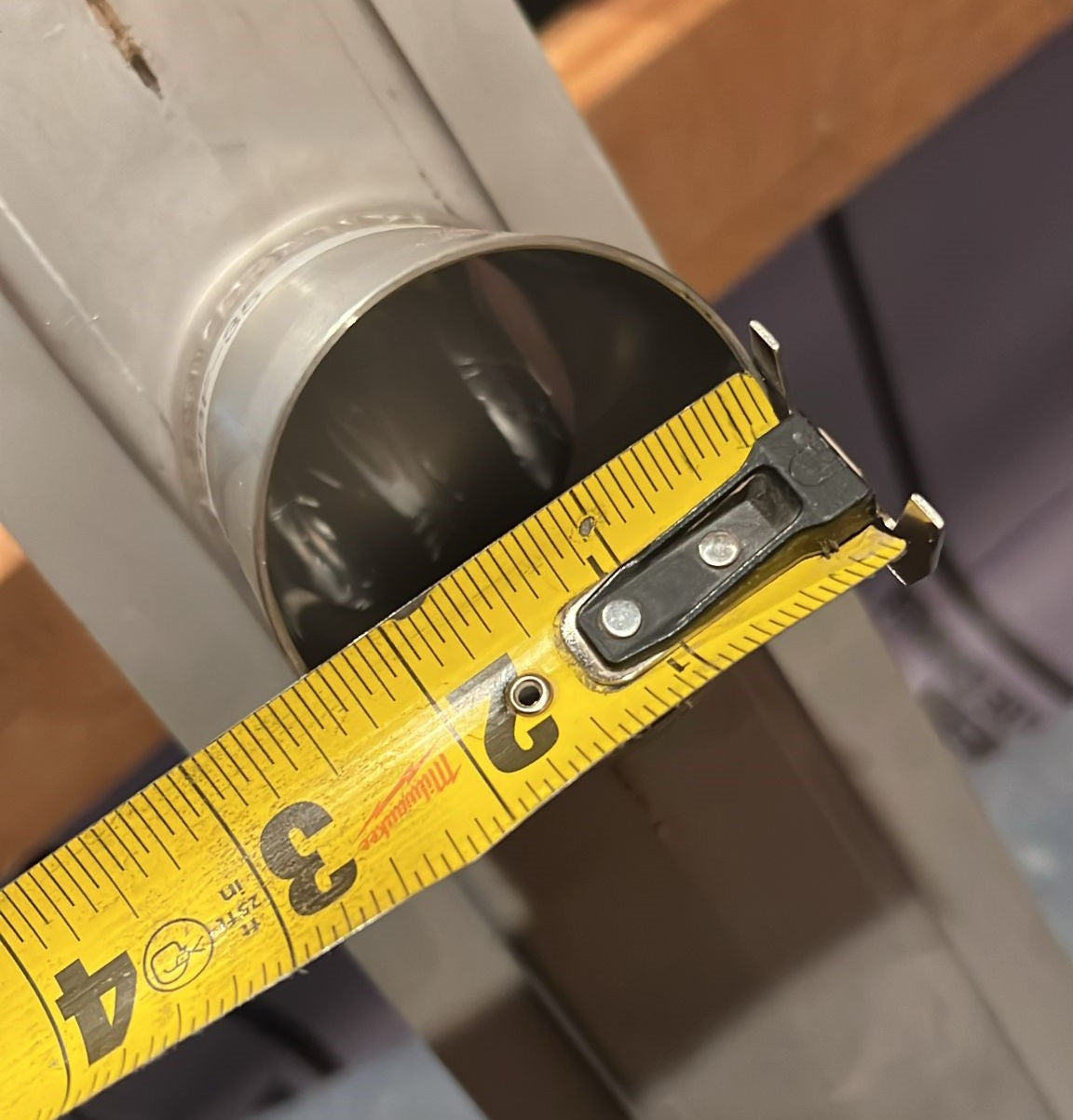

  • 2-3/8 inches (outside diameter) no hub center outlet.
  • Textured bonding flange.
  • 2-1/2" width grate cover with 'V'-shape bottom.
  • 14-gauge AISI304 stainless steel, Rust-resistant and electro-passivated.

Suitable Substrates: Concrete, Exterior glue, Plywood (Interior only), Cement backer board, Cement mortar bed, Shower pans

Available Size: 30", 32", 34", 36", 40", 42", 44", 48", 54", 60", 66", 72" (Drains are measured at the outer edge of the flange. The visible grate is approximately 2" shorter than the total drain size).

Package Includes: Drain body, Grate, Hair Strainer, Puller Key.

Our Wall Mounted Linear Floor Drain will upgrade your shower with a touch of elegance and sophistication. Available in brushed, polished, and black finishes, these drains ensure efficient water drainage while adding a contemporary high-end feel to your shower.

Additional Features:

Drains are designed to be compatible with all major water-resistant adhesive material manufacturers such as Blanke Aqua-Shield, Laticrete, Mapei, and Schluter.

  • Made from heavy duty 304 stainless steel.
  • No-hub Coupling Installation. 2 3/8" Drain Outlet.
  • Textured flange to ensure a tight waterproof membrane seal to the drain body.
  • Removable grate for easy cleaning and maintenance.
  • Single slope to drain.
  • UPC, CSA and ASME certified.
  • Excellent corrosion resistance passivated finish.
  • Hygienic barrier free design.
  • Perfect for: Shower, bath, kitchen, hotel rooms, spa etc.
  • Shallow V-bottom design for better water flow to drain outlet.
  • High flow rate performance
  • SANS10400 compliant 75mm water seal
  • Accommodates any size tile format.
  • Full length measured between finish face of framing.
  • Additional grate options available with wide variety of standard sizes (Custom sizes available)

Drains Unlimited is a manufacturer of high-quality shower drains for a variety of shower plans. The DUFB Series standard Linear Drains are available in a variety of sizes, styles, and finishes to match any shower size and design. Additionally, Drains Unlimited offers the one-of-a-kind DUWR Series wall-recessed linear drains for a more concealed drain installation, making them the perfect choice for upscale luxury shower construction. Customization of linear drains is also available, including side outlet, horizontal side outlet, 316-gauge stainless steel, etc. Contact us for more information.
