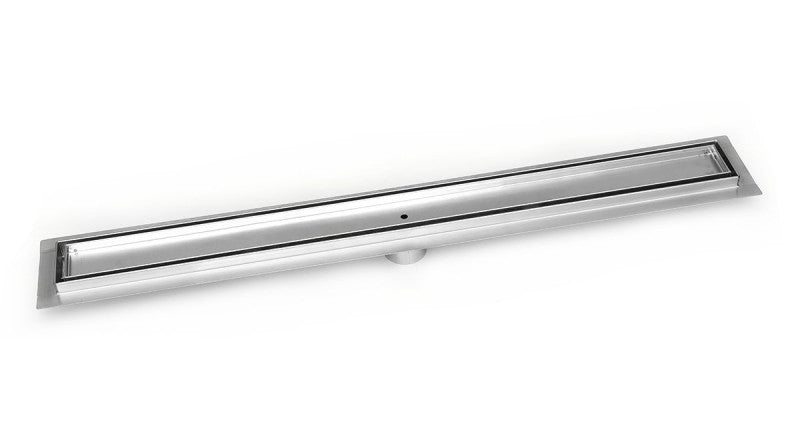

72" Tile Insert Linear Shower Drain, Brushed Stainless Steel, Free Hair Trap Included – SereneDrains

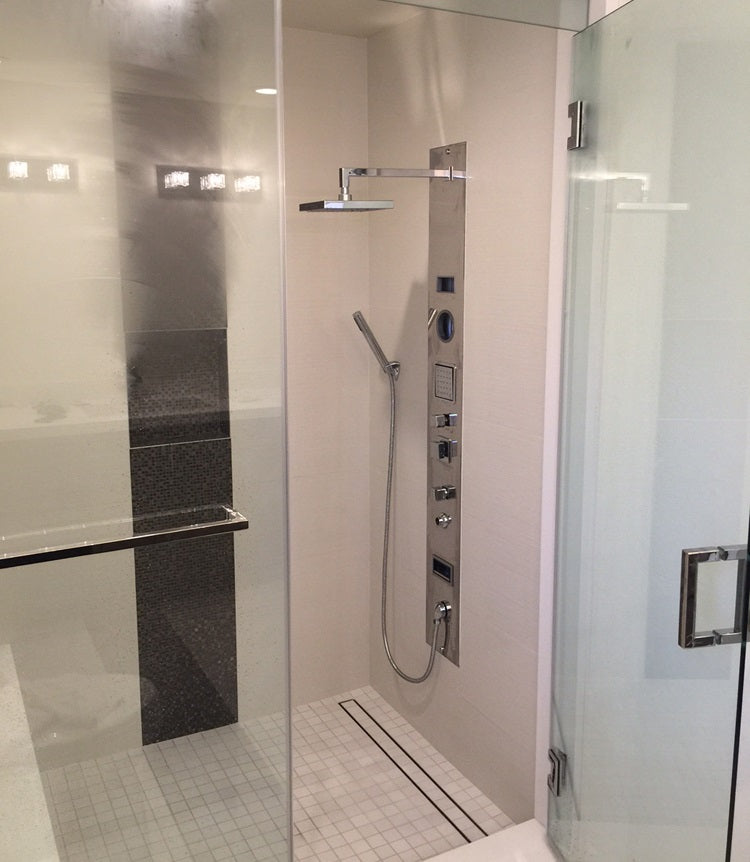

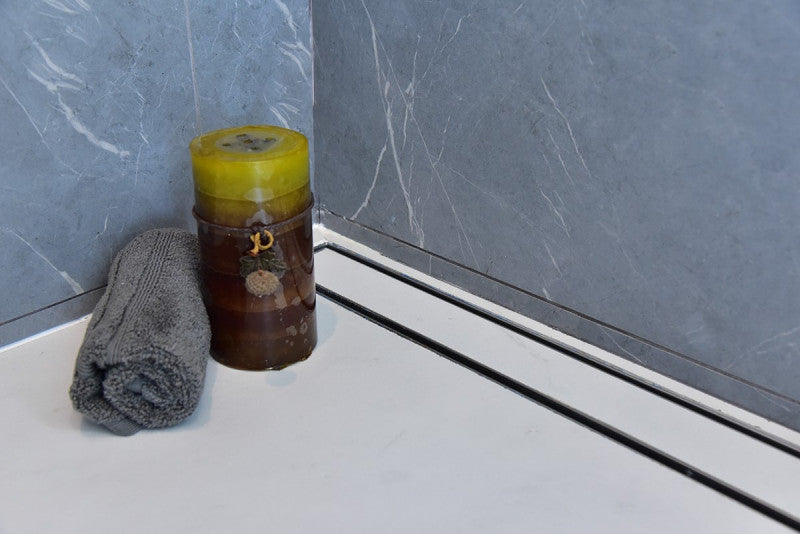

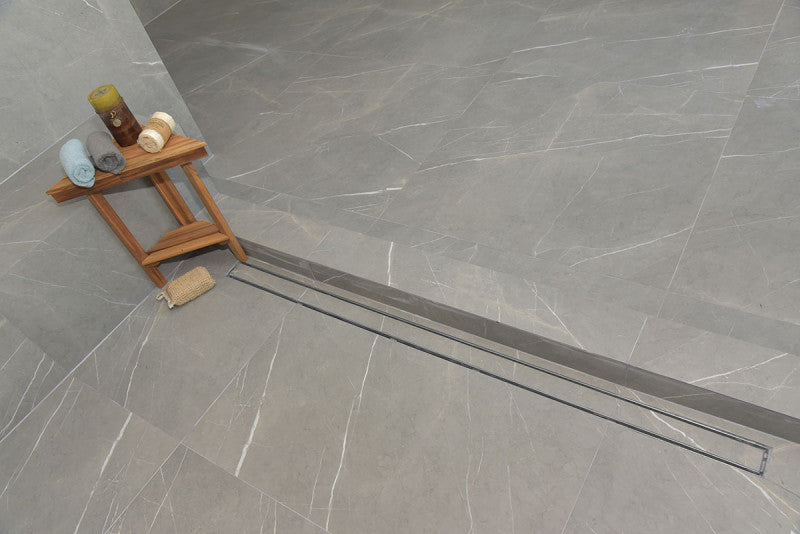

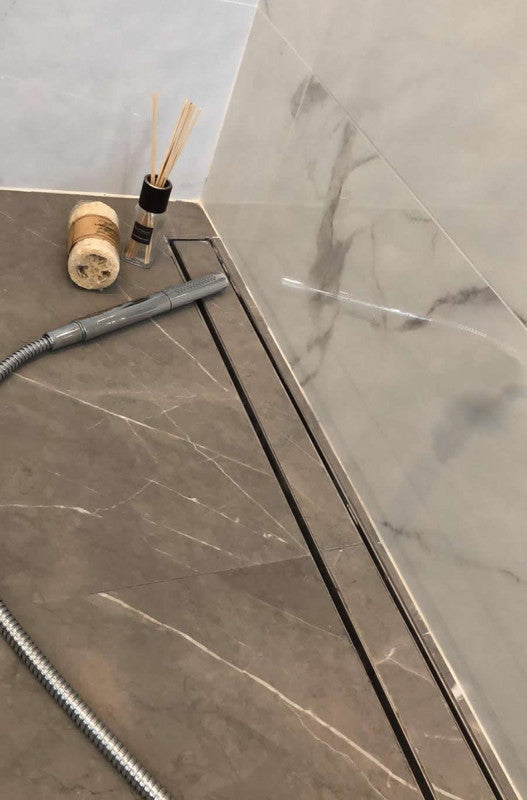

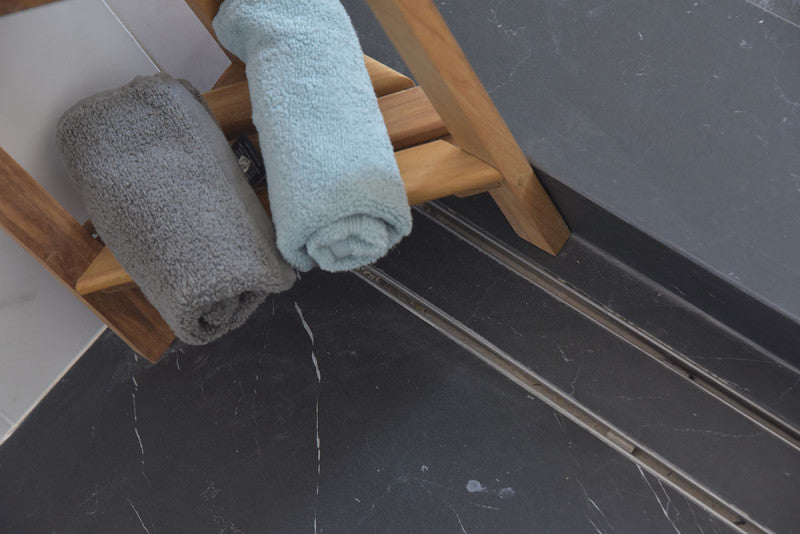

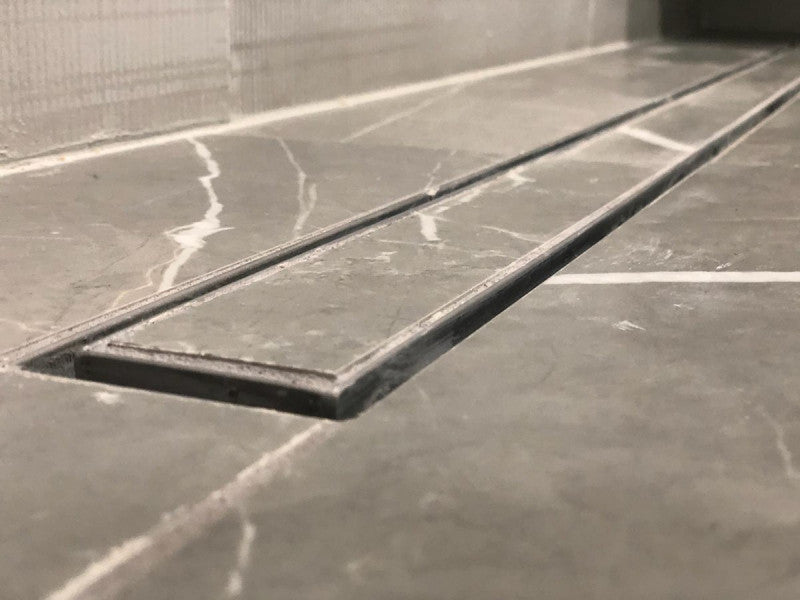

Upgrade your bathroom with the 72-inch SereneDrains tile-in linear shower drain, designed to blend seamlessly with your shower floor for a near-invisible, upscale infinity drain look. The tile extends directly over the drain, creating a sleek, barrier-free floor perfect for modern walk-in showers, ADA-compliant designs, and luxury renovations.

Product Details:

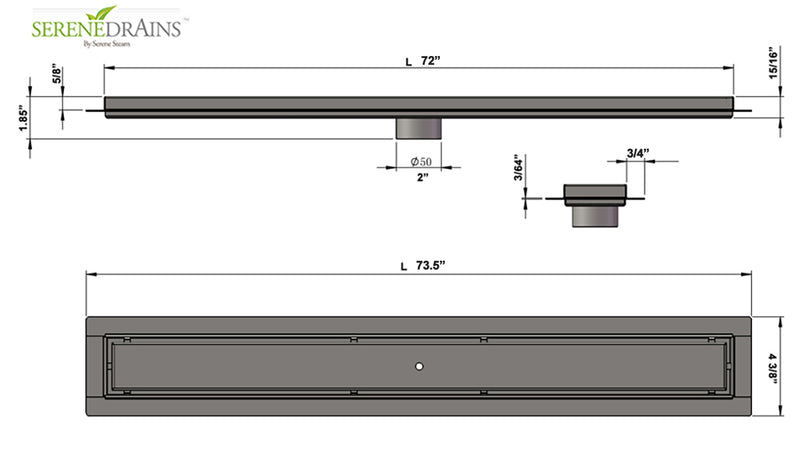

• Net Size: 72" x 2 3/4"
• Overall Size: 73.5" x 4 3/8" (1828mm)
• Intake Area: 31.67 sq. in
• In Stock & Ready to Ship
• Available Sizes: 16", 24", 30", 35", 39", 47", 59", 72", 90"
• Drain Includes: Stainless steel channel body & grate, puller key, hair trap, waterproofing membrane sheet (optional), installation instructions

Key Features:

• Premium Material: 16-gauge 304 stainless steel with brushed nickel finish
• Laser-Cut, Electropolished Grate: Superior quality and durability
• Fully Welded & Leak-Tested: Ensures long-lasting performance
• Central 2" Vertical Outlet: Fits standard 2" shower drain flanges
• Tile Compatibility: Up to 10mm tile depth, 14mm lip; fits 1/2", 1", 2", and 4" tiles without cutting
• Pre-Slope Channel: 2 3/4" (70 mm) width
• Flow Rate: Entrance 6.3 GPM (0.4 L/s); Against wall 9.5 GPM (0.6 L/s)
• Waterproofing Ready: Compatible with hot mop, painted/liquid membranes, sheet membrane, vinyl waterproofing, and more

Why Choose SereneDrains Tile-In Linear Drains:

• Seamlessly blends with floor tiles for a minimalist, contemporary look
• Easy-to-remove grate for hassle-free maintenance
• Durable stainless steel construction for long-term reliability
• Versatile design compatible with multiple waterproofing methods

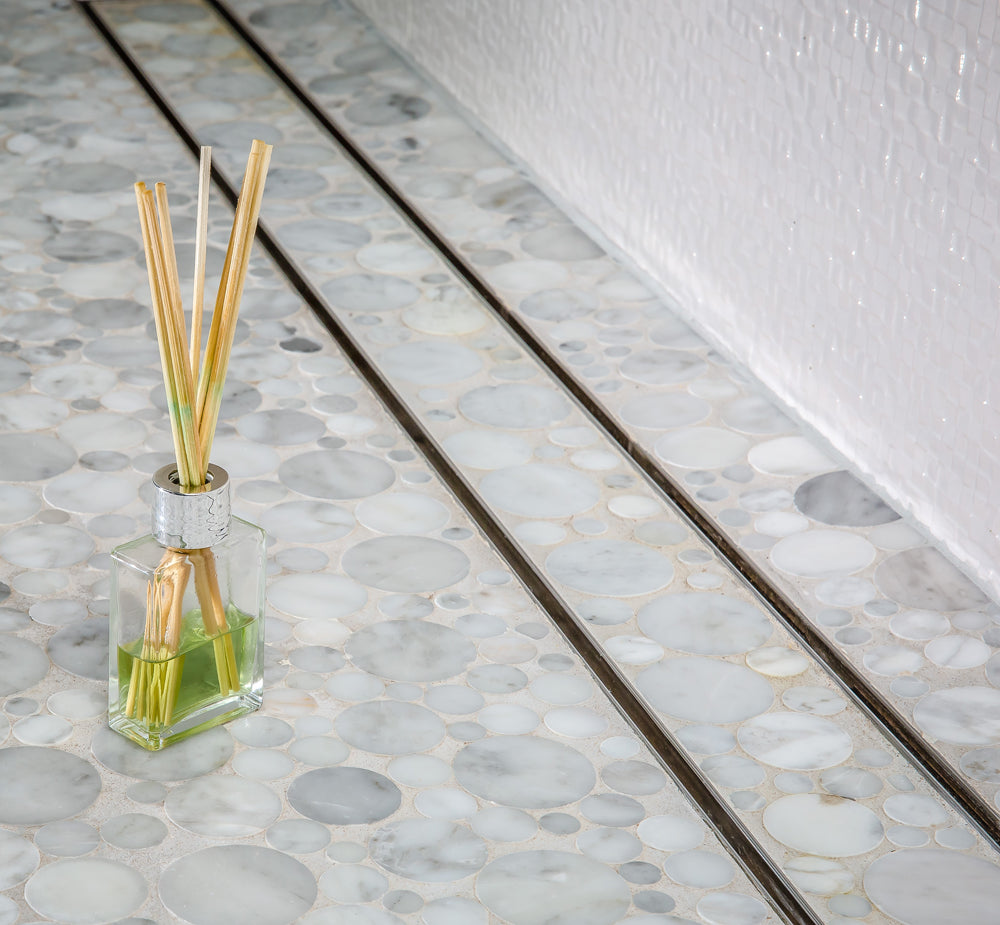

• Enhances bathroom aesthetics by highlighting the beauty of your tiles or mosaic
• Folded Frame Design: The frame is rounded and folded, not welded. This increases strength, removes sharp edges for a smooth underfoot feel, and creates a fully leak-proof body.
• No-Feet Stability: Designed to rest directly on the floor edge or subfloor instead of using leveling feet, providing a more stable base and faster installation.
• No Plastic Parts: Solid 16-gauge SS304 stainless steel construction

Visit our drains accessories collection for the best drain flange options

Transform your shower into a luxurious, seamless space with the 72" SereneDrains tile-in linear drain — the ultimate combination of function, style, and durability.
