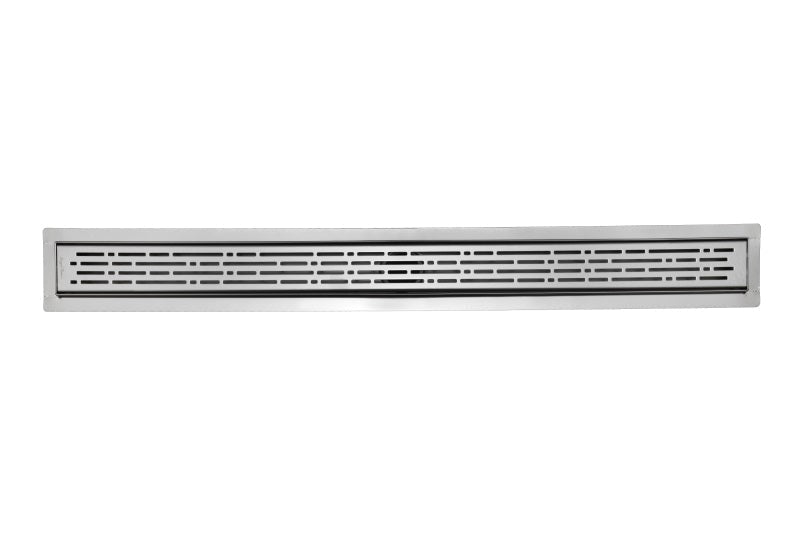

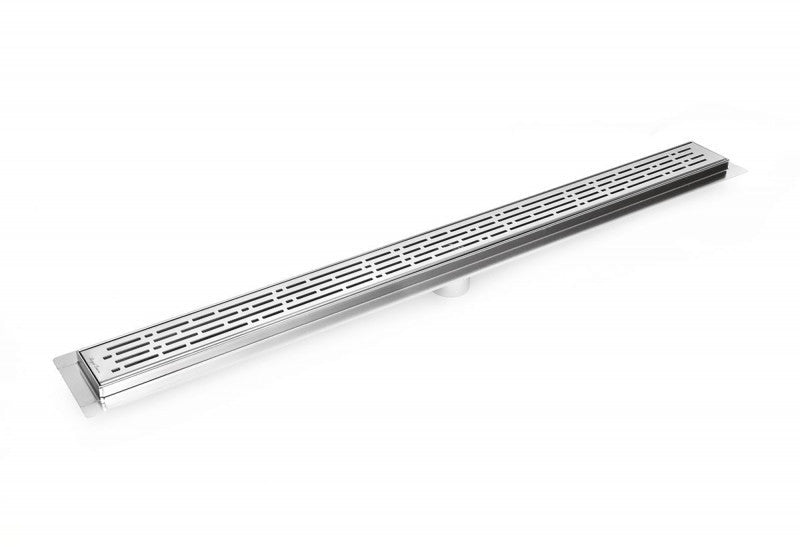

90 Inch Linear Shower Drain, Broken Lane Design, Brushed Nickel by SereneDrains
Regular price $655.00
Shipping calculated at checkout.

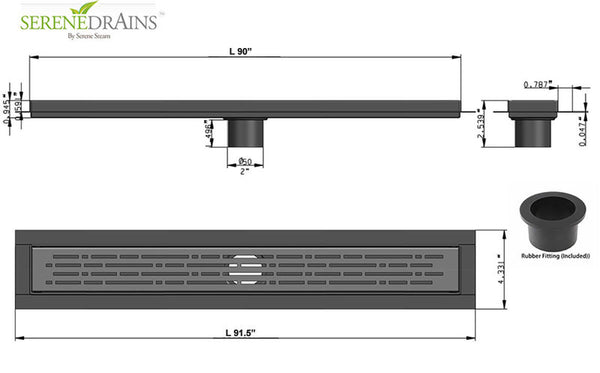

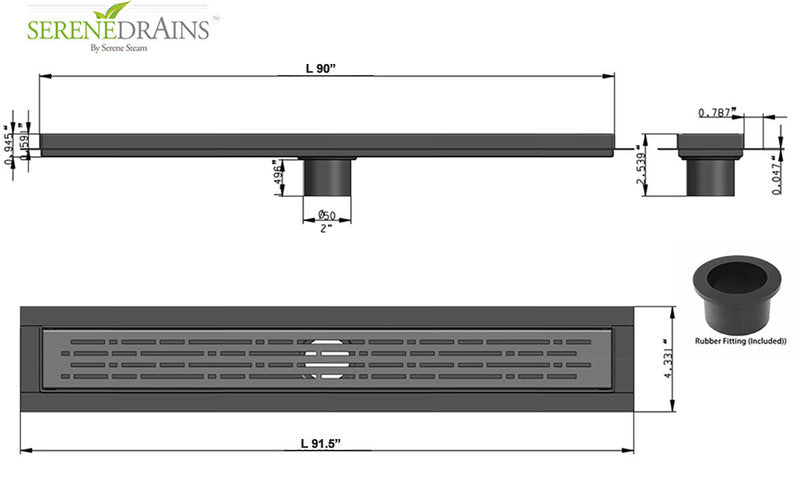

Large 90 Inch Linear Shower Drain, Broken Lane Brushed Nickel Design by SereneDrainsNet Size 90" x 2 3/4" | Overall Size 91.5" x 4 3/8" | Intake sq. in: 31.67.
Also Available In: 16", 24", 30", 35", 39", 47", 59", 72", 90".
In stock ready to ship. FREE SHIPPING
Drain Includes: 100% stainless steel brushed nickel channel body & grate, puller key, waterproofing membrane sheet around the drain flange (not required but included), Installation Instruction.
Applications: Shower & bath, kitchen, pools, balconies, hotel rooms, gym, spa etc.
Extra large liner drains - Perfect for wheelchair access & barrier-free showers (walk in floor plans).
- Stainless steel brushed nickel finish.
- Superior quality laser cut electropolish finish.
- Bodies are fully welded and leak tested prior to dispatch.
- 2 Inch diameter central vertical outlet.
- Designed to be installed into any 2" shower drain flange.
- Compatible with tiles up to 10mm depth (14mm lip).
- Sized to match standard 1/2", 1", 2, and 4" tile without cutting.
- Pre-Slope channel. Channel width: 2 3/4" (70 mm).
- Drain grate is 16 gauge 304 stainless steel.
- Flow rate: at entrance of shower - 6.3GPM (0.4 l/s); against the wall - 9.5GPM (0.6 l/s).
- Flange body edge designed for use with all types of waterproofing: hot mop, painted or liquid membranes, sheet membrane, vinyl waterproofing etc.
Available accessories include plumbing connectors (ABS/ PVC flange) and debris strainer. Drain Accessories
30 day return policy. Money back guarantee.
Contact us for quantity discounts
