Drains Unlimited Tile Insert Wall-Mounted Linear Drain for Near Wall Large Walk-In Showers

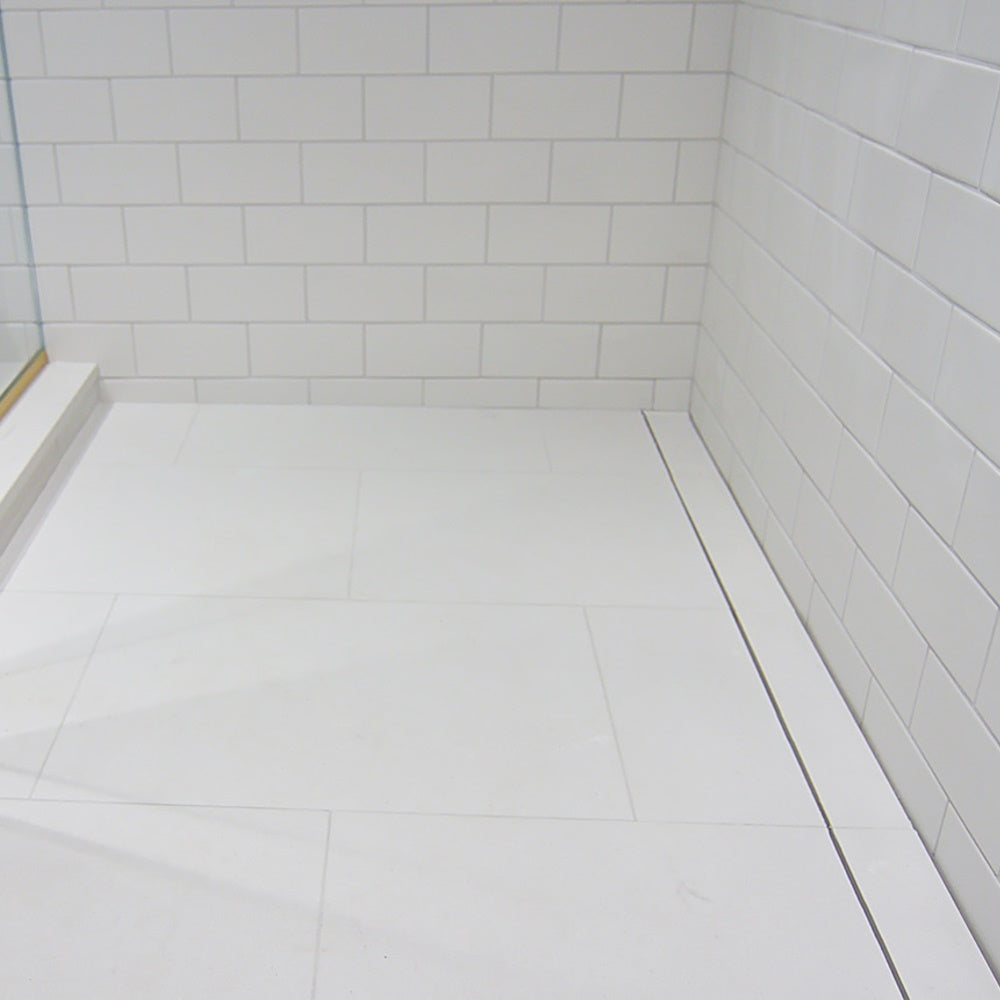

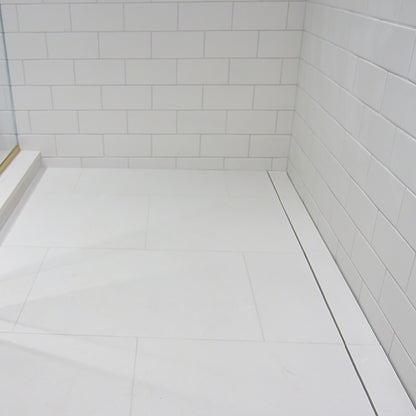

The Drains Unlimited tile insert perimeter linear drain is engineered for high-end along-the-wall installation, delivering a seamless architectural finish for luxury showers. Installed flush against the wall surface, this system creates a continuous visual transition that integrates naturally with tile or stone.

Unlike standard floor drains, this wall-adjacent linear drain eliminates the thin, often problematic strip of tile between the back wall and the drain. Positioned directly at the perimeter of the shower floor, it simplifies waterproofing transitions and enhances the clean, geometric flow of the installation.

Installation & Flange Configurations

Available in two flange options to accommodate specific shower layouts:

• Backwall Return Flange
  Optimized for curbed and curbless showers with 1/8"–3/8" wall tile thickness.
• Three-Side Return Flange
  Designed for wall-to-wall installations using 1/8"–3/8" wall tiles.

Key Features & Construction

• Installs along the wall and secures directly to wall studs for maximum stability
• Flush-to-wall installation for a clean, minimalist appearance
• Full drain length measured between finished faces of framing (stud-to-stud)

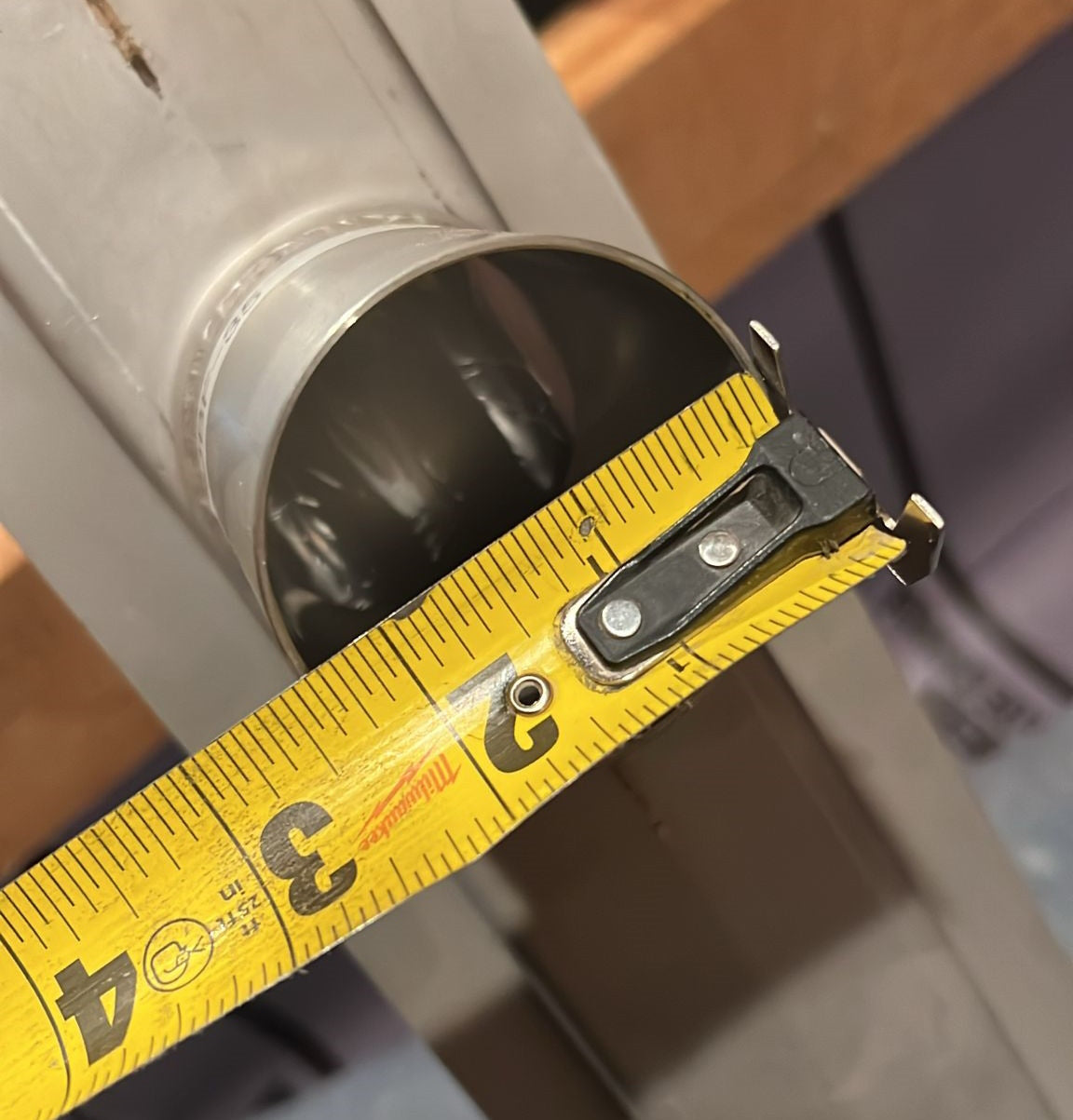

• No-hub coupling installation with a 2-3/8" outside diameter outlet
• 2-1/2" wide grate with a shallow V-shaped bottom to optimize water flow
• Constructed from 14-gauge AISI 304 stainless steel
• Electro-passivated, rust-resistant, hygienic surface finish

Waterproofing & Substrates

The integrated textured bonding flange ensures secure membrane adhesion and compatibility with major bonded waterproofing systems, including Schluter, Laticrete, Mapei, and Blanke Aqua-Shield. Suitable for liquid and fabric membranes and any tile or slab format.

Approved Substrates: Concrete, cement mortar beds, cement backer board, pre-slope foam shower pans, and interior-grade plywood.

Available Sizes

30", 32", 34", 36", 40", 42", 44", 48", 54", 60", 66", 72"

Note: Drain sizes are measured at the outer edge of the flange. The visible grate is approximately 2" shorter.

What’s Included

• Drain body
• Tile-insert grate
• Removable hair strainer
• Puller key

This perimeter wall-mounted linear drain is also available in additional grate designs and finishes, including brushed stainless steel, polished stainless steel, and wedgewire or square grate options.

Designed for residential and commercial high-flow applications. UPC, CSA, and ASME certified.

Drains Unlimited manufactures premium linear shower drains for a wide range of shower layouts. The DUFB Series standard linear drains are available in multiple sizes, styles, and finishes to suit different design needs.

For a more concealed look, Drains Unlimited also offers the DUWR Series wall-recessed linear drains, designed for upscale and luxury shower installations. Custom drain options are available, including side outlets and 316 stainless steel construction. Contact us for more information.
