SereneDrains Invisible Linear Shower Drain Kit with Hair Catcher and Flange Base

Upgrade your shower with this all-in-one invisible linear drain kit, designed for smooth, hassle-free installation and a luxurious, modern finish. The kit includes a durable flange base for secure mounting and a removable hair trap to help prevent clogs. Whether you're a contractor or a DIY enthusiast, this drain delivers dependable performance with a clean, minimalist look.

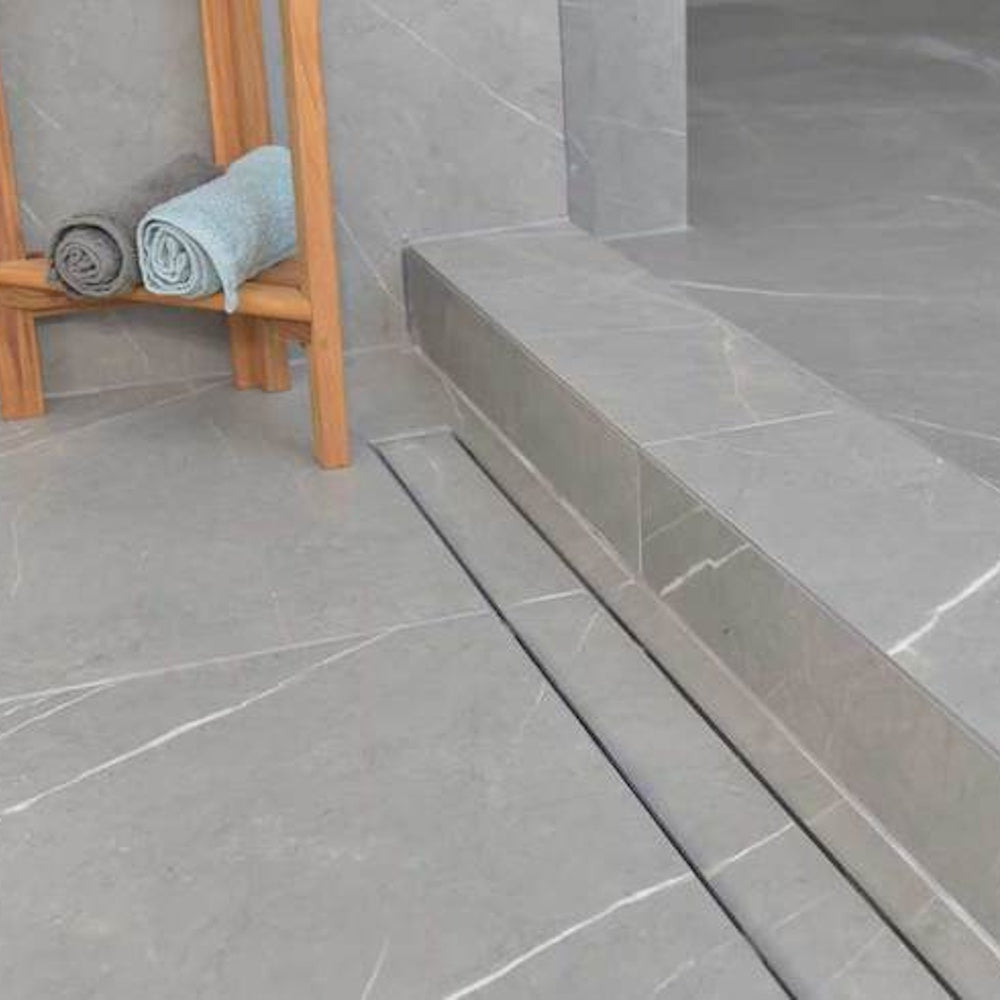

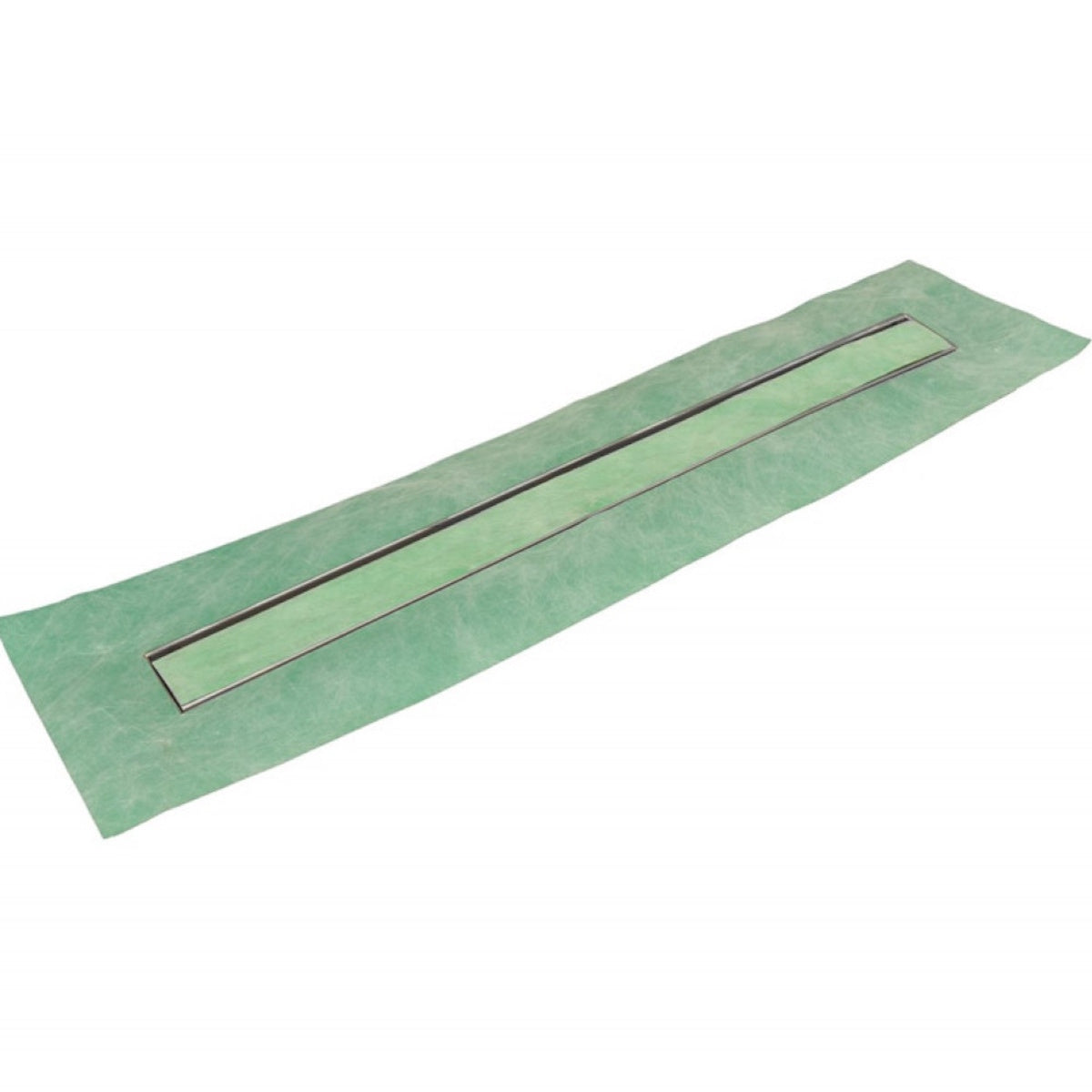

The infinity-style design allows you to face the drain cover with the same tile as your shower floor, creating a sleek, seamless, and nearly invisible appearance. It’s a decorative yet functional upgrade that blends effortlessly into any bathroom style.

With its elegant concealed cover, this drain adds a refined touch to contemporary and upscale showers. Compatible with most waterproofing systems, it’s a smart solution for stylish, streamlined renovations—now available at a reduced price for exceptional value.

Available in: 16", 24", 30", 36", 40", 48", and 60".

Note: Check local plumbing codes. Some installations may require ABS, PVC, or cast iron drain flanges—consult a licensed plumber if unsure.

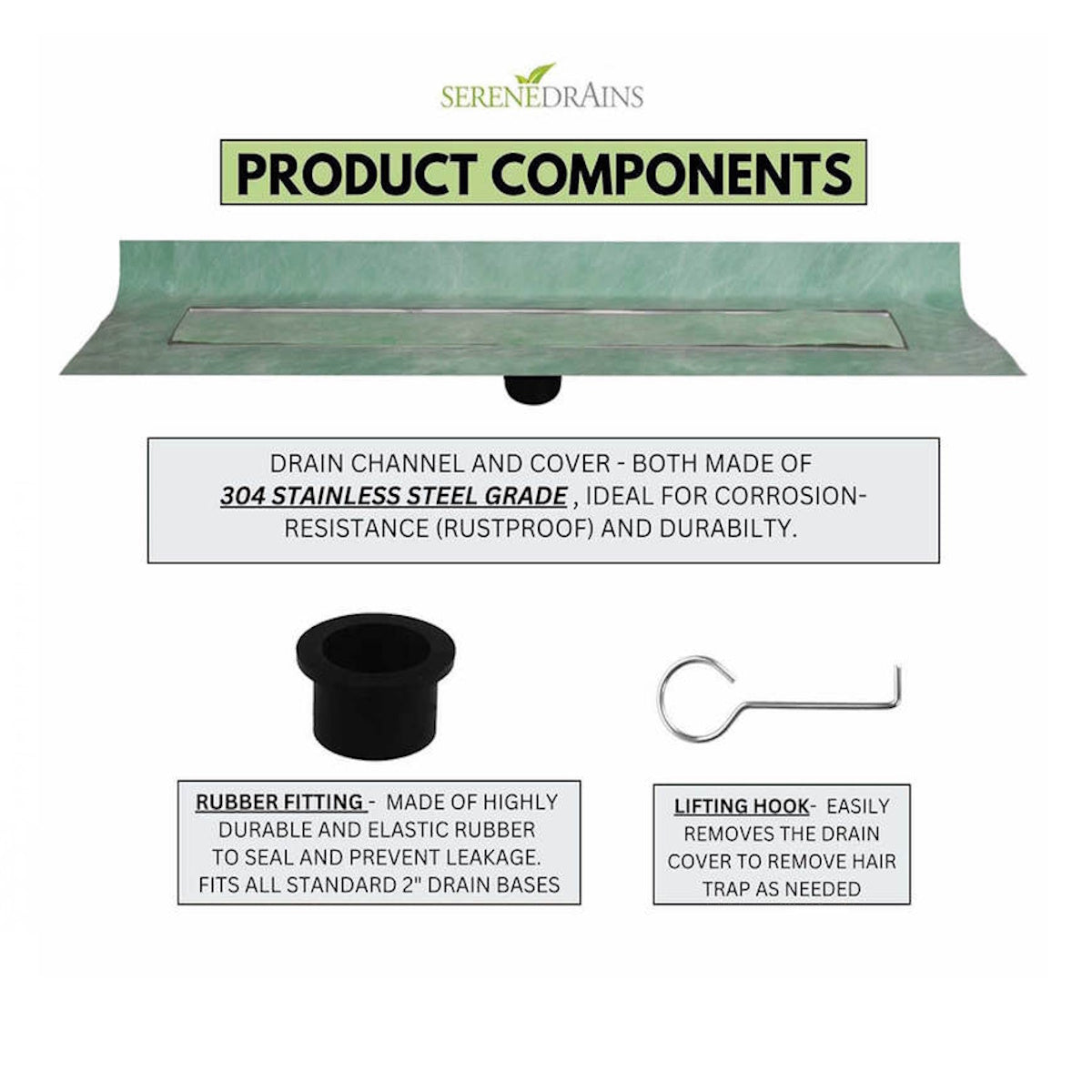

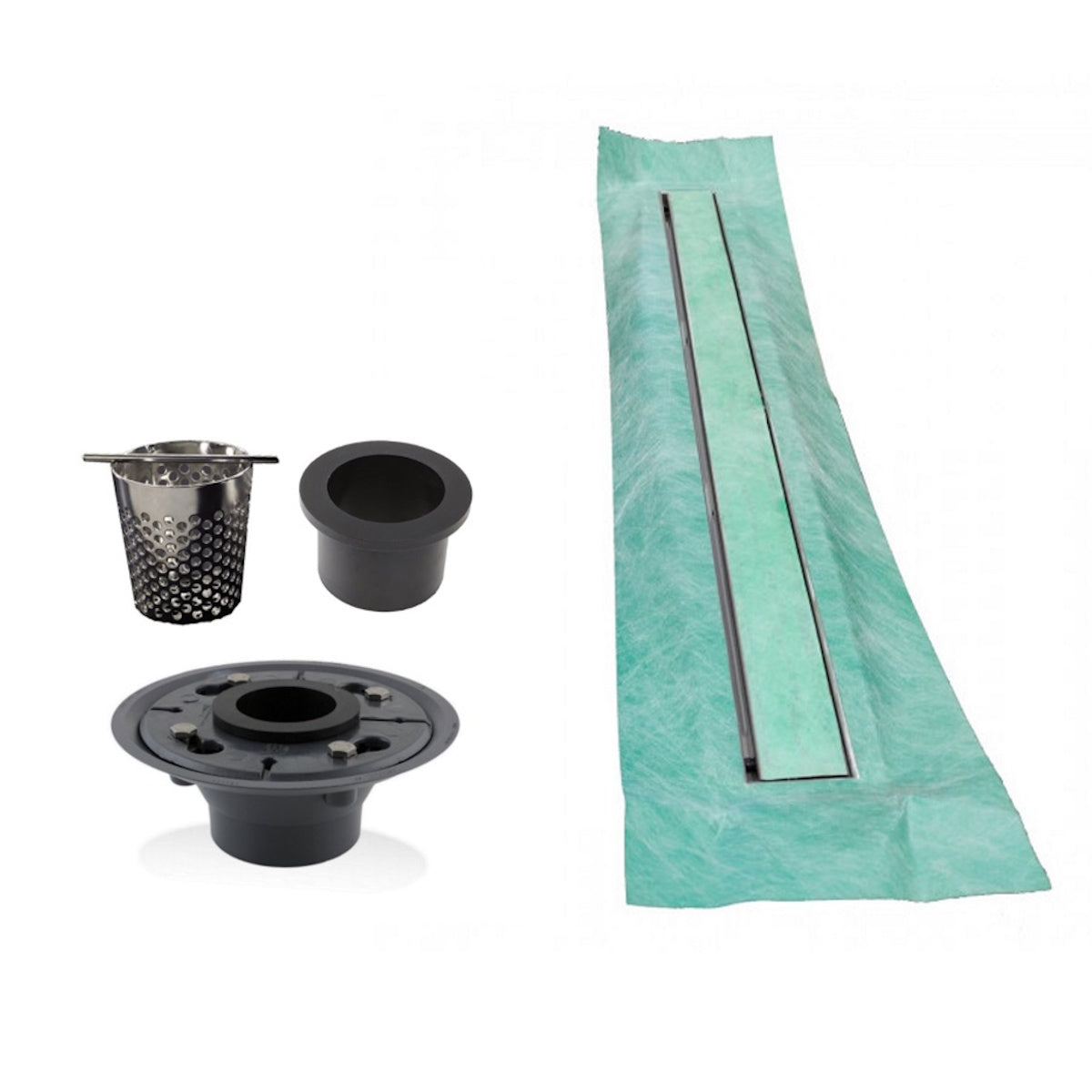

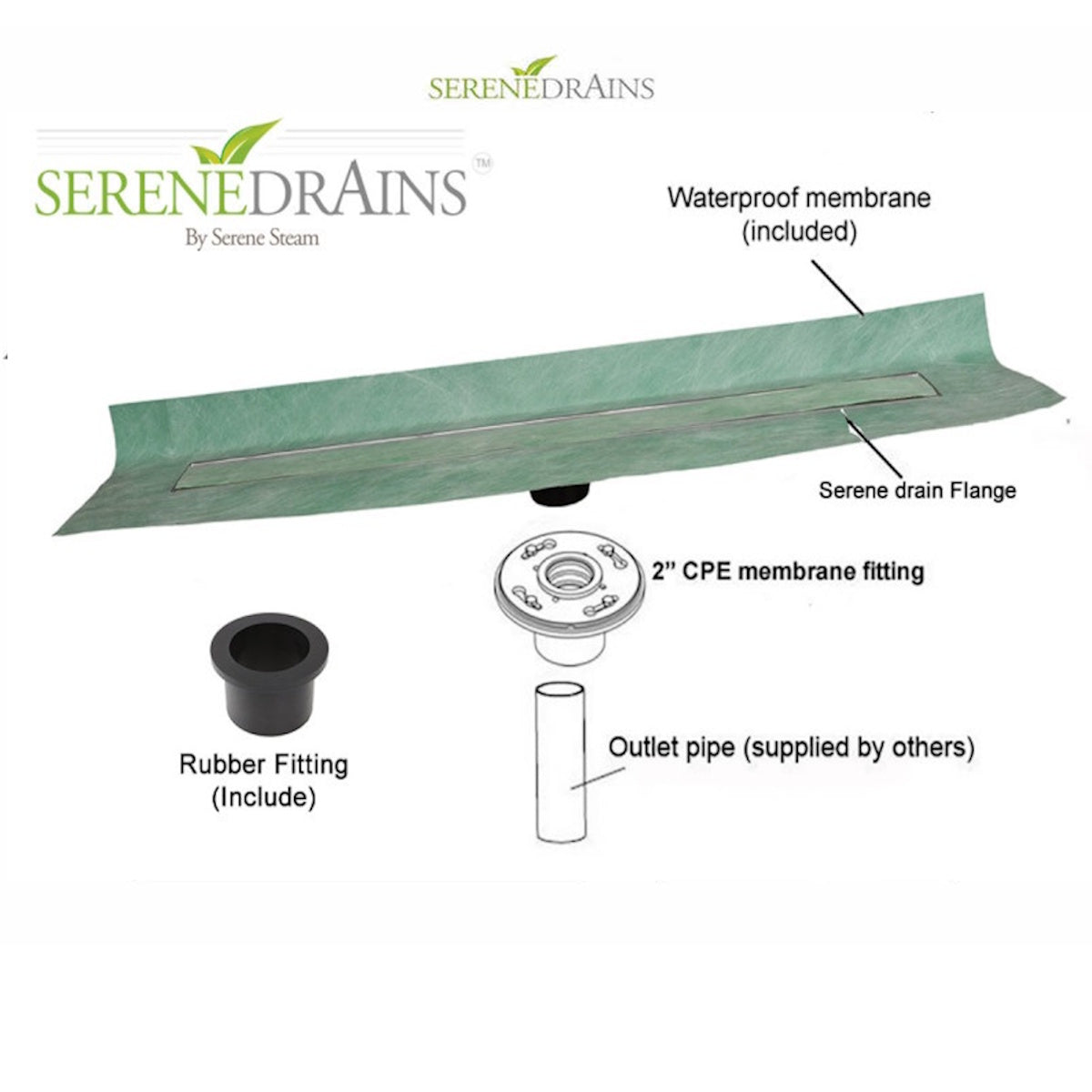

What’s Included:

Stainless steel channel body & grate
Drain flange base with rubber gasket

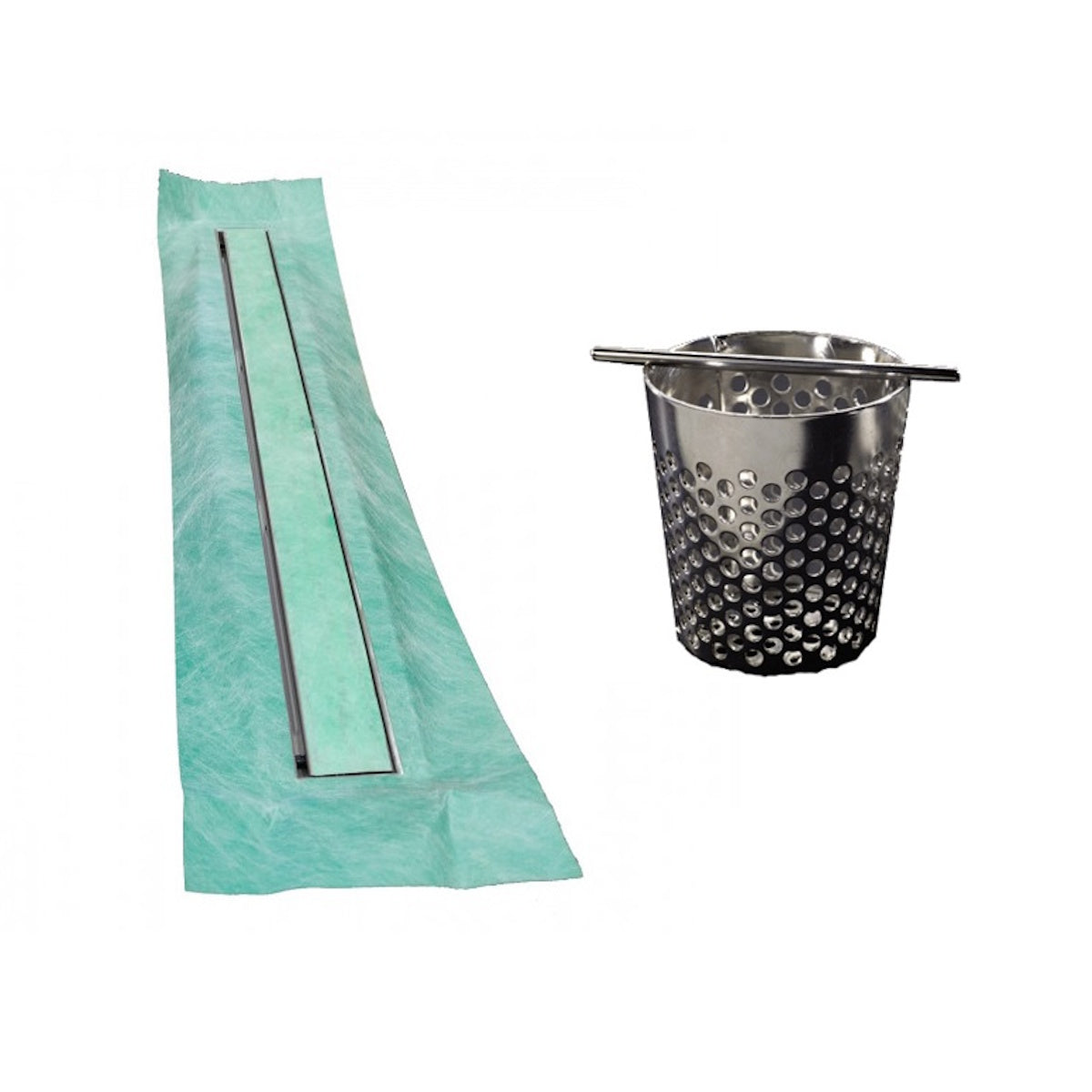

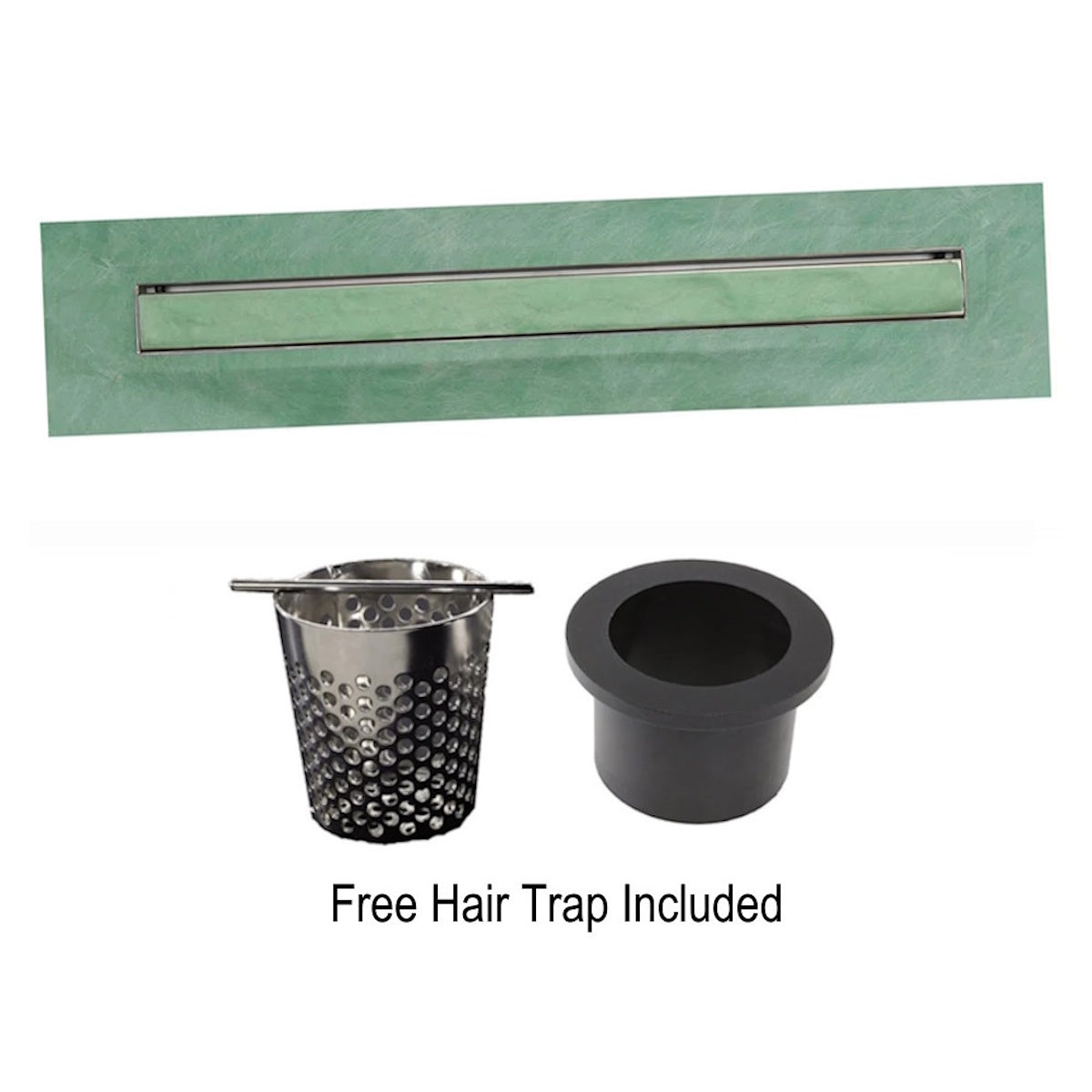

Removable hair trap
Puller key
Waterproofing membrane sheet (optional but included)
Installation instructions

Key Features:

Durable stainless steel with matte white finish
Laser-cut, electropolished grate for a refined look
Leak-tested, fully welded body
2" central vertical outlet—fits standard 2" shower drain flanges
Works with tile depths up to 10mm (14mm lip)
Pre-sloped channel for efficient drainage
Channel width: 2 ¾" (70mm)
Compatible with standard ½", 1", 2", and 4" tiles—no cutting needed
16-gauge 304 stainless steel
Flow rates:
- 6.3 GPM (0.4 L/s) at shower entrance
- 9.5 GPM (0.6 L/s) against the wall
Ideal for wheelchair-accessible and barrier-free showers

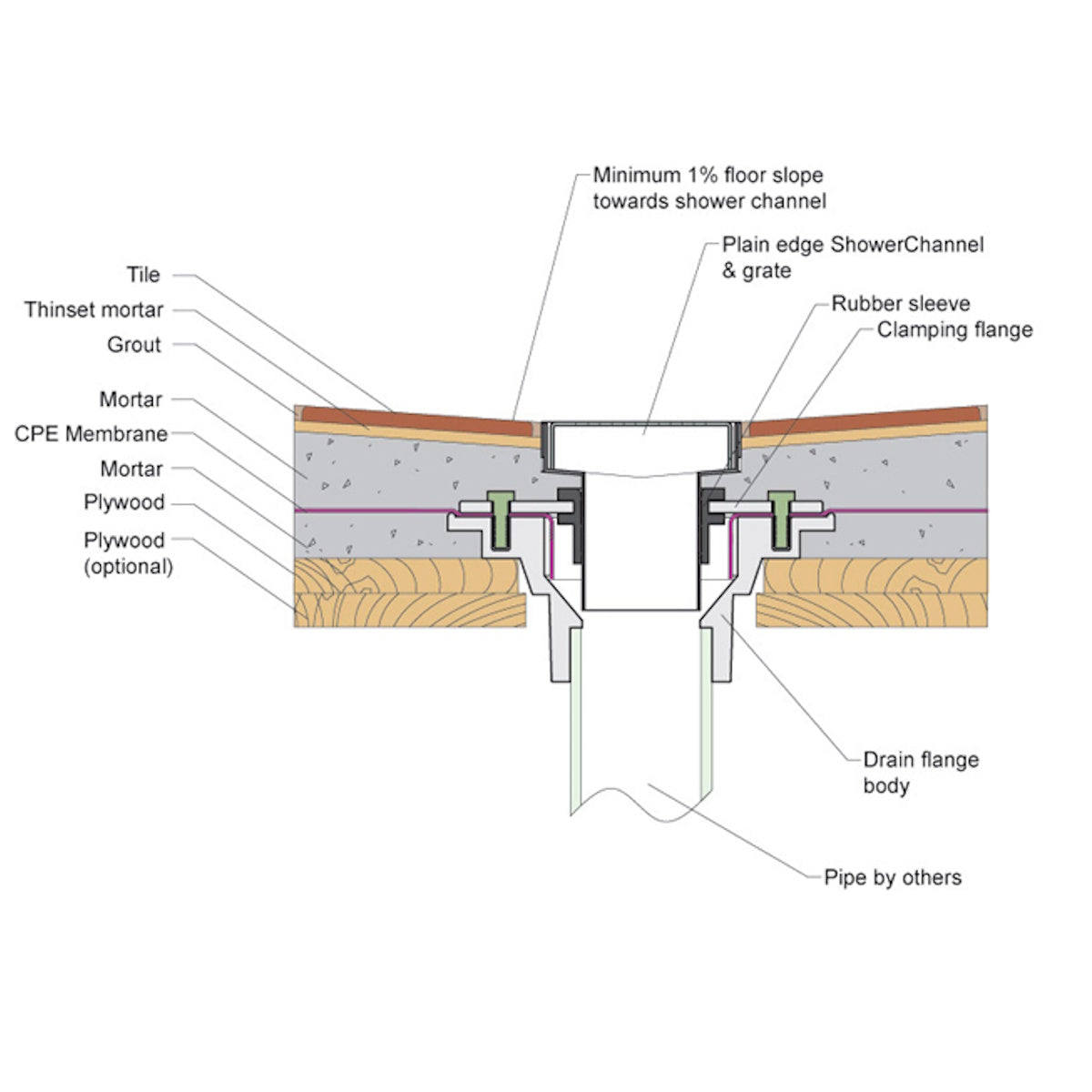

Flange edge compatible with all waterproofing methods: hot mop, liquid membrane, sheet membrane, vinyl, and more

Dimensions:

Net Size (inches/mm)	Overall Size (inches)	Intake Area (sq. in.)
15 ¾" x 2 ¾" (400mm)	17 ¼" x 4 ⅜"	12.38
23 ½" x 2 ¾" (600mm)	25.2" x 4 ⅜"	14.96
30" x 2 ¾" (762mm)	31.57" x 4 ⅜"	17.62
35 ⅜" x 2 ¾" (900mm)	37.01" x 4 ⅜"	20.03
39 ⅜" x 2 ¾" (1000mm)	40.95" x 4 ⅜"	21.12
47 ¼" x 2 ¾" (1200mm)	48.82" x 4 ⅜"	26.68
59.05" x 2 ¾" (1500mm)	60.63" x 4 ⅜"	31.67

Also available: Need a specific drain size or outlet location? Explore our collection of Custom Length Linear Shower Drains — perfect for personalized shower layouts and unique design requirements.

We also carry Side Outlet Linear Shower Drains in multiple sizes, offering flexible solutions to match any bathroom style and installation need.

Additionally, check out our Tile Insert Linear Shower Drains with a center outlet — available in Brushed, Gold, Matte White, and Matte Black finishes.

In stock and ready to ship from the USA. Free Shipping.
