48 Inch Custom Length Tile Insert Linear Drain - Durable Anodized Aluminum Lauxes Grates, Infinity Drain Design for Modern Showers

Custom Length Linear Shower Drains are available in standard ready-to-order sizes or can be custom-tailored to fit your exact shower dimensions. If your required size falls between standard increments, please contact us to arrange a custom-sized drain that perfectly matches your needs.

Available Colors: Silk Silver, Midnight Black, and Matte Gold

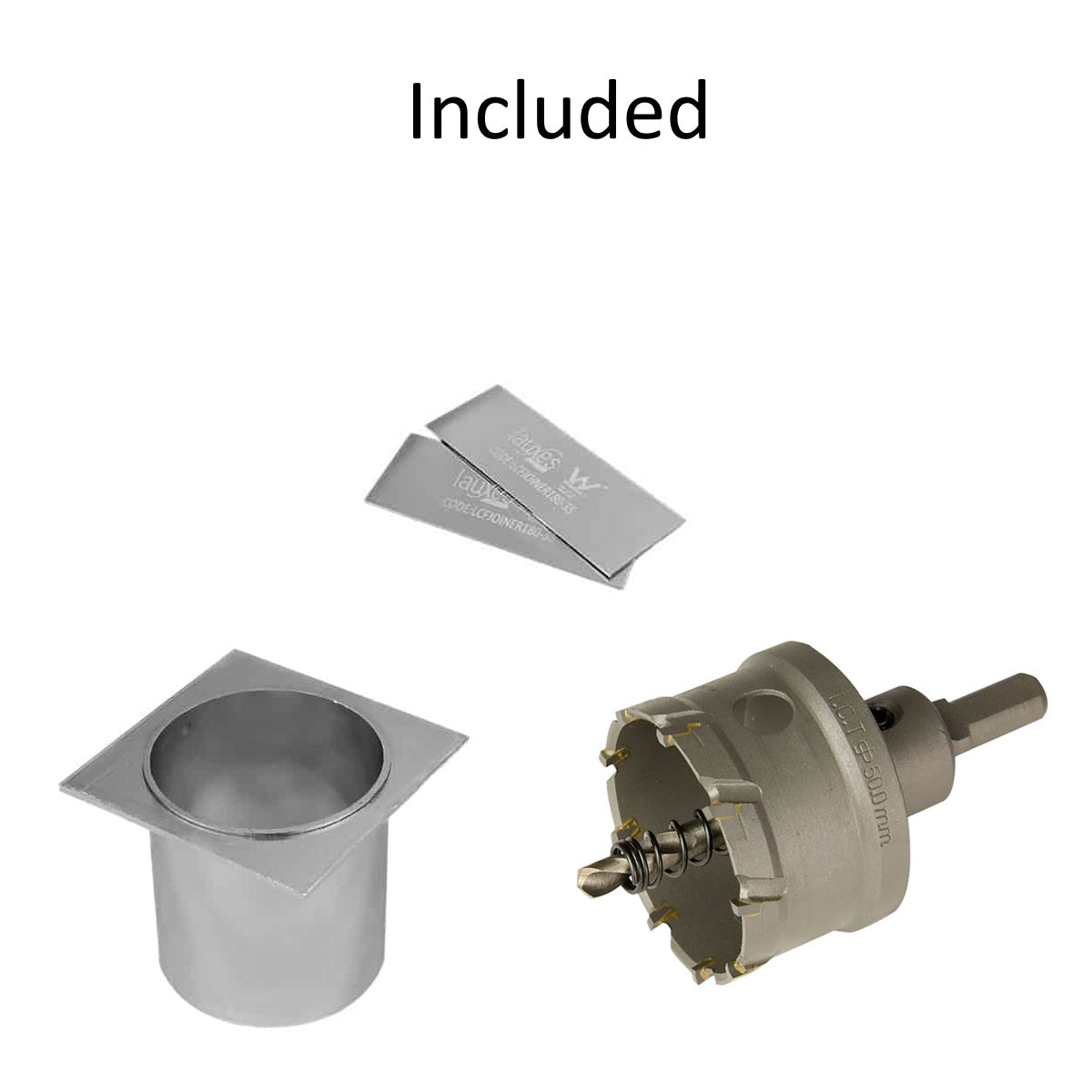

Complete Set – Includes a 1 ft channel and grate, a pair of end caps, a 2 inch waste outlet, one hole saw per order, and Lauxes Joiners (180° or 90°) as needed. A 3 inch drain outlet and matching 3 inch hole saw are available.

A Tile Insert Infinity Design Shower Drain lets you place the same tile over the drain cover for a hidden, seamless look. It blends into the shower floor while still providing efficient drainage—ideal for modern, minimalist designs.

If the drain length exceeds 95 inches, multiple shorter drains will be shipped and joined together with Lauxes Joiners at the job site during installation. They can be easily cut onsite to achieve the exact length you need.

Lauxes Grates Slimline Tile Insert 26 – the world’s thinnest tile insert grate – is ideal for new builds and renovations with height restrictions, helping you achieve your required falls more easily. Made from anodized aluminum, it’s UV stable, backed by a 25-year warranty against fading, and covered by a Lifetime Rustproof Warranty. Suitable for both indoor and outdoor use, this practical and customizable drainage solution delivers durability and design flexibility.

Dimensions

• Length: 48" (1219mm)
• Width: 4" (102mm)
• Depth: 1" (25mm)

Features

• Available in lengths up to 18 ft (ability to extend further using Lauxes joiners)

• Available in 2 grate options: Slimline Tile Insert or Next Generation Perforated Design.
• Waste outlet can be positioned anywhere along the bottom tray (recommended outlet sizes: 2 inch and 3 inch).
• Excellent drain for indoor showers or outdoor pool and patio applications.
• Suitable for tiles up to 7/16" (10mm) thick.
• Joiners for easy extension.
• Easy roll-out system for cleaning.
• UV stable.
• Lifetime Rustproof.

Key Features

• Material: Anodized Aluminum Lightweight and Rustproof

• Top grate easily removed for cleaning
• Different color choices to suit application
• Easy to cut to desired length
• No welding required
• No major plumbing involved as waste outlet can be positioned anywhere along the bottom tray
• Ability to extend beyond 5.6m with the use of Custom joiners

Carefully Designed

Lauxes custom size linear shower drians are carefully designed and manufactured from anodized aluminum to deliver a robust, long-lasting, cost-effective, and versatile drainage solution.

With Custom Floor Grates, there is no compromise on functionality or style when creating designer living spaces.

Cutting Instructions and Installation

For easy cutting of Custom grates, we recommend using a compound miter saw fitted with a multi-material cutting blade (80 teeth or more). We also recommend using a Custom TCT hole saw to drill the hole for the waste outlet.

1. Cut the bottom tray 1/8" (3 mm) shorter than the desired length to allow the end caps to be fitted.
2. Cut the top grate 1/32" (1 mm) shorter than the bottom tray for easy roll-in and a tidy fit.
3. Using the appropriate Custom hole saw for your waste outlet, drill the hole in the required position to align with the waste pipe in the floor.
4. Insert the end caps into the bottom tray and secure them with a bead of silicone on the outside of the tray.
5. Apply silicone around the lip of the waste outlet and secure it to the underside of the bottom tray at the drilled hole.

* During installation, use a template to ensure the grate does not come in contact with any wet cement-based products.

** Regular, gentle cleaning with soapy water is recommended. Do not use abrasive cloths or acidic chemicals on the grates.

*** When gluing tile, use a neutral-cure silicone.

Warranty

Custom Grates are carefully designed and manufactured to the highest standard with meticulous attention to detail. Because of this care, we stand behind your recently purchased, unique, cost-effective, and rustproof shower drain.

Damages resulting from improper, insufficient, or negligent care, or from installation not in accordance with AS/NZS 3500.2 or the manufacturer’s specifications, will void the warranty.

If at any time the product develops a defect, Custom Grates agrees to correct the defect(s) at no charge to the registered purchaser. This guarantee does not cover repairs necessitated by normal wear, misuse, accidental damage, or changes in temperature.

Note: Custom Grates products do not form part of the waterproofing.

All Custom Grates and accessories hold UPC Certification.
