72 Inch Made to Order Linear Drain, Lauxes Grates 6ft Tile Insert Custom Shower Drain, Rustproof Anodized Aluminum

Our Made to order linear drains come in standard ready-to-order sizes or can be custom-tailored to fit your exact shower dimensions.

If your required size falls between standard increments, please contact us to arrange a custom-sized drain that perfectly matches your needs.

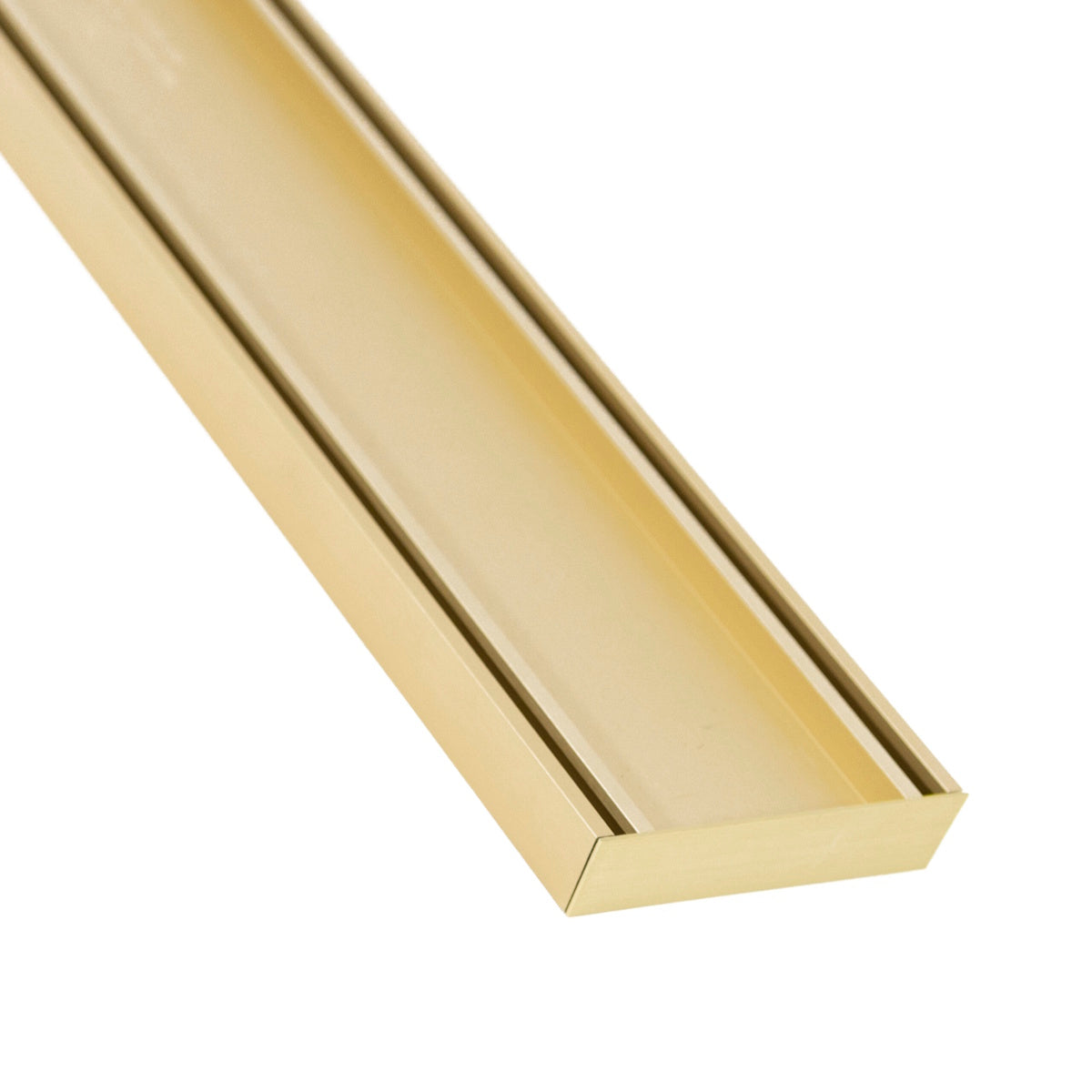

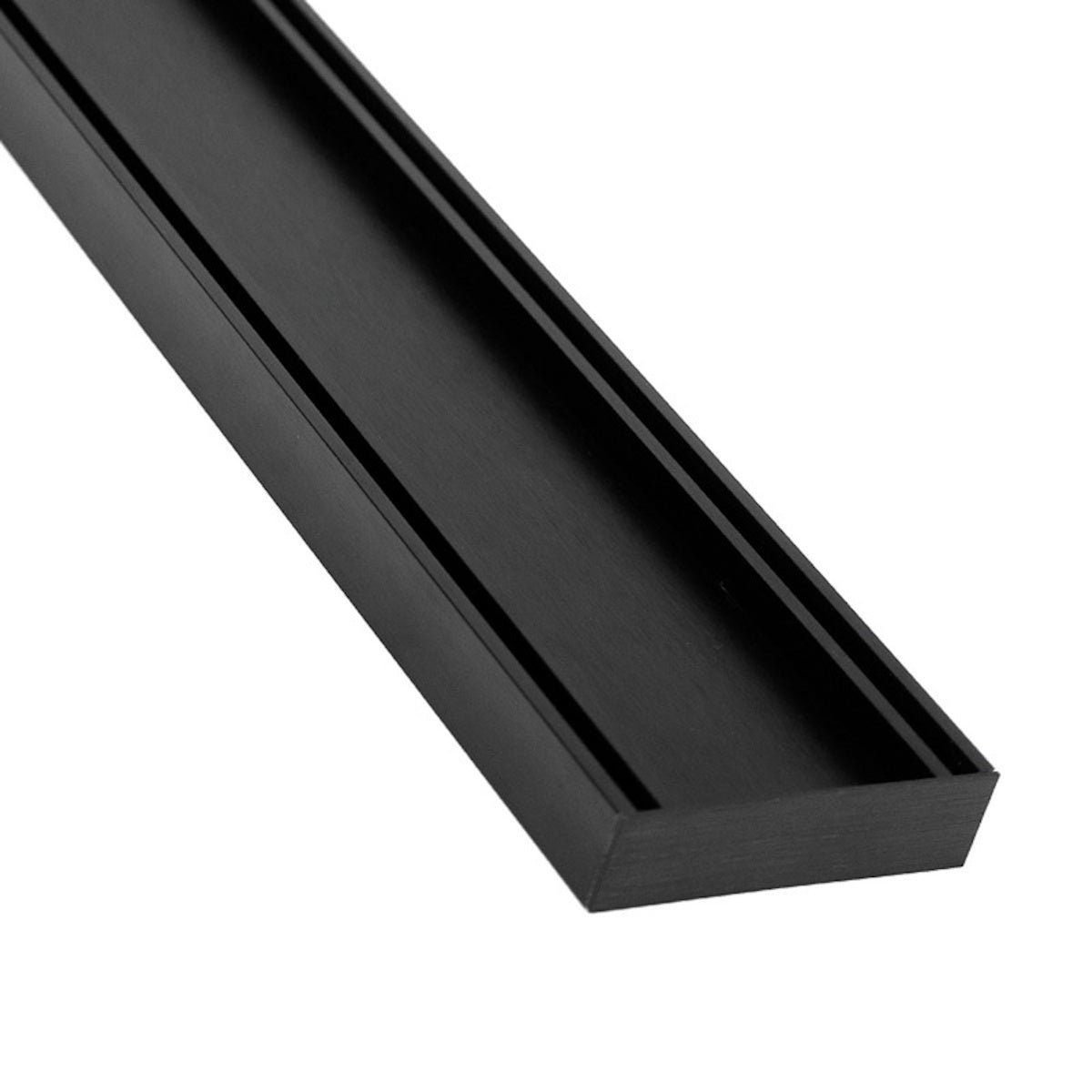

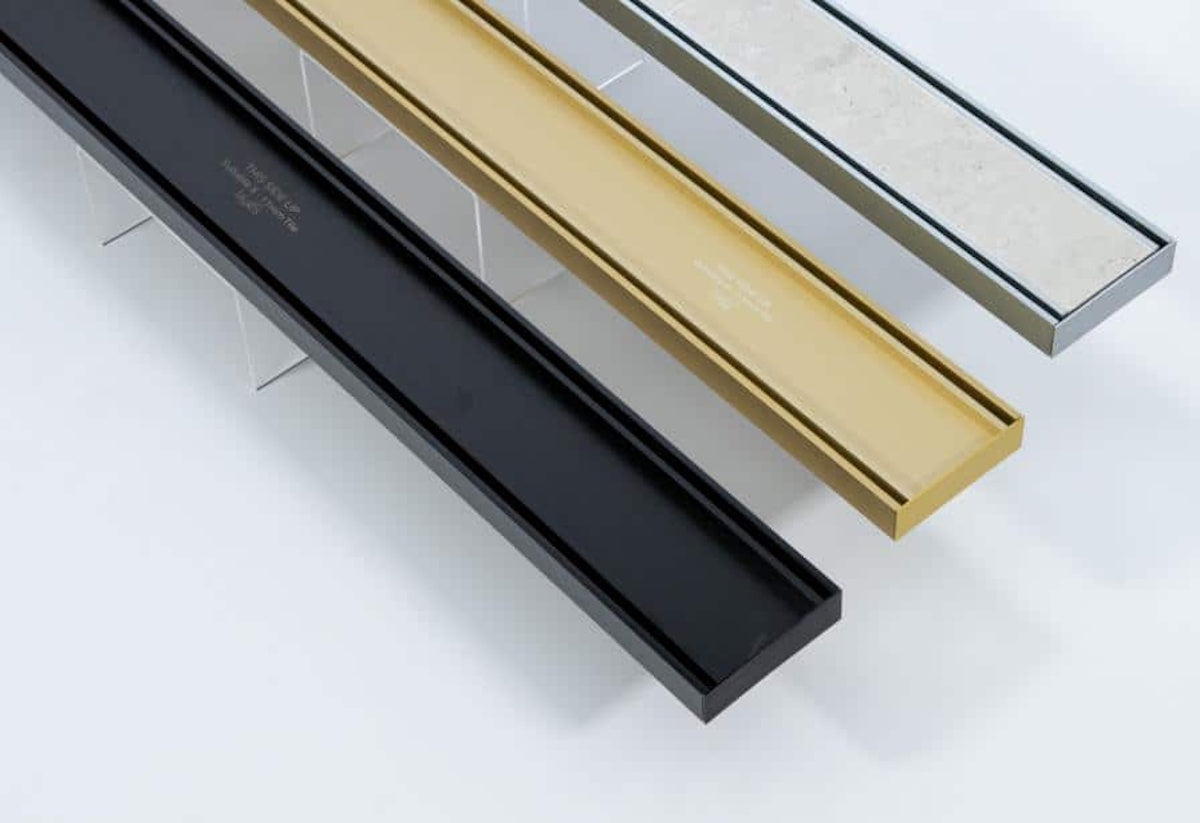

Available Colors: Brushed Nickel, Silk Silver, Midnight Black, and Matte Gold

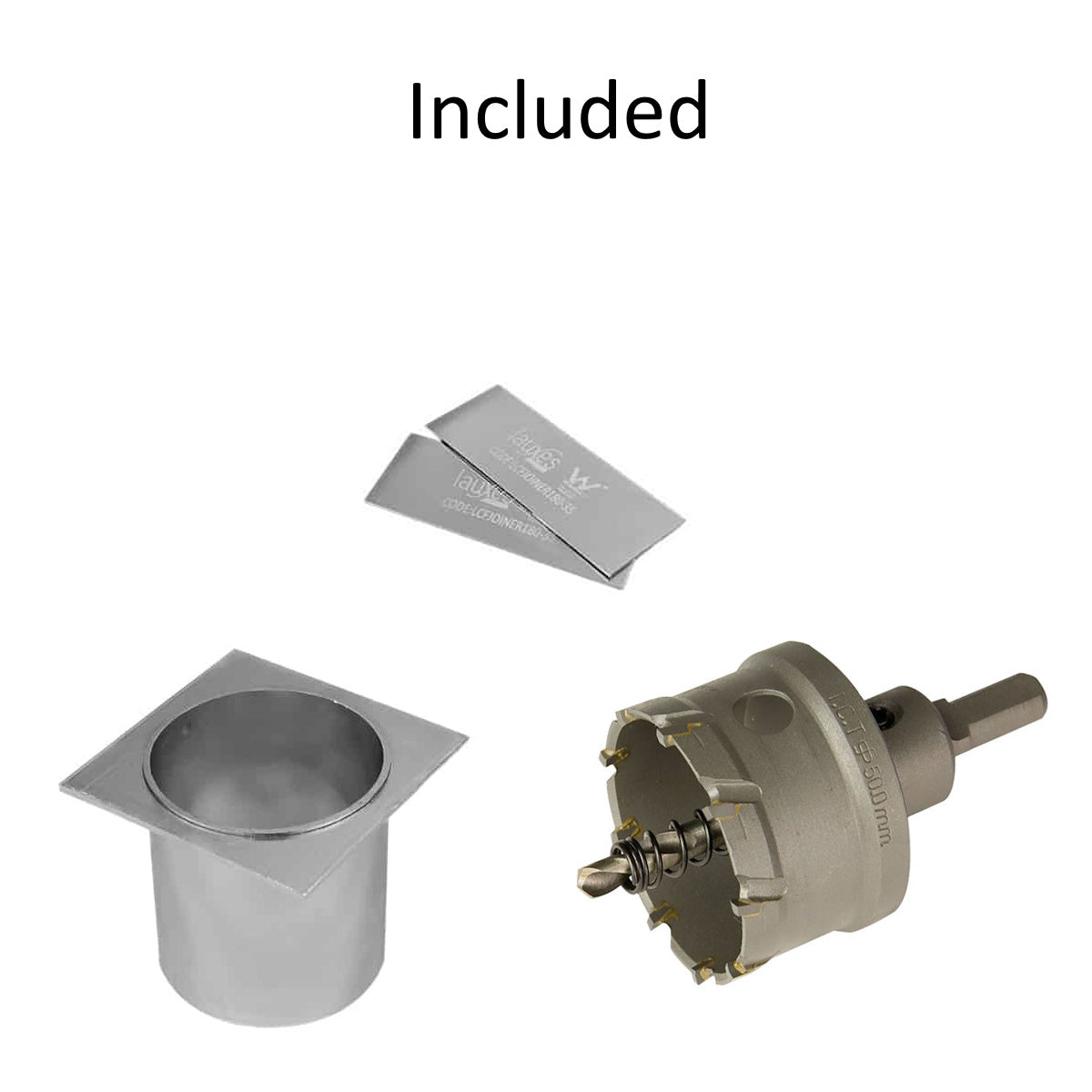

Complete Set: Includes a 6 ft channel and grate, a pair of end caps, a (2" or 3") pop waste outlet, one hole saw per order, and Lauxes joiners (180° or 90°) if required. By default, a 2" outlet is supplied. A 3 inch drain outlet with a matching 3" hole saw is available upon request.

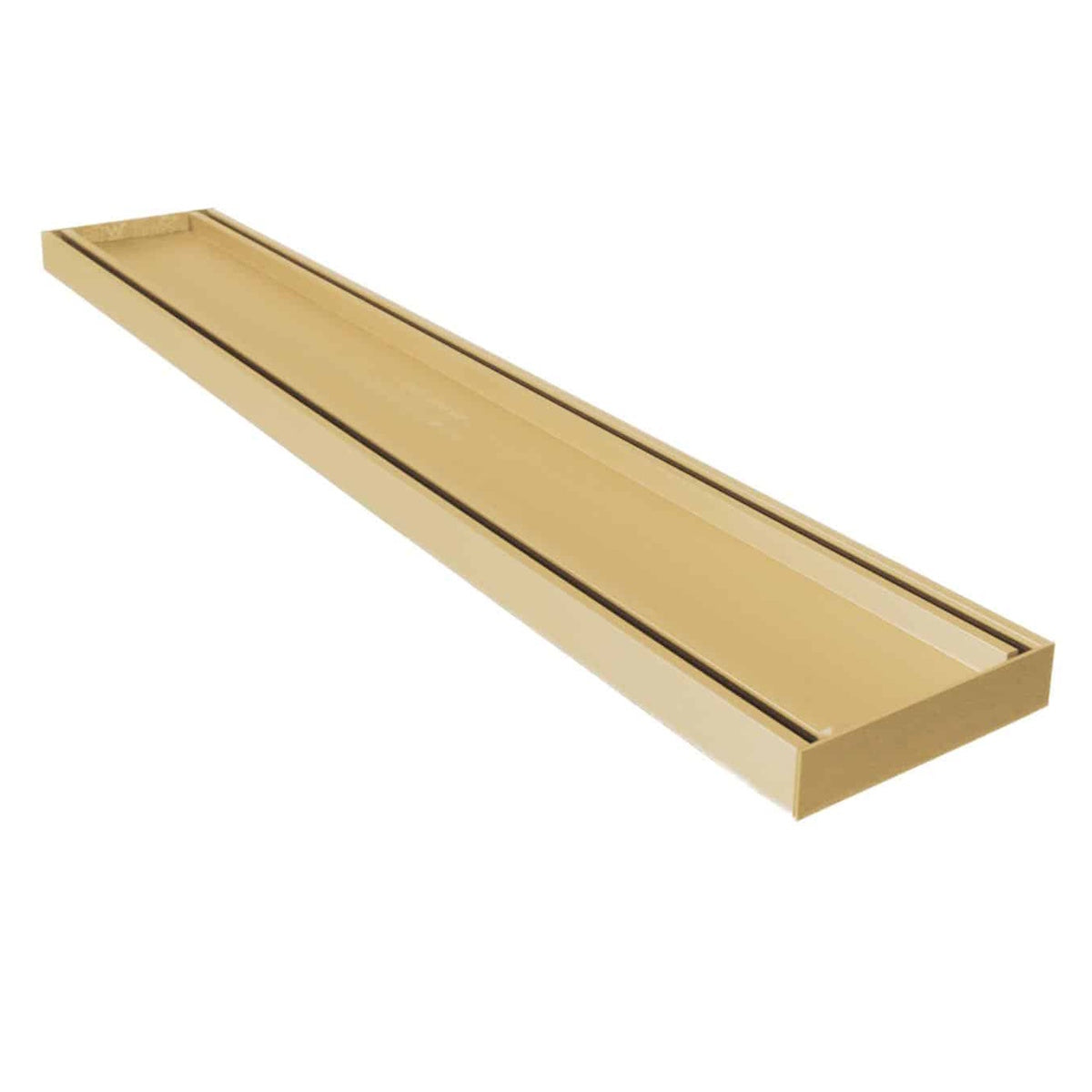

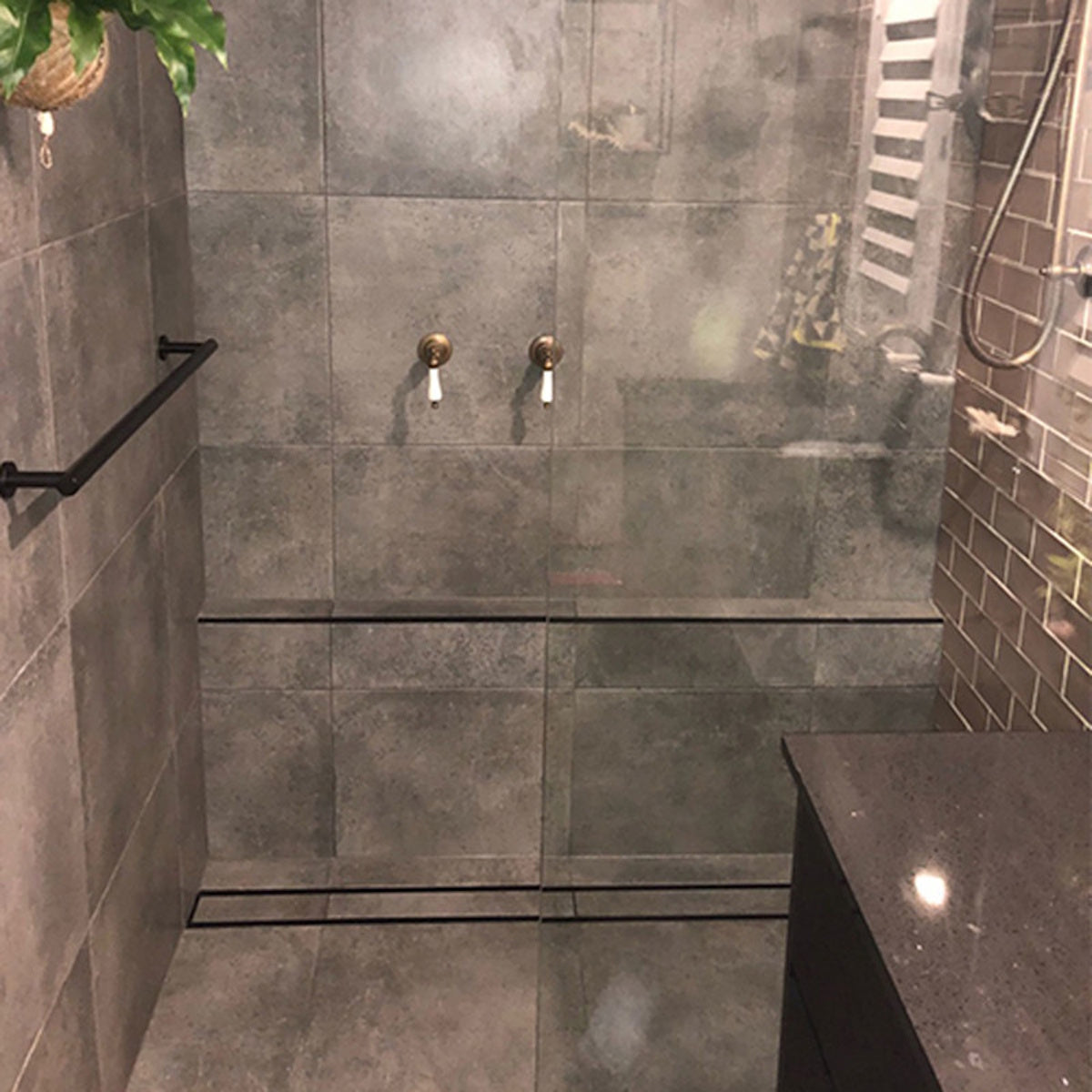

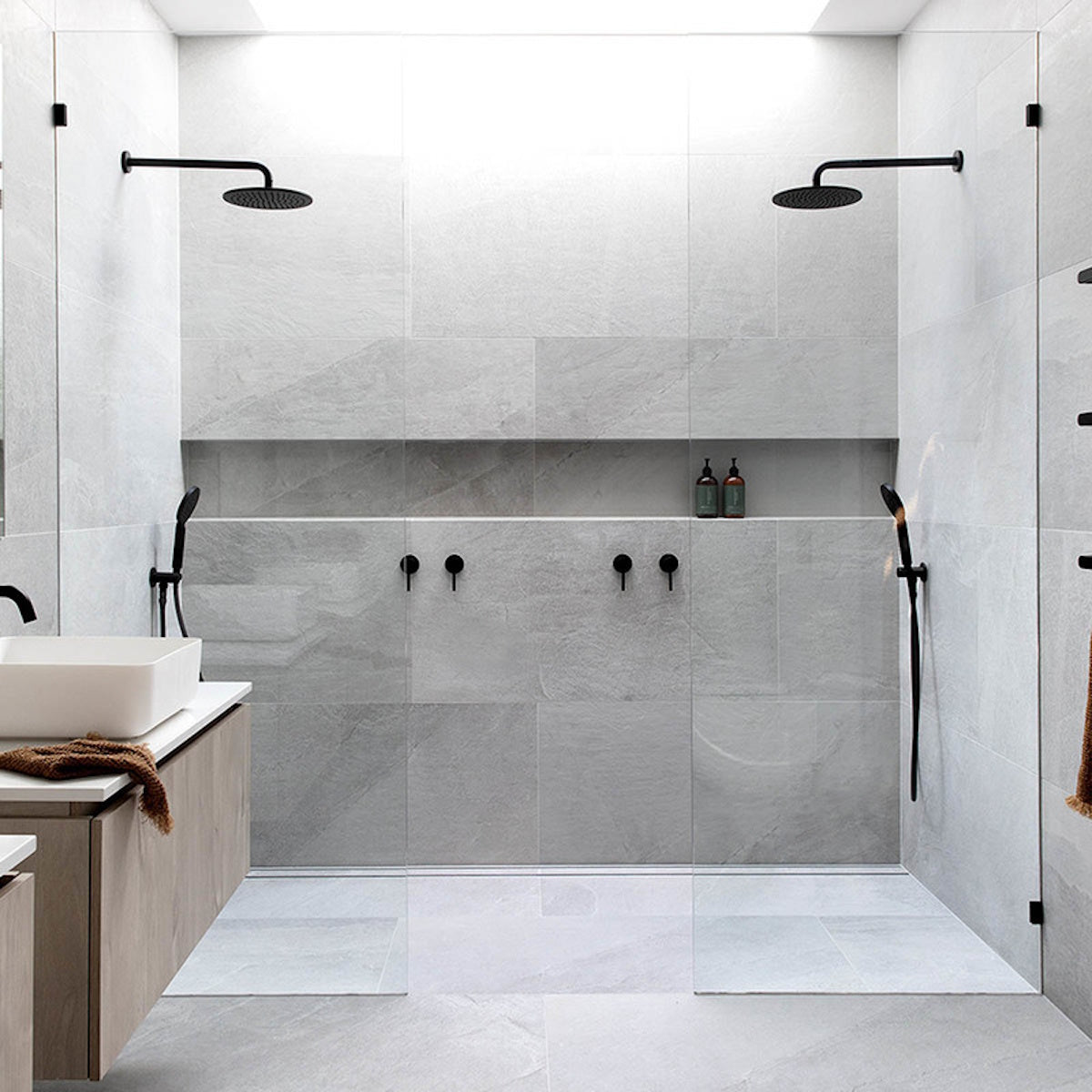

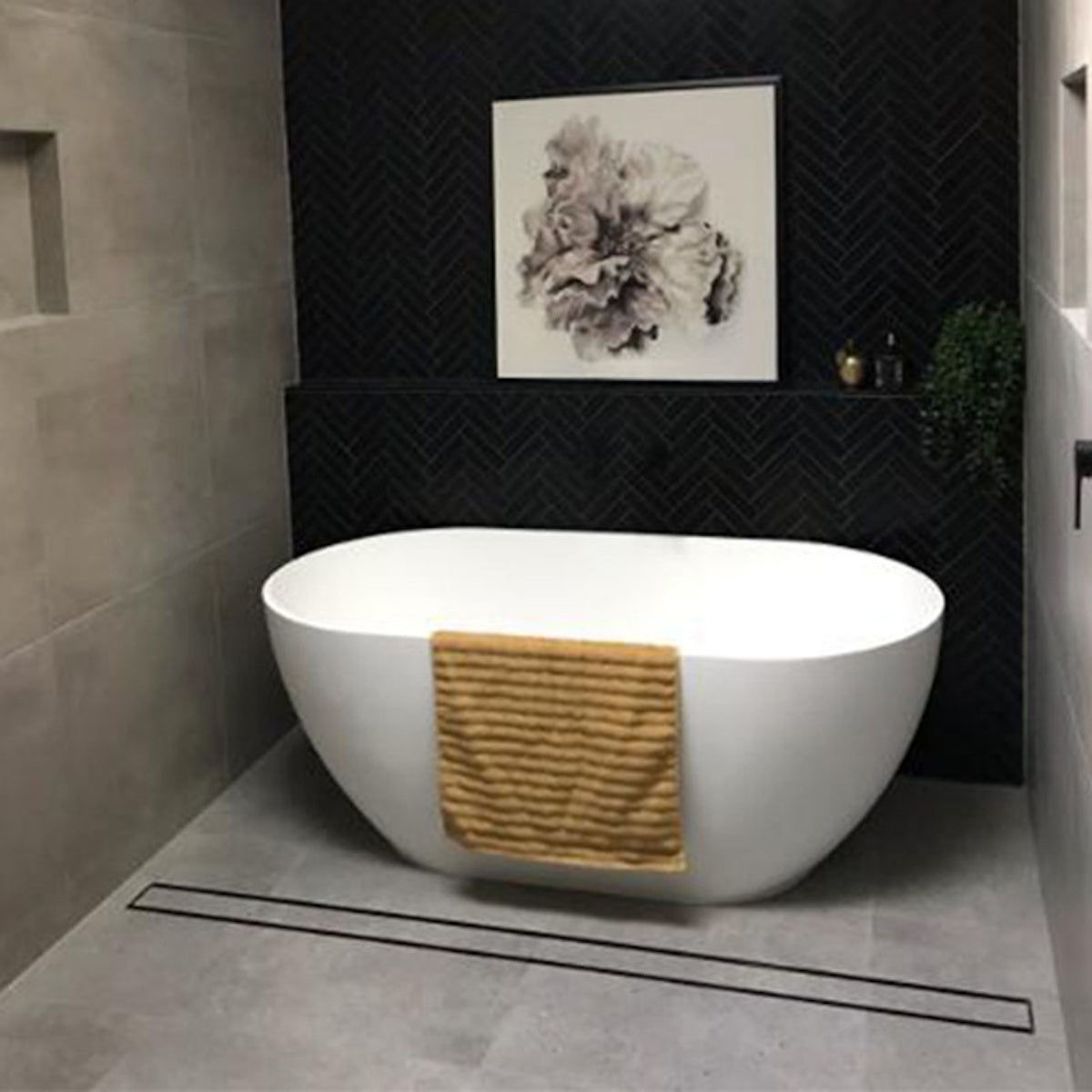

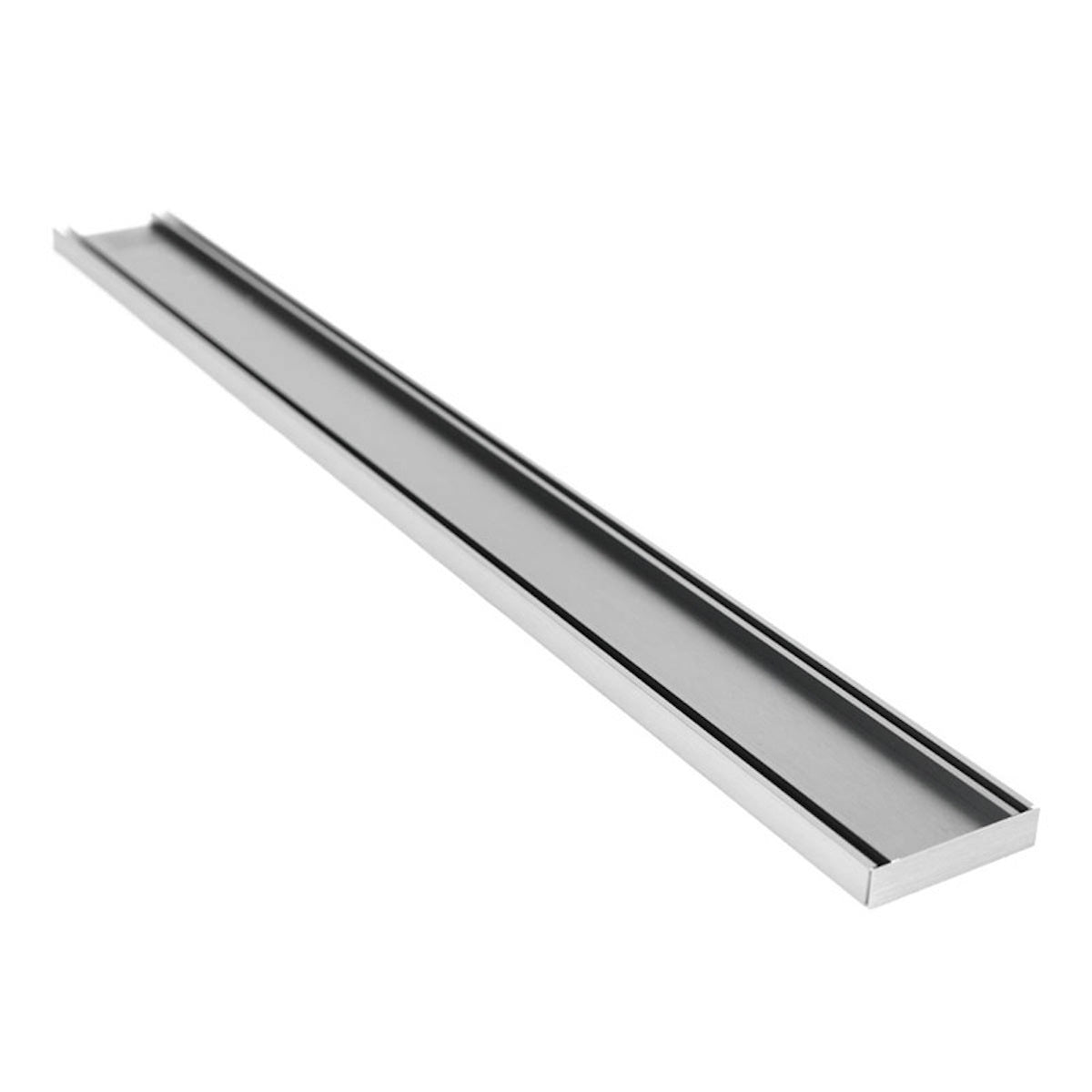

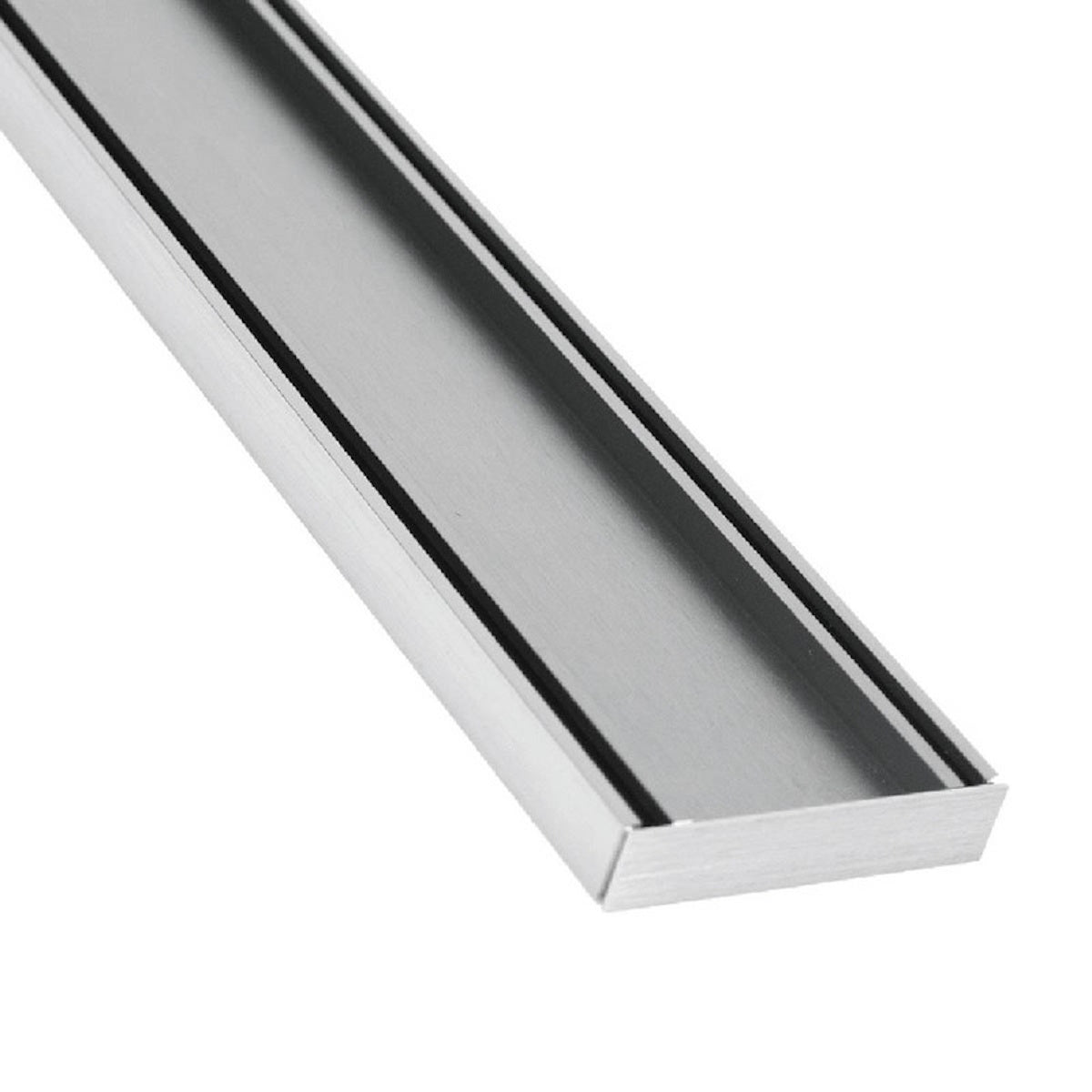

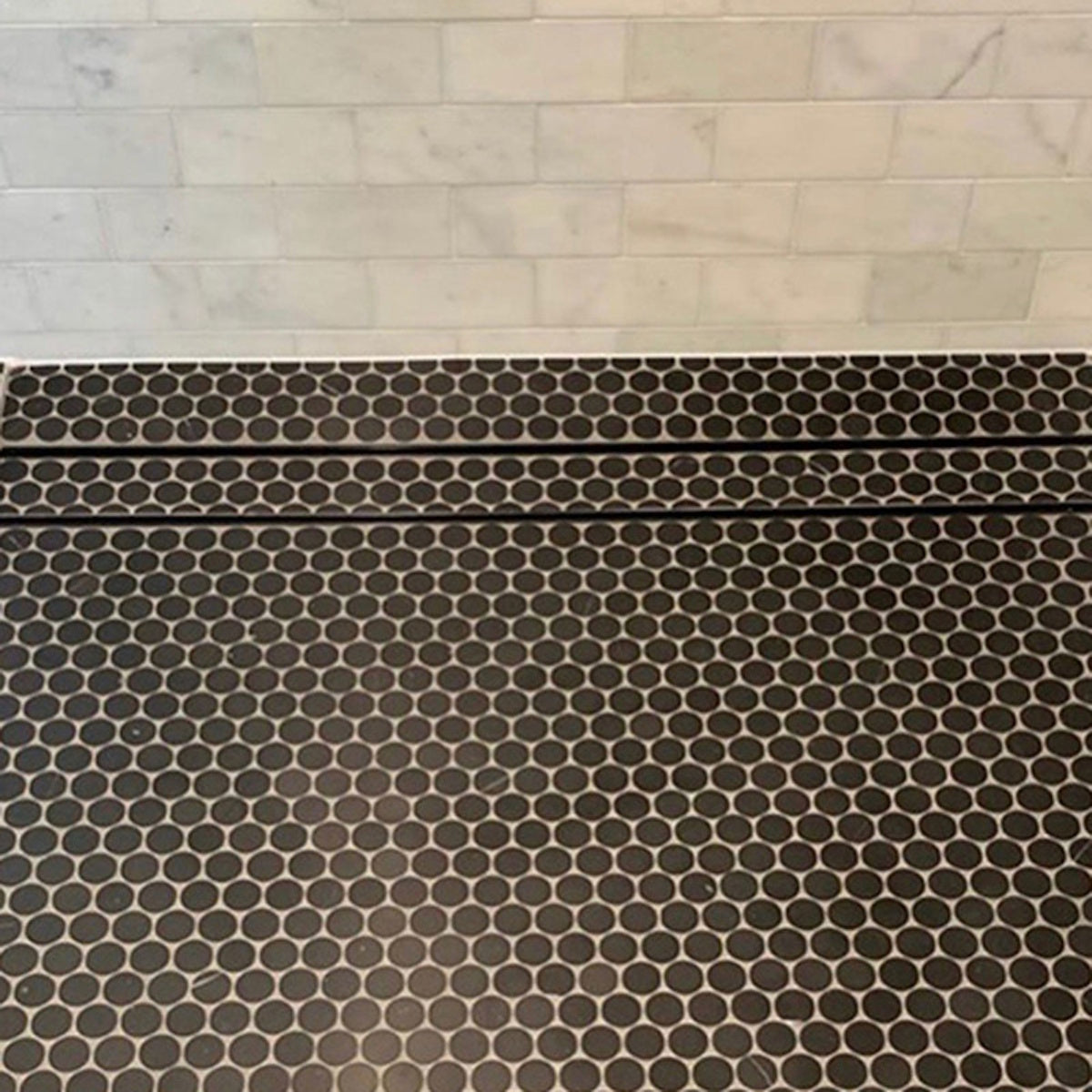

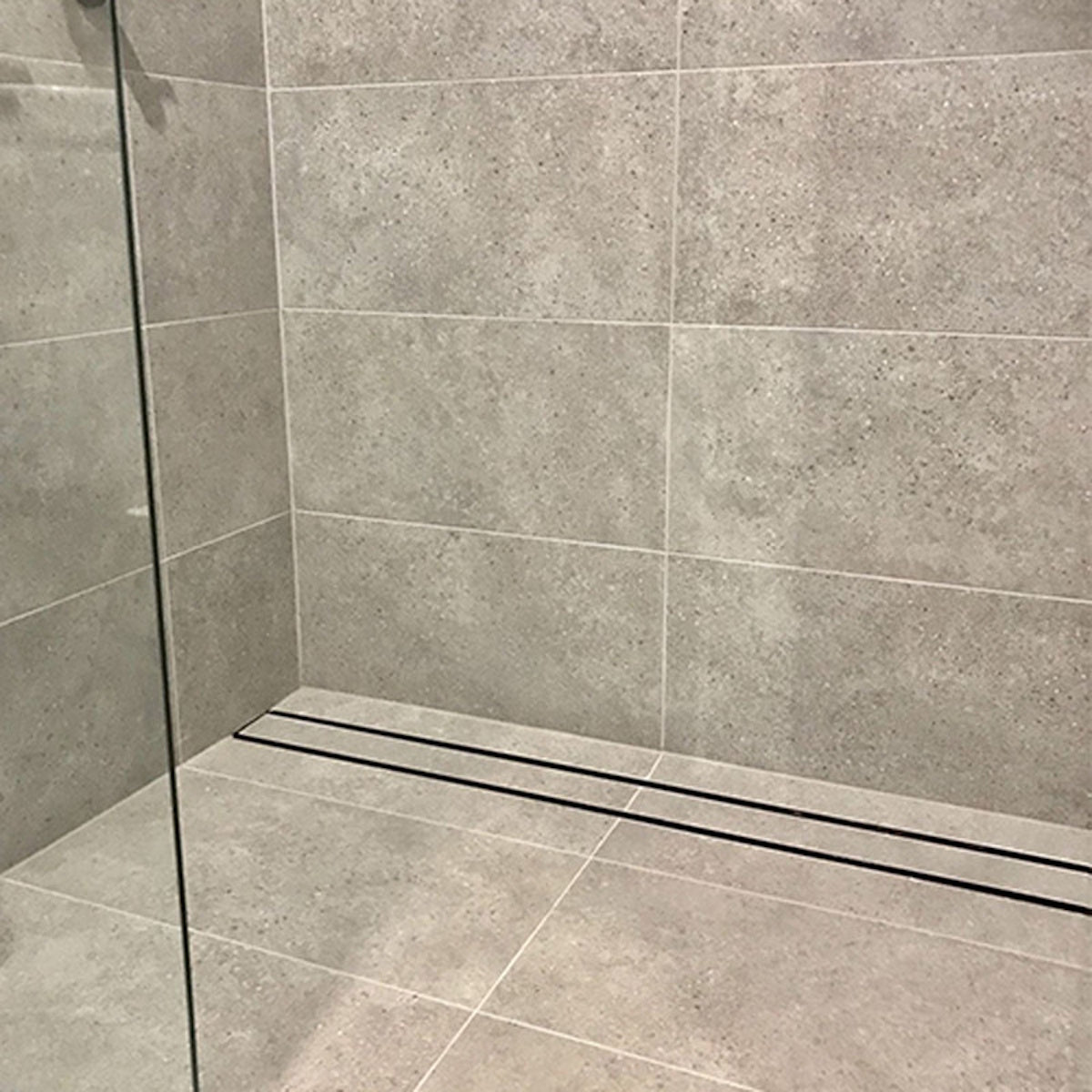

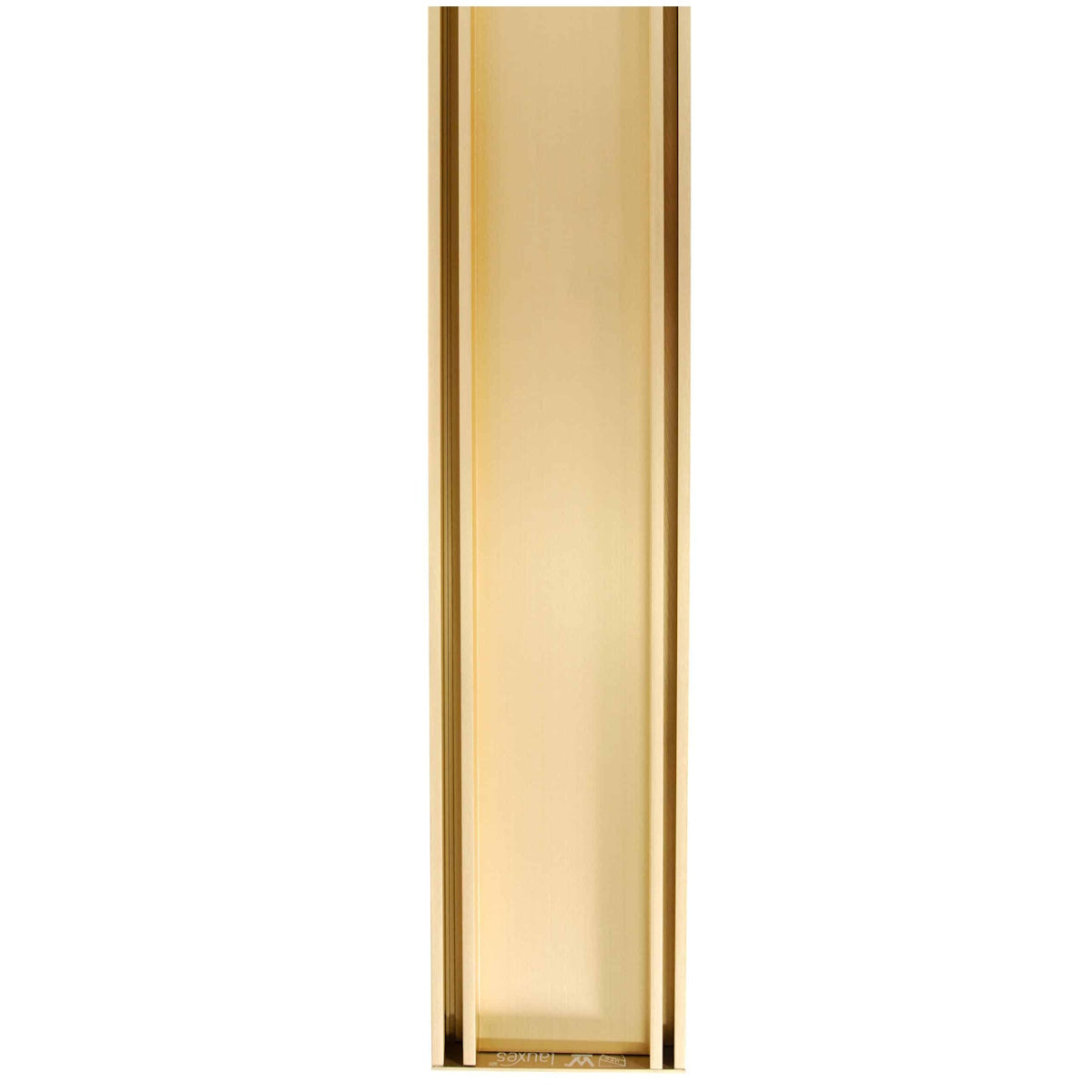

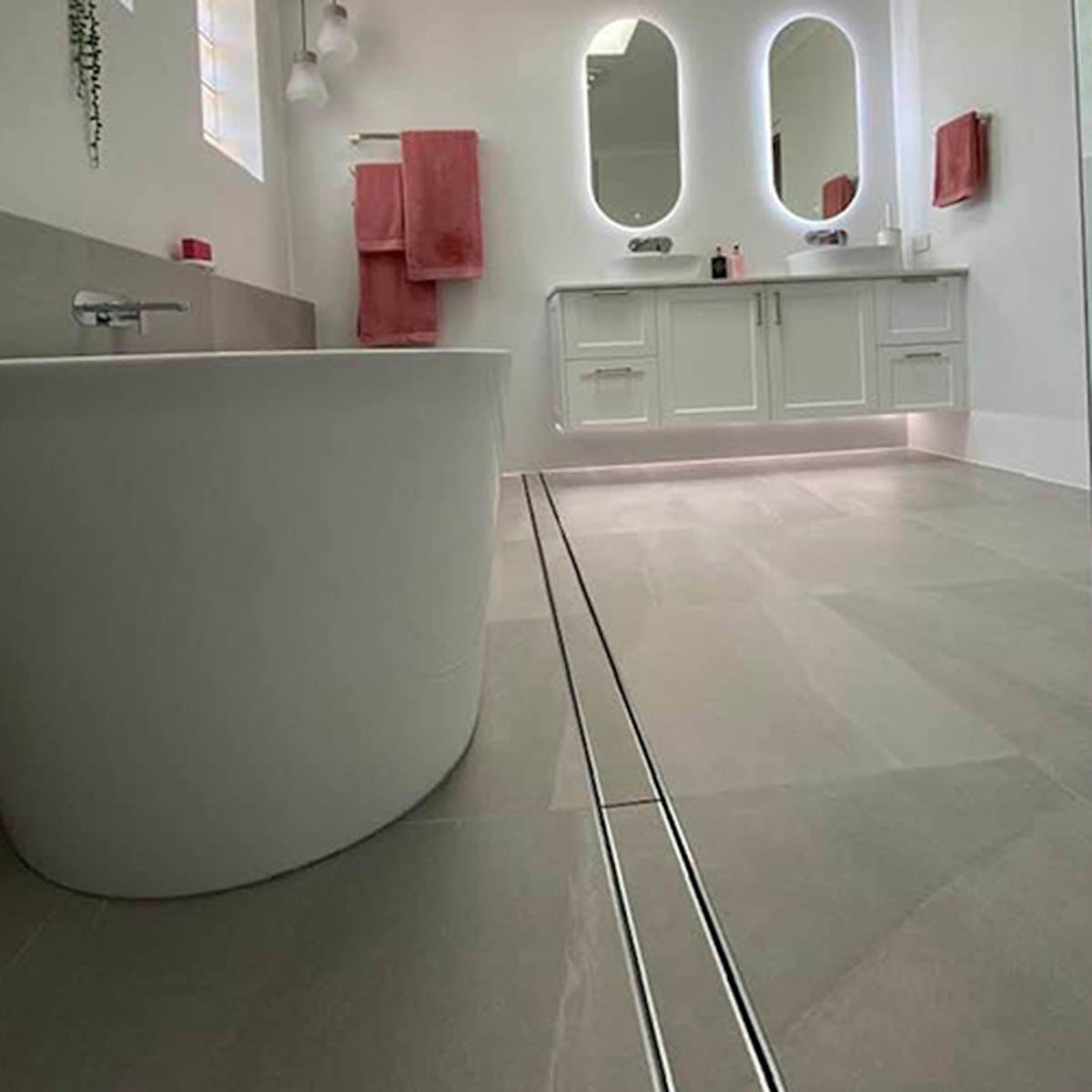

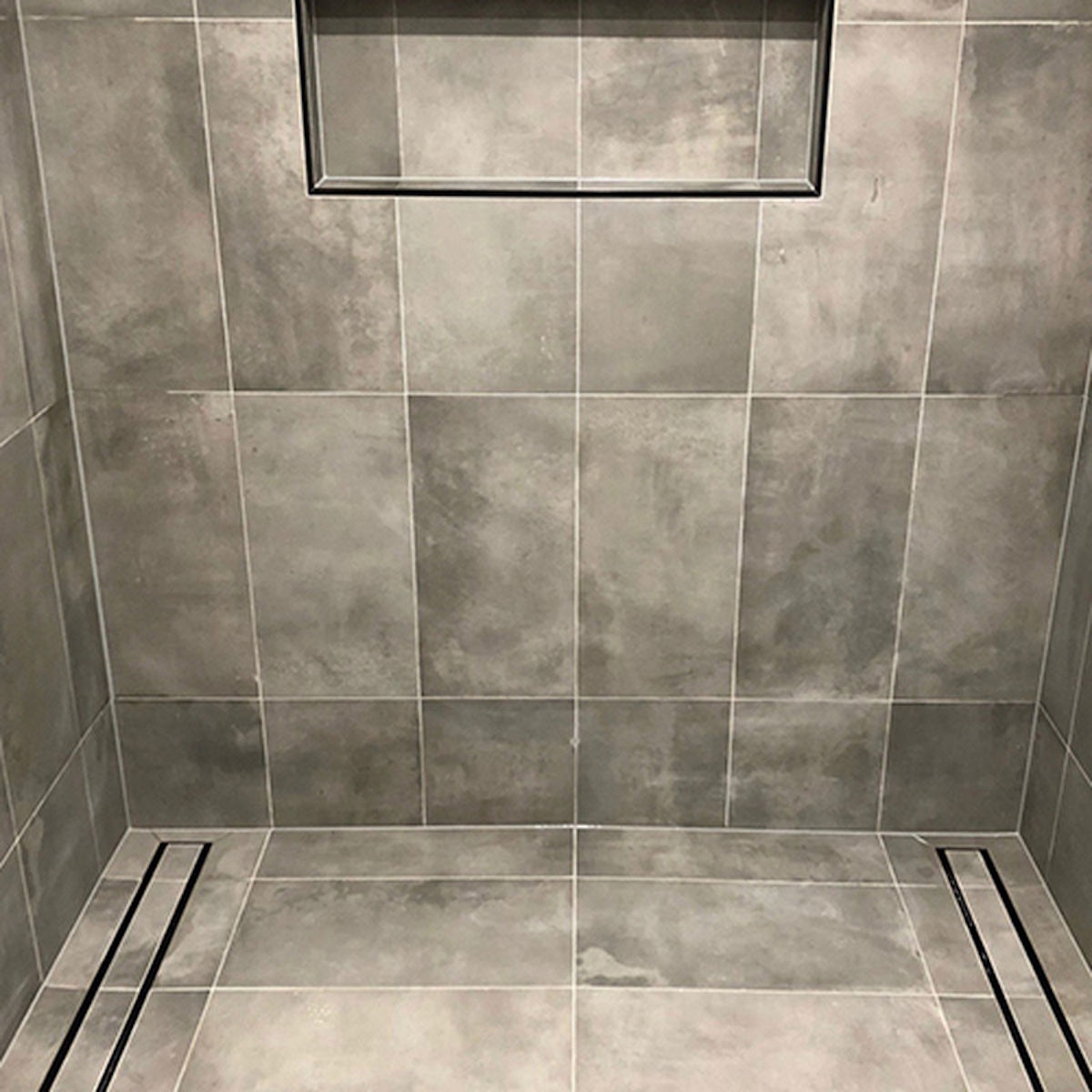

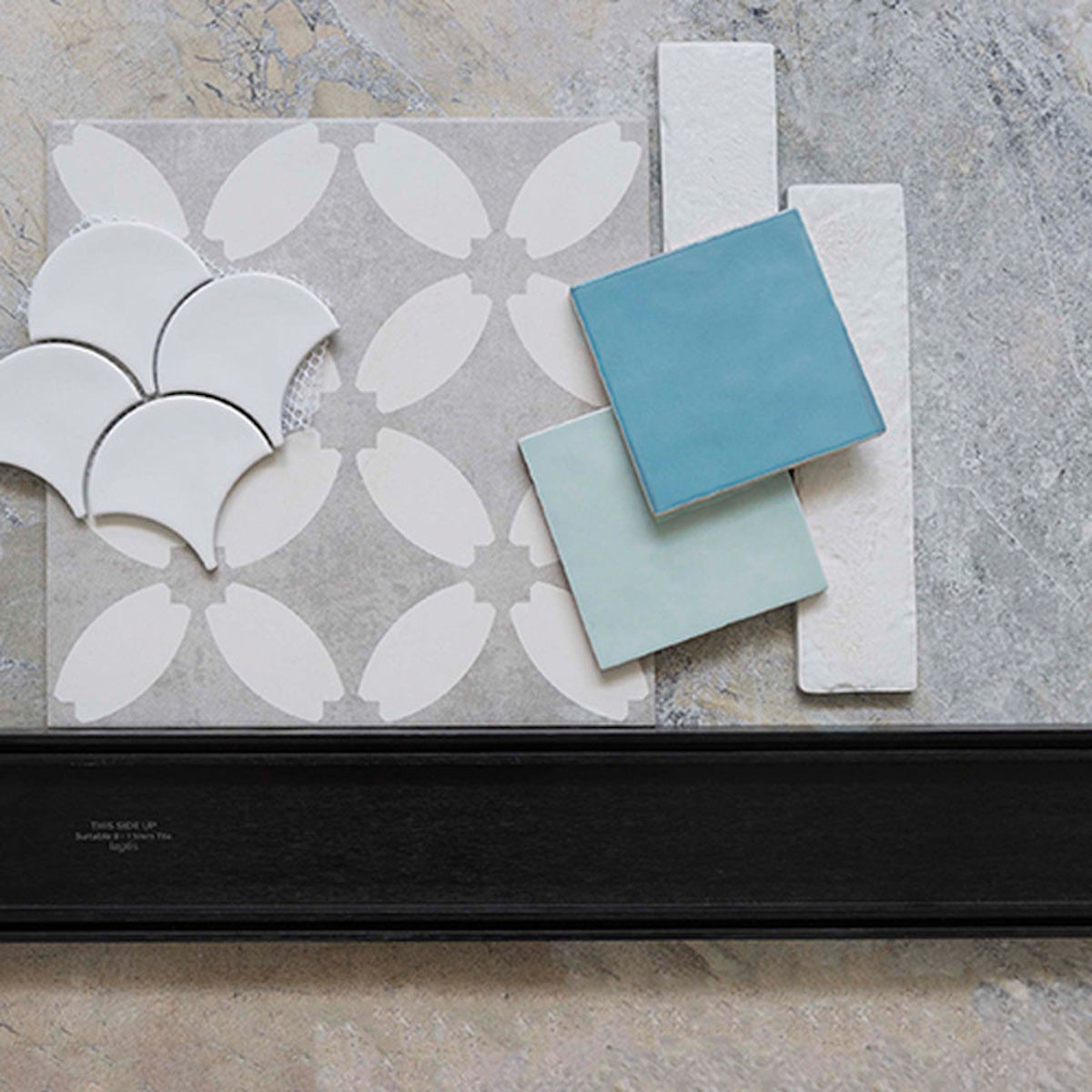

A Tile Insert Infinity Design Shower Drain lets you place the same tile over the drain cover for a hidden, seamless look. It blends into the shower floor while still providing efficient drainage - ideal for modern, minimalist designs.

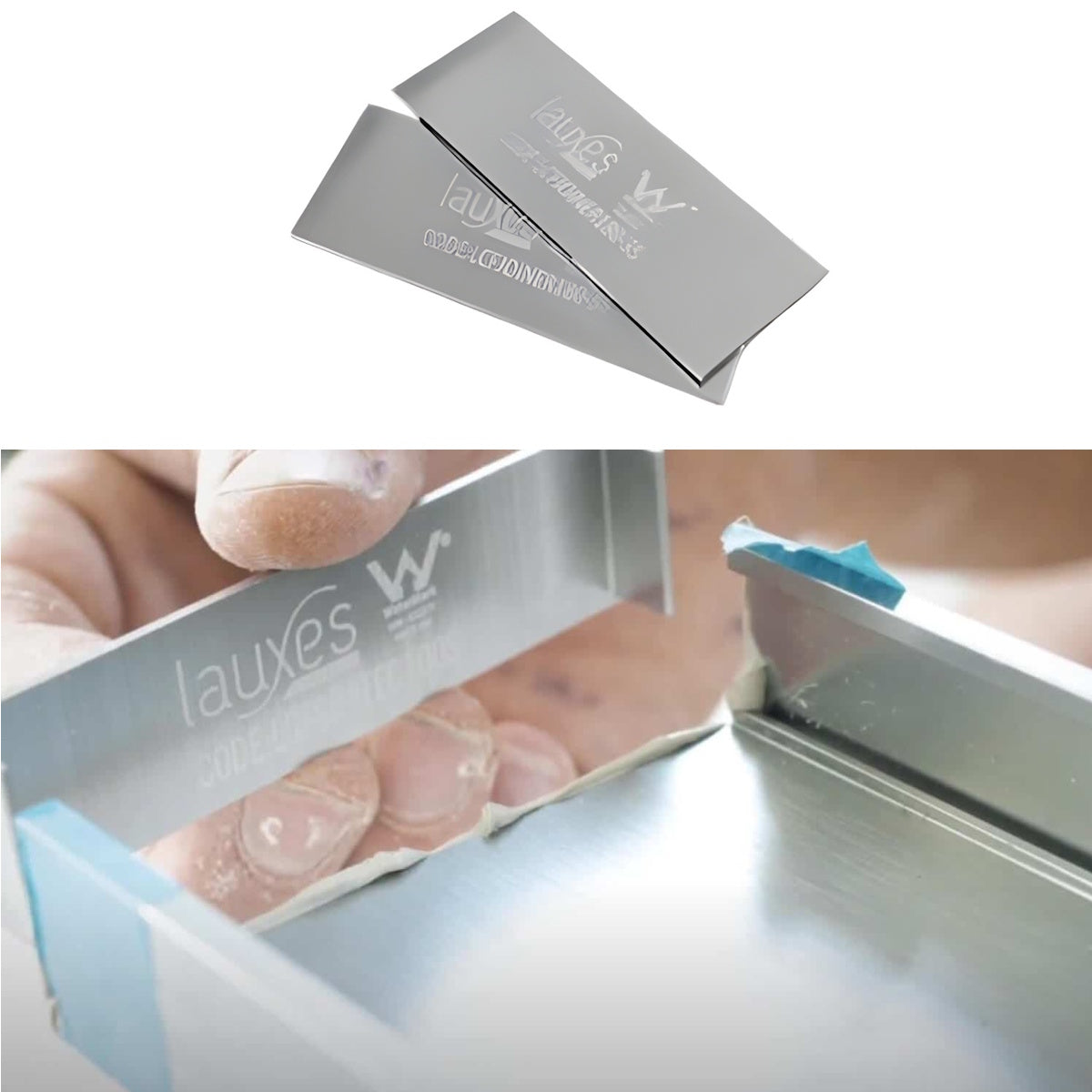

If the drain length exceeds 94 inches, multiple shorter drains will be shipped and joined together on-site using Lauxes Joiners during installation. They can also be easily cut on-site to achieve the exact length you need.

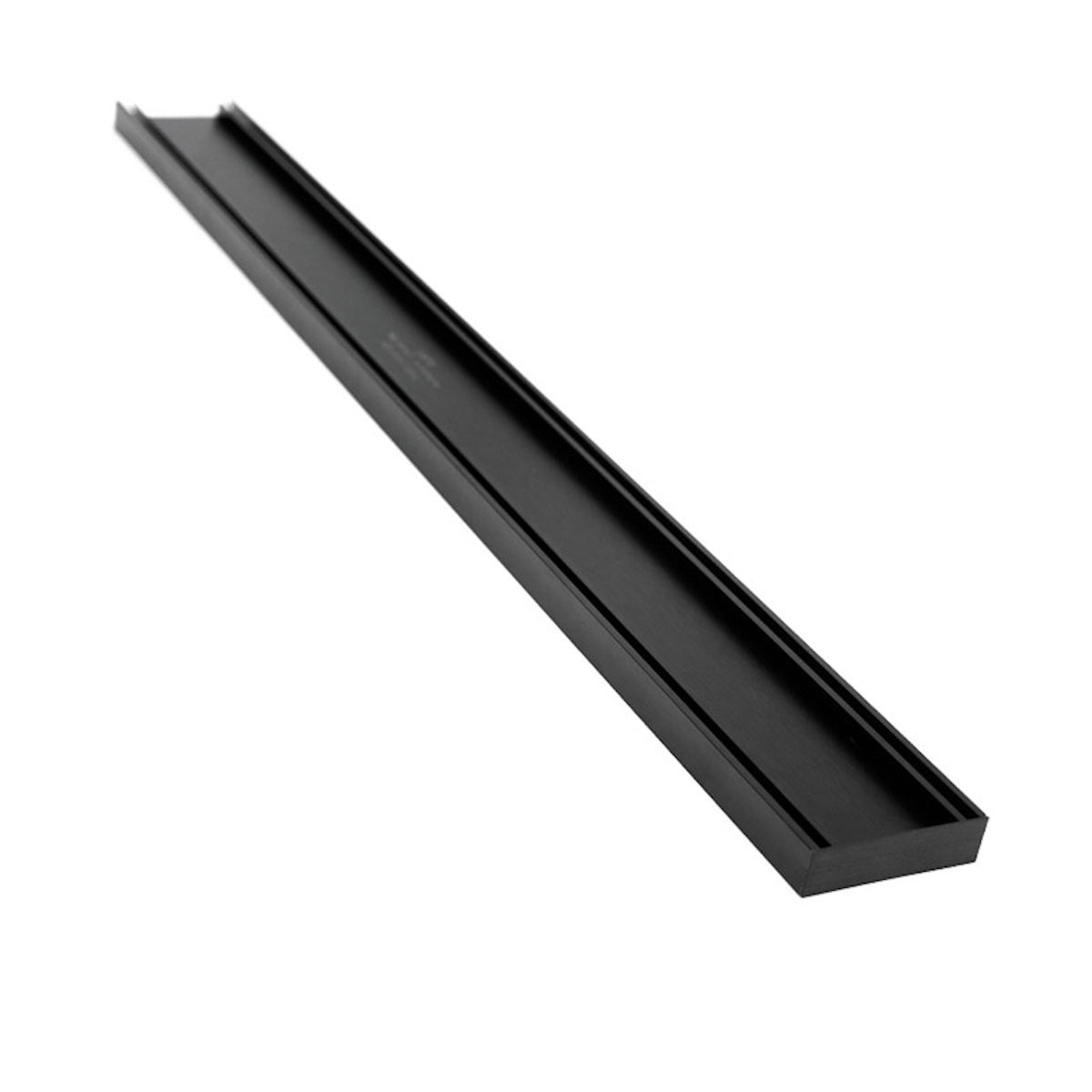

Lauxes Grates Slimline Tile Insert 26 is the world’s thinnest tile insert grate, ideal for new builds and renovations with height restrictions, making it easier to achieve the proper slope for effective drainage.

Made from anodized aluminum, it is UV-stable and backed by a warranty against fading and rust. Suitable for indoor and outdoor use, it offers a practical, durable, and customizable drainage solution.

Dimensions

• Length: 72" (1829 mm)
• Width: 4" (102 mm)
• Depth: 1" (25 mm)

Features

• Available in lengths up to 18 ft (ability to extend further using Lauxes joiners)

• Available in 2 grate options: Slimline Tile Insert or Next Generation Perforated Design.
• Waste outlet can be positioned anywhere along the bottom tray (recommended outlet sizes: 2 inch and 3 inch).

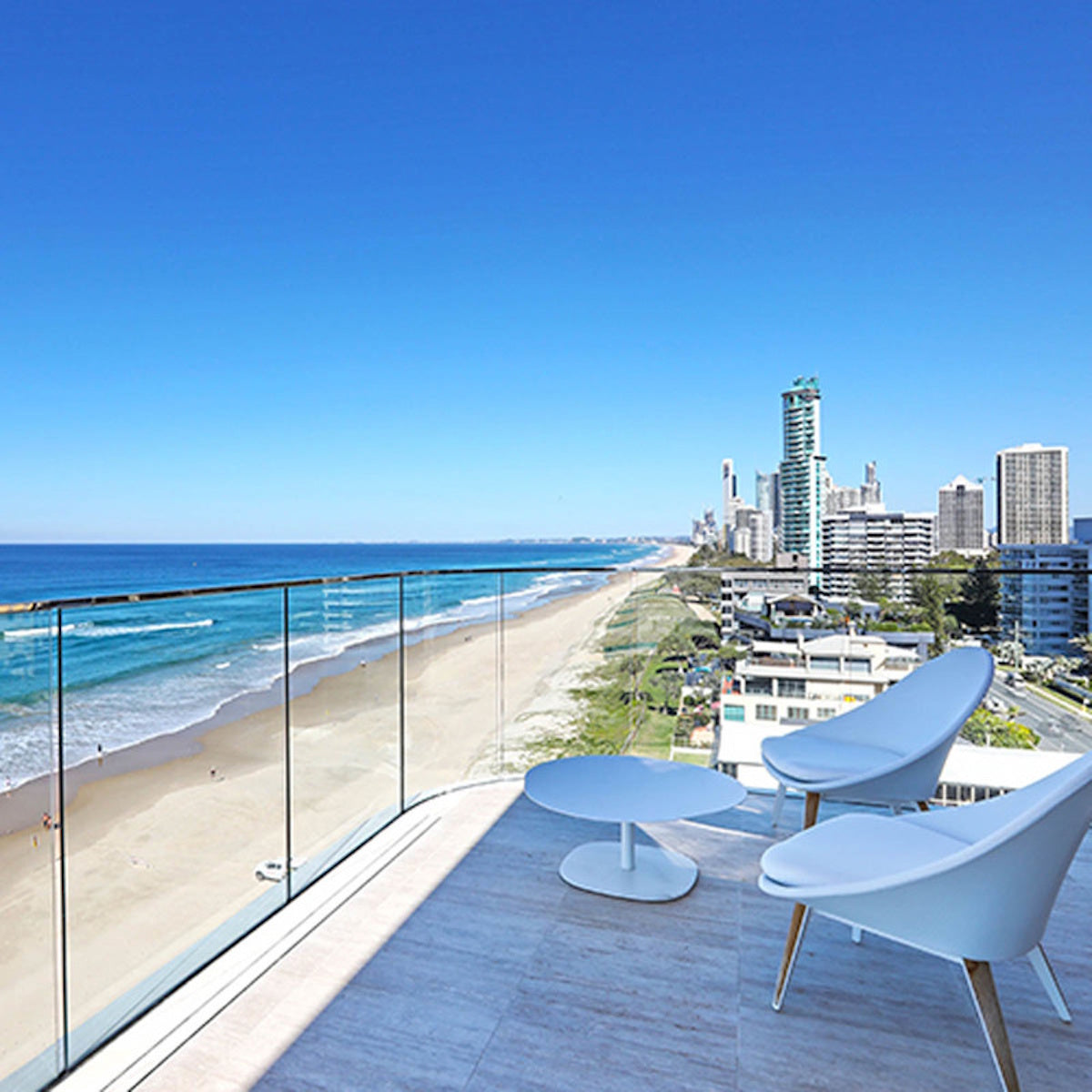

• Excellent drain for indoor showers or outdoor pool and patio applications.
• Suitable for tiles up to 7/16" (10mm) thick.
• Joiners for easy extension.
• Easy roll-out system for cleaning.
• UV stable & Lifetime Rustproof.

Key Features

• Material: Lightweight and Rustproof Anodized Aluminum

• Top grate easily removed for cleaning
• Different color choices to suit application
• Easy to cut to desired length
• No welding required
• No major plumbing involved as waste outlet can be positioned anywhere along the bottom tray
• Ability to extend beyond 5.6m with the use of Custom joiners
• Our cut-to-size linear drains can also be used as a solution for side outlet linear drains by positioning the outlet exactly where needed. This flexibility allows for easy adaptation to different layouts and plumbing requirements.

The Anodized Aluminum Authority: 3 Key Advantages

• Lifetime Rustproof Guarantee: Forget stainless steel rust. Our anodized aluminum features an advanced oxidation layer for superior corrosion resistance, backed by a lifetime rustproof warranty.
• Featherlight & Easy Install: Anodized aluminum is significantly lighter than 304 or 316 steel, making this 6ft custom drain easier to handle, level, and install on-site, saving labor time.
• Made to Measure Precision: Lauxes Grates custom linear drains are precision-fabricated from lightweight aluminum, ensuring highly accurate length cuts and seamless tile insert integration for a perfect fit.

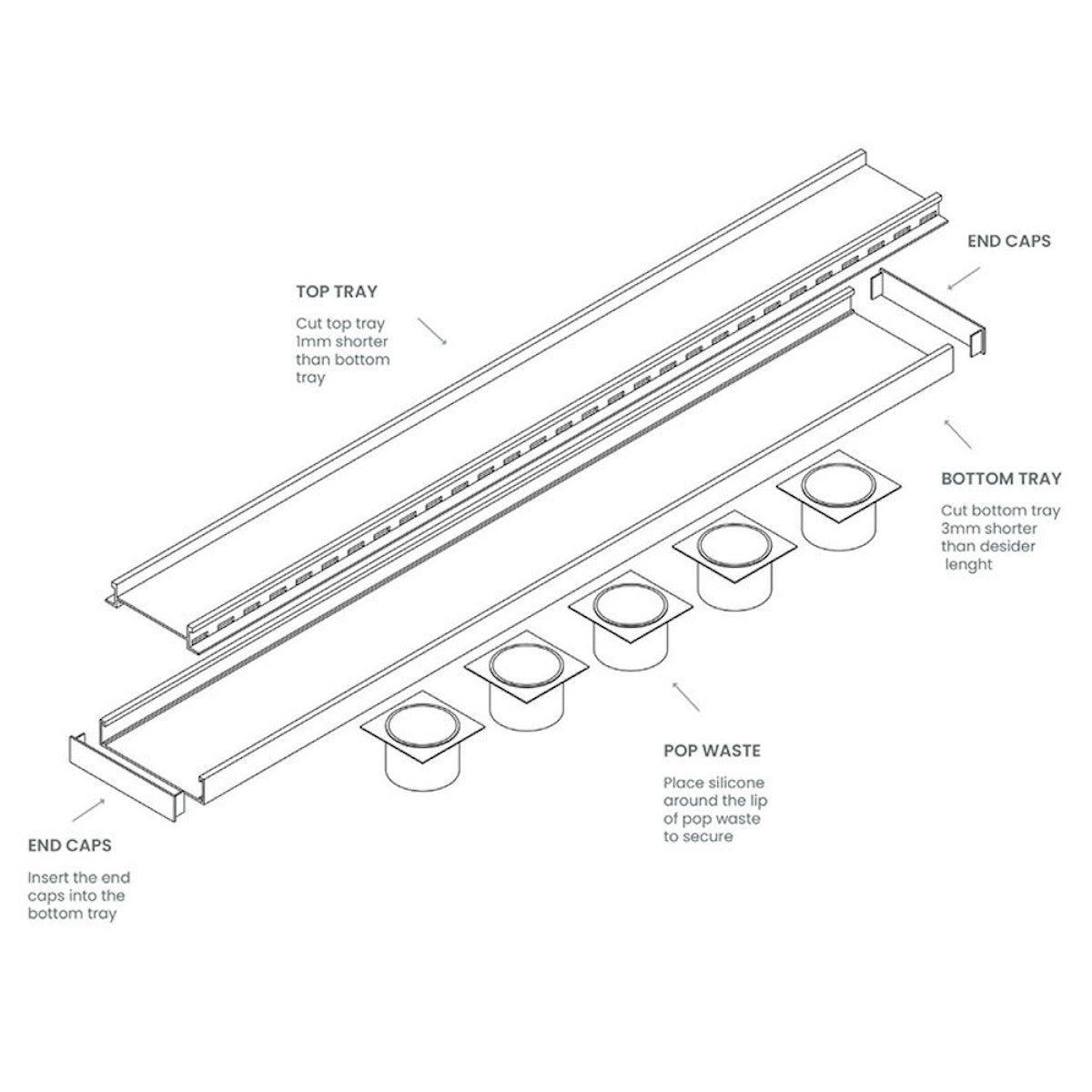

CUTTING INSTRUCTIONS AND INSTALLATION

For ease of cutting Custom grates, we recommend using a compound miter saw fitted with a multi-material cutting blade 80 tooth or more. We also recommend using a Custom TCT hole saw to drill the hole for the waste outlet.

1. Cut the bottom tray 1/8” (3mm) shorter than desired length to allow end caps to be fitted.
2. Cut the top grate 1/32” (1mm) shorter than the bottom tray to allow for easy roll-in of top grate and tidy fit.
3. Using a suitable size Custom hole saw for your waste outlet, drill out the hole at the required position to align with the waste pipe in the floor.
4. Insert the end caps into bottom tray and secure with a bead of silicone on the outside of tray.
5. Place silicone around the lip of the waste outlet and secure to the underside of bottom tray at the recently drilled hole.

• During installation use a template to ensure the grate does not come in contact with any wet cement based products.
• Regular, gentle cleaning with soapy water is recommended. Do not use abrasive cloths or acidic chemicals on the grates.
• When gluing tile, use a neutral cure silicone.

In stock – same day Free Shipping

Warranty

Damage resulting from improper, insufficient, or negligent care, or from installation not in accordance with AS/NZS 3500.2 or the manufacturer’s specifications, will void the warranty.

If at any time the product develops a defect, Custom Grates agrees to correct the defect(s) at no charge to the registered purchaser. This guarantee does not cover repairs necessitated by normal wear, misuse, accidental damage, or changes in temperature.

Note: Custom Grates products do not form part of the waterproofing.

All Custom Grates and accessories hold UPC Certification.
