Height Extension Fitting for Side Outlet Drain Converter

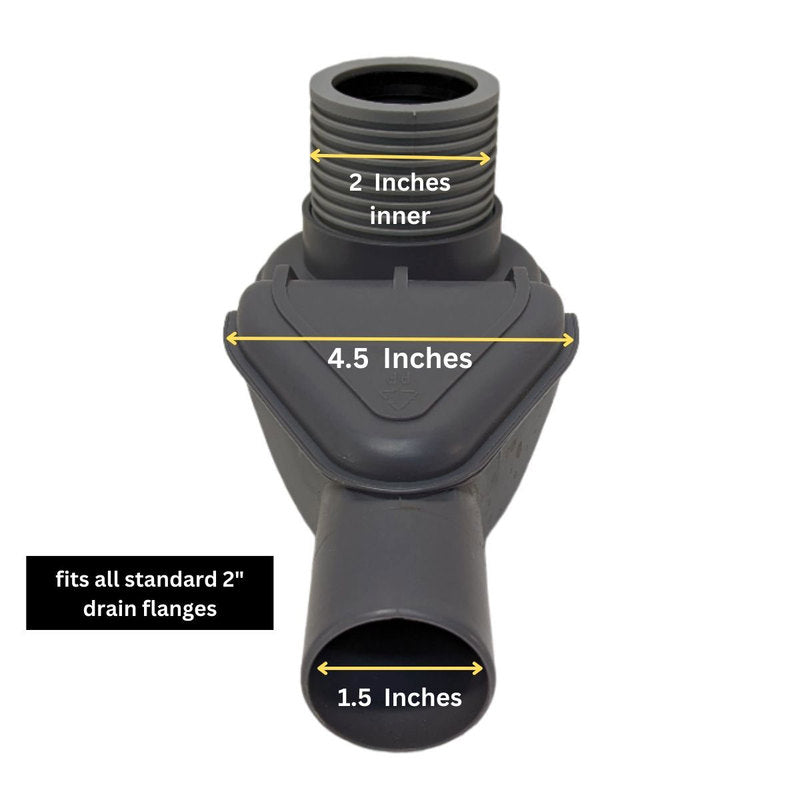

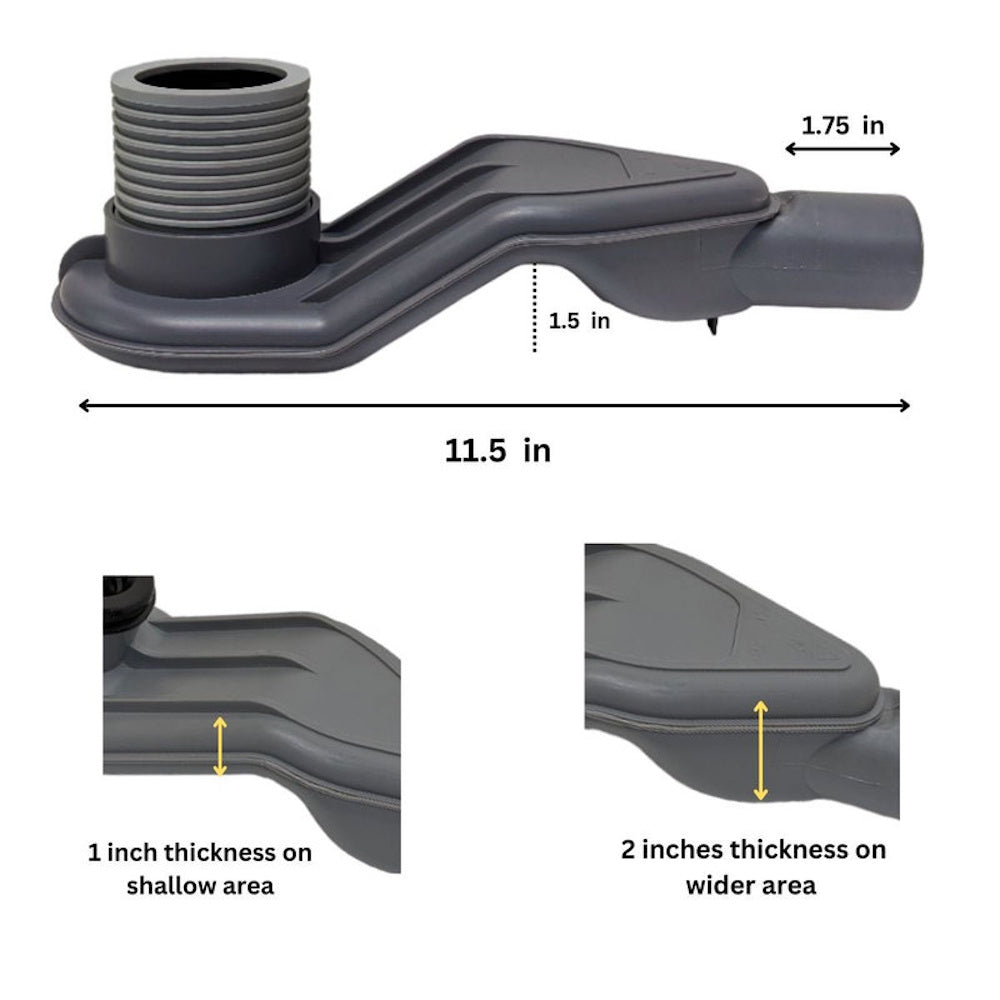

The WOW Horizontal Side Outlet Drain Converter is engineered to redirect water flow from a vertical discharge to a horizontal outlet. This design makes it possible to install standard square and linear shower drains in applications where floor depth is limited and a traditional vertical P-trap cannot be accommodated.

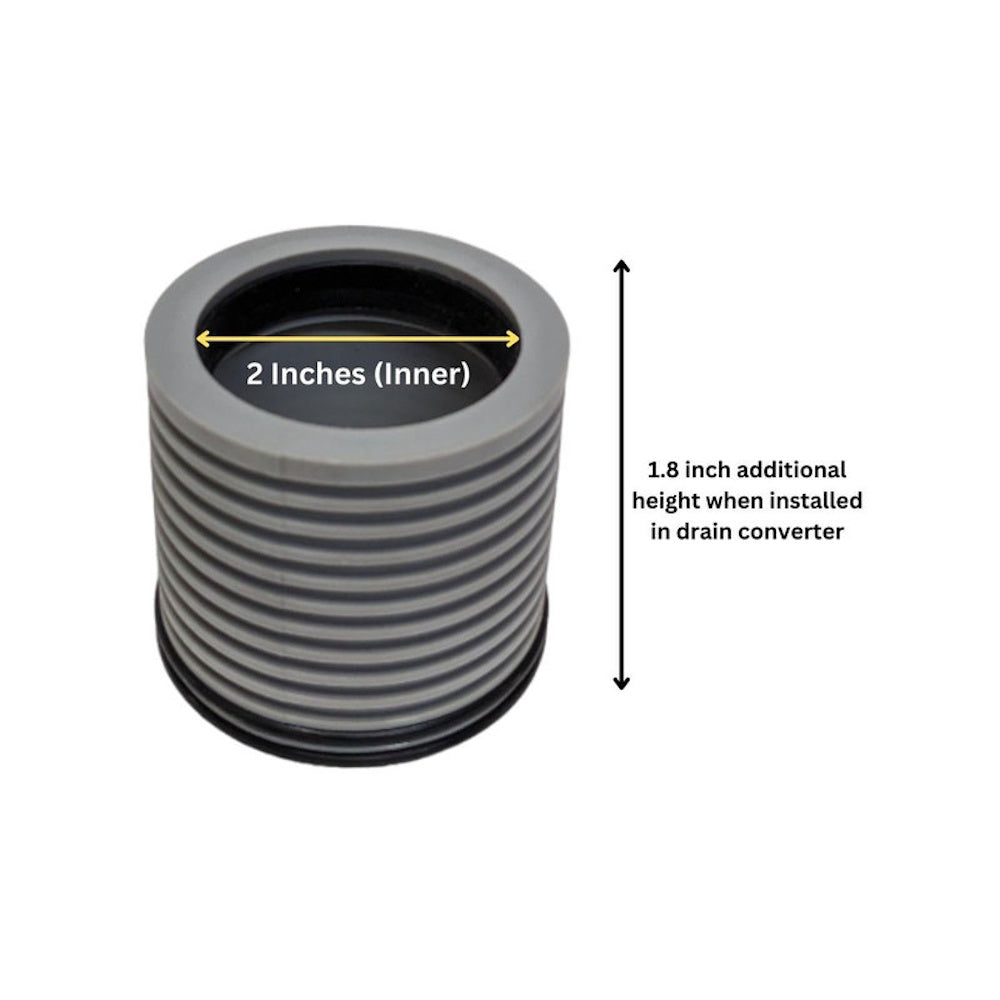

The height extension fitting is required only when additional vertical clearance is needed to properly align the drain body with the horizontal outlet.

If the drain body aligns correctly at the standard outlet height, the extension fitting is not necessary.

This component is also available as part of complete, all-in-one shower drain kits.

When a Horizontal Side Outlet Converter Is Needed

• Low-profile floor constructions without enough depth for a standard 2-inch vertical P-trap
• Concrete slab installations where cutting or coring is restricted, impractical, or cost-prohibitive
• Remodel projects with existing plumbing that does not align with the new drain location
• Installations with no access below the floor, including slab foundations and upper-level bathrooms

Function & Benefits

• Redirects drainage flow from vertical to horizontal
• Allows connection to existing waste lines that are offset from the drain opening
• Enables shower drain installation in tight or shallow floor assemblies
• Helps reduce the need for floor or slab demolition
• Provides greater flexibility when vertical drainage is not feasible

Installation Guidance

For best results, consult a licensed plumber or qualified contractor to confirm proper fit, installation method, and compliance with local plumbing codes.
