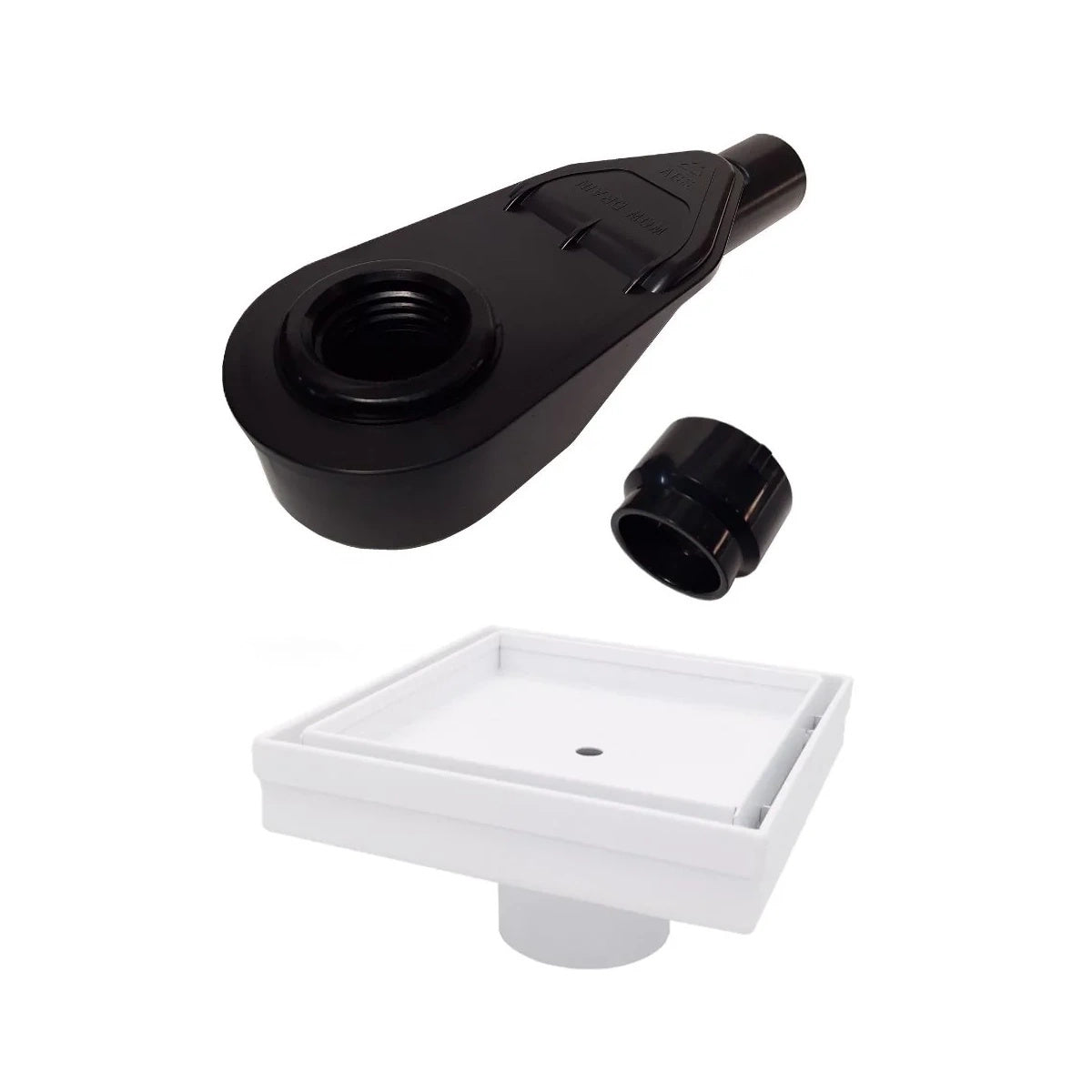

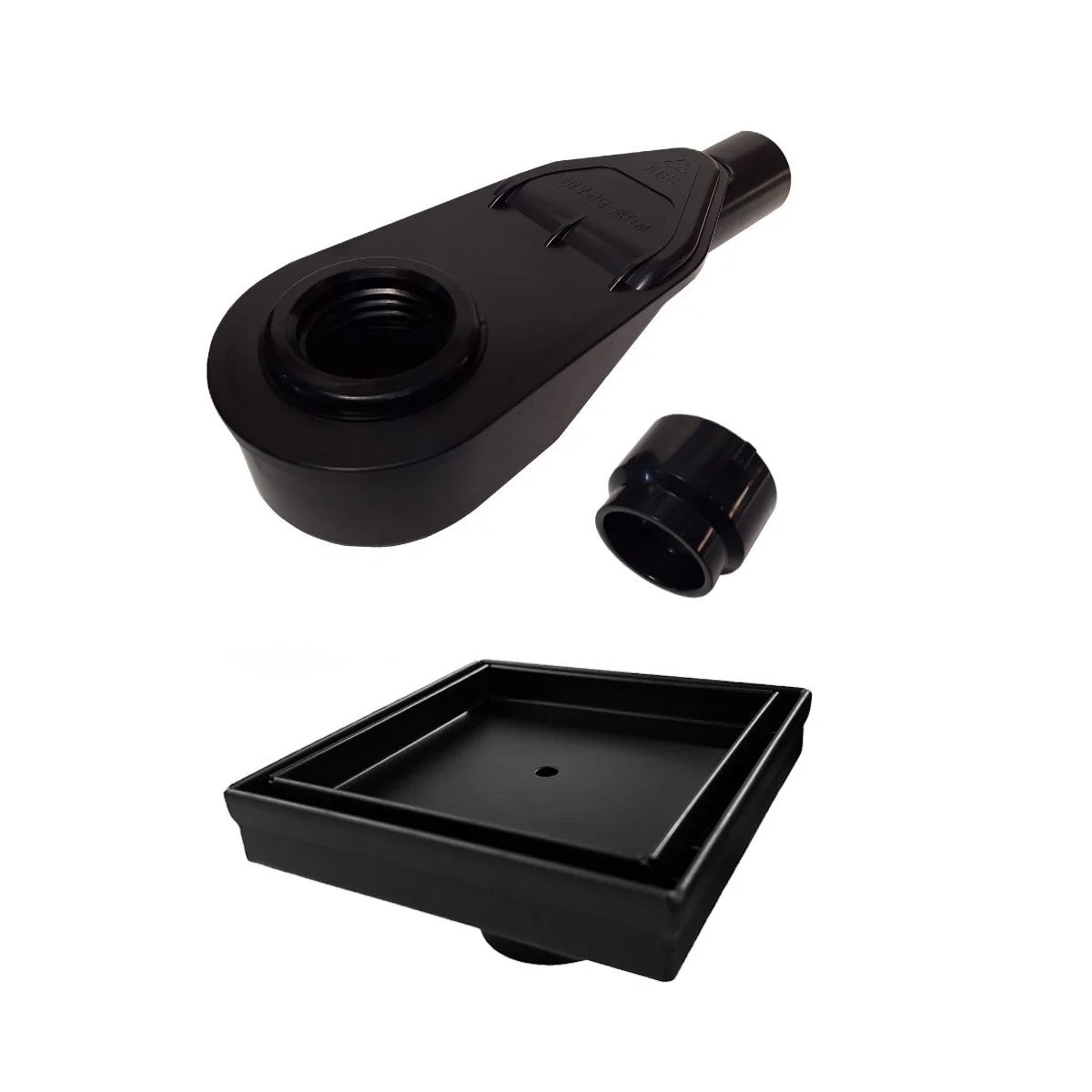

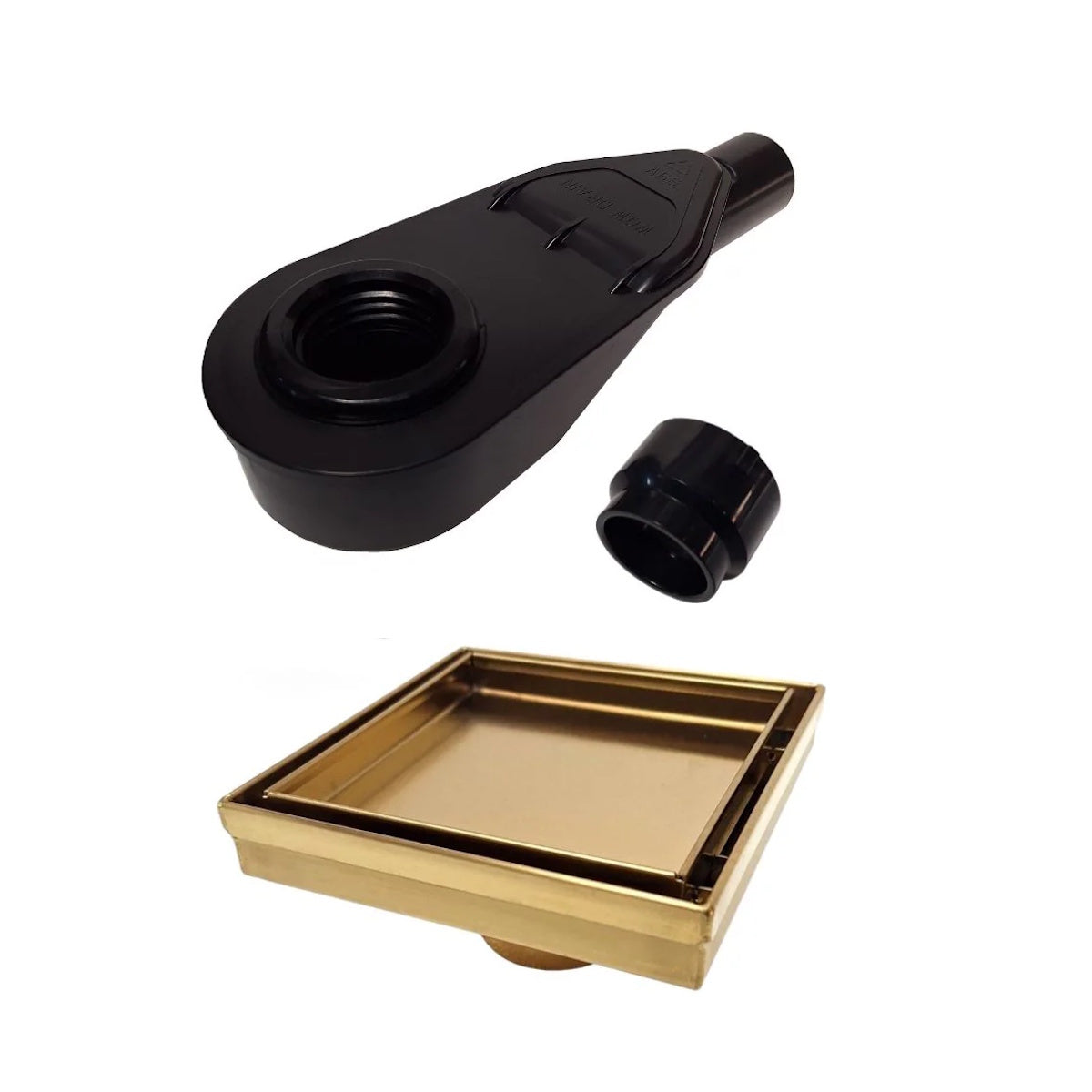

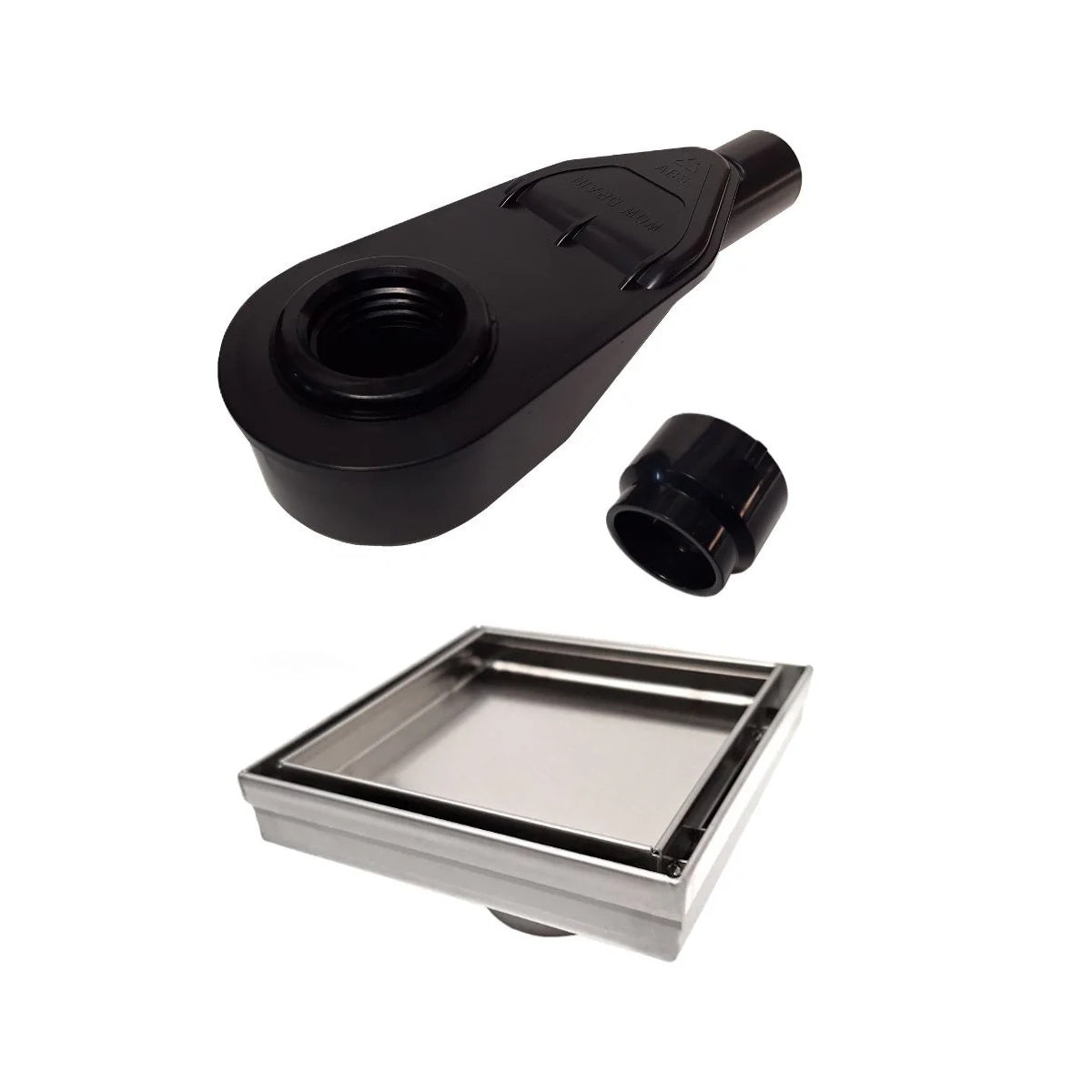

ABS Low-Profile Horizontal Side Discharge Drain Reducer for PVC Base Pipe & P-Trap, with Tile Insert Square Drain

Solve Limited Clearance Issues Without Jackhammering The SereneDrains 5-Inch Tile Insert Square Shower Drain Kit is the ultimate solution for slab foundations and multi-unit renovations. Featuring a heavy-duty ABS low-profile horizontal side discharge reducer, this kit allows for a premium drain installation where vertical space is restricted. Avoid costly concrete cutting and structural interference while achieving a seamless, "invisible" tile-in look.

✓ In Stock and Ready to Ship
✓ Free Hair Trap Included with This Bundle

How the Horizontal Side Discharge Reducer Works

The ABS horizontal side discharge reducer connects directly to a standard PVC base pipe and P-trap, converting a vertical drain outlet into a horizontal discharge. This simplifies installation, reduces demolition, and lowers renovation costs—all while maintaining the proper slope and reliable drainage performance required by code.

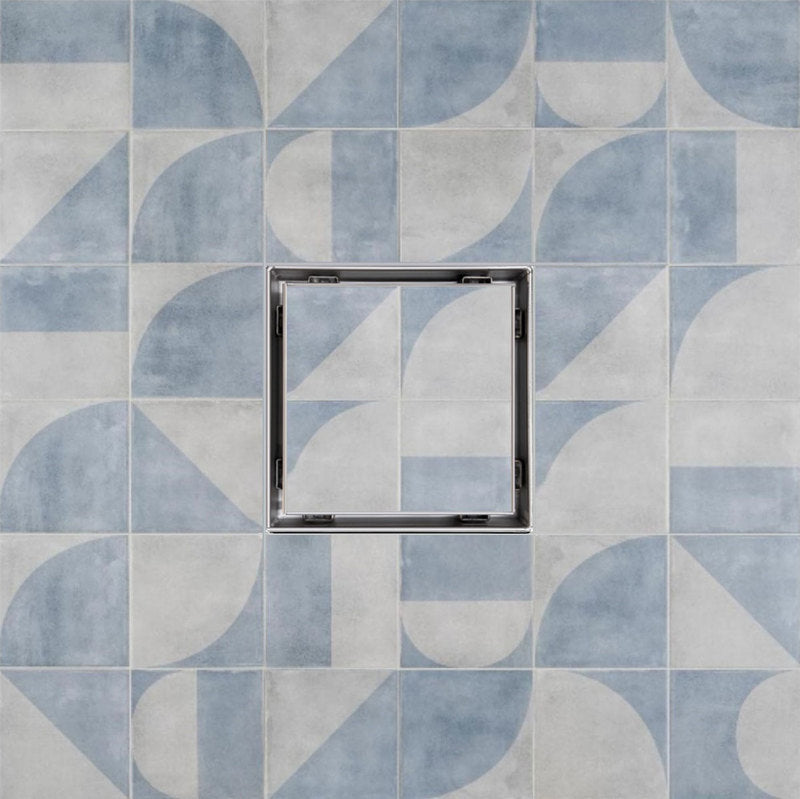

Tile-In Square Shower Drain Included

Paired with the reducer is a SereneDrains stainless steel tile-insert shower drain, designed to deliver both performance and refined aesthetics. The tile-in tray allows you to inlay your own flooring material, creating a modern, "hidden" drain look while ensuring efficient water evacuation.

Crafted from premium 16-gauge 304 stainless steel, the drain is corrosion-resistant and built for high-moisture environments. Its low-profile, flush design provides a smooth, trip-free surface—ideal for curbless, minimalist, and contemporary shower designs.

Available Finishes:
Matte Black · Satin Gold · Brushed Nickel · Matte White

Technical Specifications

Key Benefits

• Avoid Concrete Cutting: Connect horizontally to existing waste lines without jackhammering slabs or opening ceilings.
• Ideal for Slab-on-Grade Construction: Perfect for homes with plumbing embedded in concrete.
• Supports Curbless & Low-Profile Showers: Enables ADA-friendly and zero-threshold designs.
• Bypasses Structural Obstacles: Routes drainage around joists, beams, and post-tension cables.
• Protects Embedded Utilities: Avoids penetrating floors with radiant heating, electrical conduits, or plumbing.
• Flexible Drain Applications: Works with square point drains and wall-adjacent linear drains.
• Code-Compliant Design: Maintains proper slope for reliable drainage and inspections.
• Condo & Multi-Unit Ready: Ideal where slab penetration is restricted by HOA or building regulations.

What’s Included

• Stainless steel square drain body
• Stainless steel tile insert grate
• Hair trap
• Grate removal key
• Waterproofing membrane sheet for drain flange
• Installation instructions

Note: The ABS horizontal side discharge reducer is also compatible with other SereneDrains square and linear drains, allowing maximum flexibility for custom shower designs.
