Regular price $269.00 $0.00 Unit price per
Shipping Free Shipping.

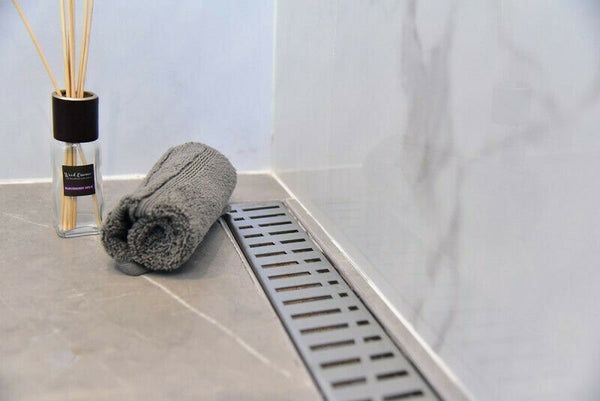

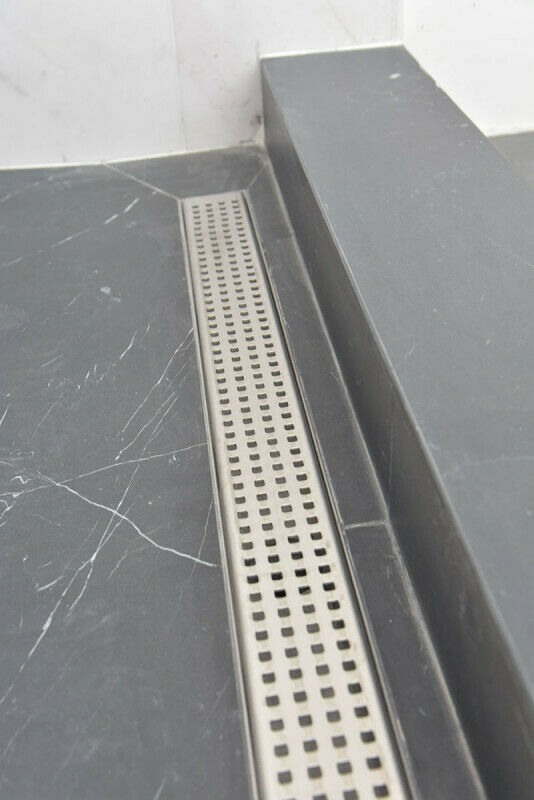

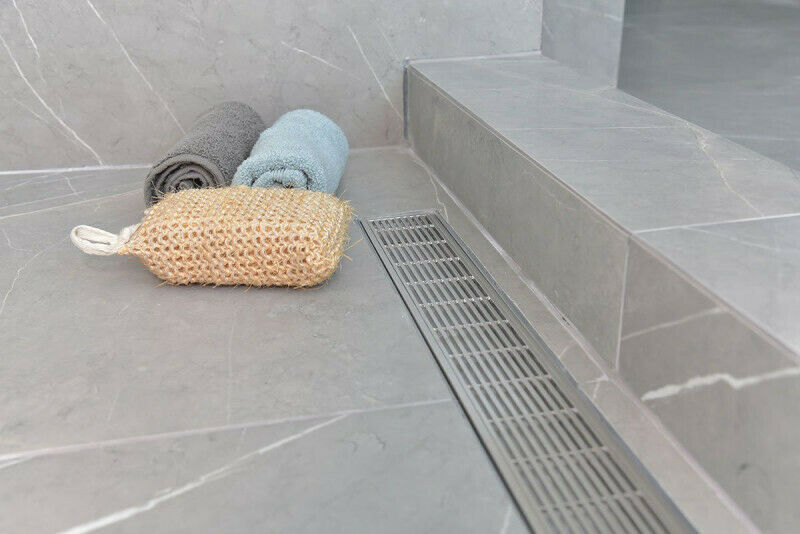

Side Outlet 24 Inch Linear Shower Drain With Free Hair Trap, by SereneDrains

Net Size 23" 1/2" x 2 3/4" 600mm | Overall Size 25.2" x 4 3/8" | Intake sq. in: 14.96 (Additional sizes available).

When to Use the Offset Outlet Linear Drain

The offset outlet linear drain is an efficient and versatile choice for challenging shower plumbing configurations, offering a reliable drainage solution when facing construction limitations. For instance, if confronted with a structural joist positioned at the center of the shower where notching or drilling into the joist or underlying floor proves impractical, the side outlet linear drain provides a simple and innovative solution. It offers flexibility in the placement of the drain, ensuring effective drainage without compromising the integrity of the structural elements. Additionally, in situations where the relocation of the drain outlet is expensive, particularly in showers constructed on a concrete surface with a depth of 4 inches or more, the side outlet linear drain emerges as a cost-effective and efficient alternative. This drain is especially beneficial if your shower already has the drain outlet conveniently positioned on the side of the shower floor; the offset outlet linear drain is perfect for this situation as well. For optimal installation, it is recommended to seek the guidance of a professional plumber or contractor familiar with the specifics of your project.

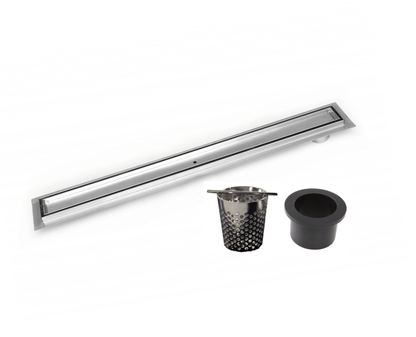

Drain Includes: 100% stainless steel channel body & grate, rubber gasket, puller key, waterproofing membrane sheet around the drain flange (not require but included), Installation Instruction, Hair/Debris Strainer.

Luxurious Designs: Ocean Wave Design, Traditional Square Design, Broken Lane Design, Tile Insert Design.

Perfect for:
Wheelchair access & barrier-free showers (walk in floor plans).
Applications: Shower & bath, kitchen, pools, balconies, hotel rooms, gym, spa etc.

Construction:

  • Side outlet drain apex 2.8" from the drain end.
  • Designed for installation into any 2" shower drain flange.
  • Bodies are fully welded and leak-tested before dispatch.
  • Compatible with tiles up to 10mm in depth (with a 14mm lip).
  • Pre-Slope channel - Channel width: 2 3/4" (70 mm).
  • Electro-polished finish. Drain grade is 16 Gauge 304 Stainless Steel.
  • Sized to match standard 1/2", 1", 2, and 4" tiles without cutting.
  • Flow rate: at the entrance of the shower - 6.3GPM (0.4 l/s); against the wall - 9.5GPM (0.6 l/s).
  • Flange body edge designed for use with all types of waterproofing: hot mop, painted or liquid membranes, sheet membrane, vinyl waterproofing, etc.
  • Superior quality, most durable finishes, easily maintained. No special cleaning required.
  • Optional accessories available: plumbing connectors (ABS/PVC drain base flange) and debris strainer.

Dimensions:
Net Size 15" 3/4" x 2 3/4" 400mm | Overall Size 17" 1/4" x 4 3/8" | Intake sq. in: 12.38
Net Size 23" 1/2" x 2 3/4" 600mm | Overall Size 25.2" x 4 3/8" | Intake sq. in: 14.96
Net Size 30" x 2 3/4" 762mm | Overall Size 31.57" x 4 3/8" | Intake sq. in: 17.62
Net Size 35" 3/8" x 2 3/4" 900mm | Overall Size 37.01" x 4 3/8" | Intake sq. in: 20.03.
Net Size 39" 3/8" x 2 3/4" 1000mm | Overall Size 40.95" x 4 3/8" | Intake sq. in: 21.12
Net Size 47 1/4" x 2 3/4" 1200mm | Overall Size 48.82" x 4 3/8" | Intake sq. in: 26.68
Net Size 59.05" x 2 3/4" 1500mm | Overall Size 60.63" x 4 3/8" | Intake sq. in: 31.67

Contact us for quantity and contractors discounts.
