Regular price $499.00 $0.00 Unit price per
Shipping Free Shipping.

60 Inch Linear Shower Drain Side Outlet With Free Hair Trap by SereneDrains

Net Size 59.05" x 2 3/4" 1500mm | Overall Size 60.63" x 4 3/8" | Intake sq. in: 31.67 (Additional sizes available).

Use the Offset Outlet Linear Drain if joist is in the center of the shower opening and notching or drilling is not an option. If shower is set on 4 inch or more concrete and relocation of the drain outlet is costly. If the drain outlet already exists on the side of the shower. Central vertical outlet linear drains also available (Consult a professional).

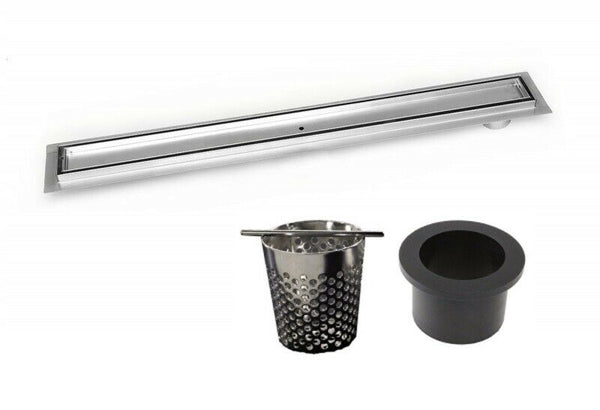

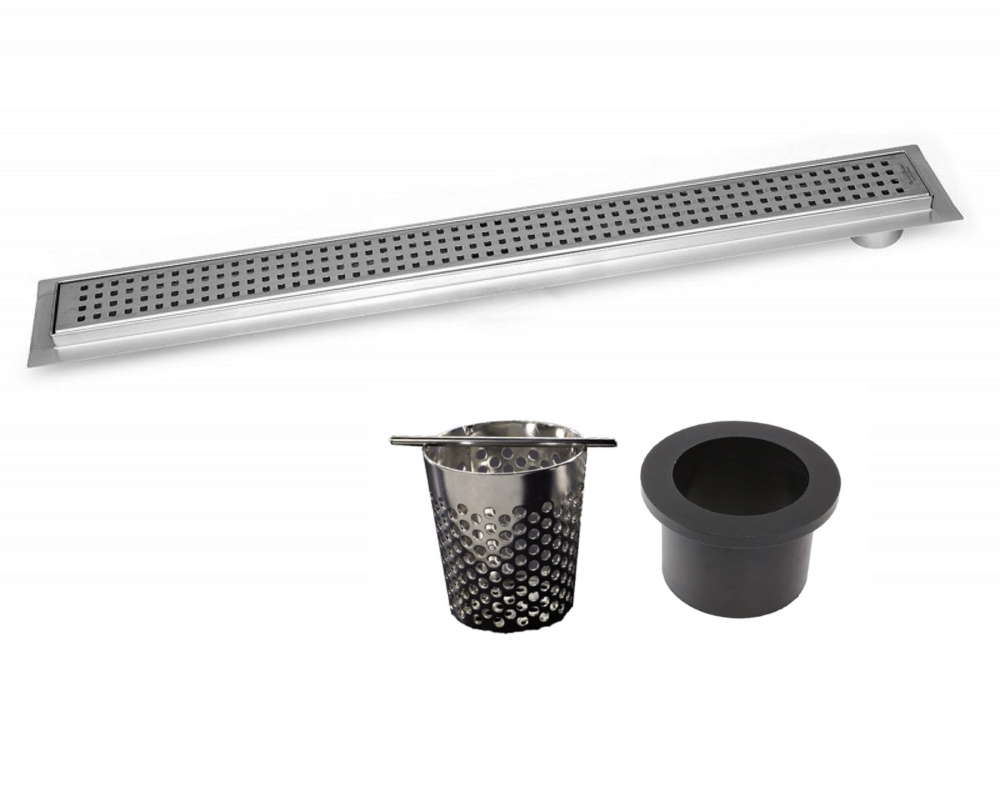

Drain Includes: 100% stainless steel channel body & grate, rubber gasket, puller key, waterproofing membrane sheet around the drain flange (not require but included), Installation Instruction, Hair/Debris Strainer.

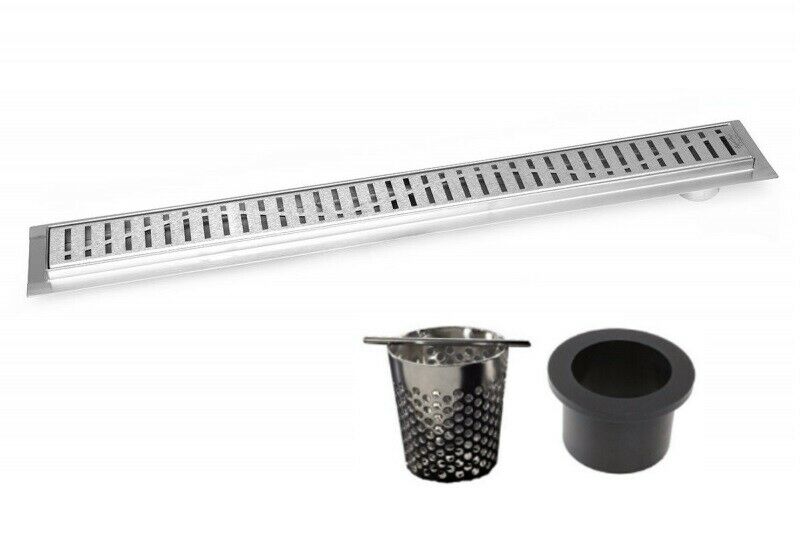

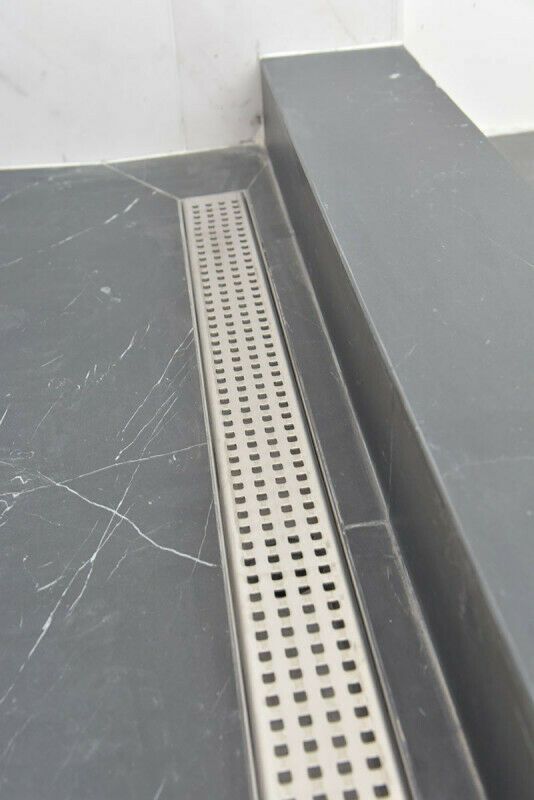

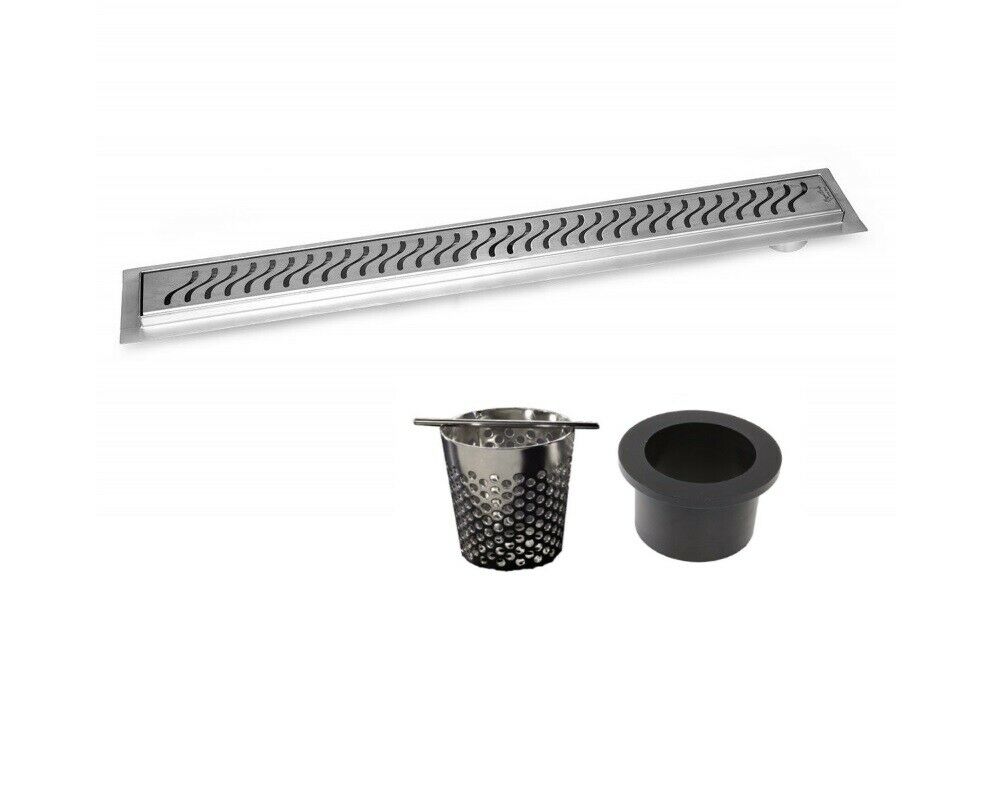

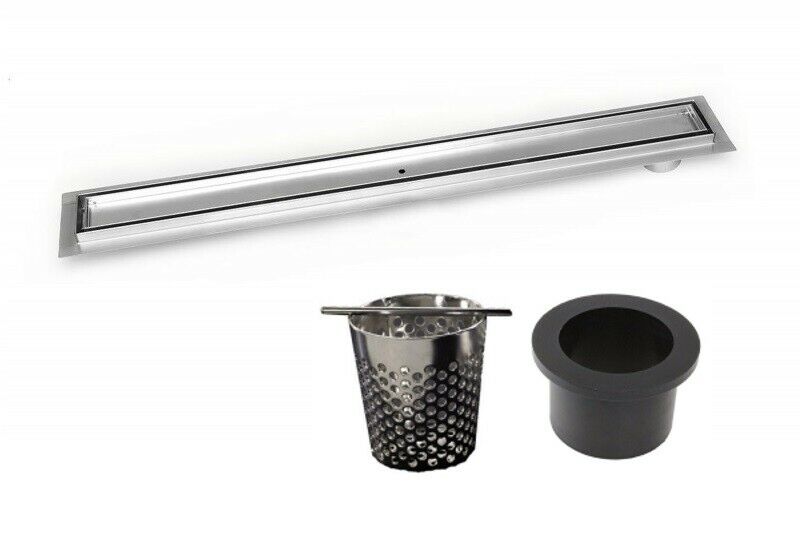

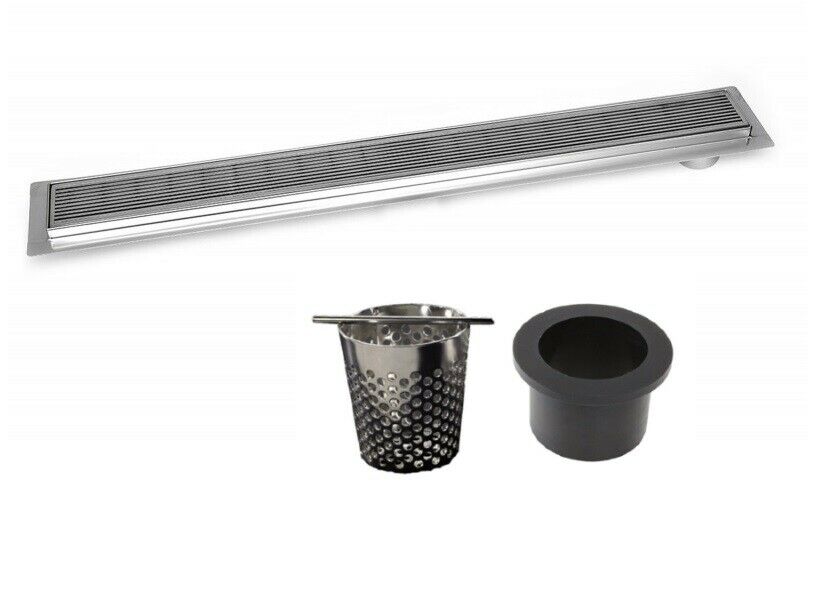

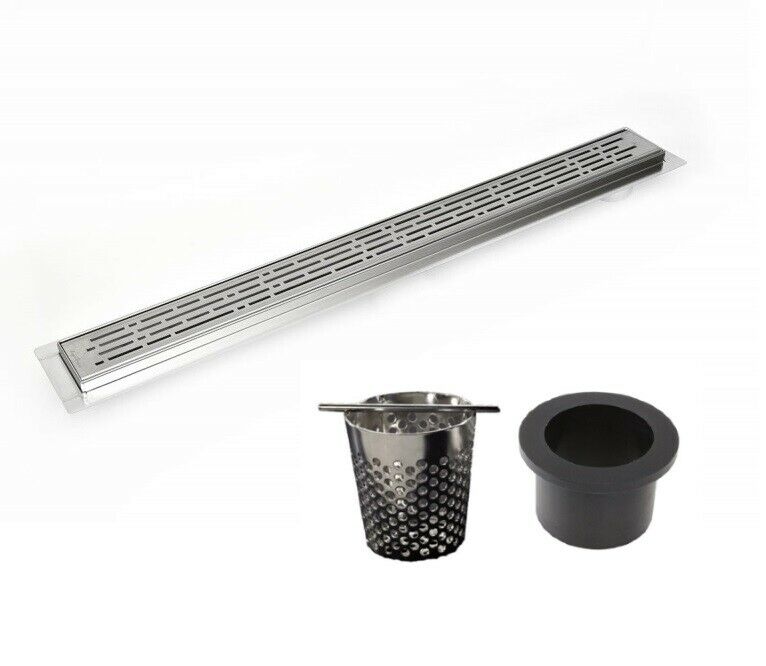

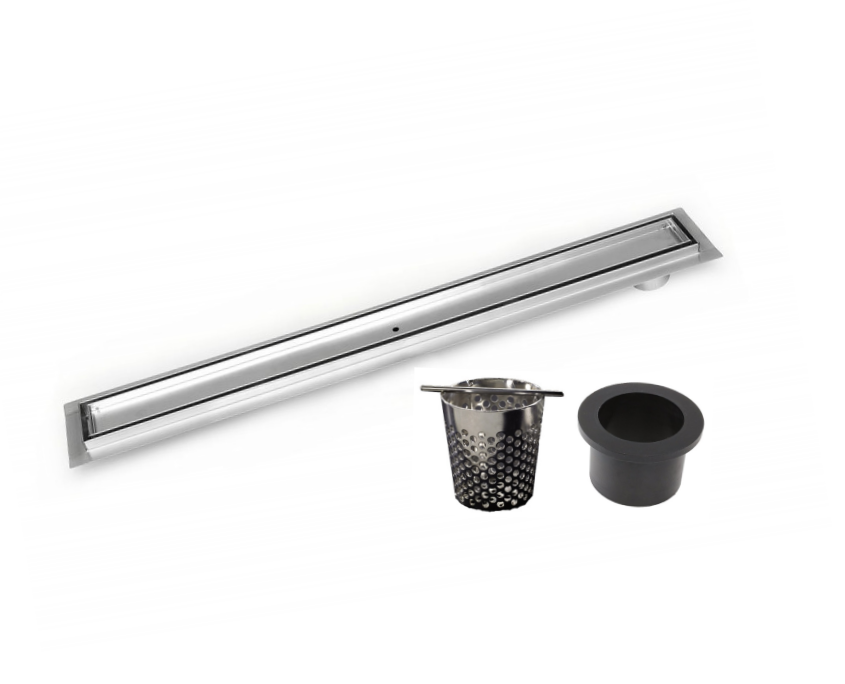

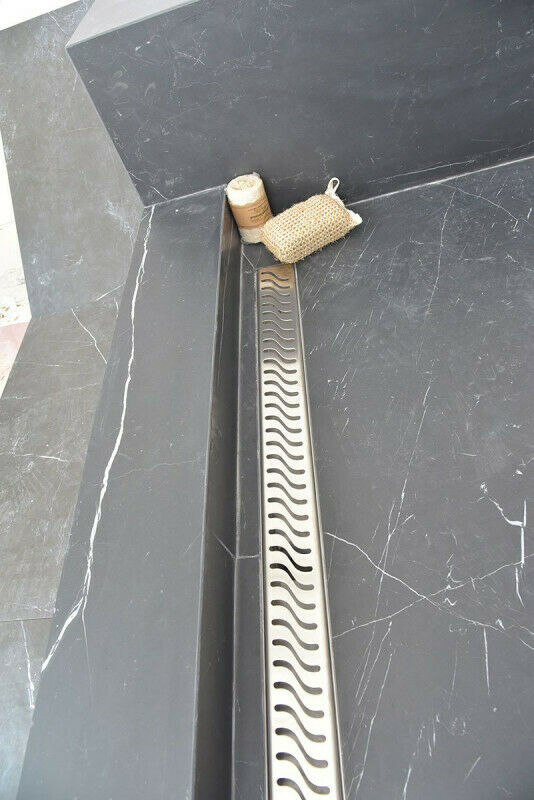

6 Luxurious Designs: Wind Design, Ocean Wave Design, Traditional Square Design, Broken Lane Design, Tile Insert Design, Linear Wedge Design.

Perfect for:
Wheelchair access & barrier-free showers (walk in floor plans).
Applications: Shower & bath, kitchen, pools, balconies, hotel rooms, gym, spa etc.

Construction:

  • Side outlet drain apex 2.8" oc of drain end
  • Designed to be installed into any 2" shower drain flange.
  • Bodies are fully welded and leak tested prior to dispatch.
  • Compatible with tiles up to 10mm depth (14mm lip).
  • Pre-Slope channel - Channel width: 2 3/4" (70 mm).
  • Electro polished finish. Drain Grade is 16 Gauge 304 Stainless Steel.
  • Sized to match standard 1/2", 1", 2, and 4" tile without cutting.
  • Flow rate: at entrance of shower - 6.3GPM (0.4 l/s); against the wall - 9.5GPM (0.6 l/s).
  • Flange body edge designed for use with all types of waterproofing: hot mop, painted or liquid membranes, sheet membrane, vinyl waterproofing etc.
  • Superior Quality, Most Durable Finishes, Easily Maintained. No Special Cleaning.
  • Optional accessories available: plumbing connectors (ABS/ PVC drain base flange) and debris strainer.

Dimensions:
Net Size 15" 3/4" x 2 3/4" 400mm | Overall Size 17" 1/4" x 4 3/8" | Intake sq. in: 12.38
Net Size 23" 1/2" x 2 3/4" 600mm | Overall Size 25.2" x 4 3/8" | Intake sq. in: 14.96
Net Size 30" x 2 3/4" 762mm | Overall Size 31.57" x 4 3/8" | Intake sq. in: 17.62
Net Size 35" 3/8" x 2 3/4" 900mm | Overall Size 37.01" x 4 3/8" | Intake sq. in: 20.03.
Net Size 39" 3/8" x 2 3/4" 1000mm | Overall Size 40.95" x 4 3/8" | Intake sq. in: 21.12
Net Size 47 1/4" x 2 3/4" 1200mm | Overall Size 48.82" x 4 3/8" | Intake sq. in: 26.68
Net Size 59.05" x 2 3/4" 1500mm | Overall Size 60.63" x 4 3/8" | Intake sq. in: 31.67

Contact us for quantity and contractors discounts.
