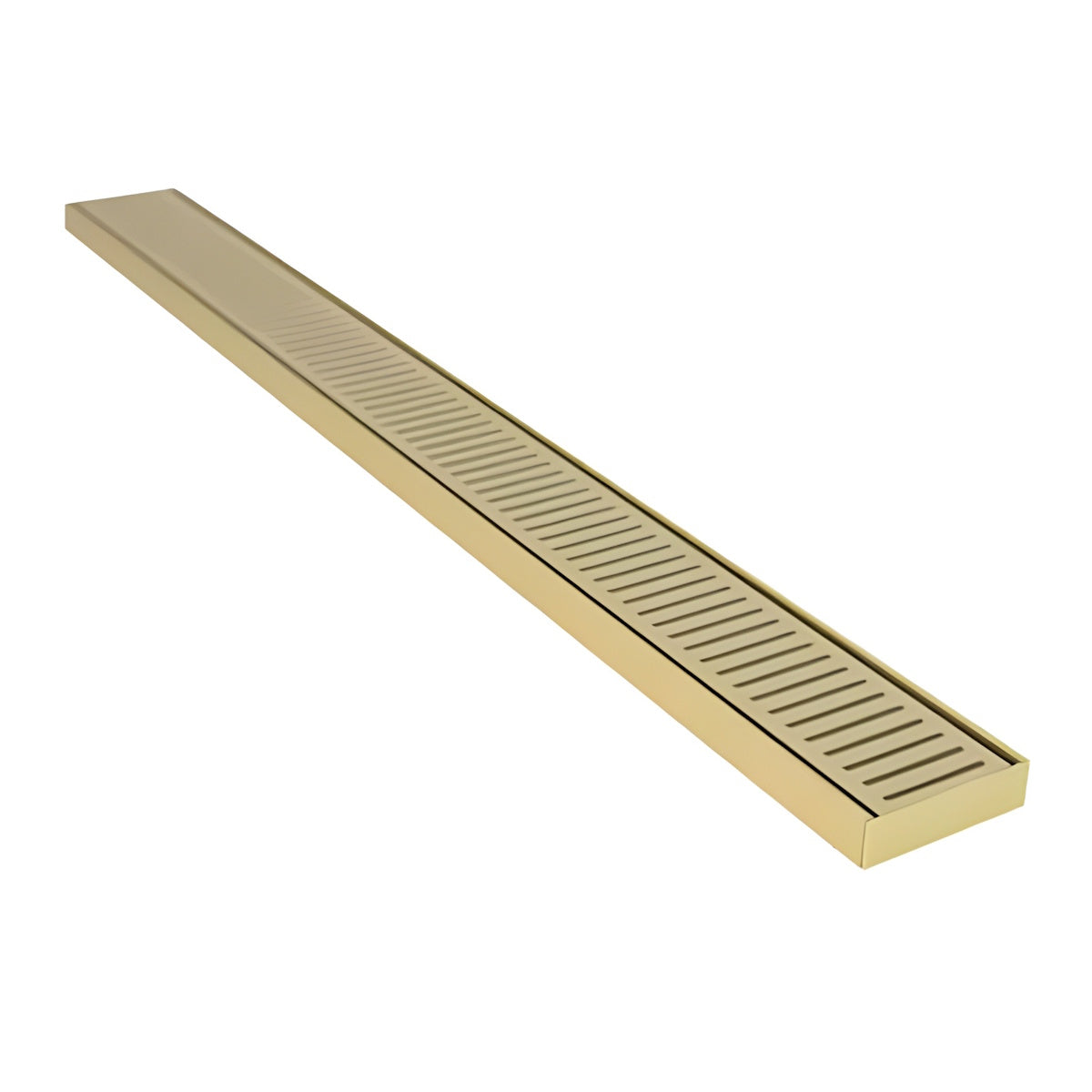

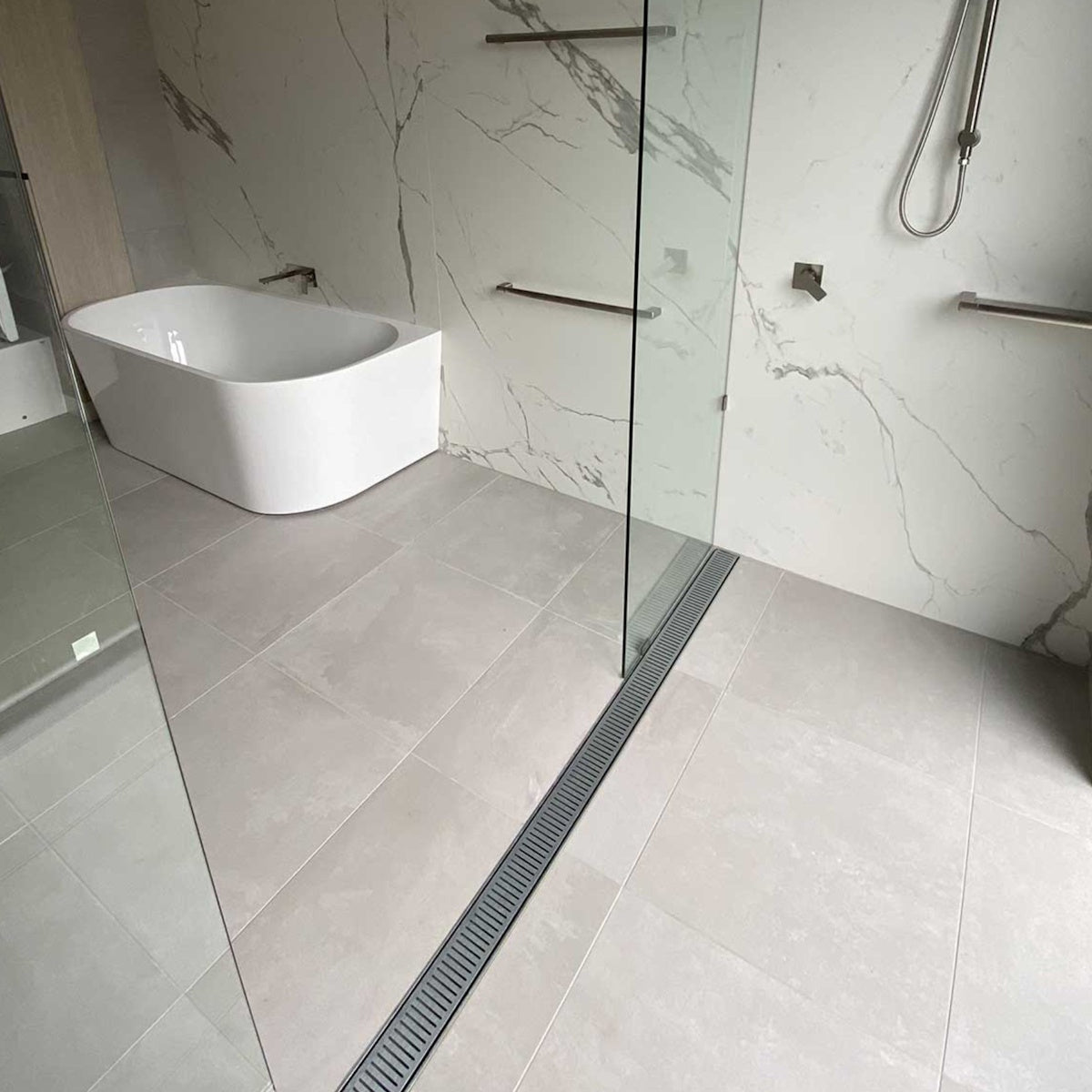

48 Inch Tailor Made Shower Drains, NeXT Generation Linear Grates (4ft)

These custom tailor made linear shower drains are available in standard lengths from 1 ft to 8 ft and can be further extended to your required cut-to-order length. For special sizing, please contact us.

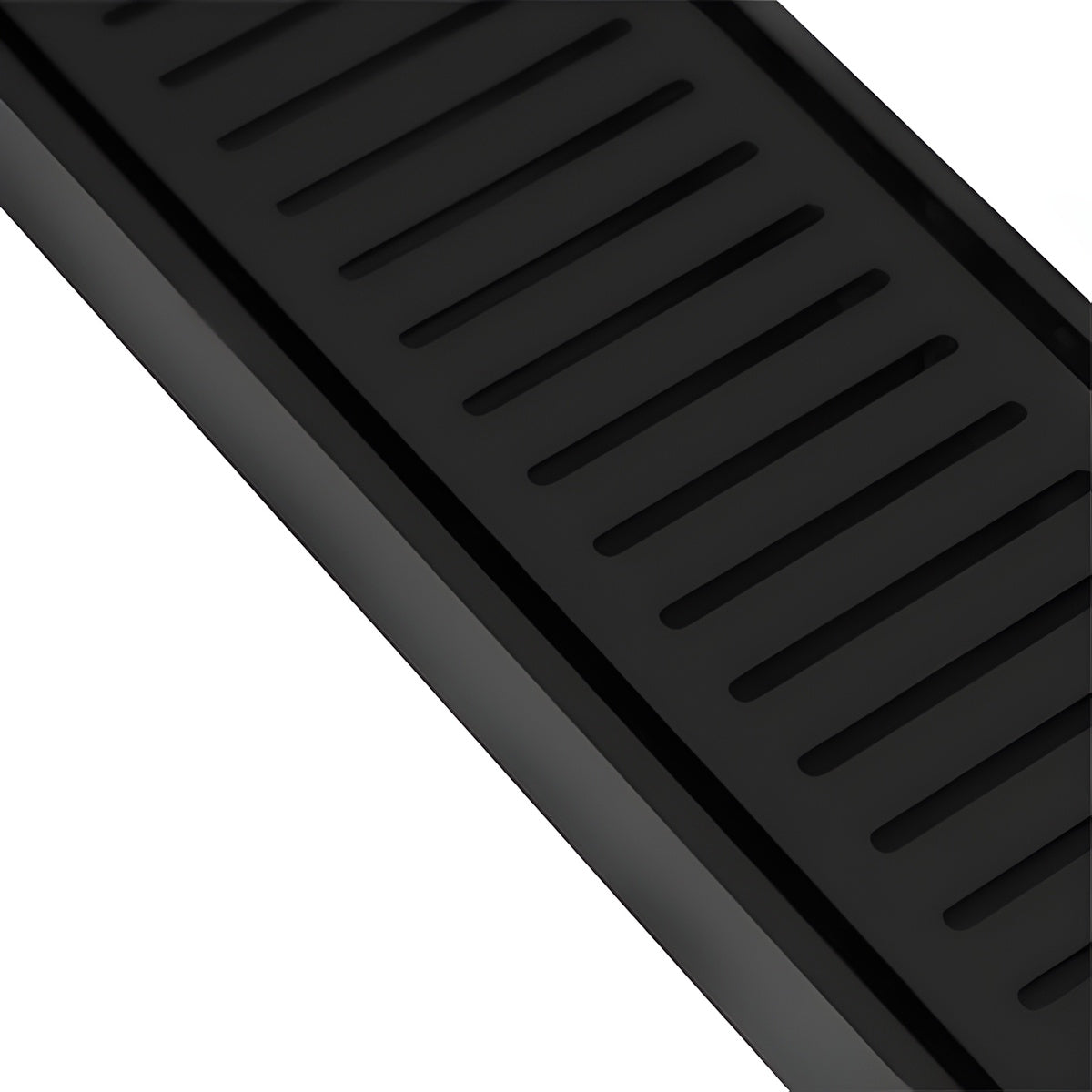

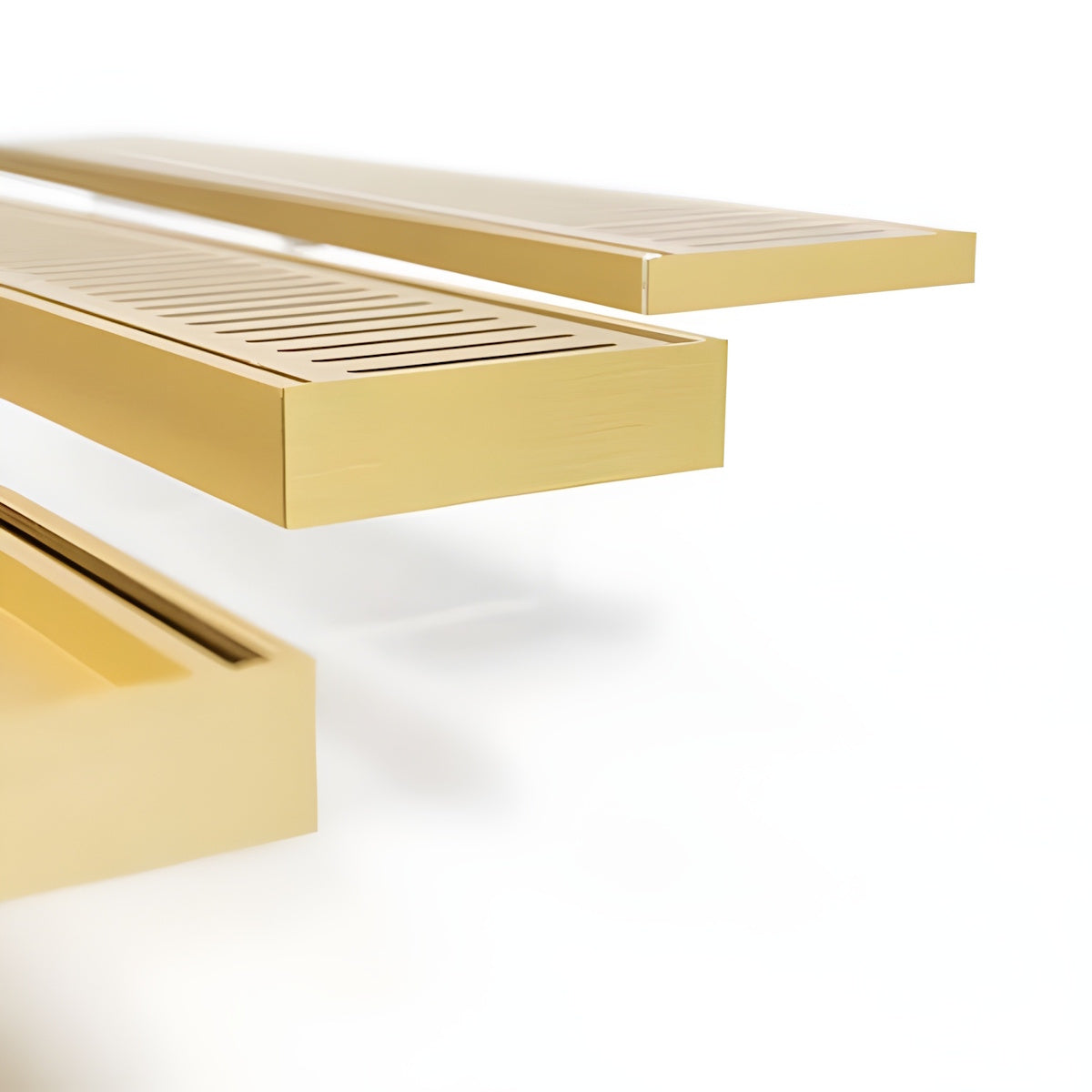

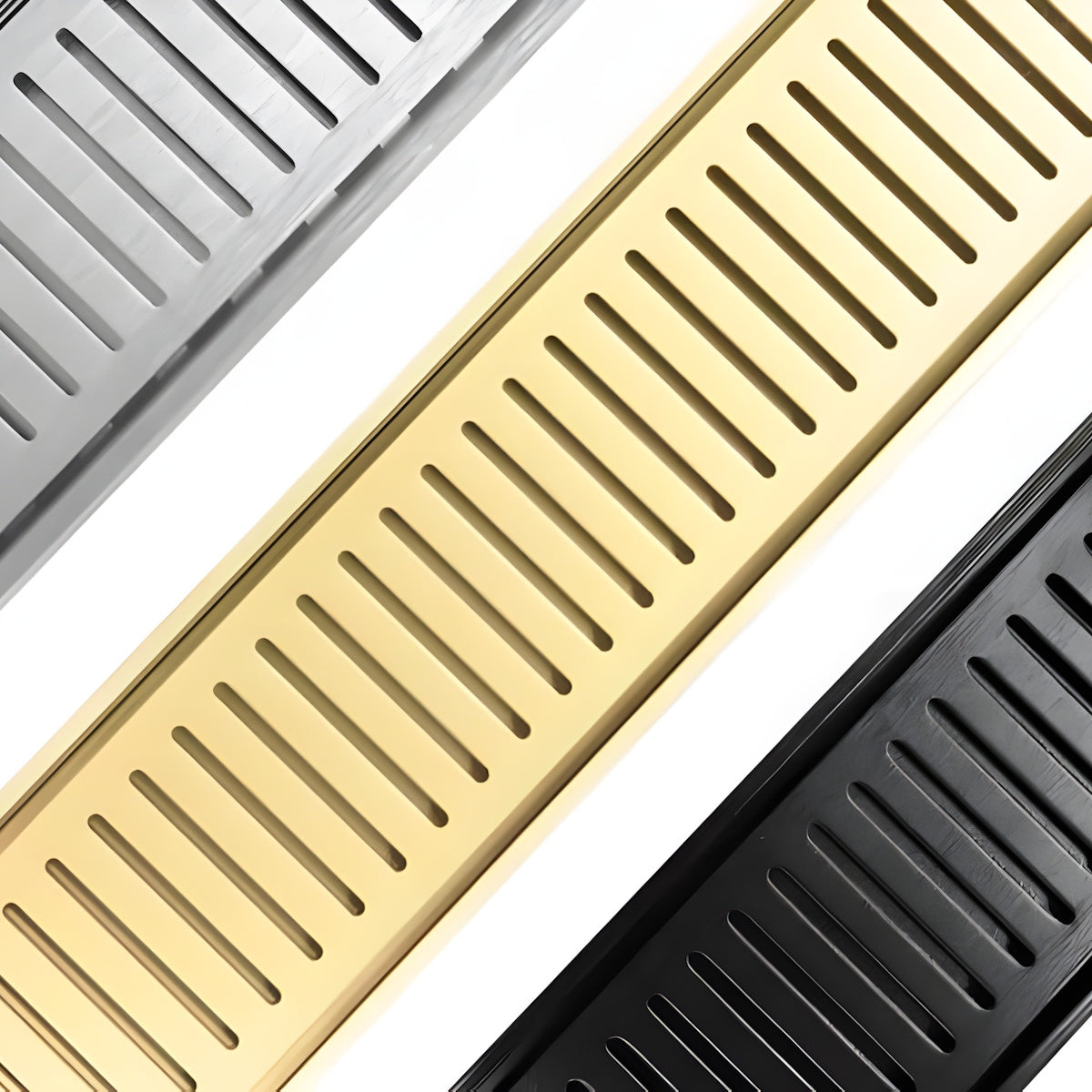

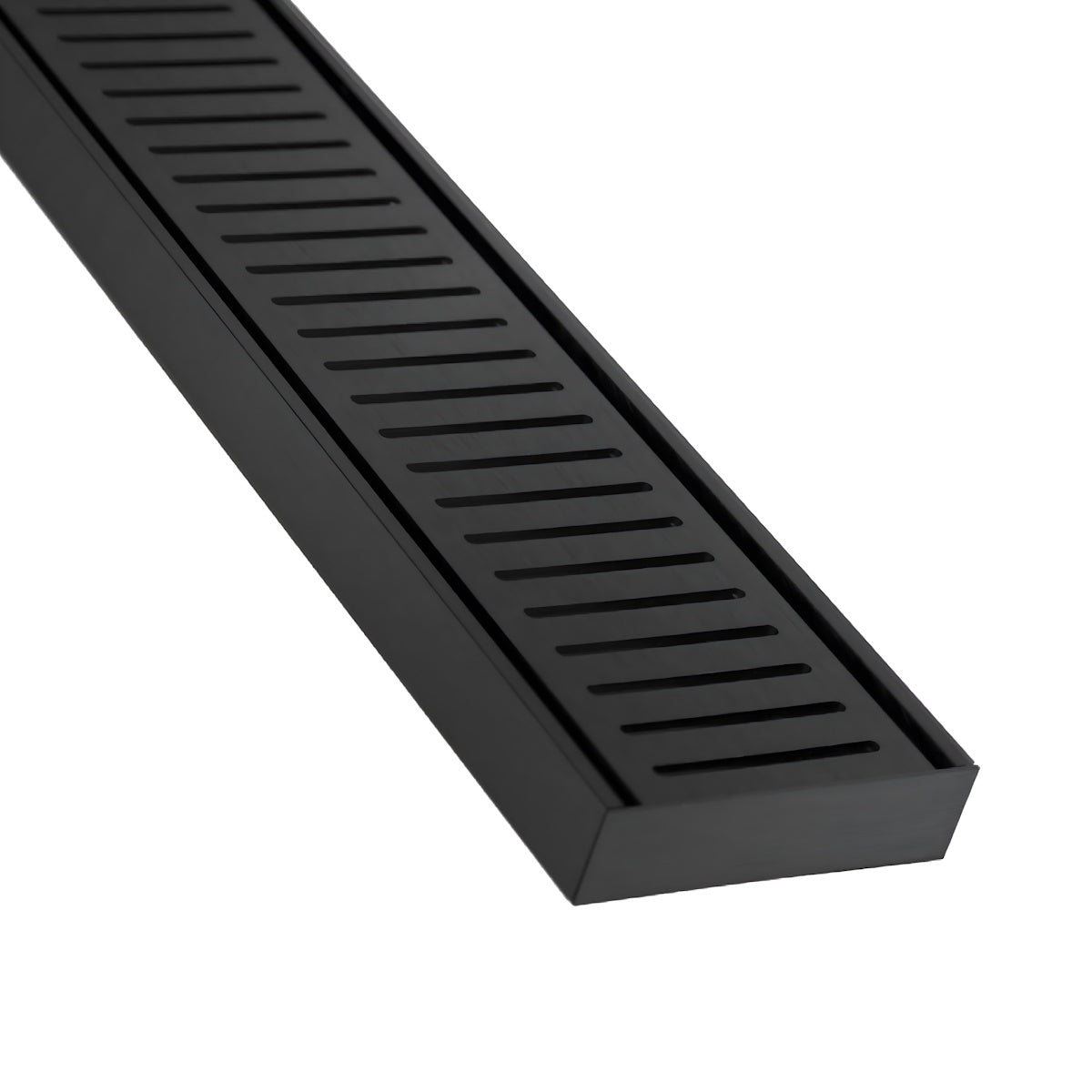

Available Colors: Brushed Nickel, Silk Silver, Midnight Black, Matte Gold
Material: Anodized Aluminum

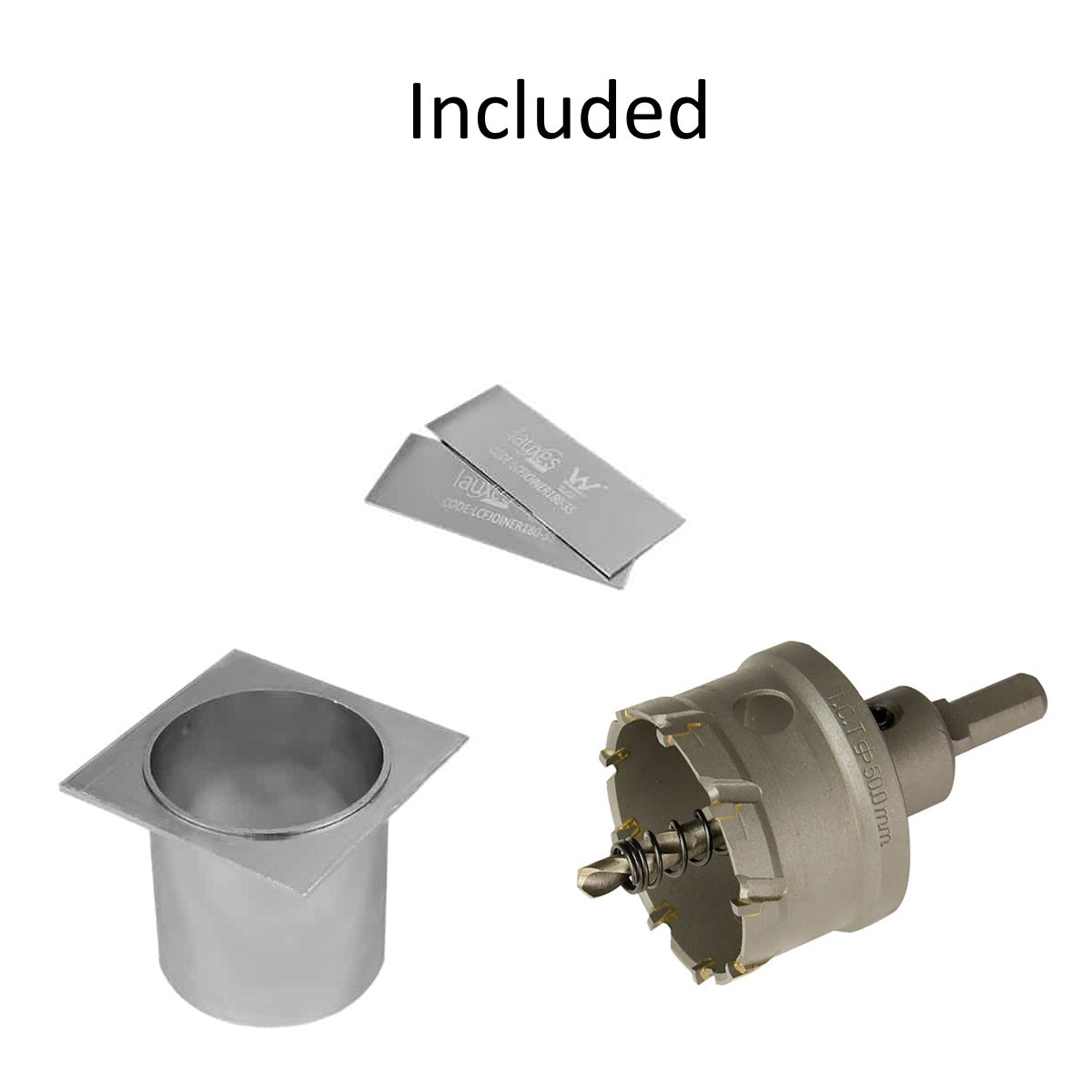

Included with your order:

• Custom-cut channel and grate
• Pair of end caps

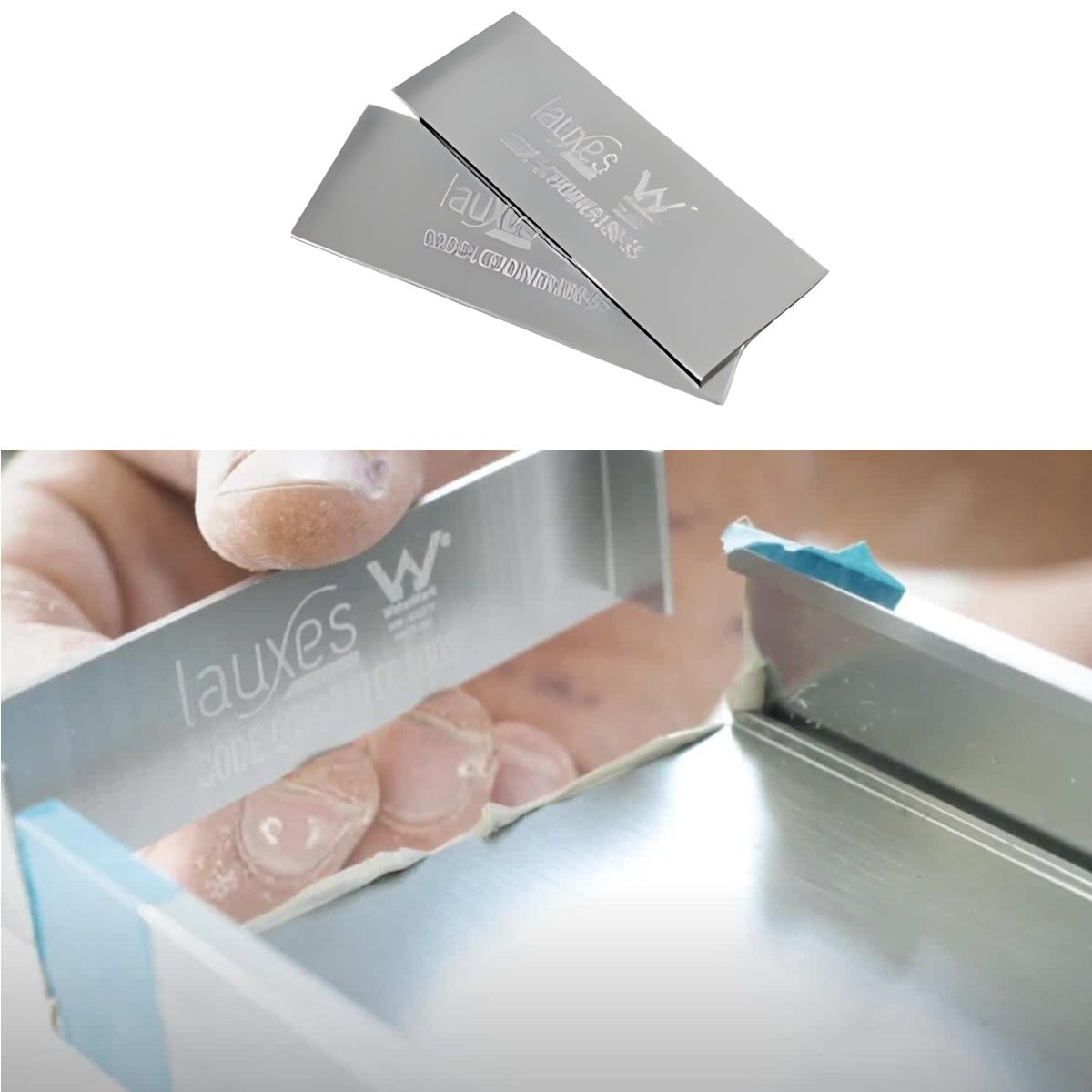

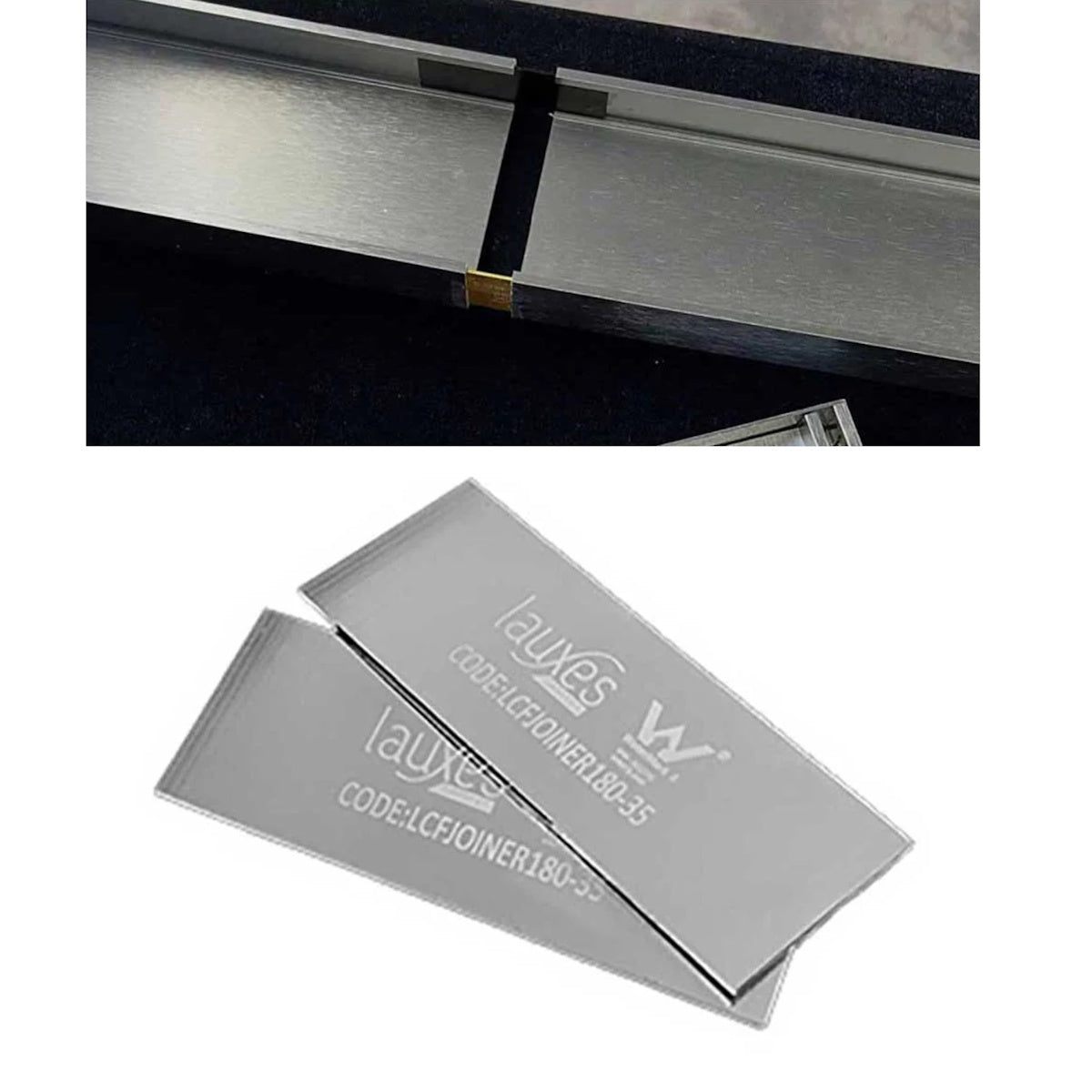

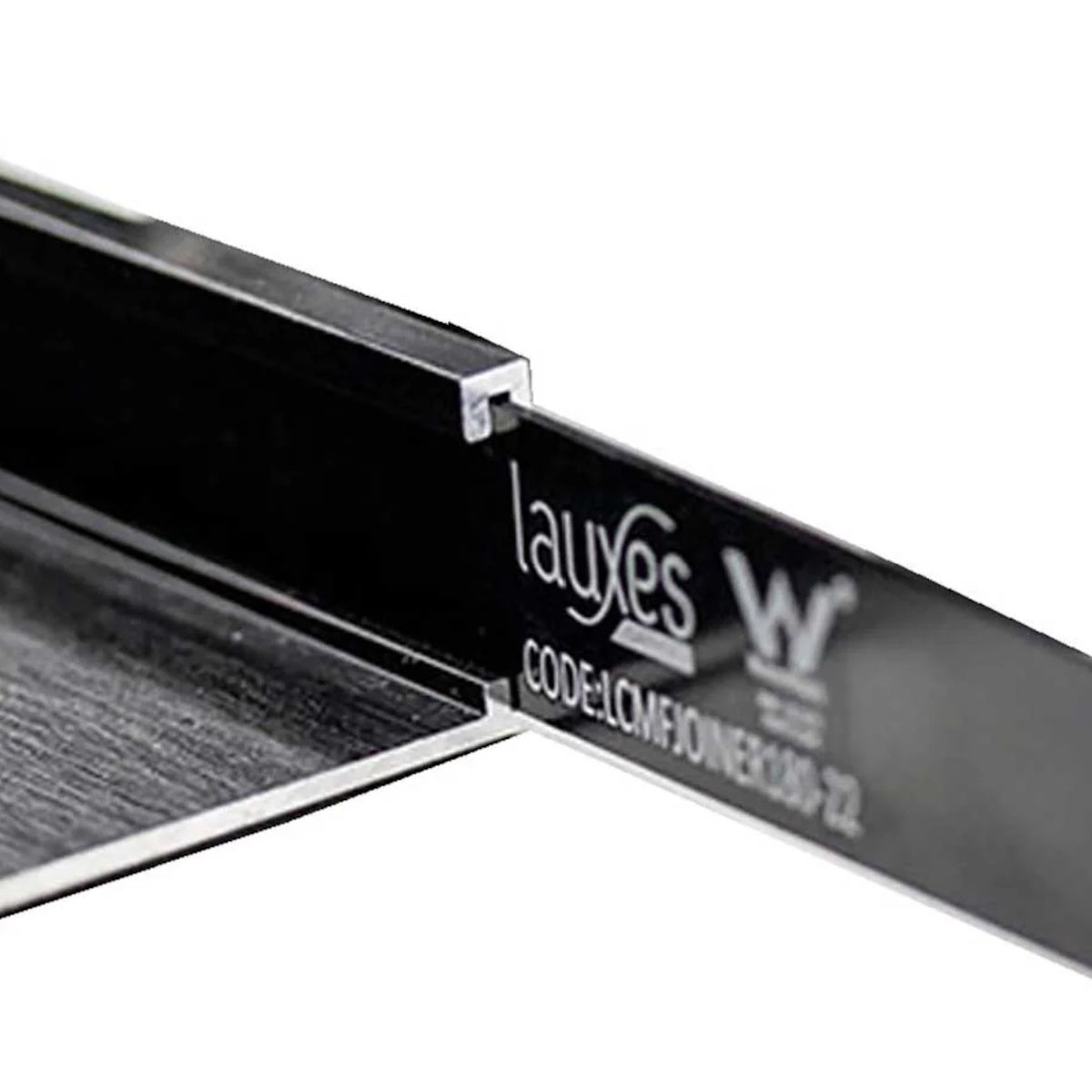

• 180° joiners as needed (Joiners provided based on configuration requirements.)
• 2" or 3" waste outlets. By default, a 2" outlet is supplied. A 3 inch drain outlet with a matching 3" hole saw is available upon request.

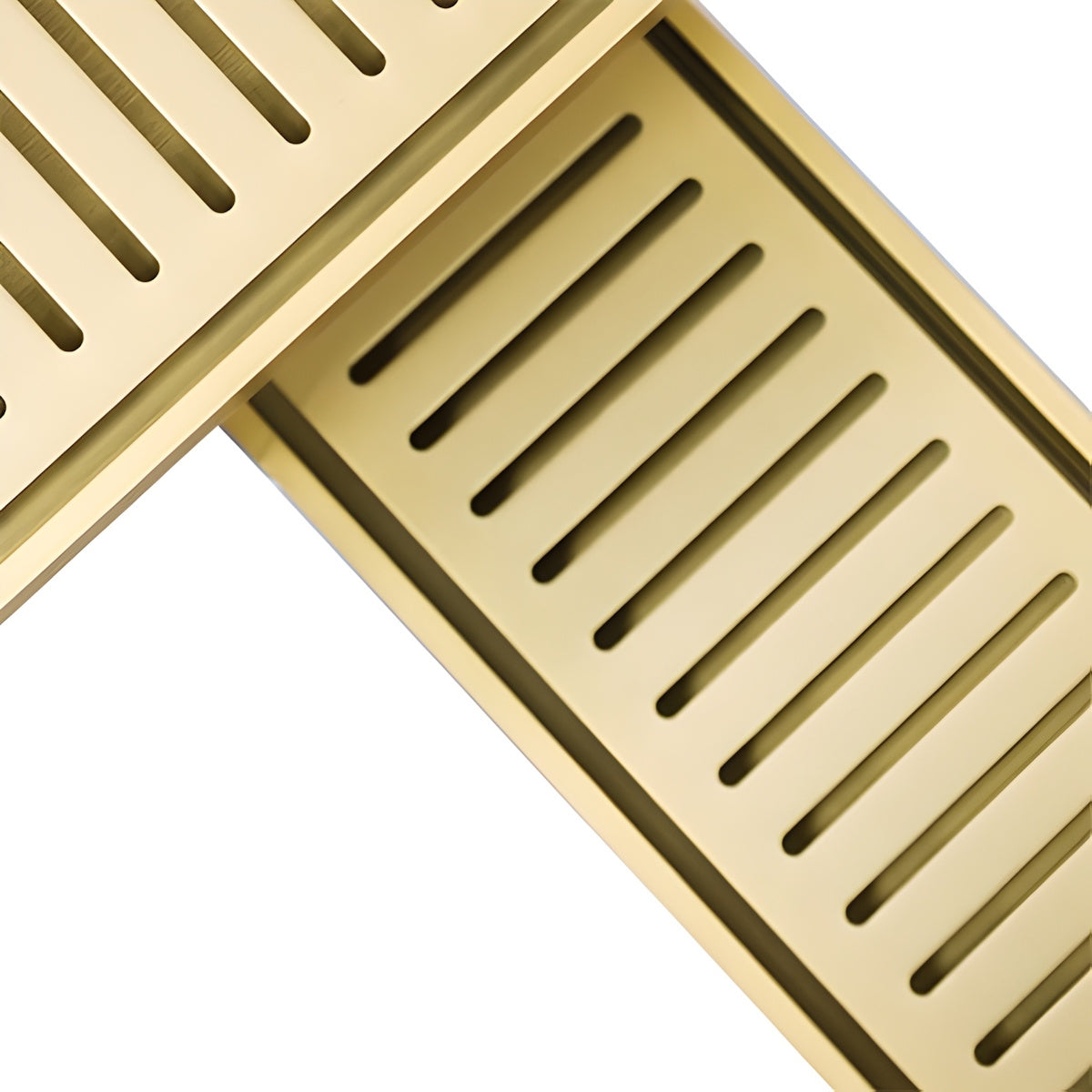

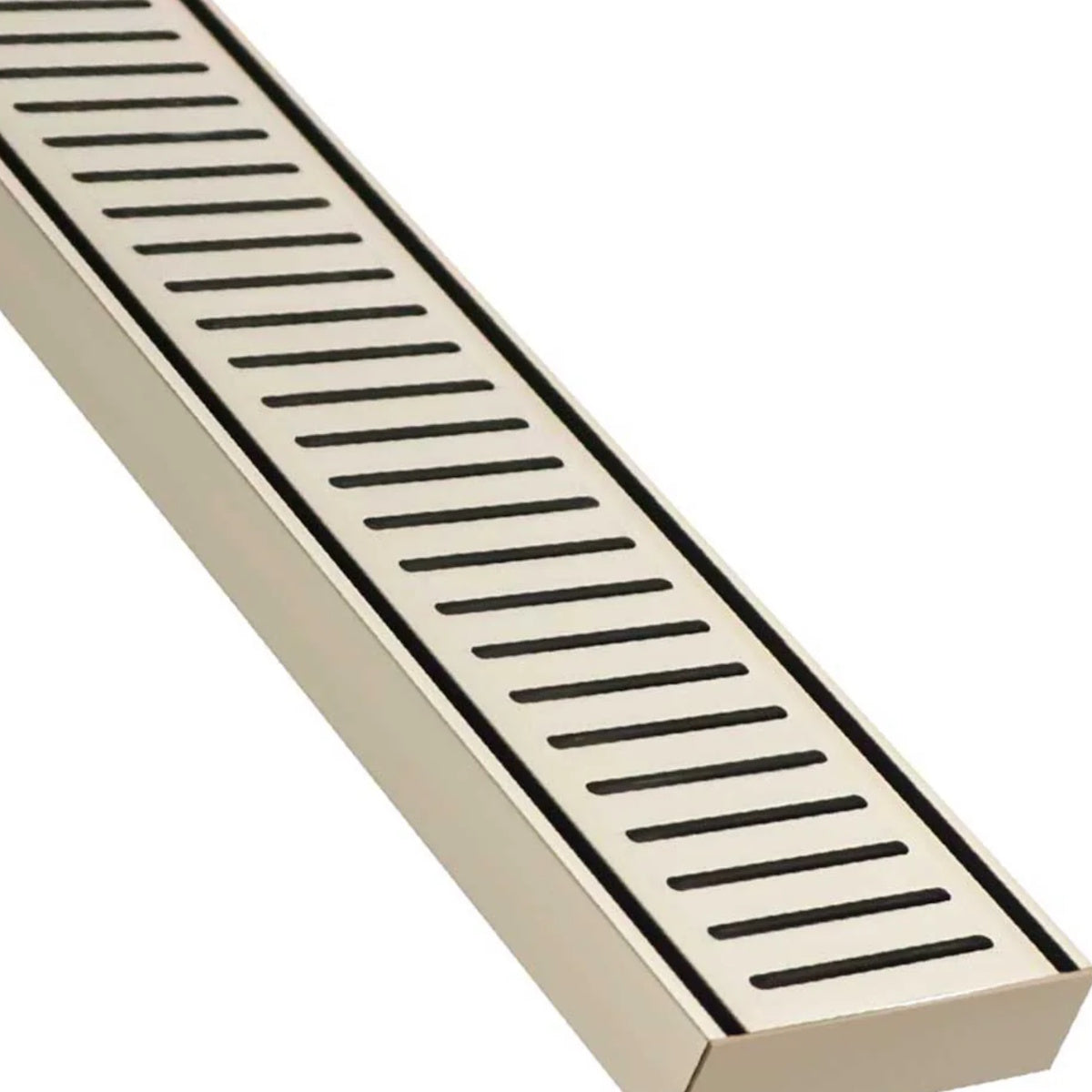

Lauxes Grates NeXT Generation Design

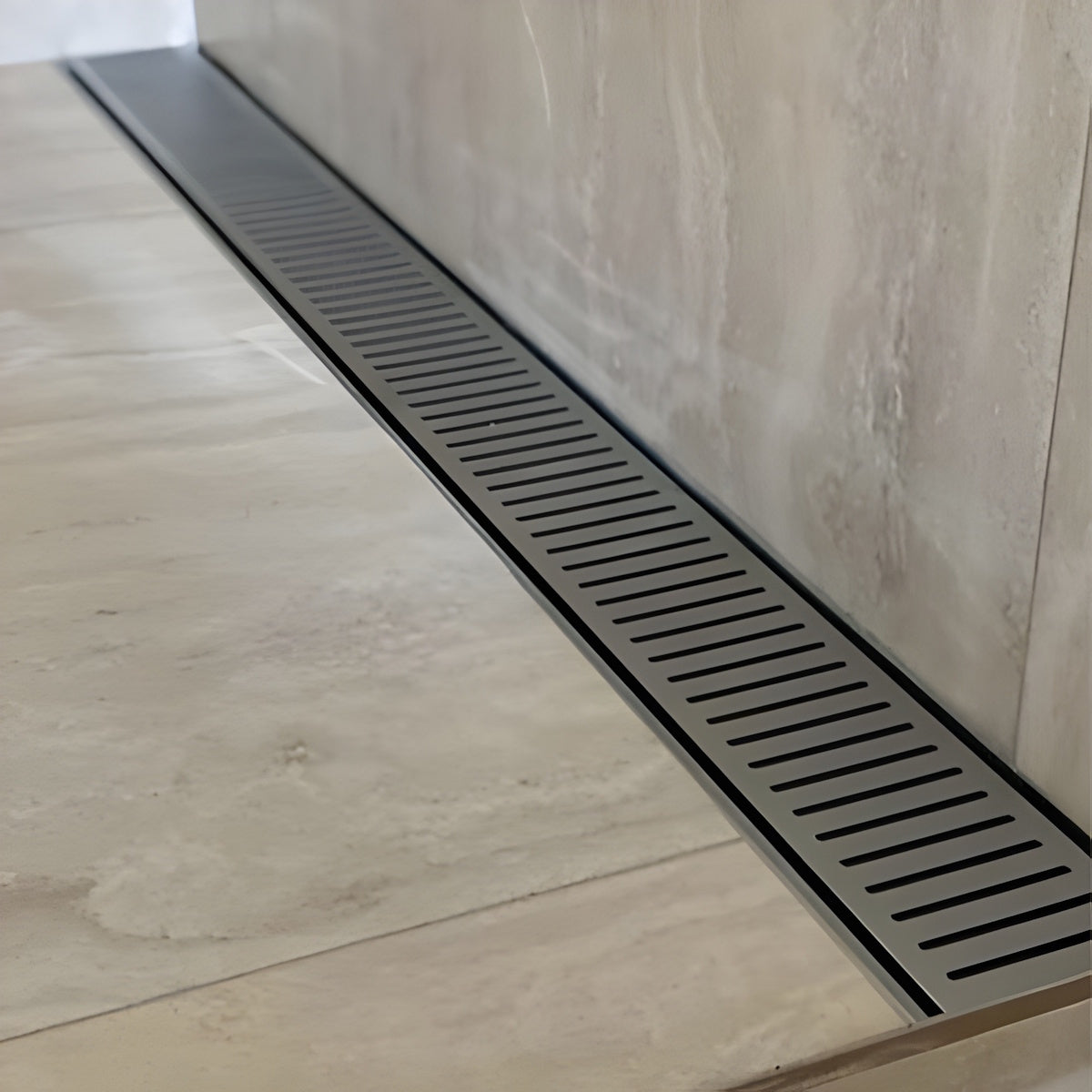

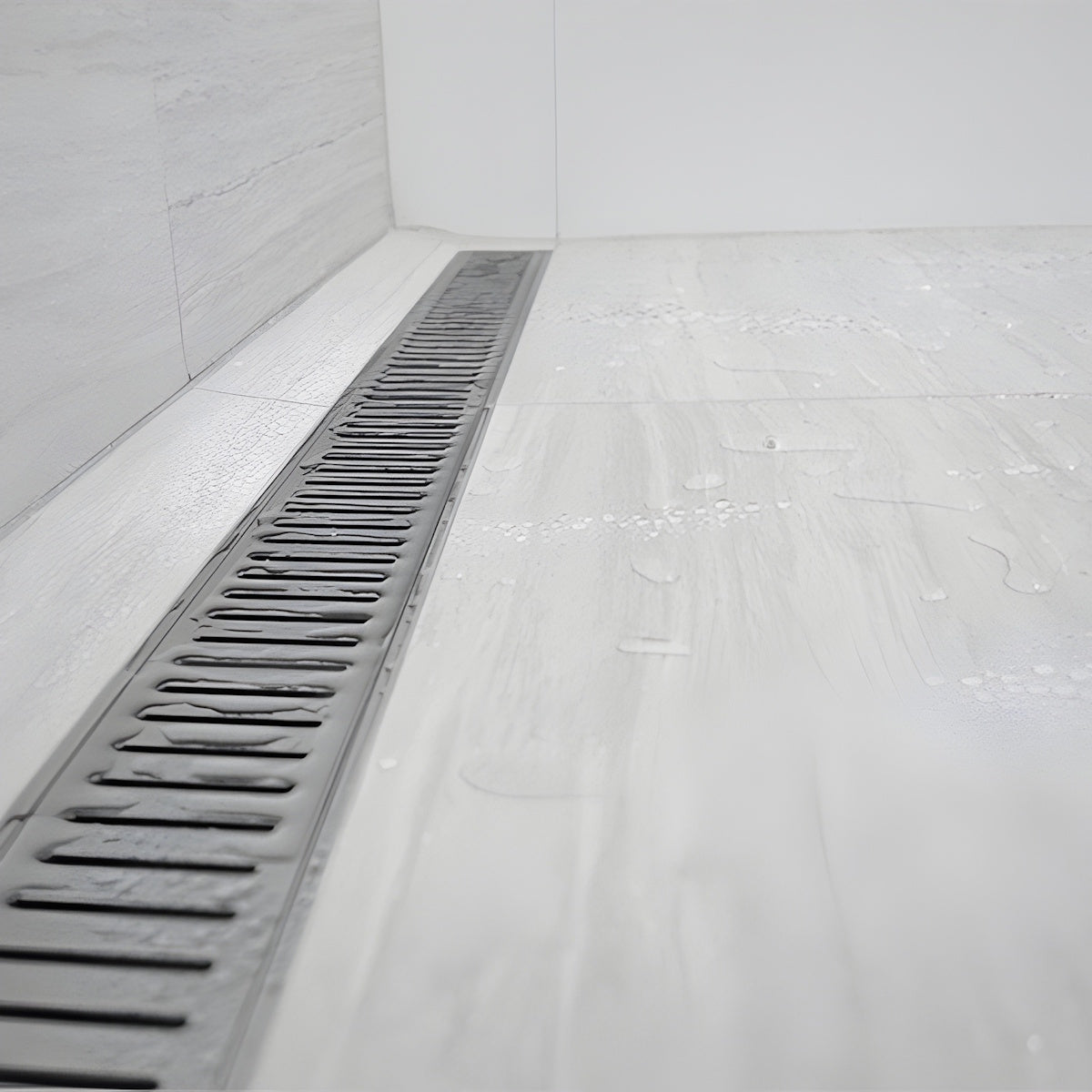

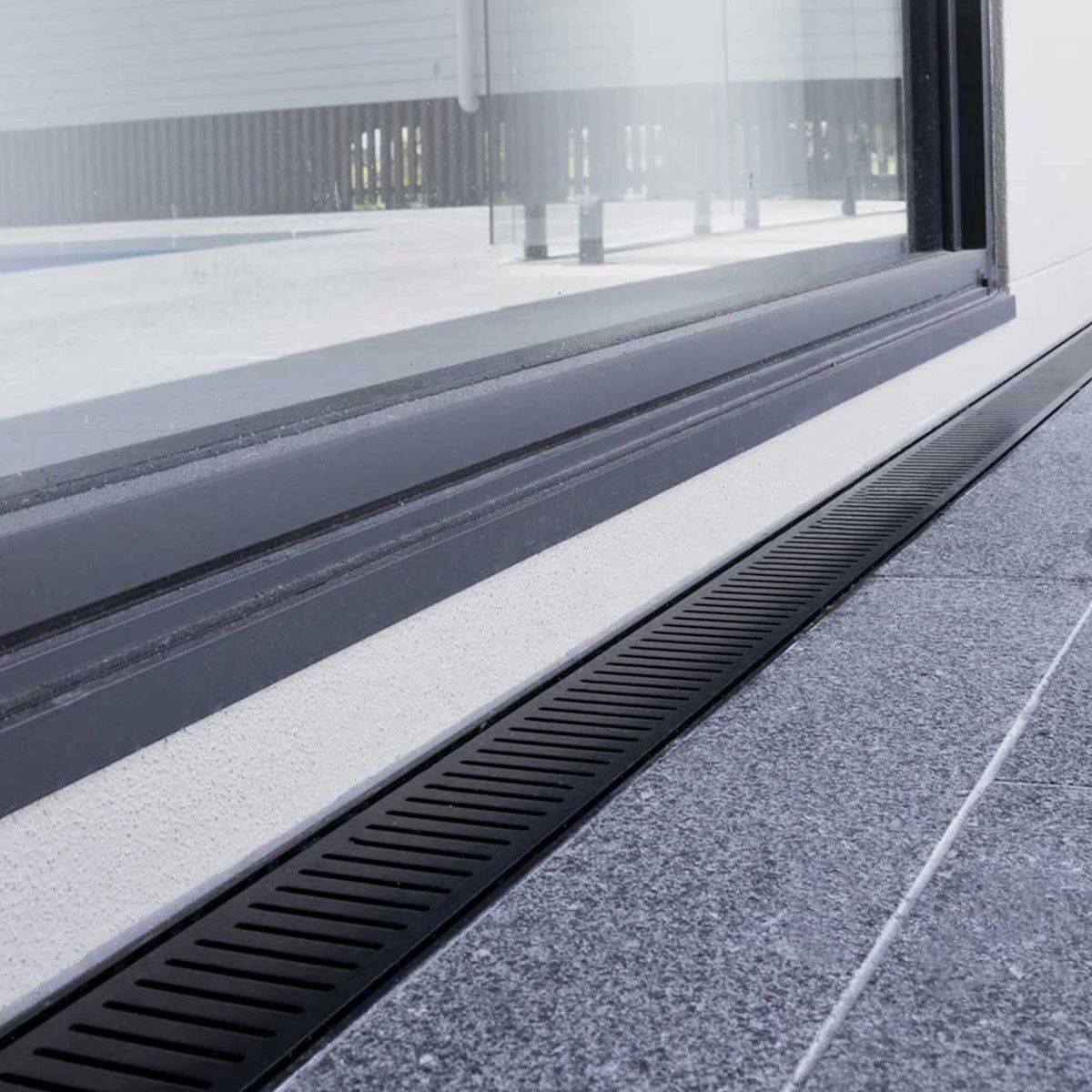

Available in multiple finishes, this anti-tracking, anodized aluminum grate is ideal for indoor or outdoor applications. All grates are UV stable and include a 25-year warranty against fading. Backed by a Lifetime Rustproof Warranty, the NeXT Generation decorative grates are an industry game-changer in linear drainage.

Dimensions

• Length: 48 Inch
• Width: 4" (100 mm)
• Depth: 1" (26 mm)
• Weight Load Capacity: 10.2 ton – medium duty

Features and Benefits

• Available in lengths up to 18 ft and extendable beyond 5.6 m using Lauxes joiners
• Easy to cut onsite to any desired length - no welding required
• Waste outlet can be positioned anywhere along the bottom tray.
• Suitable for tiles up to 7/16" (10 mm) thick
• Lightweight, rustproof, UV-stable aluminum construction
• Top grate easily removed with a roll-out system for effortless cleaning
• Multiple color options to suit various applications

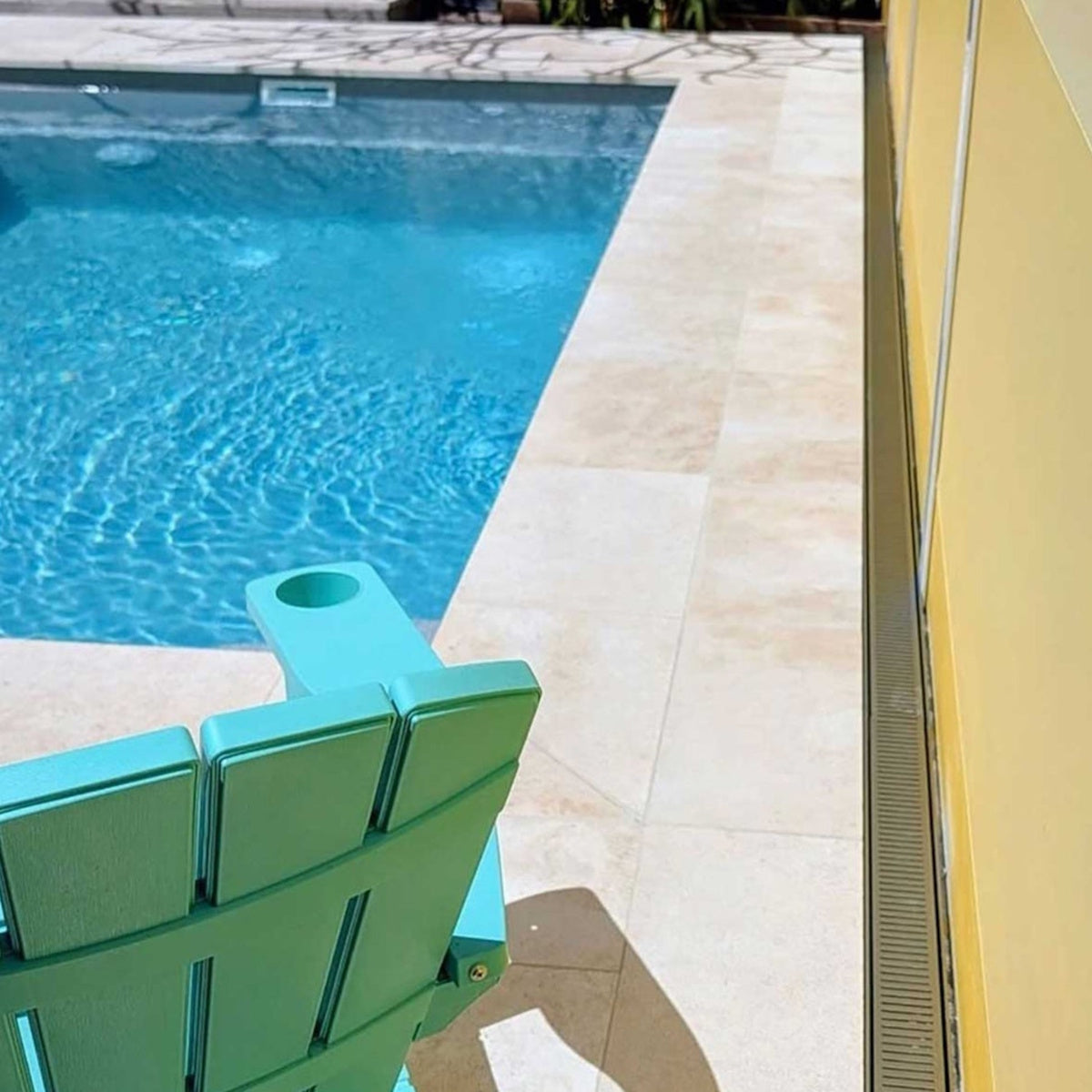

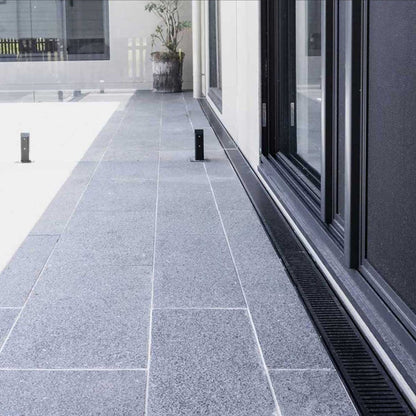

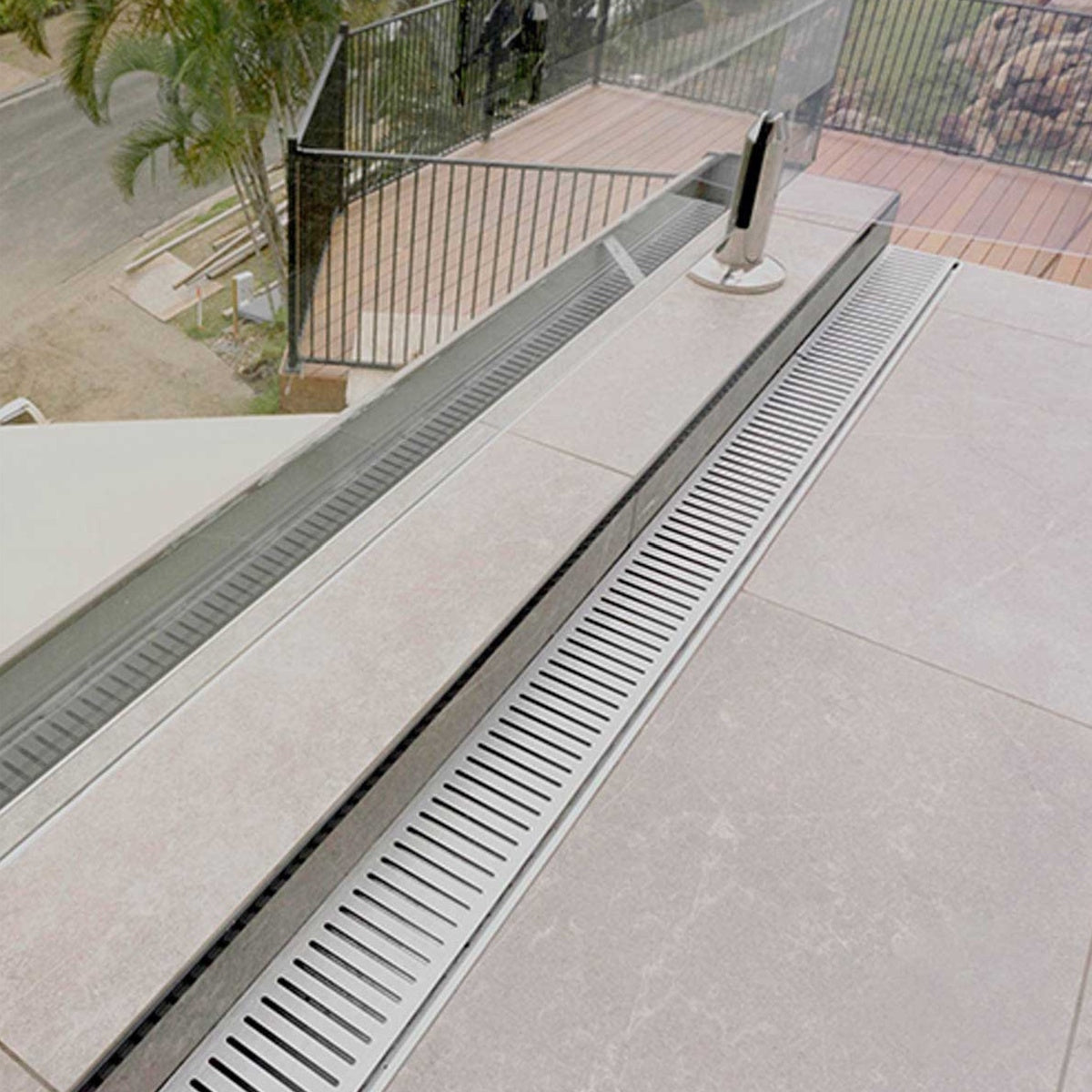

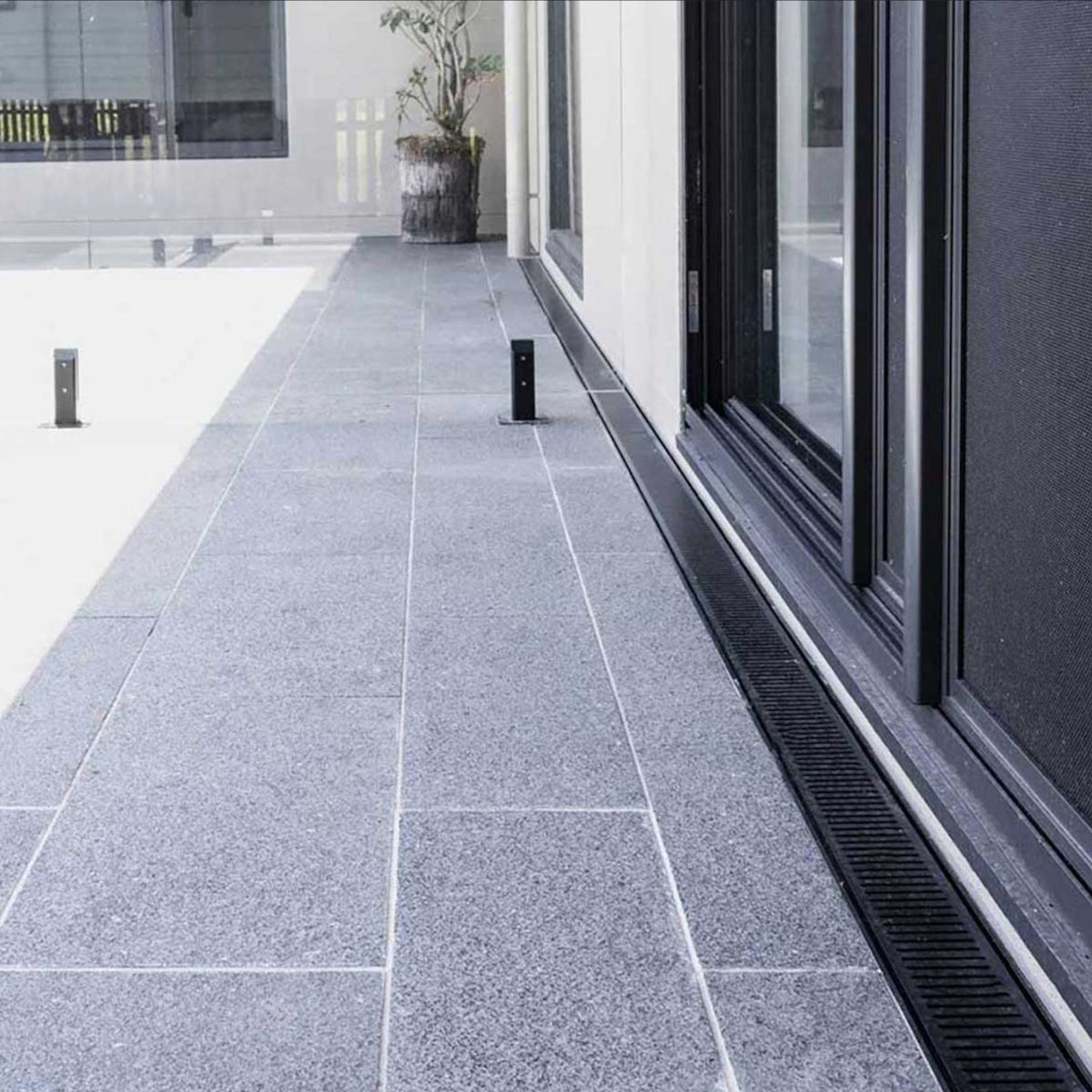

• Designed for both indoor and outdoor use
• No major plumbing modifications required
• Backed by a Lifetime Rustproof Warranty
• If the drain length exceeds 94 inches, multiple shorter drains will be shipped and easy joined together at the job site during installation.
• Our customized linear drains can also be used as a solution for side outlet linear drains by positioning the outlet exactly where needed. This flexibility allows for easy adaptation to different layouts and plumbing requirements.

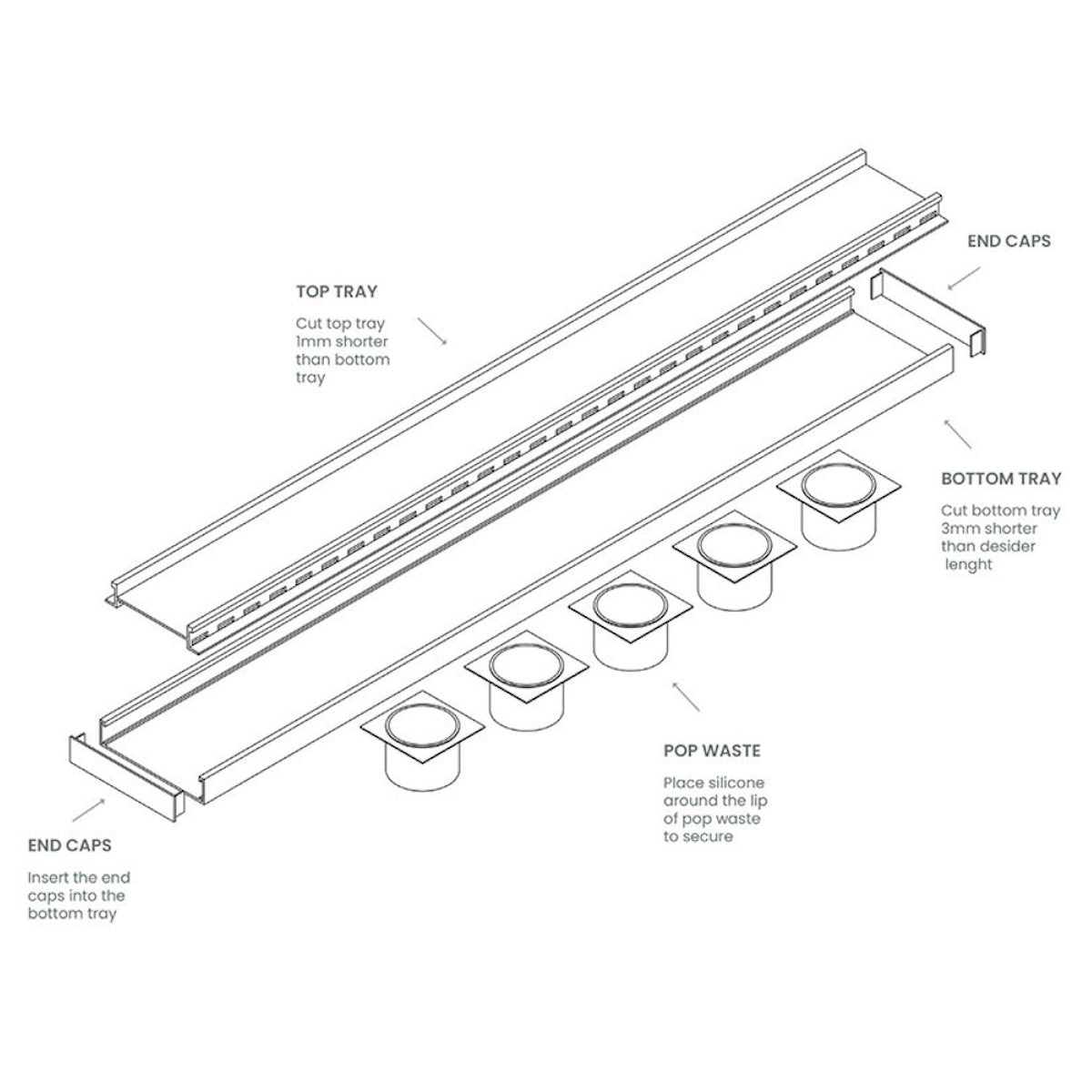

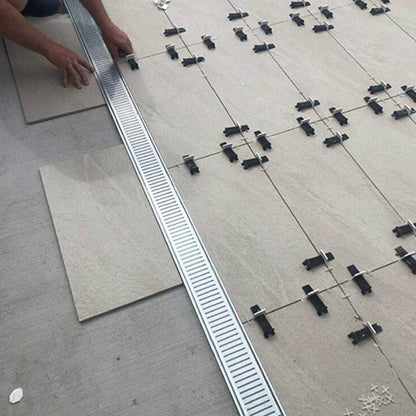

CUTTING INSTRUCTIONS AND INSTALLATION

For ease of cutting Lauxes grates, we recommend using a compound miter saw fitted with a multi-material cutting blade (80 teeth or more). We also recommend using a Lauxes TCT hole saw to drill the hole for the waste outlet.

1. Cut the bottom tray 1/8” (3 mm) shorter than the desired length to allow end caps to be fitted.
2. Cut the top grate 1/32” (1 mm) shorter than the bottom tray to allow for easy roll-in of the top grate and a tidy fit.
3. Using a suitable size Lauxes hole saw for your waste outlet, drill the hole at the required position to align with the waste pipe in the floor.
4. Insert the end caps into the bottom tray and secure with a bead of silicone on the outside of the tray.
5. Apply silicone around the lip of the waste outlet and secure it to the underside of the bottom tray at the drilled hole.

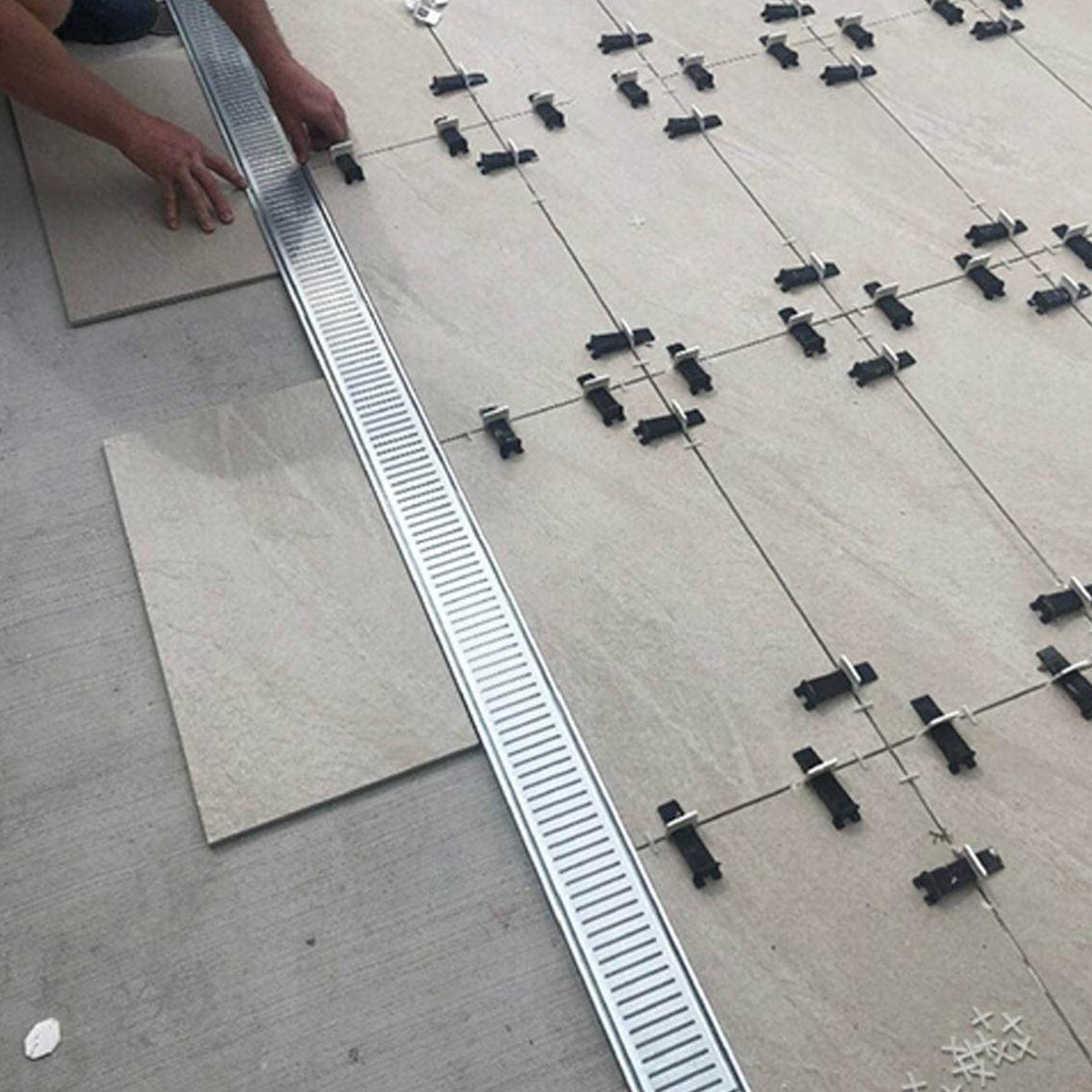

• During installation, use a template to ensure the grate does not come into contact with any wet cement-based products.
• Regular, gentle cleaning with soapy water is recommended. Do not use abrasive cloths or acidic chemicals on the grates.
• When gluing tile, use a neutral-cure silicone.

Warranty

Custom grates are manufactured to the highest standards with meticulous attention to detail. This allows us to confidently back your purchase with our rustproof and cost-effective performance guarantee.

Damage from improper care or installation not in line with AS/NZS 3500.2 or manufacturer specifications will void the warranty.

If the product develops a defect, Custom Grates will correct it at no charge to the registered purchaser. This guarantee does not cover normal wear, misuse, accidental damage, or damage from temperature changes.

Note: Custom Grates products do not form part of the waterproofing system.

In Stock – Same-Day Free Shipping
