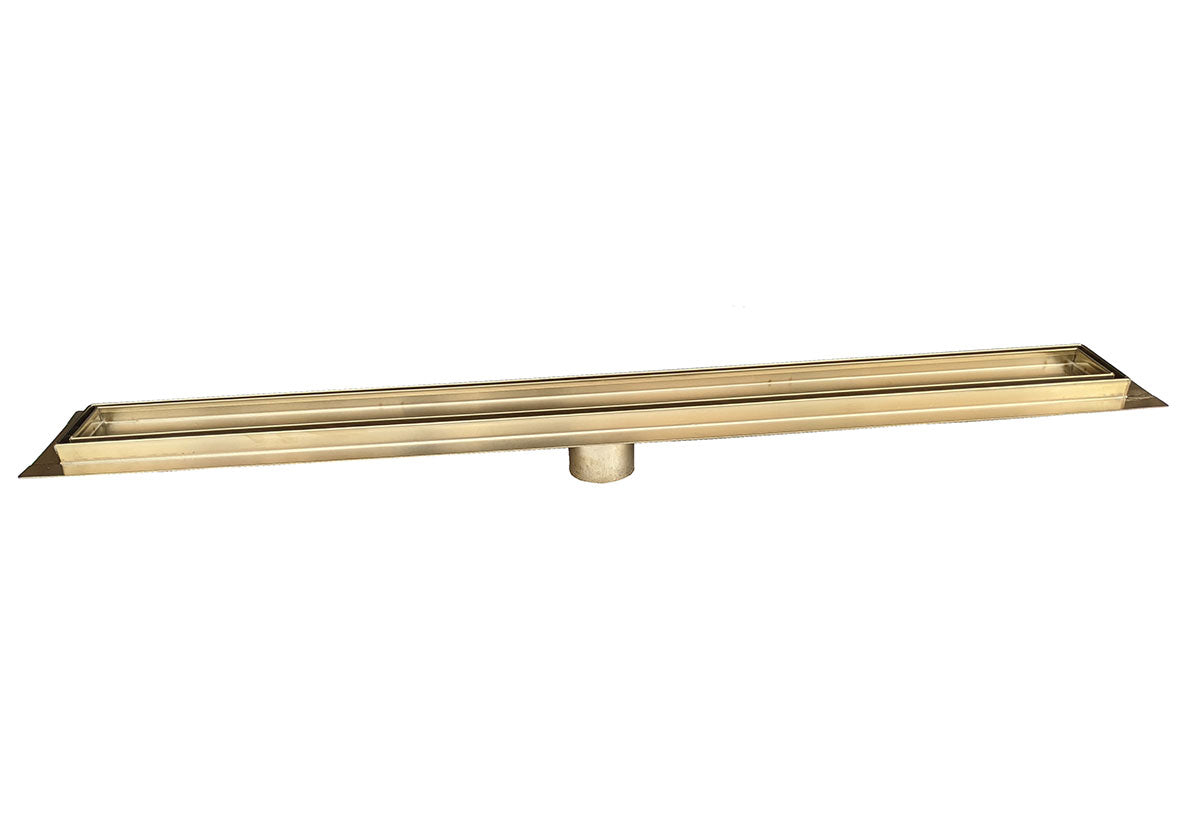

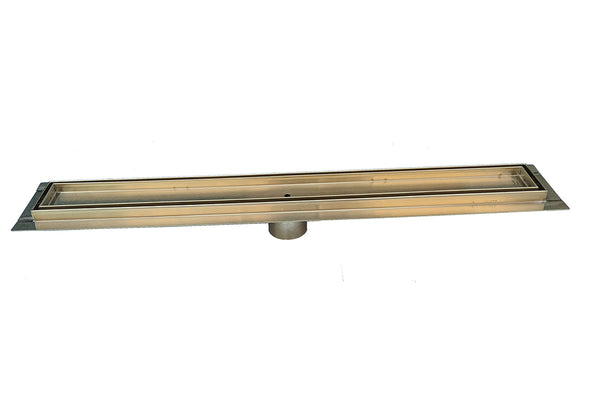

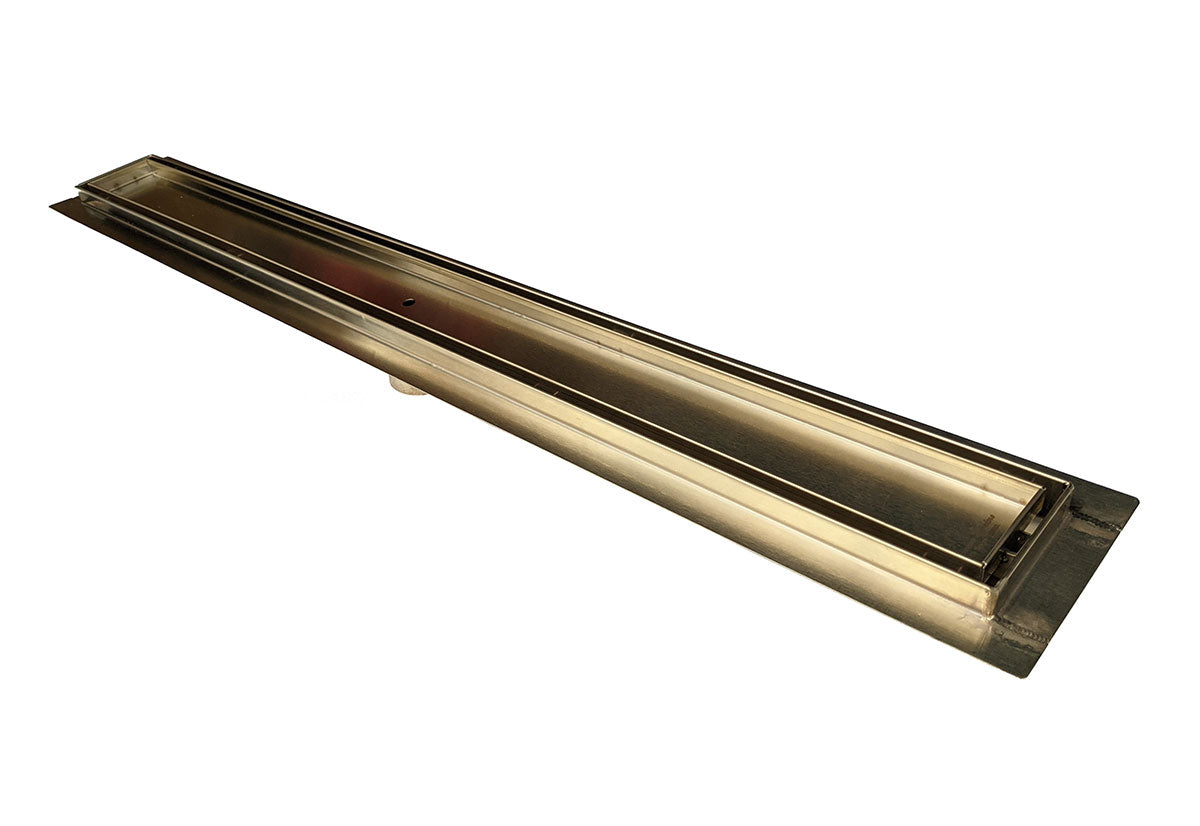

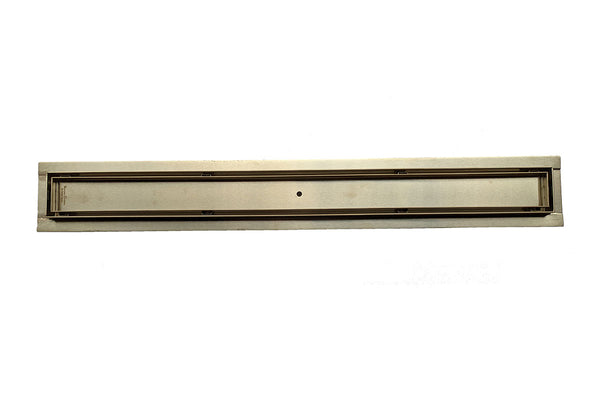

SereneDrains 47" Satin Gold Tile Insert Linear Shower Drain

SereneDrains 47" Satin Gold Tile Insert Linear Shower Drain

Premium Concealed Drainage | Free Hair Trap & Free Shipping Included

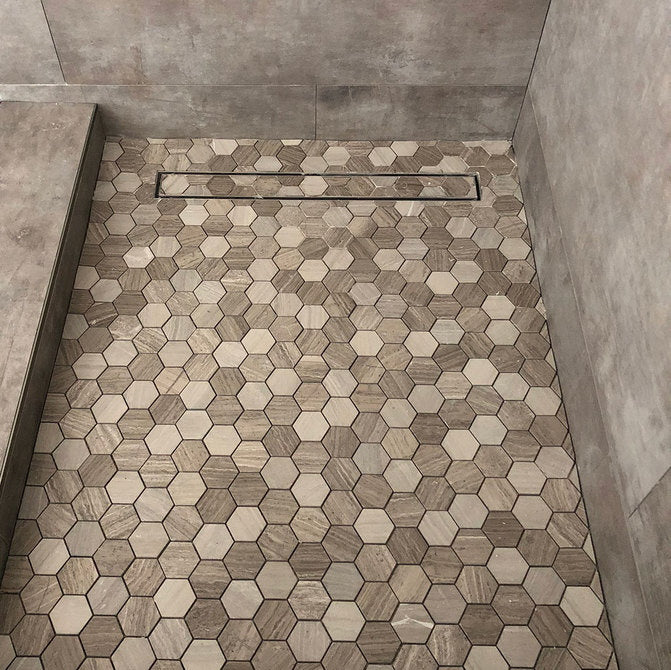

Our SereneDrains Satin Gold Tile Insert Linear Shower Drain is designed to seamlessly camouflage the drain with the exact same tile you are installing on your shower floor. With this luxurious tile-in design, the floor tile extends right over the grate, making it nearly invisible while adding a warm, upscale accent to your space.

The SereneDrains Satin Gold Tile Insert Linear Drain offers a flawless, high-end solution for modern architectural shower designs. Engineered to blend seamlessly into your floor, it delivers a sleek, minimalist appearance while the easy-to-remove tile tray ensures hassle-free maintenance and cleaning. Imagine your stunning new shower as this hidden drain merges perfectly with your premium floor tiles or custom mosaic. Its ultra-low profile maximizes the raw beauty of your tile layout, creating a cohesive, eye-catching aesthetic of pure luxury.

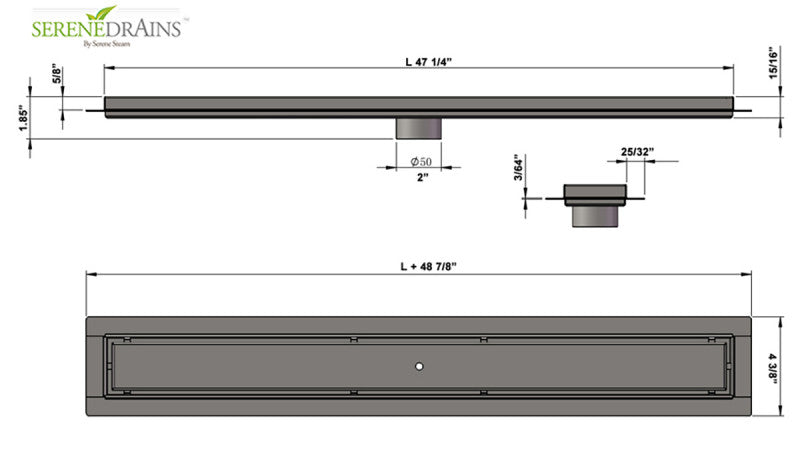

📐 Dimensions & Sizing

• Net Size: 47 1/4" x 2 3/4" (1200mm)
• Overall Size: 48.82" x 4 3/8"
• Intake Area: 26.68 sq. in.
• Outlet Diameter: 2" central vertical outlet (fits any standard 2" shower drain flange)
• Tile Compatibility: Fits tiles up to 10mm in depth (14mm lip). Sized to match standard 1/2", 1", 2", and 4" tiles perfectly without custom cutting.

⚙️ Why Choose SereneDrains?

• Heavy-Duty Construction: Built entirely without plastic from 16-gauge 304 stainless steel (including the flange, channel, and grate) for absolute protection against corrosion and rust.
• Pro-Level Stability: Engineered without leveling feet. The flange rests directly on the subfloor edge, providing far greater stability and a faster installation.
• Rounded Safety Frame: The frame is folded rather than welded, making it twice as strong and ensuring a completely smooth, premium touch underfoot.
• Universal Waterproofing: The built-in flange edge integrates flawlessly with Hot-Mop, liquid membranes, sheet membranes, and vinyl waterproofing systems. Includes a bonus waterproofing membrane sheet around the flange.

📦 What's Included in the Box

• Stainless steel channel body & tile-insert grate
• Stainless steel debris basket / hair trap
• Grate puller key
• Waterproofing membrane sheet flange surround
• Step-by-step installation instructions

📋 Technical Specifications & Performance

• Finish: Premium laser-cut electropolish Satin Gold finish.
• Integrity: All drain bodies are fully welded and rigorously leak-tested before dispatch.
• Pre-Sloped Channel: Built-in slope ensures rapid water transit and prevents pooling.
• High Capacity Flow Rate:
  • Installed at the shower entrance: 6.3 GPM (0.4 l/s)
  • Installed against the wall: 9.5 GPM (0.6 l/s)

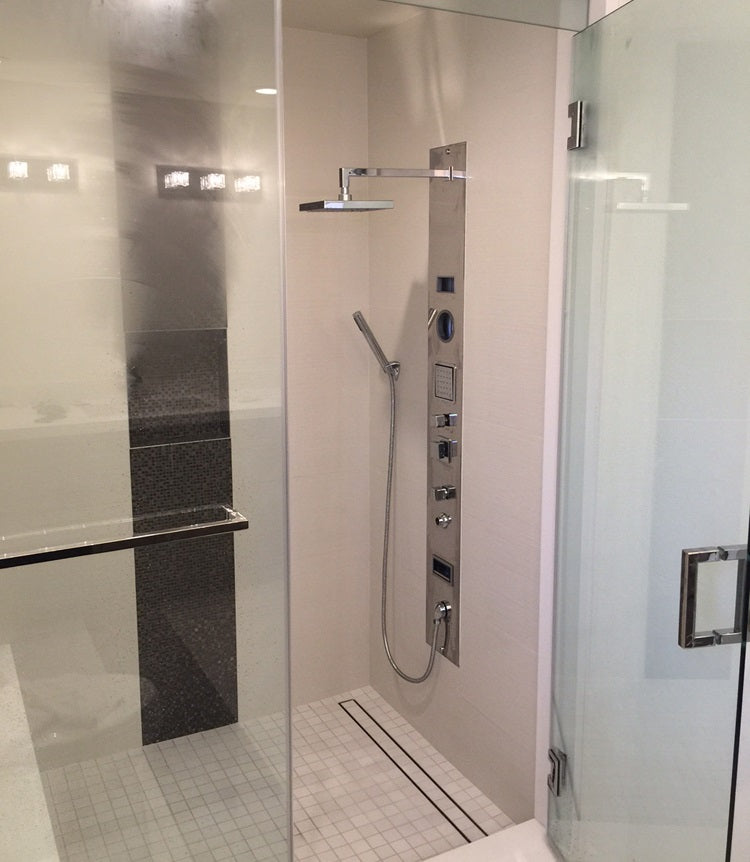

• Versatile Applications: Perfect for residential showers, baths, balconies, upscale hotel rooms, gyms, and spas. Fully ADA-compliant for barrier-free walk-in floor plans and wheelchair access.

🛍️ Store Guarantees & Support

• Availability: In Stock & Ready to Ship.
• Shipping & Returns: 100% Free Shipping. 30-day money-back guarantee.
• Need Parts? We supply plumbing parts and accessories for drains, including ABS, PVC, and Cast Iron drain flanges.
• Contact us directly for bulk contractor and commercial quantity discounts.
