71 Inch Wall Recessed Tile-in Linear Drain, Wall to Wall Flange Design
71-Inch Tile-in Wall Recessed Linear Drain, Unique Wall to Wall Flange Design, Brushed Stainless Steel - Drains Unlimited DUWR Series
Main Features: No-hub coupling Installation, 2-3/8 inches (outside diameter) no hub center outlet, Textured bonding flange for tight waterproof seal, Rust-resistant 14-gauge AISI304 stainless steel and electro-passivated finish.

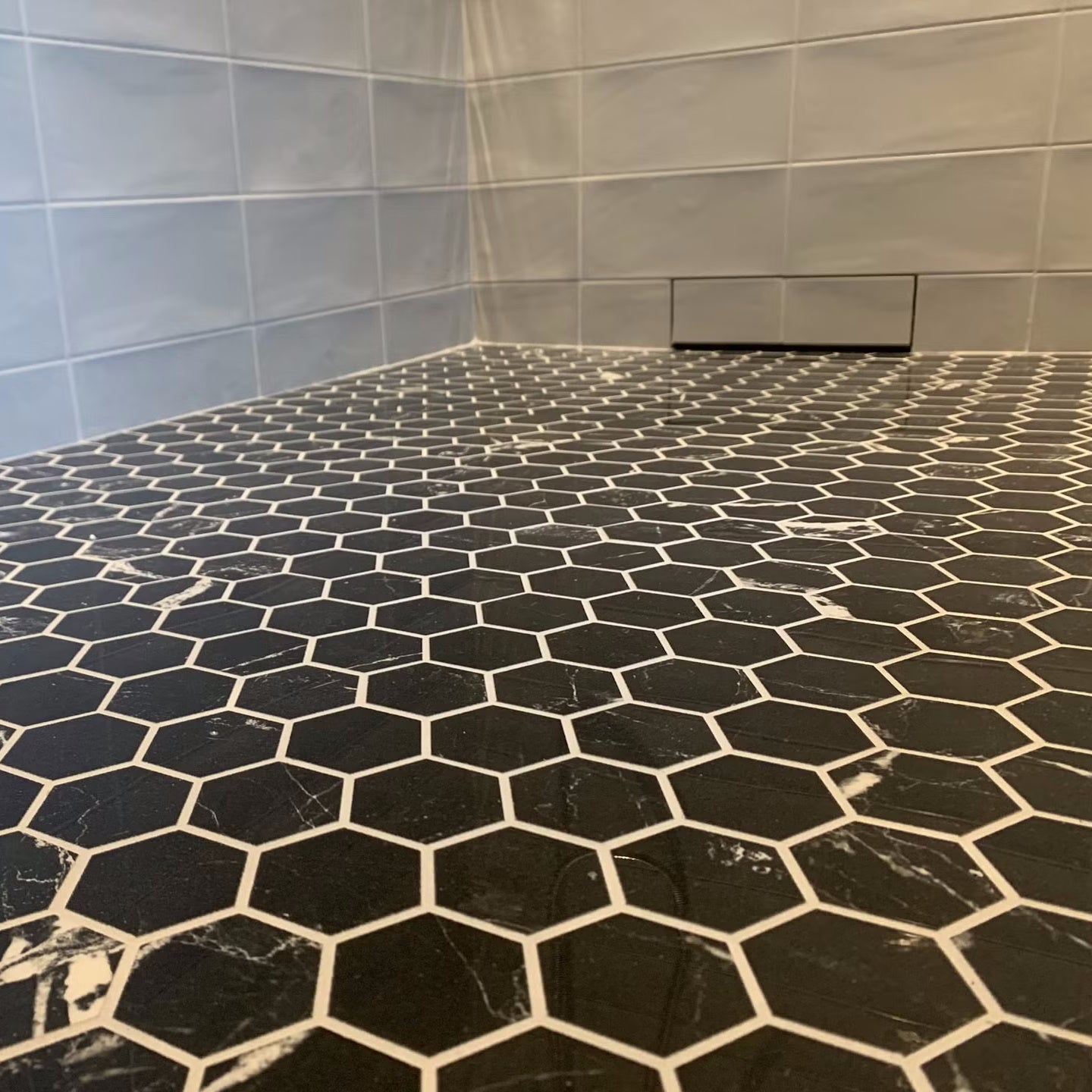

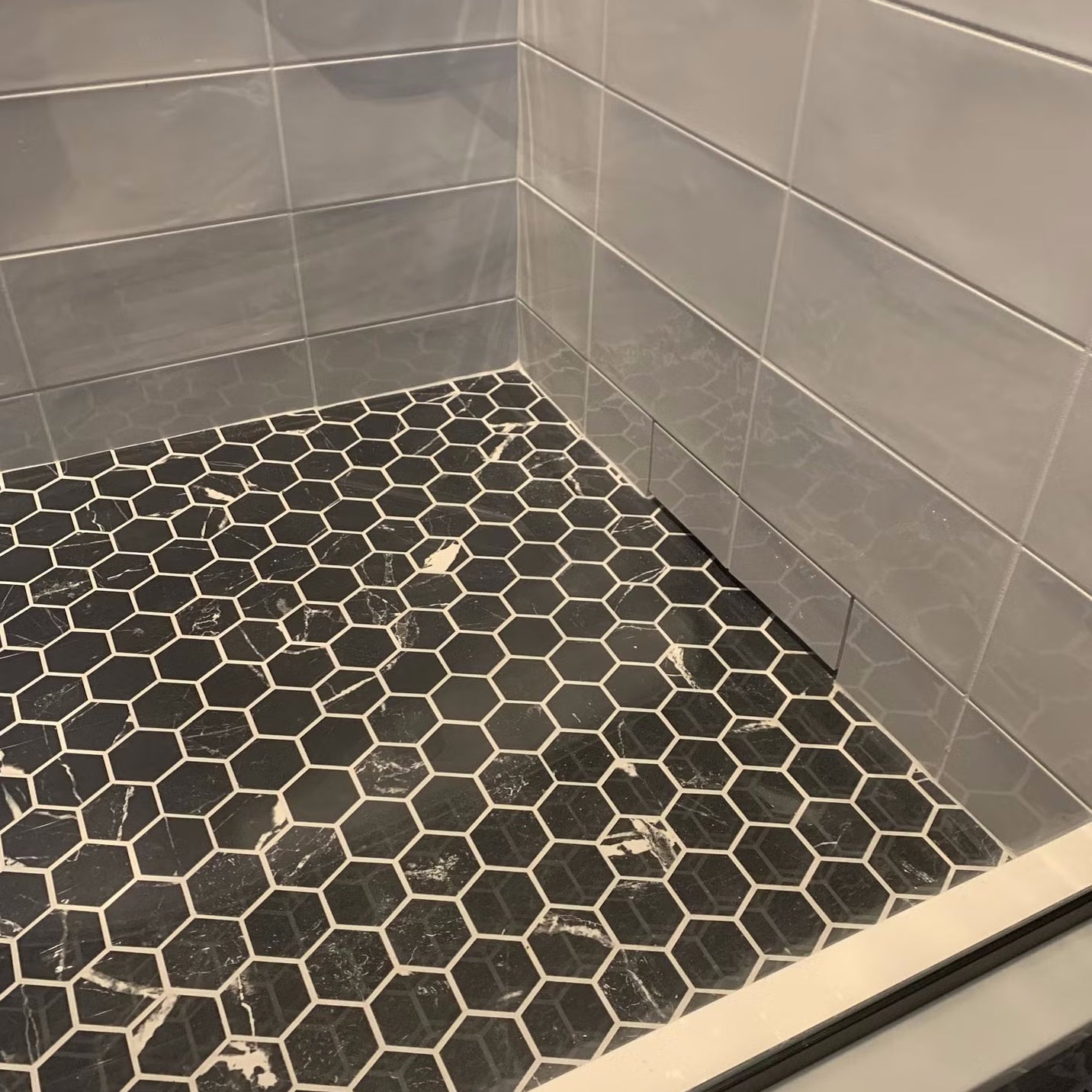

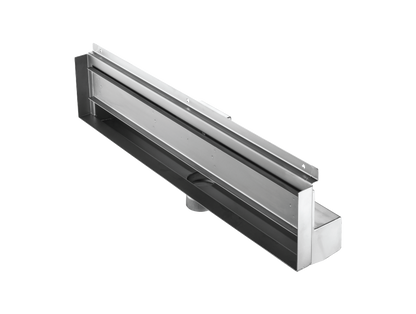

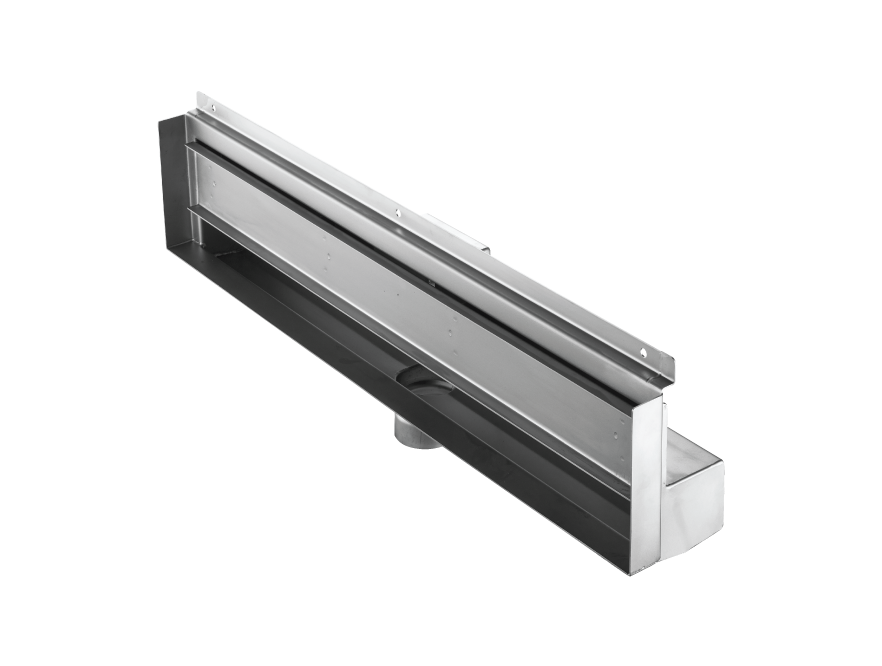

The DUWR wall recessed linear drain is an innovative drainage solution featuring a removable magnetic tile insert grate, that is nearly invisible once installed. Designed for wall mounting, this drain seamlessly blends into its surroundings, enhancing the aesthetic of your shower area.
This Flanged Recessed Linear Drain is uniquely designed for wall-to-wall installation. Additionally, a flangeless recessed linear drain is available for various wall drain installations, particularly suitable for curb and curbless configurations.
Suitable for Tile or Stone Slab Installations:
- Floor Tile: 1/8" - 3/8"
- Floor Slab: 1/2" - 3/4"
Package Includes: Drain body, Grate, Hair Strainer, Puller Key.
Available Sizes: 29", 31", 33", 35", 39", 41", 43", 47", 53", 59", 65", 71".
Features:
Compatible with all major water-resistant adhesive material manufacturers such as Blanke Aqua-Shield, Laticrete, Mapei, and Schluter.
- Available in flangeless (DUW) and wall flange (DUWR) models and for compatibility with tile or stone installation.

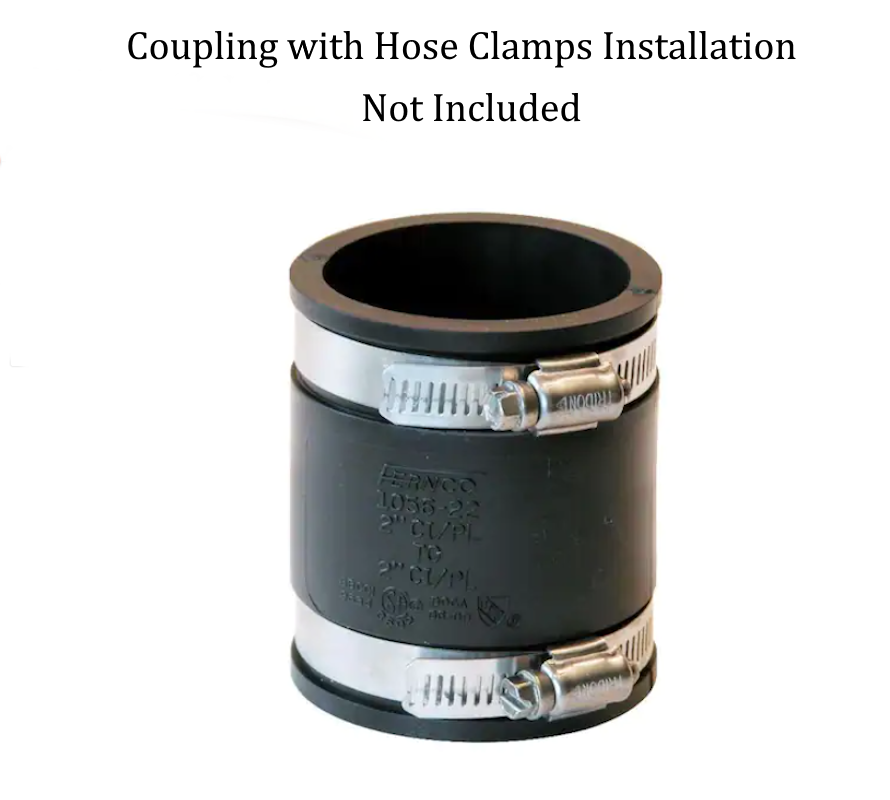

- Coupling with Hose Clamps (not included).
- Constructed from heavy-duty 304 stainless steel.
- Passivated finish for a food-grade, hygienic surface.

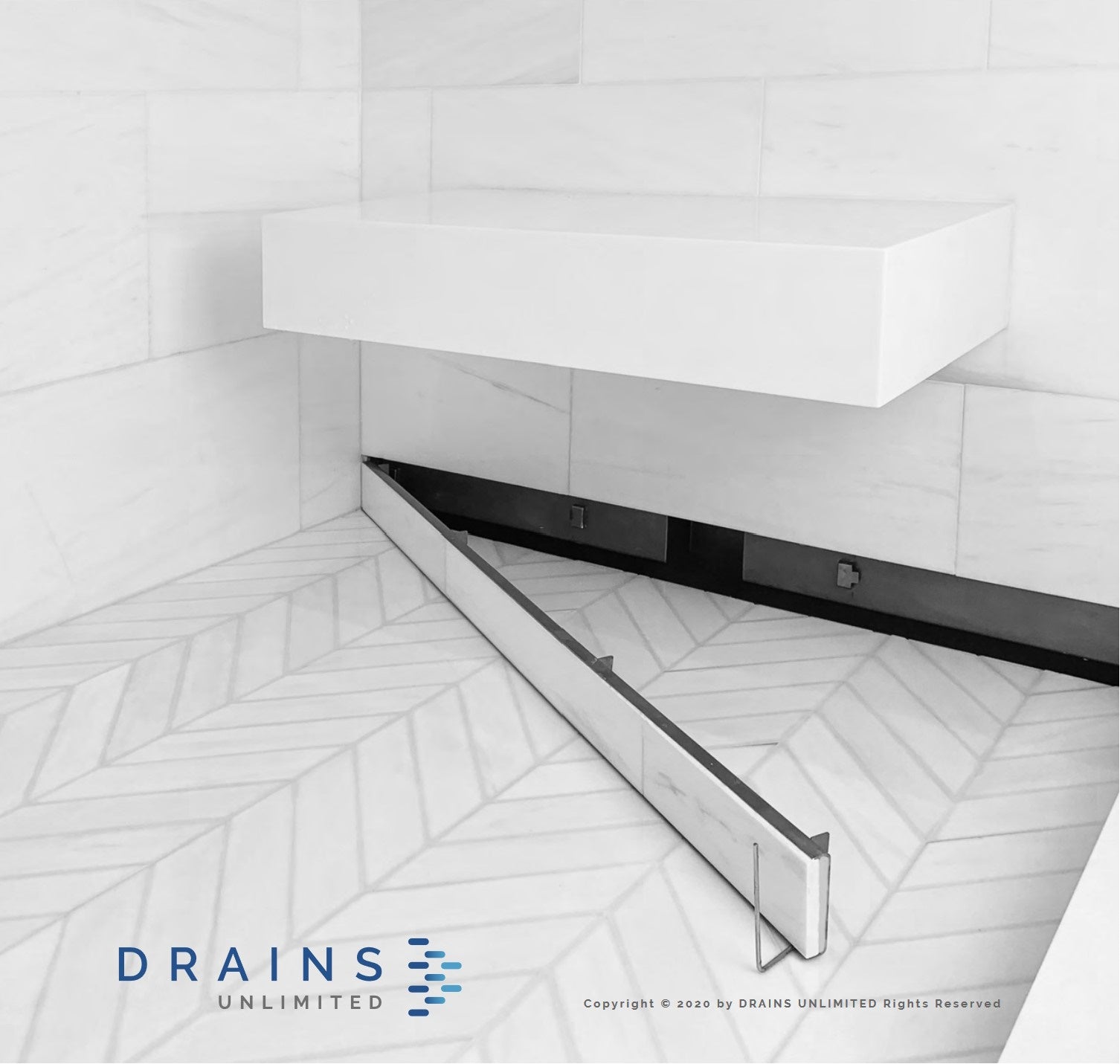

- Can be installed beneath a shower bench for a distinctive aesthetic.
- Magnetic, removable tile inlay grate for easy cleaning.
- Compatible with liquid and fabric waterproofing membranes.
- UPC, CSA, and ASME certified.
- Single slope pitch for efficient drainage.
- Rust-resistant passivated finish.
- Hygienic barrier-free design.
- Easy to clean compared to conventional linear drains.
- Applications: Commercial and Residential.
- Perfect for showers, baths, balconies, hotel rooms, gyms, spas, etc.

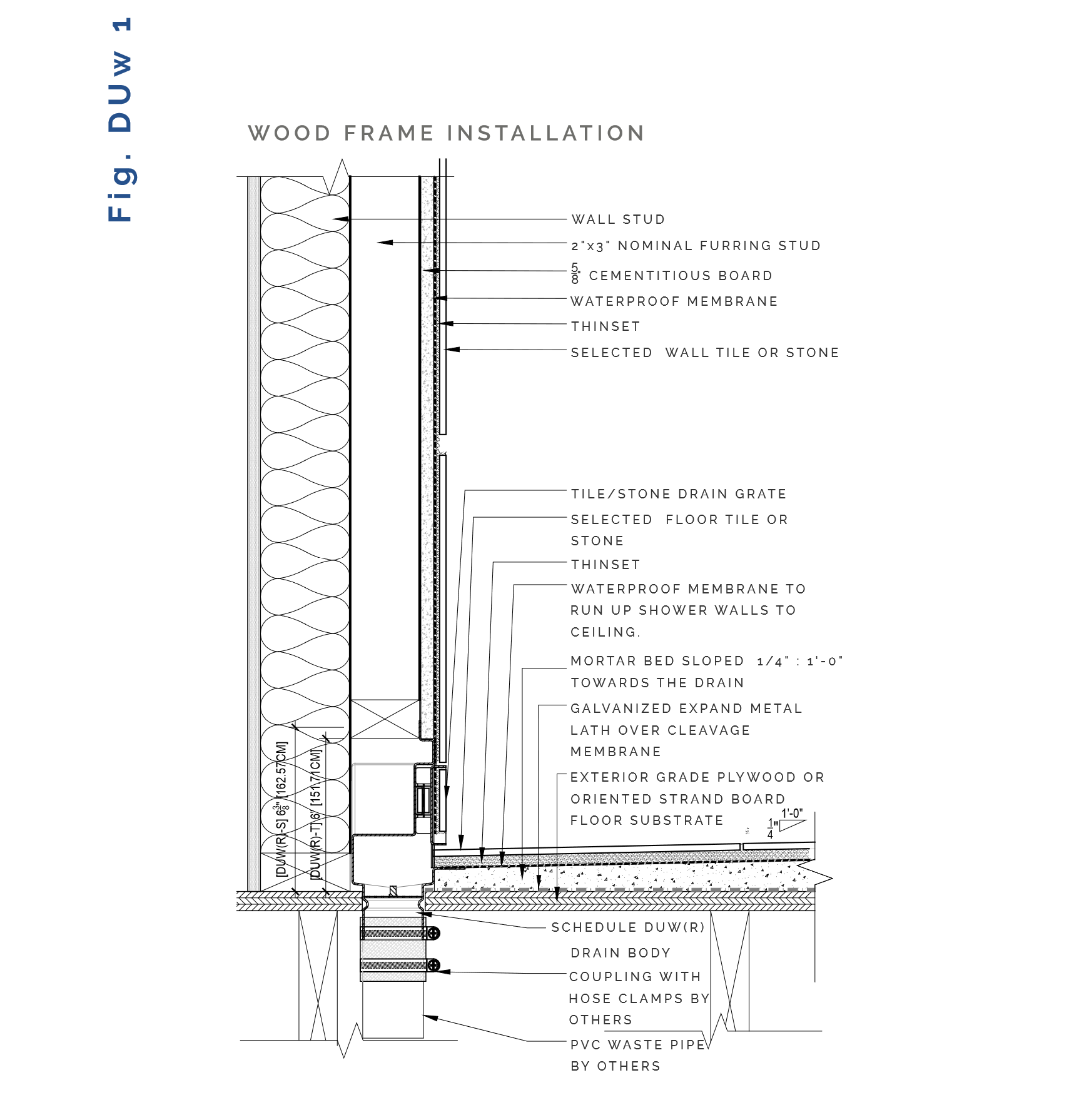

- Suitable Substrates: Concrete, Exterior glue Plywood (Interior only), Cement backer board, Pre-slope foam shower pans.
- DUW Series drains suitable for any single-plane slope shower installation.
