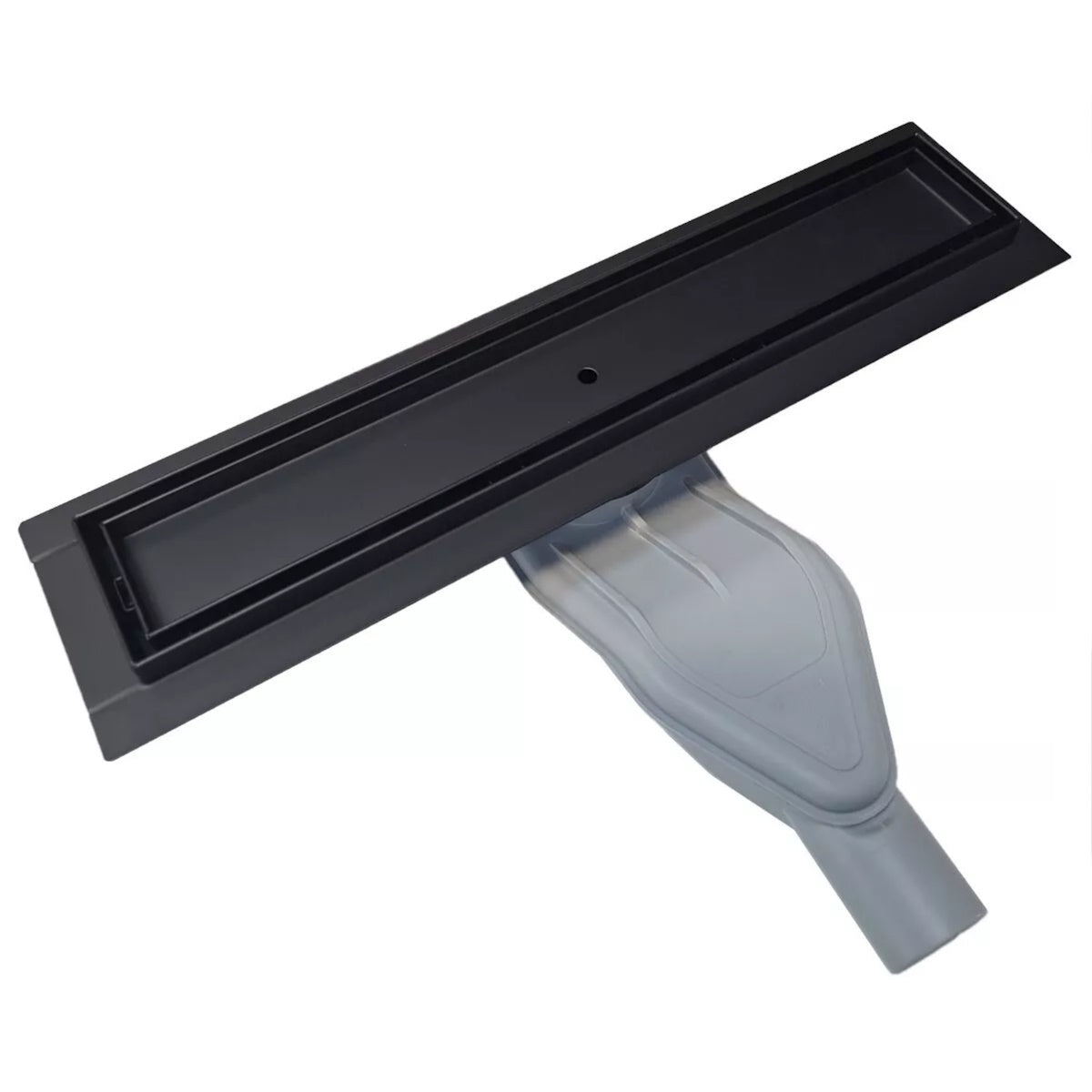

Matte Black Tile Insert Linear Drains with Horizontal Side Outlet Discharge Converter

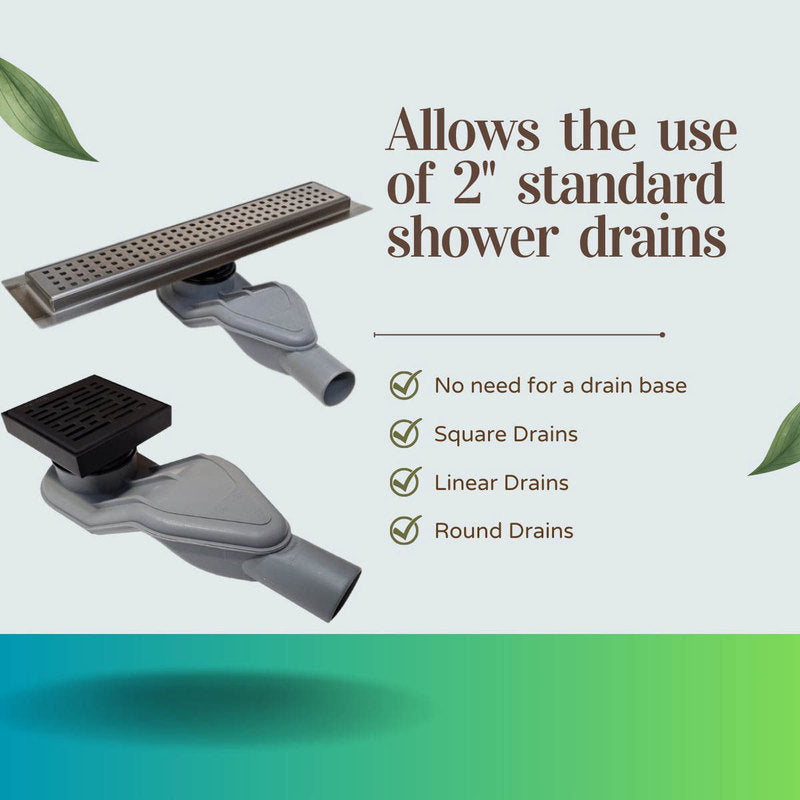

Relocating a shower drain can be costly and require major demolition. Our horizontal drain outlet eliminates the need for re-coring concrete by allowing connection to existing plumbing away from the drain location - reducing mess, labor, and overall cost.

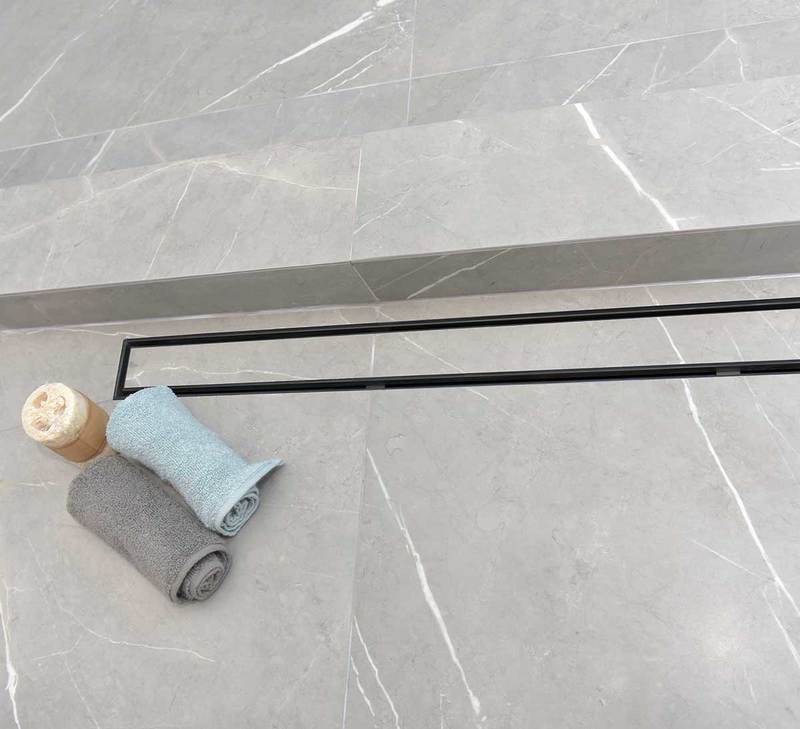

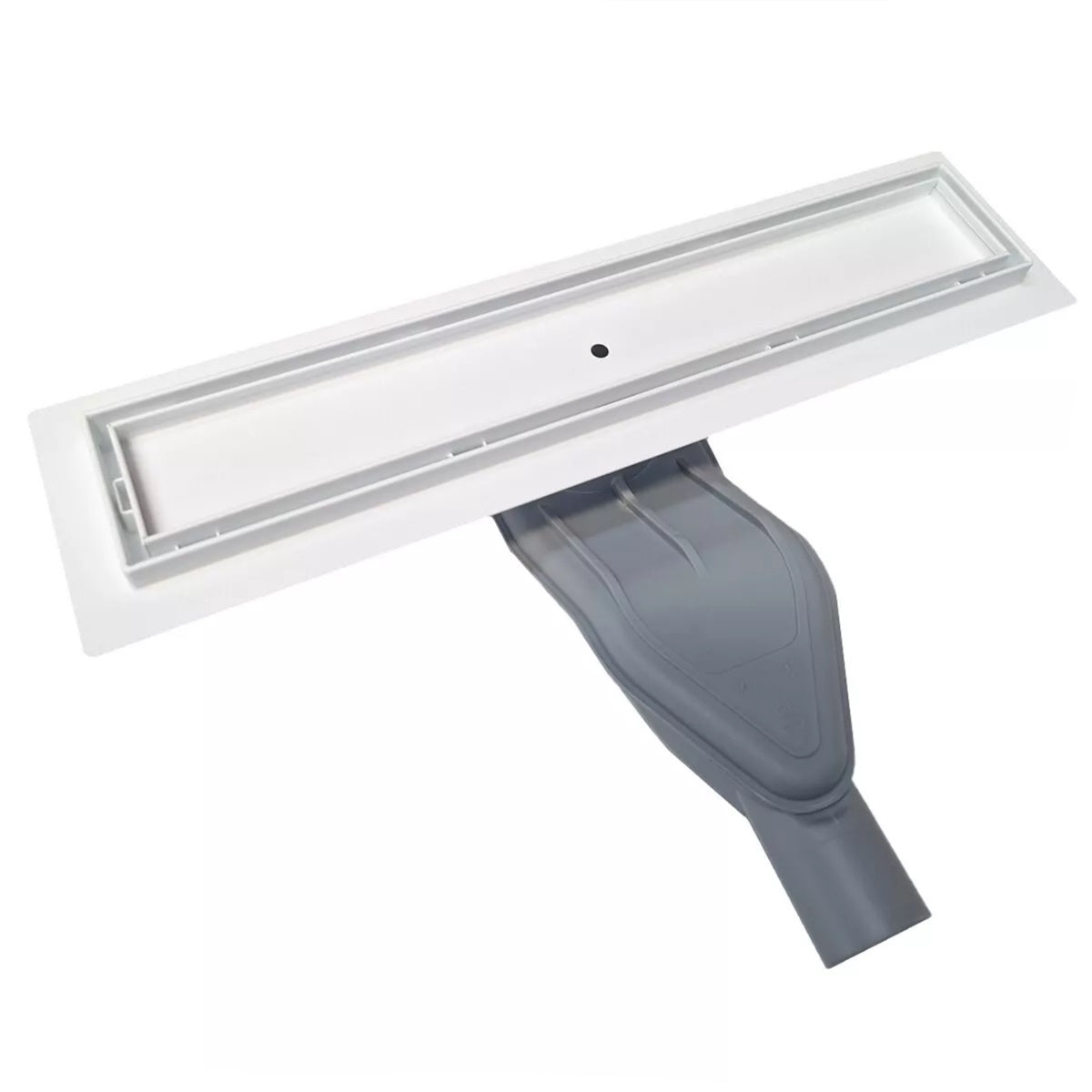

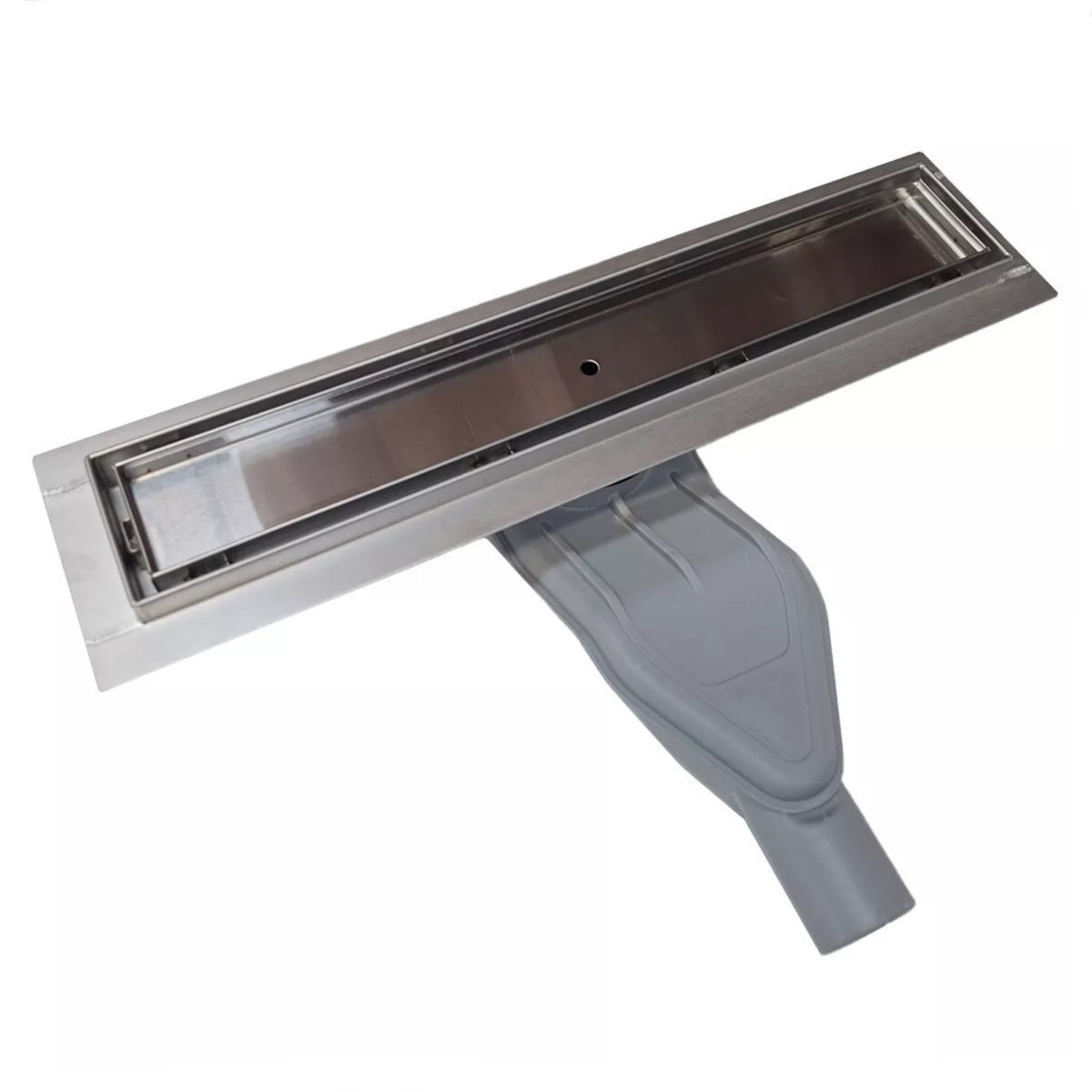

Opt for a contemporary shower look with a tile insert linear drain. Also known as infinity drains or tile-in linear drains, they blend seamlessly with the surrounding tile for a sleek and functional design.

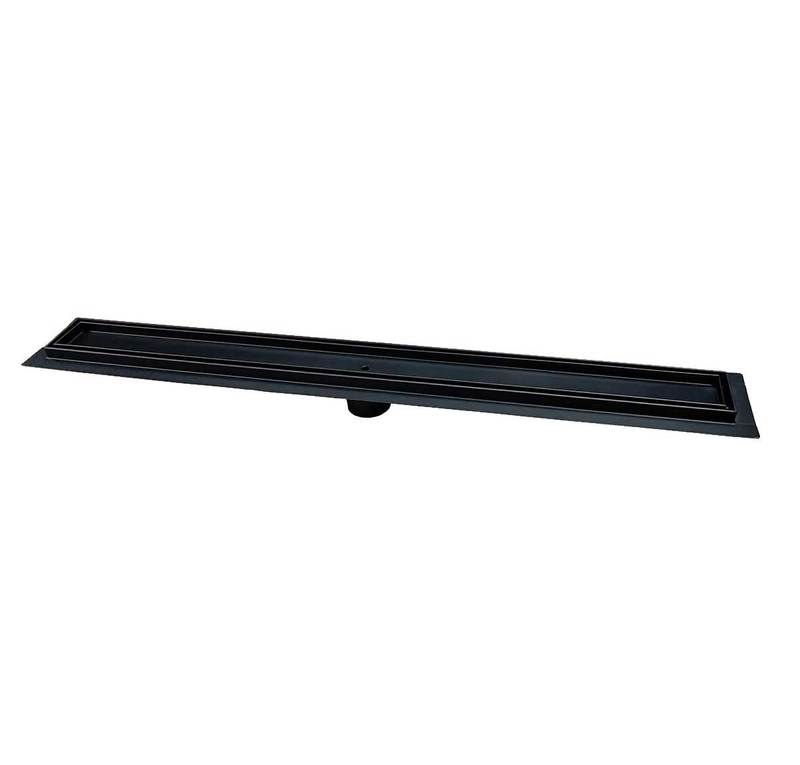

SereneDrains tile insert drains boast a smart design that ensures effortless installation. The flange body edge design allows you to rest the flange on the floor edge, making installation easy with all types of waterproofing: hot mop, liquid membranes, sheet membrane, etc. Also featuring a pre-slope channel with a width of 2 3/4" (70 mm) for optimal water drainage and crafted from durable 16-gauge 304 stainless steel, these drains offer both durability and a modern design for a superior shower experience.

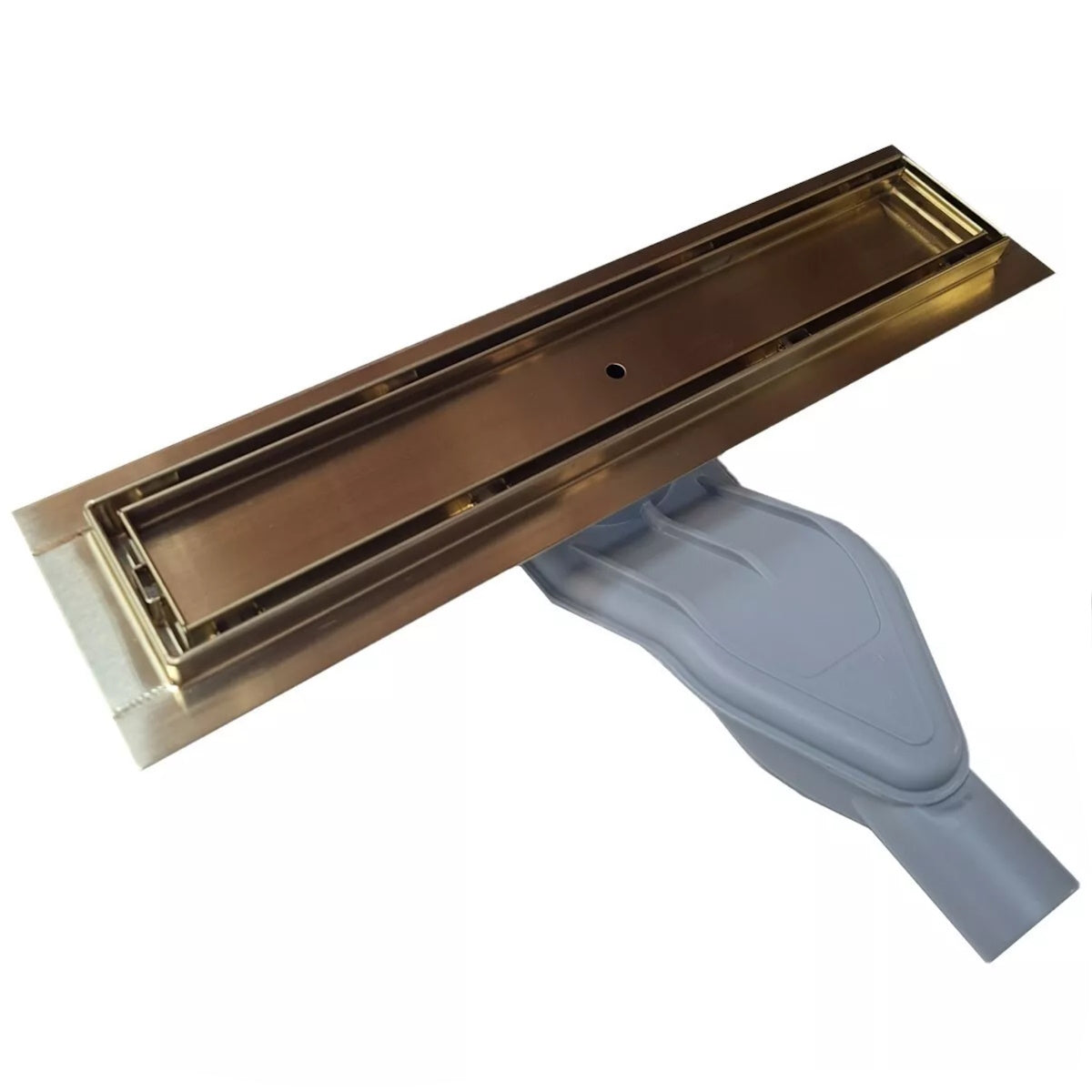

Available in Matte Black, Satin Gold, Brushed Nickel, and Matte White.

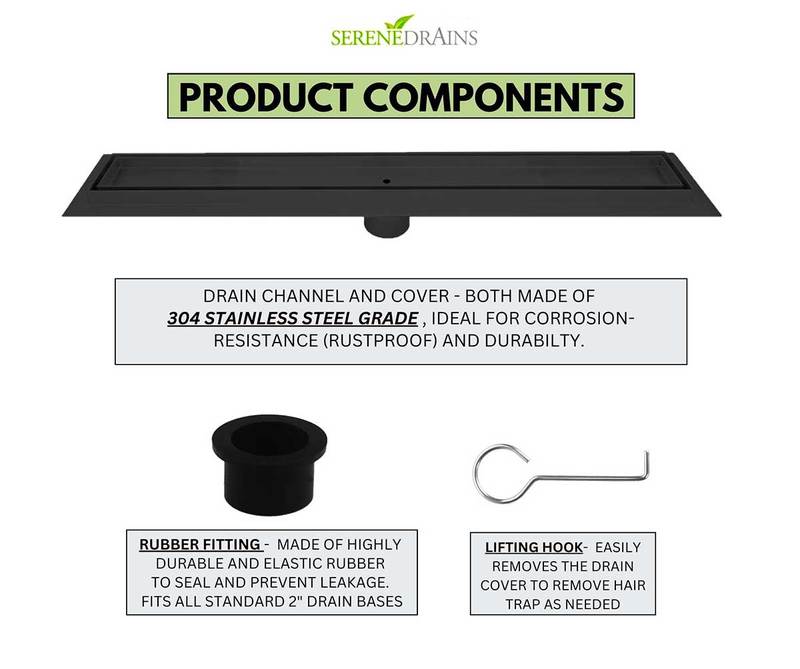

Includes: Stainless steel channel body and grate cover, puller key, hair trap, waterproofing membrane sheet, and installation instructions.

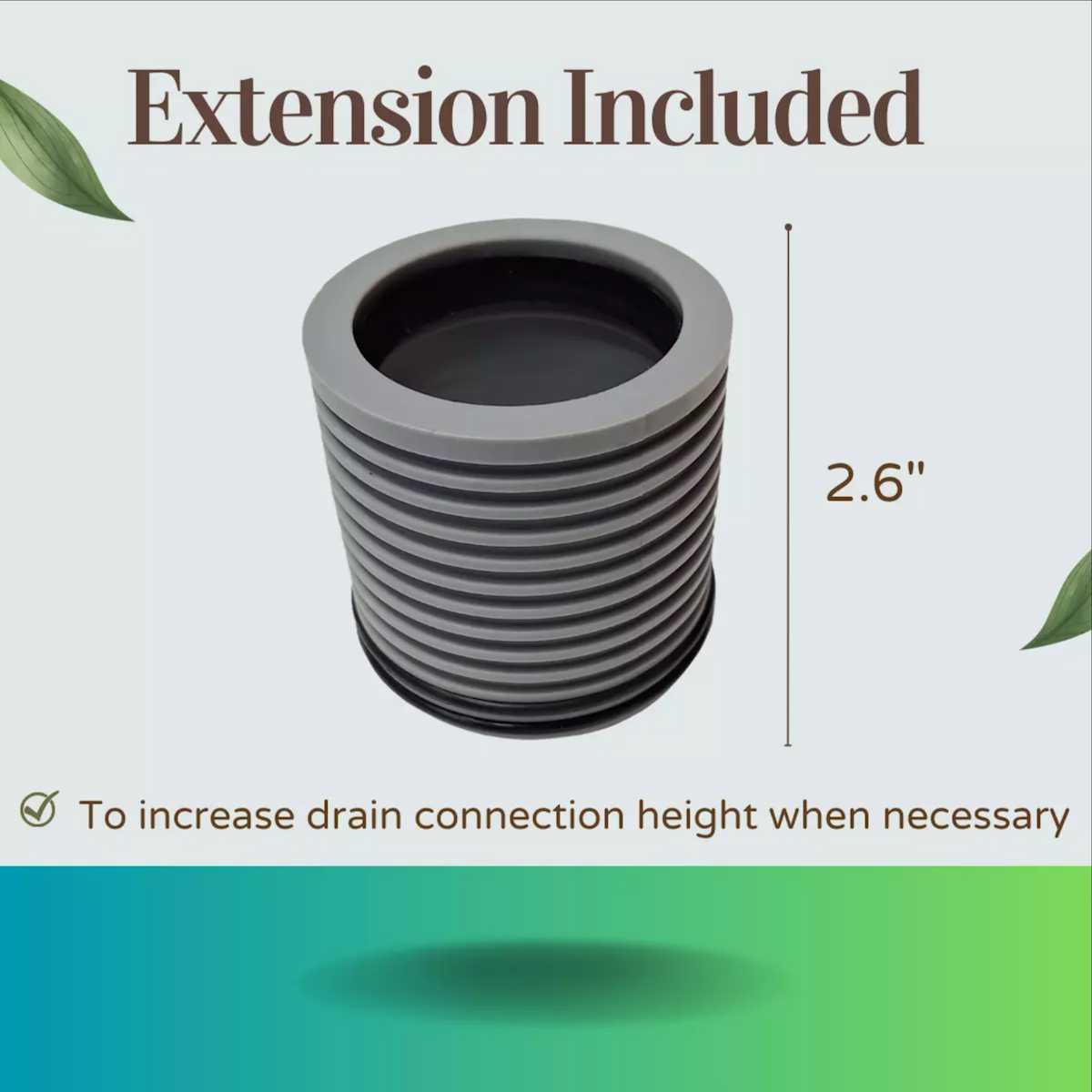

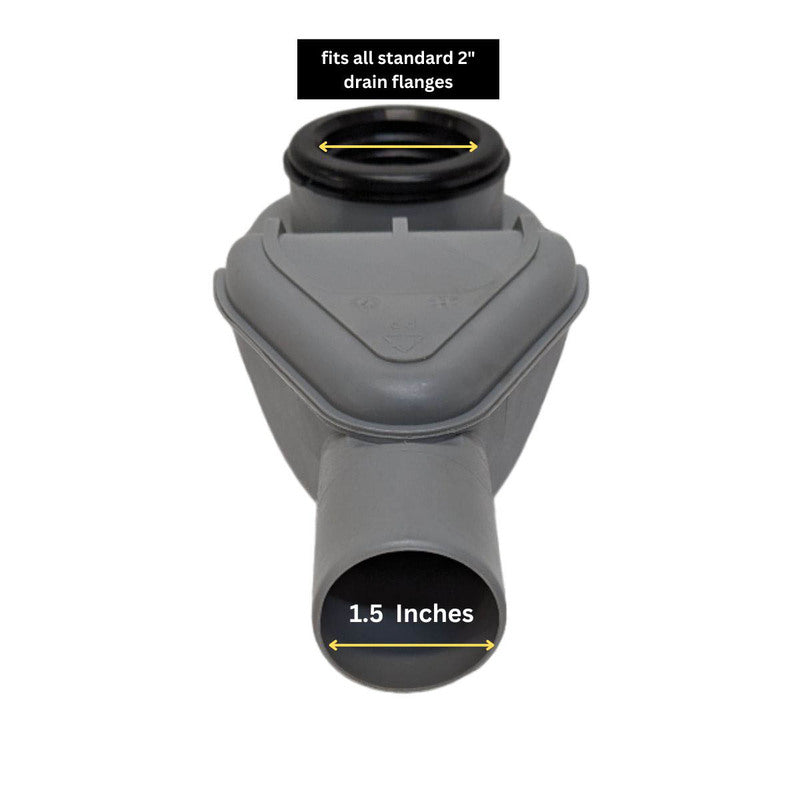

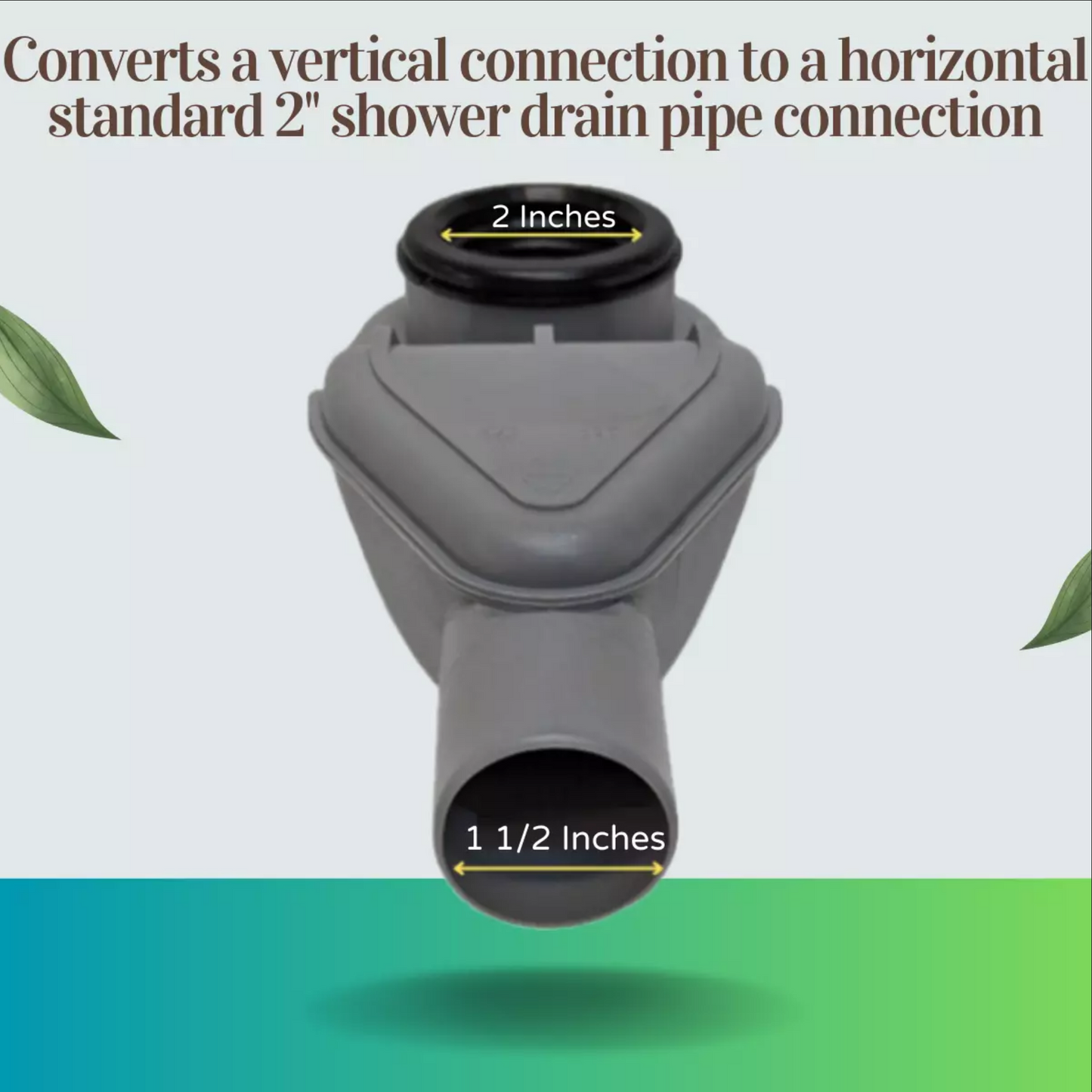

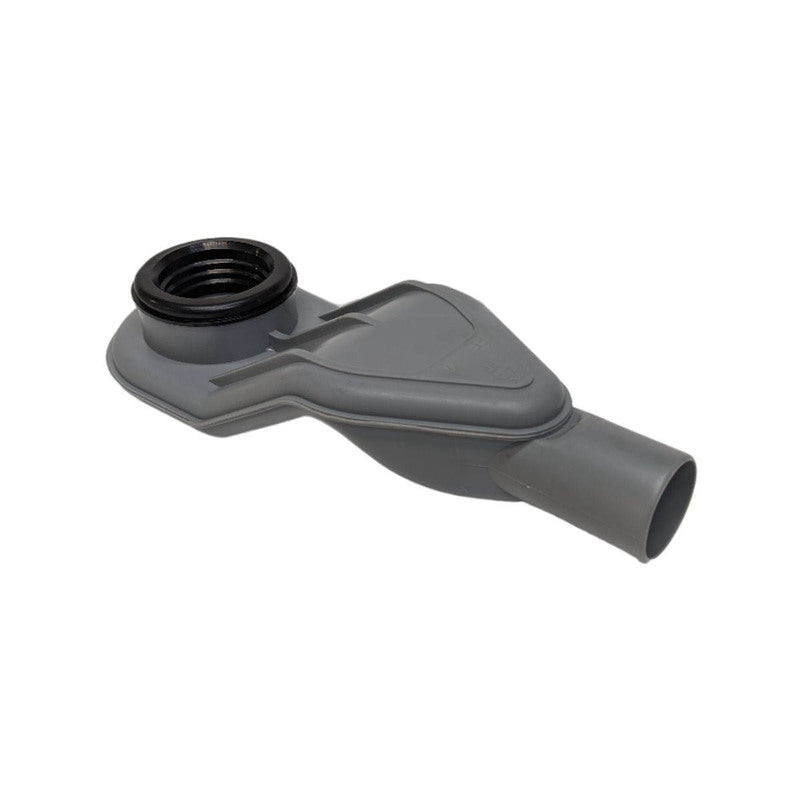

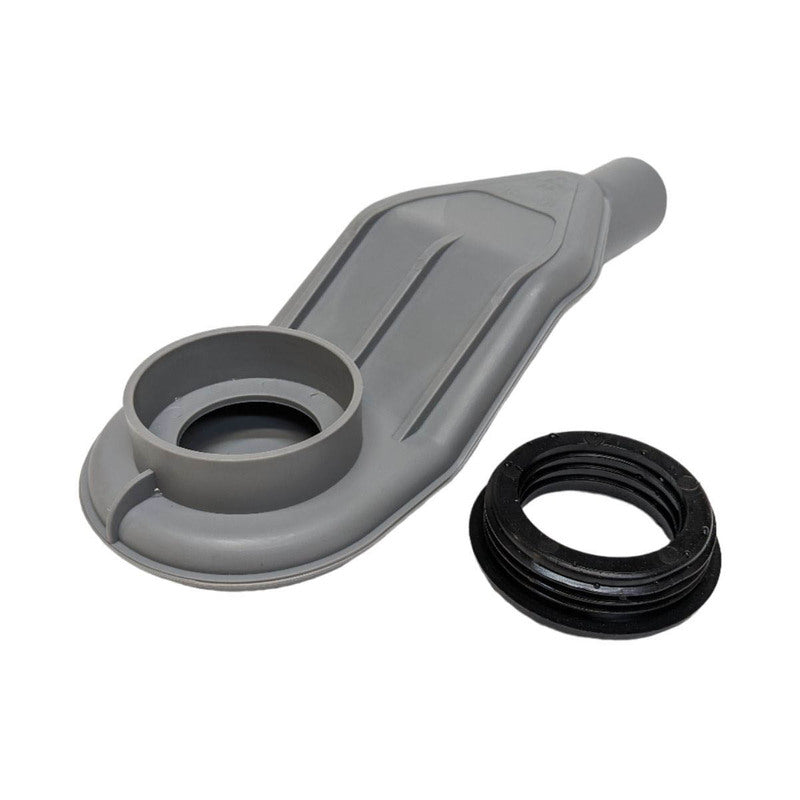

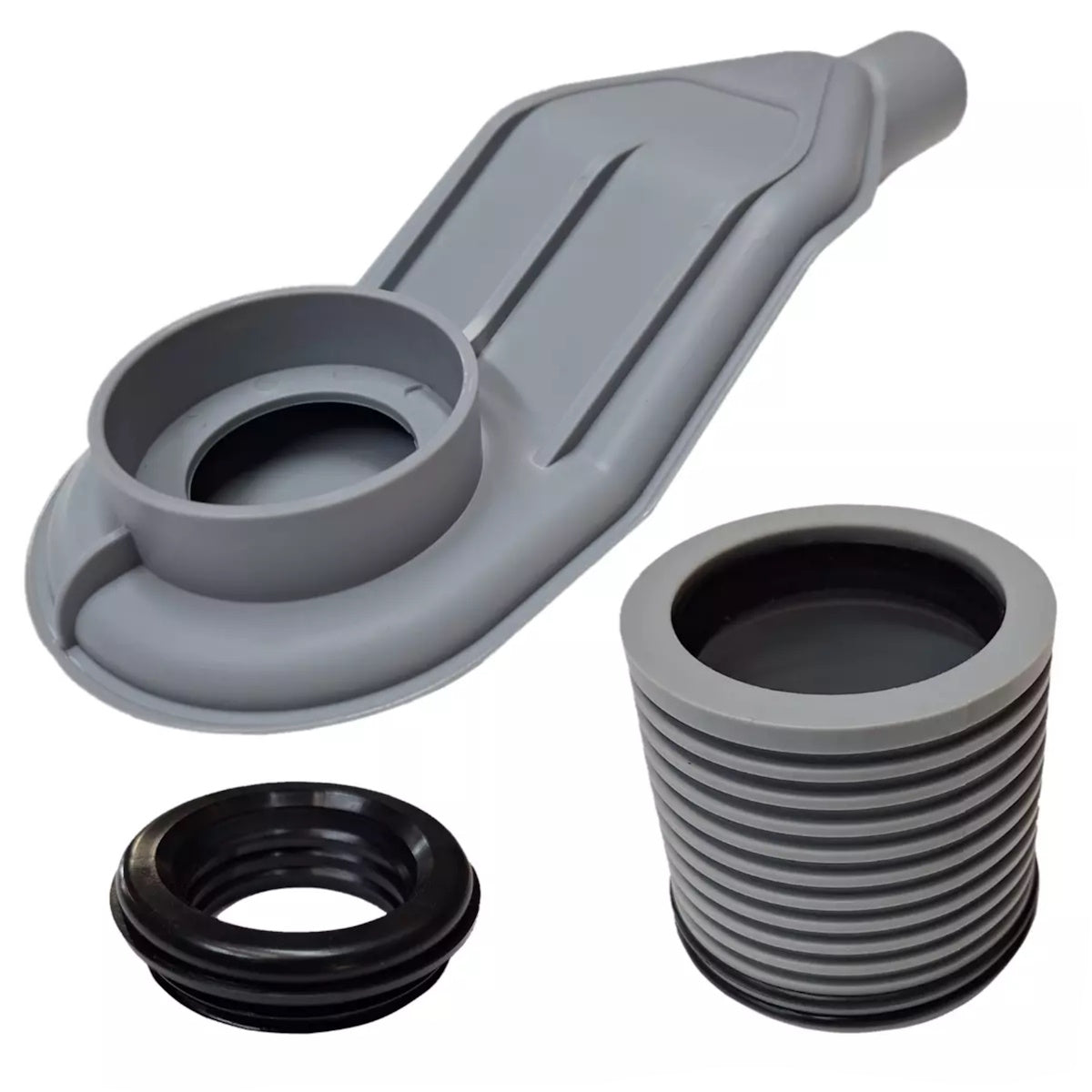

Side Outlet Converter Includes: Base discharge, rubber fitting, and adapter for connecting the drain’s 1.5" outlet to a standard 2" plumbing pipe. An extension fitting is also available to increase the drain connection height if needed.

Value: Save $40.99 when you purchase this bundle.

In Stock Ready To Ship - Free Shipping

Drain Features:

• 16 gauge 304 stainless steel Matte Black finish.
• Superior quality laser cut electro-polish finish.
• Bodies are fully welded and leak tested prior to dispatch.
• 2 Inch diameter central vertical outlet.
• Designed to be installed into any 2" shower drain flange.
• Compatible with tiles up to 10mm depth (14mm lip).
• Sized to match standard 1/2", 1", 2, and 4" tile without cutting.
• Pre-Slope channel. Channel width: 2 3/4" (70 mm).

• Flow rate: at entrance of shower - 6.3GPM (0.4 l/s); against the wall - 9.5GPM (0.6 l/s).
• Flange body edge designed for use with all types of waterproofing: hot mop, painted or liquid membranes, sheet membrane, vinyl waterproofing etc.

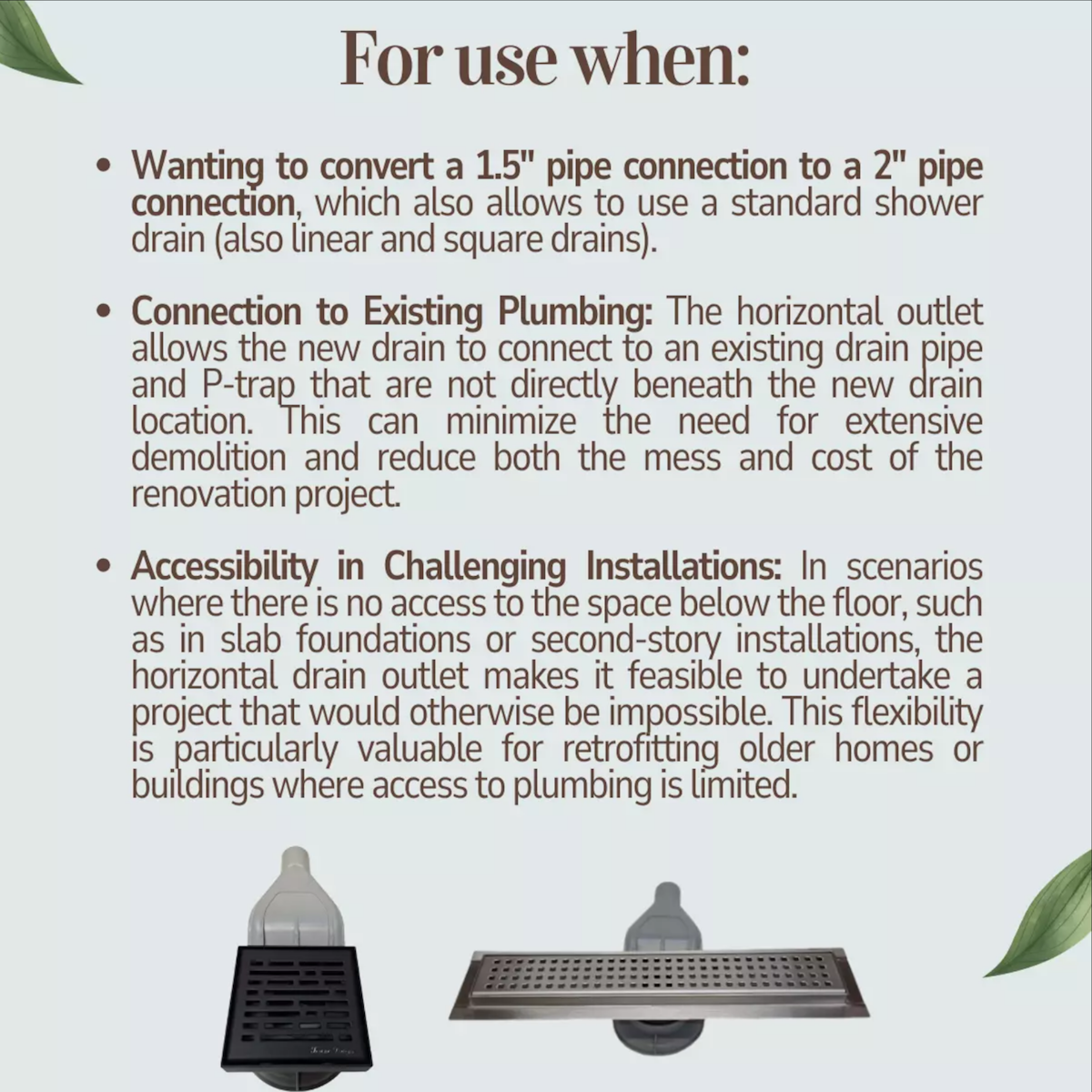

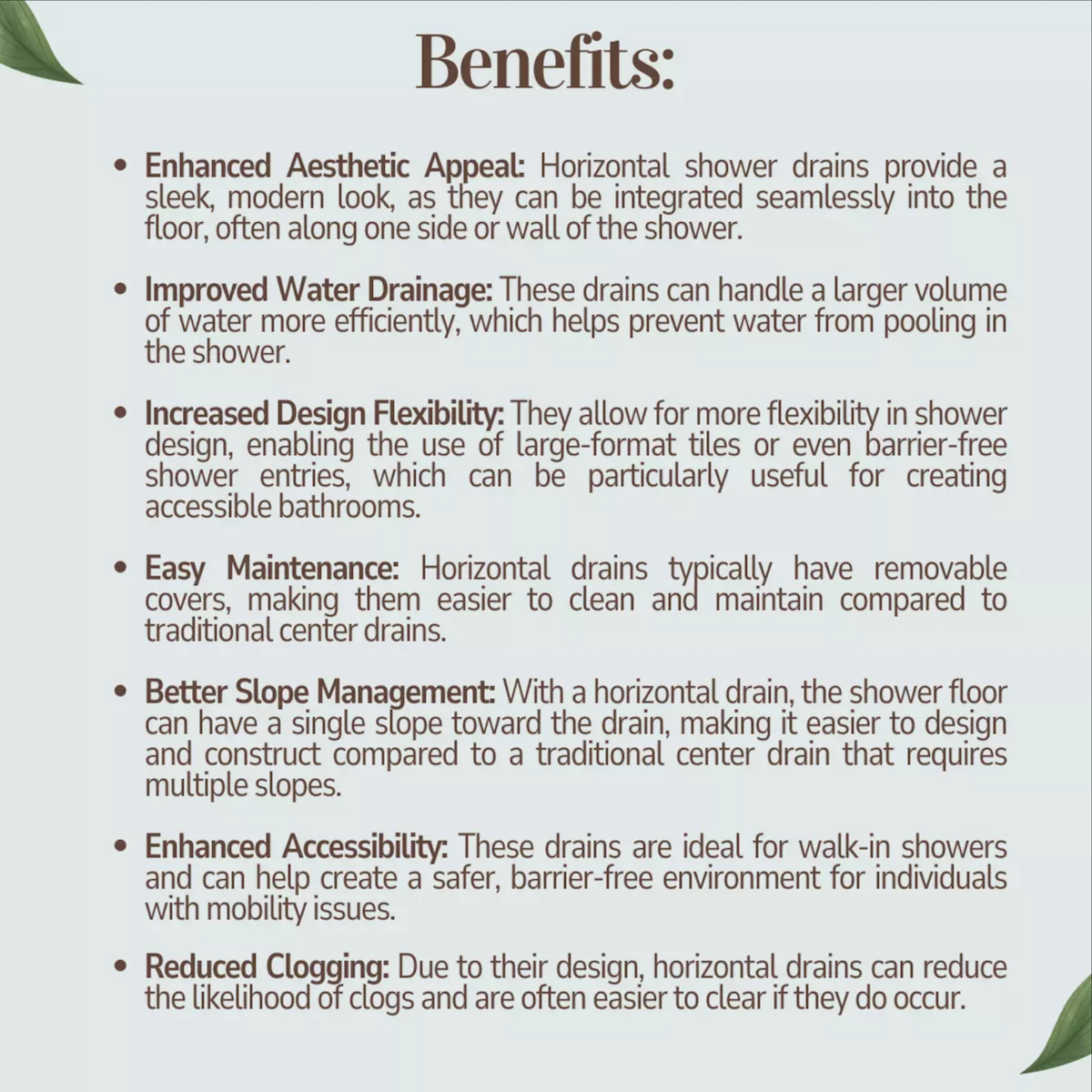

Advantages of Horizontal Side Discharge Outlet Shower Drains

• Space Efficiency: Perfect for bathrooms with limited floor thickness, such as in older homes or buildings with shallow floor cavities.
• Flexible Plumbing: Simplifies connections to existing horizontal plumbing, reducing the need for extensive modifications.
• Improved Water Drainage: Efficiently handles a larger volume of water, preventing pooling.
• Better Slope Management: Allows the shower floor to have a single slope toward the drain, simplifying design and construction.
• Enhanced Accessibility: Ideal for walk-in showers and barrier-free environments.
• Reduced Clogging: Designed to minimize the likelihood of clogs and make them easier to clear.
