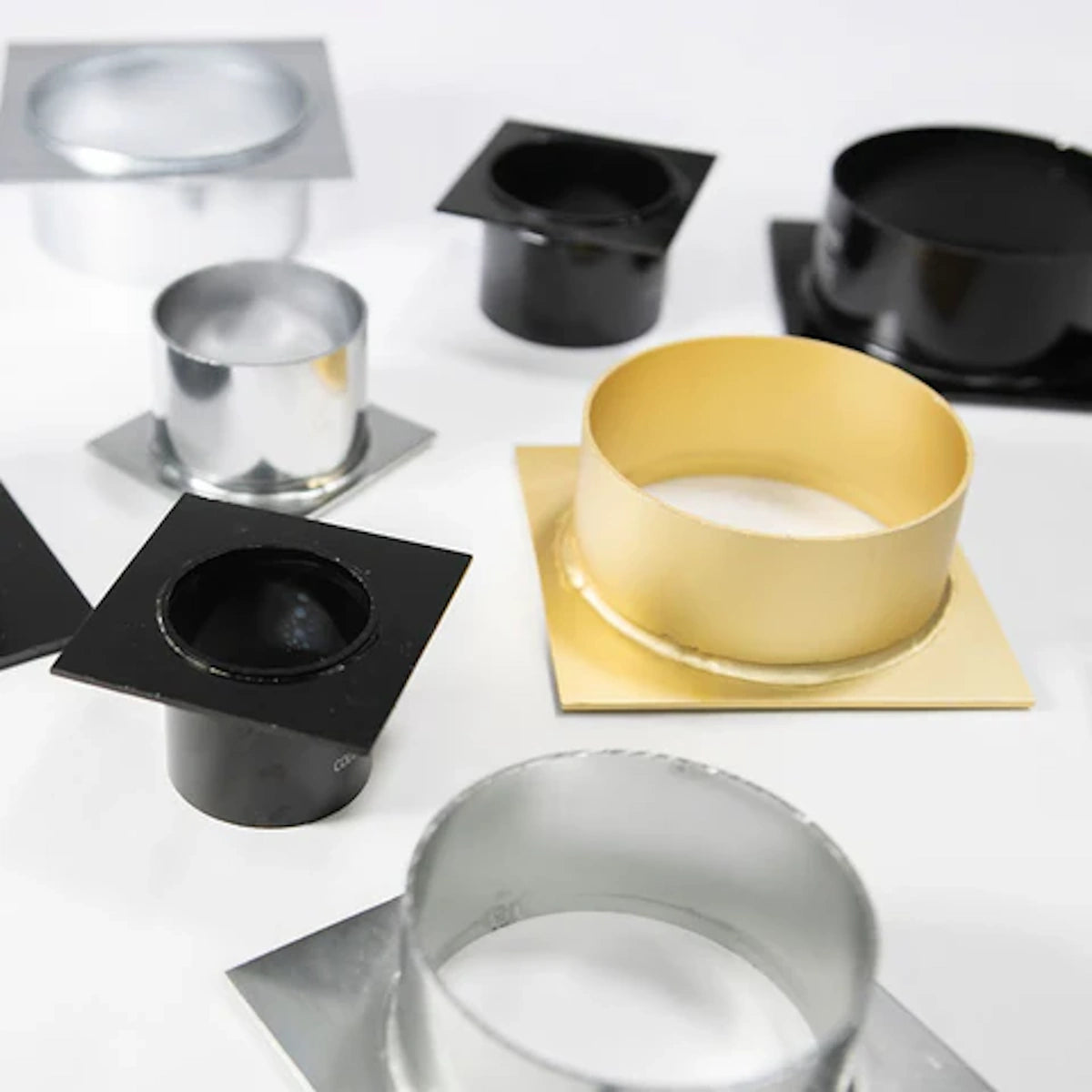

Drain Outlets for Lauxes Grates Custom Length Linear Shower Drains

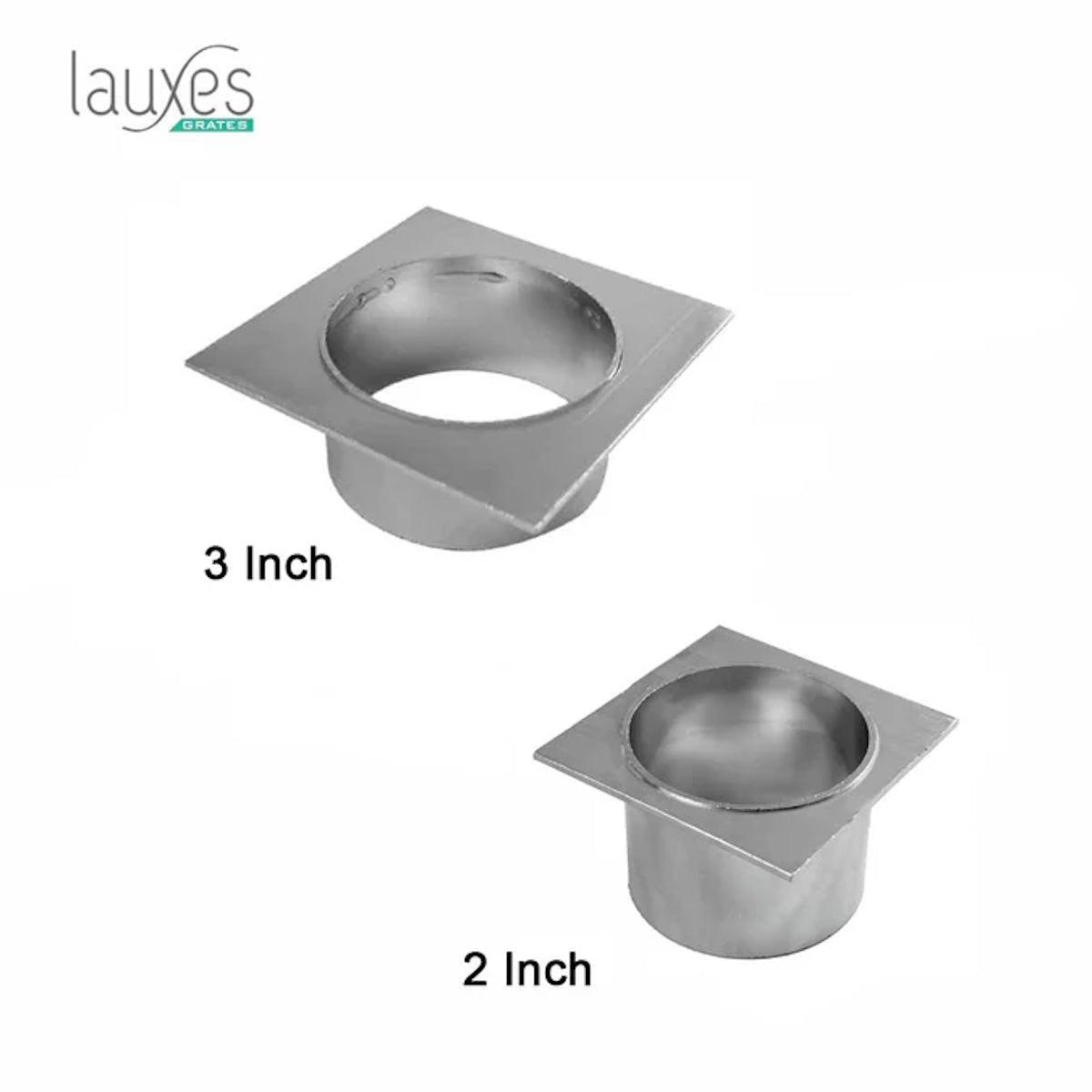

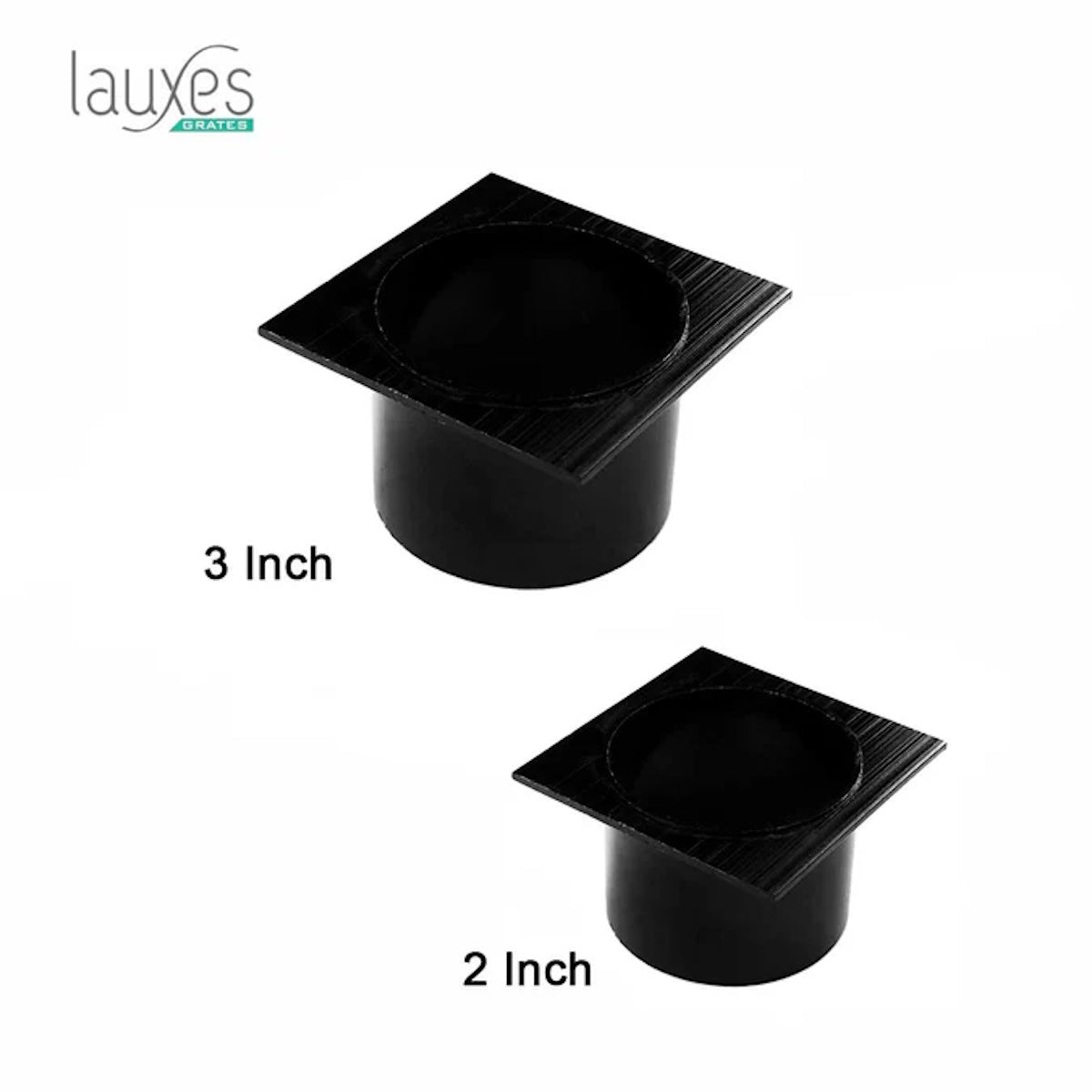

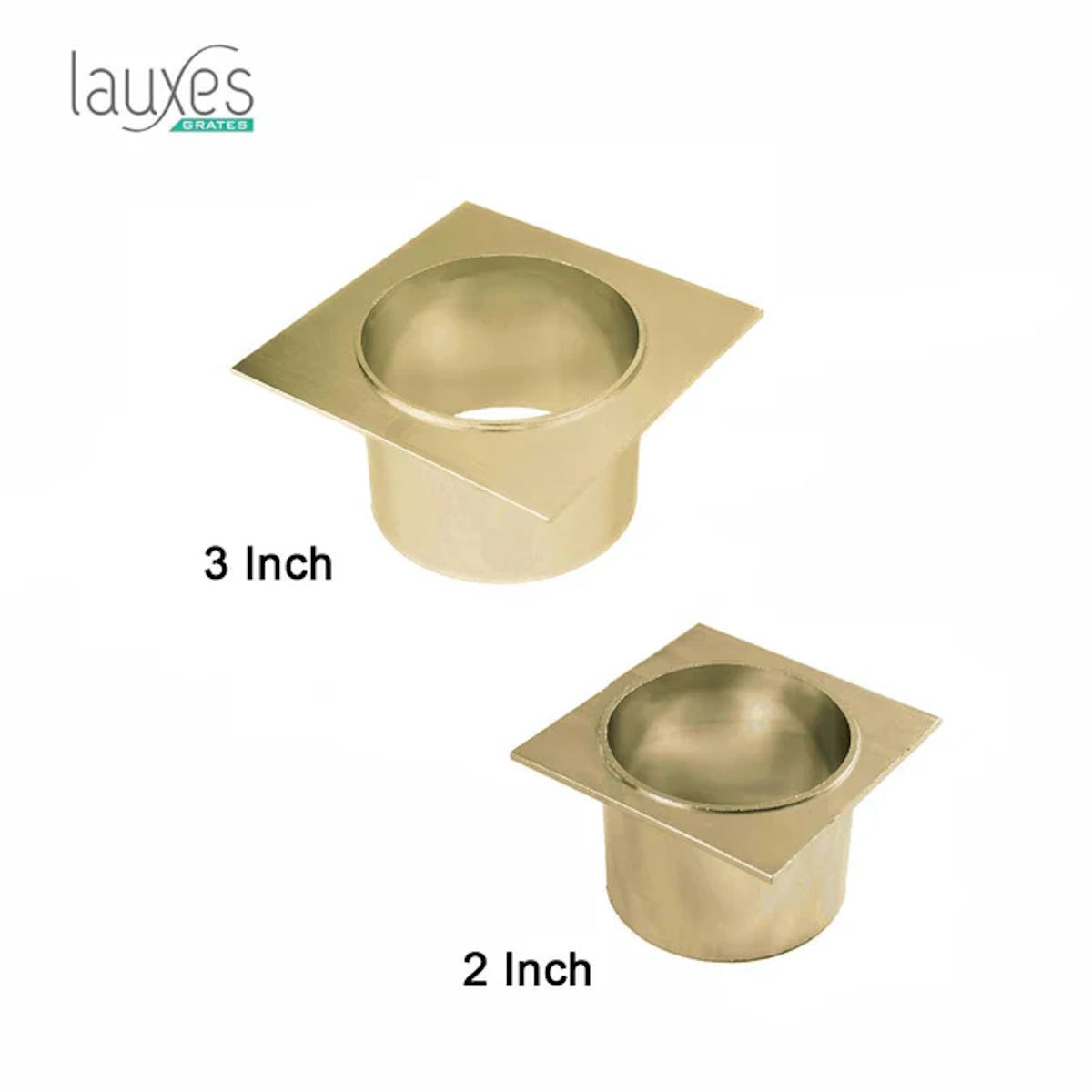

Available Outlet Sizes: 2" and 3"
Drain Colors Available: Silk Silver, Midnight Black, Matte Gold
Material: Anodized Aluminum

Note: Only order together with one of our Lauxes Grates Custom Linear Shower Drains.

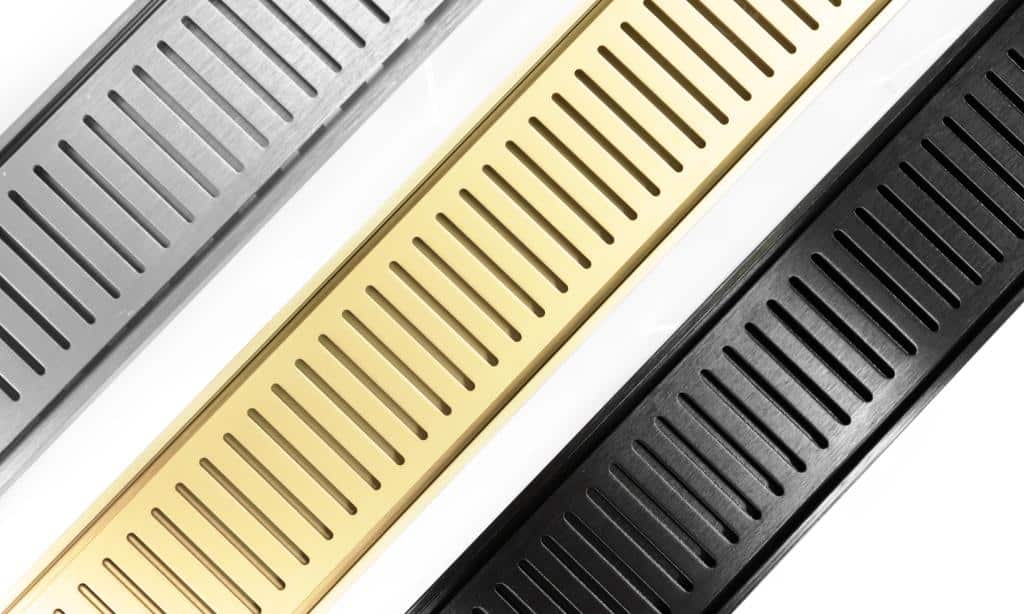

If you need a custom linear drain with a 3" outlet or a side outlet design that allows you to position the outlet anywhere along the drain, we offer the ideal solution. Our Lauxes Grates Custom Linear Drains are rustproof, durable, easy to install, and built for maximum flexibility in any shower layout. They come in lengths from 1 foot to 8 feet, or you can order any custom size by the inch. For drains longer than 95 inches, multiple shorter sections will be shipped and joined together on-site using connectors during installation.

Also available: 2-inch and 3-inch Carbide Tip Hole Saws for Lauxes Grates and Custom Linear Shower Drains

Ensure the outlet size meets regulatory state requirements before installing.
Made from anodized aluminum and backed by our Lifetime Rustproof Warranty.

Cutting Instructions and Installation

For ease of cutting Lauxes grates, we recommend using a compound miter saw fitted with a multi-material cutting blade (80 tooth or more). We also recommend using a Lauxes TCT hole saw to drill the hole for the waste outlet.

1. Cut the bottom tray 1/8” (3mm) shorter than the desired length to allow end caps to be fitted.
2. Cut the top grate 1/32” (1mm) shorter than the bottom tray to allow for easy roll-in of the top grate and a tidy fit.
3. Using a suitable size Lauxes hole saw for your waste outlet, drill out the hole at the required position to align with the waste pipe in the floor.
4. Insert the end caps into the bottom tray and secure with a bead of silicone on the outside of the tray.
5. Place silicone around the lip of the waste outlet and secure it to the underside of the bottom tray at the recently drilled hole.

* During installation, use a template to ensure the grate does not come in contact with any wet cement-based products.
** Regular, gentle cleaning with soapy water is recommended. Do not use abrasive cloths or acidic chemicals.
*** When gluing tile, use a neutral cure silicone.

Warranty

Lauxes grates are carefully designed and manufactured to the highest standard with meticulous attention to detail. It is because of this care that we stand behind your recently purchased unique, cost-effective, and rust-proof product.

Damages arising from improper, insufficient, or negligent care — or installation not in accordance with AS/NZS 3500.2 or manufacturer specifications — will void the product warranty.

If at any time the product develops any defect, Lauxes Grates agrees to correct the defect(s) without charge to the registered purchaser. This guarantee does not cover repairs necessitated by normal wear, misuse, accidental damage, or damage resulting from temperature changes.

Note: Lauxes Grates products do not form part of the waterproofing.
All Lauxes grates and accessories hold UPC Certification.

In Stock – Ships Same Day
