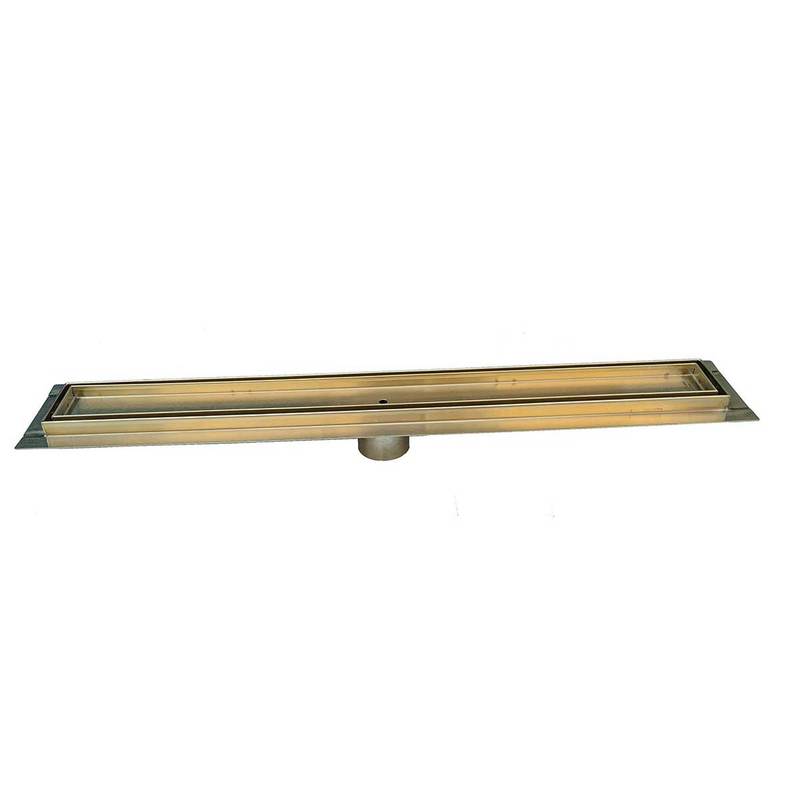

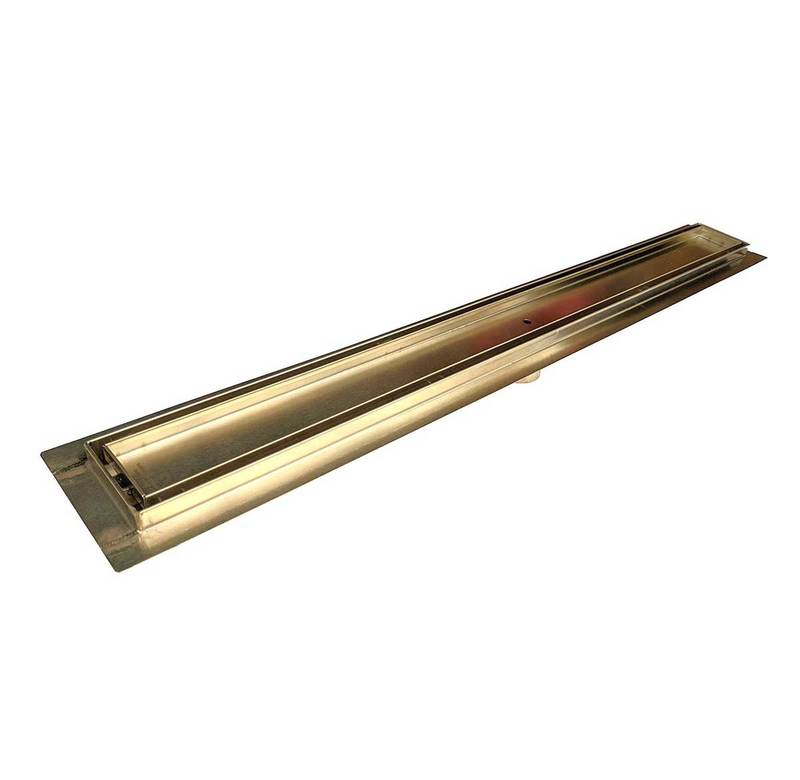

Horizontal Side Outlet Discharge Converter with Gold Tile Insert Linear Shower Drain

If you need a solution for shower plumbing and relocating a drain can be expensive or require breaking concrete, our horizontal side outlet converter is the answer. It lets you connect to existing plumbing away from the new drain location, reducing demolition, mess, and overall costs.

Opt for a contemporary shower look with a tile insert linear drain. Also known as infinity drains or tile-in linear drains, they blend seamlessly with the surrounding tile for a sleek and functional design.

SereneDrains tile insert drains boast a smart design that ensures effortless installation. The flange body edge design allows you to rest the flange on the floor edge, making installation easy with all types of waterproofing: hot mop, liquid membranes, sheet membrane, etc. Also featuring a pre-slope channel with a width of 2 3/4" (70 mm) for optimal water drainage and crafted from durable 16-gauge 304 stainless steel, these drains offer both durability and a modern design for a superior shower experience.

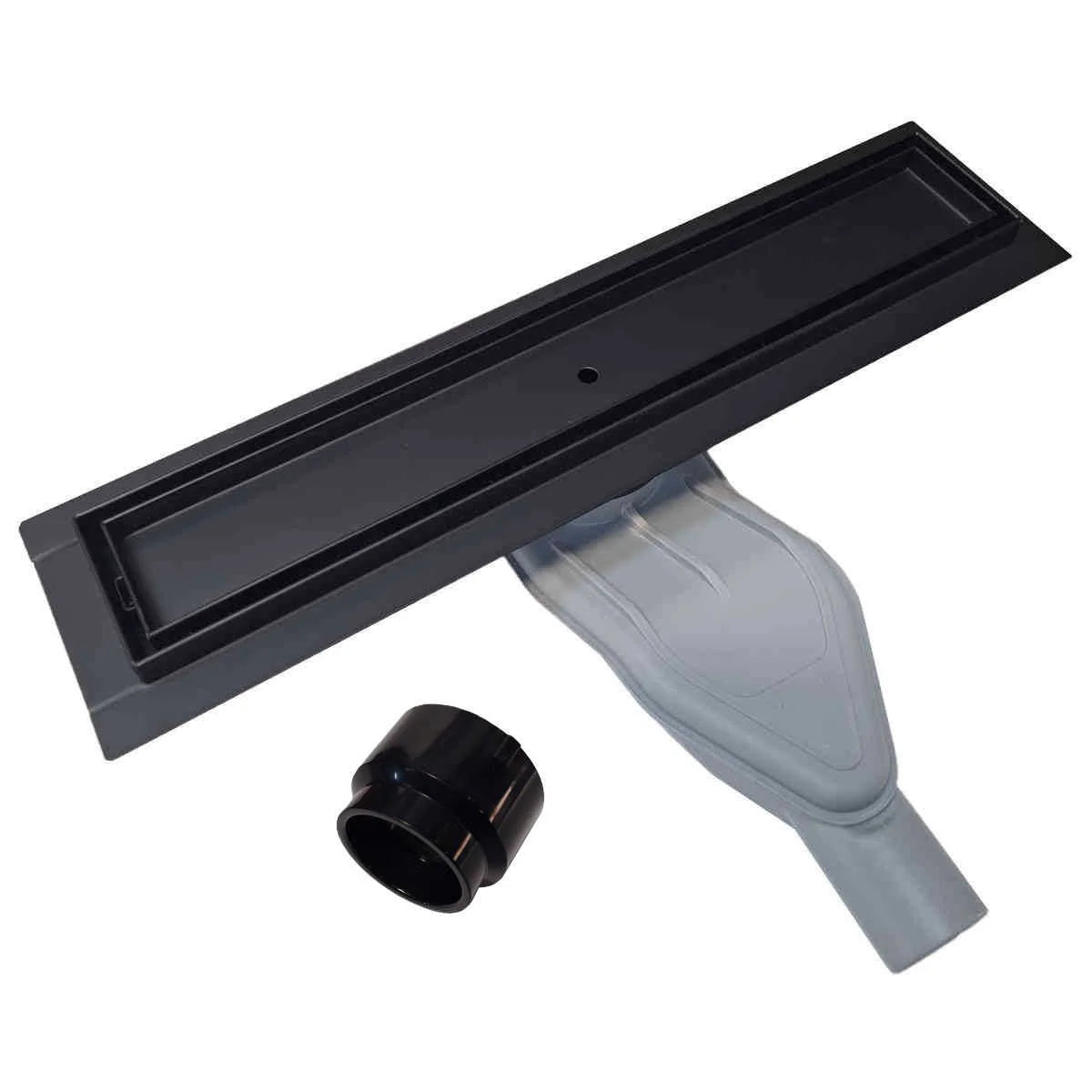

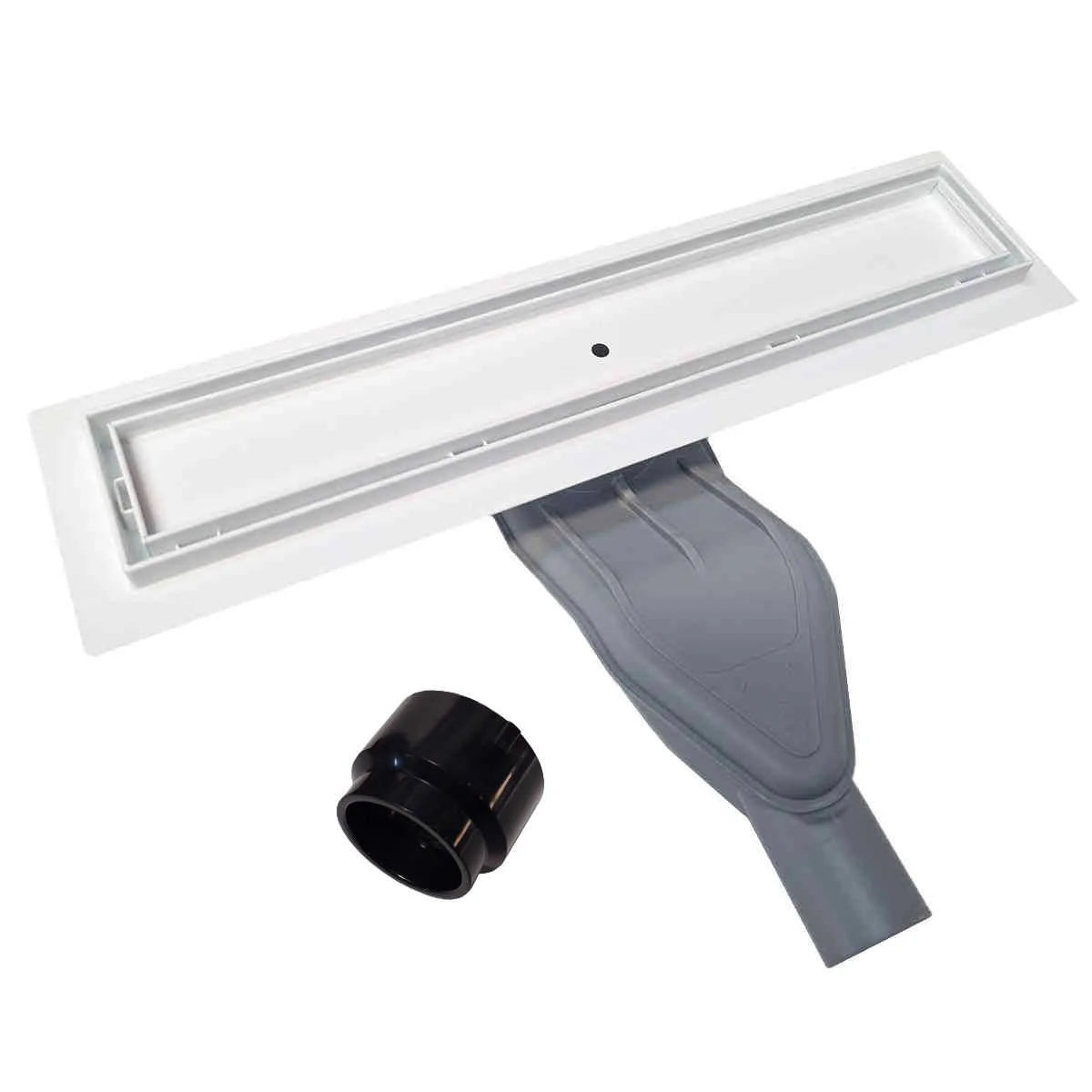

Available in Matte Black, Satin Gold, Brushed Nickel, and Matte White.

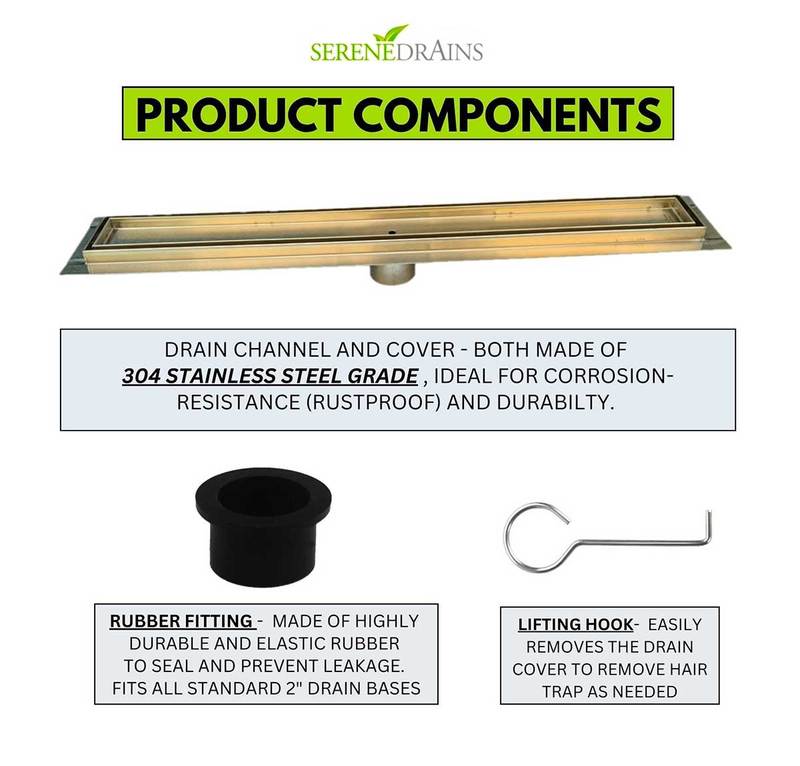

Drain Includes: stainless steel channel body & grate, puller key, free hair trap, waterproofing membrane sheet around the drain flange (not required but included), Installation Instruction.

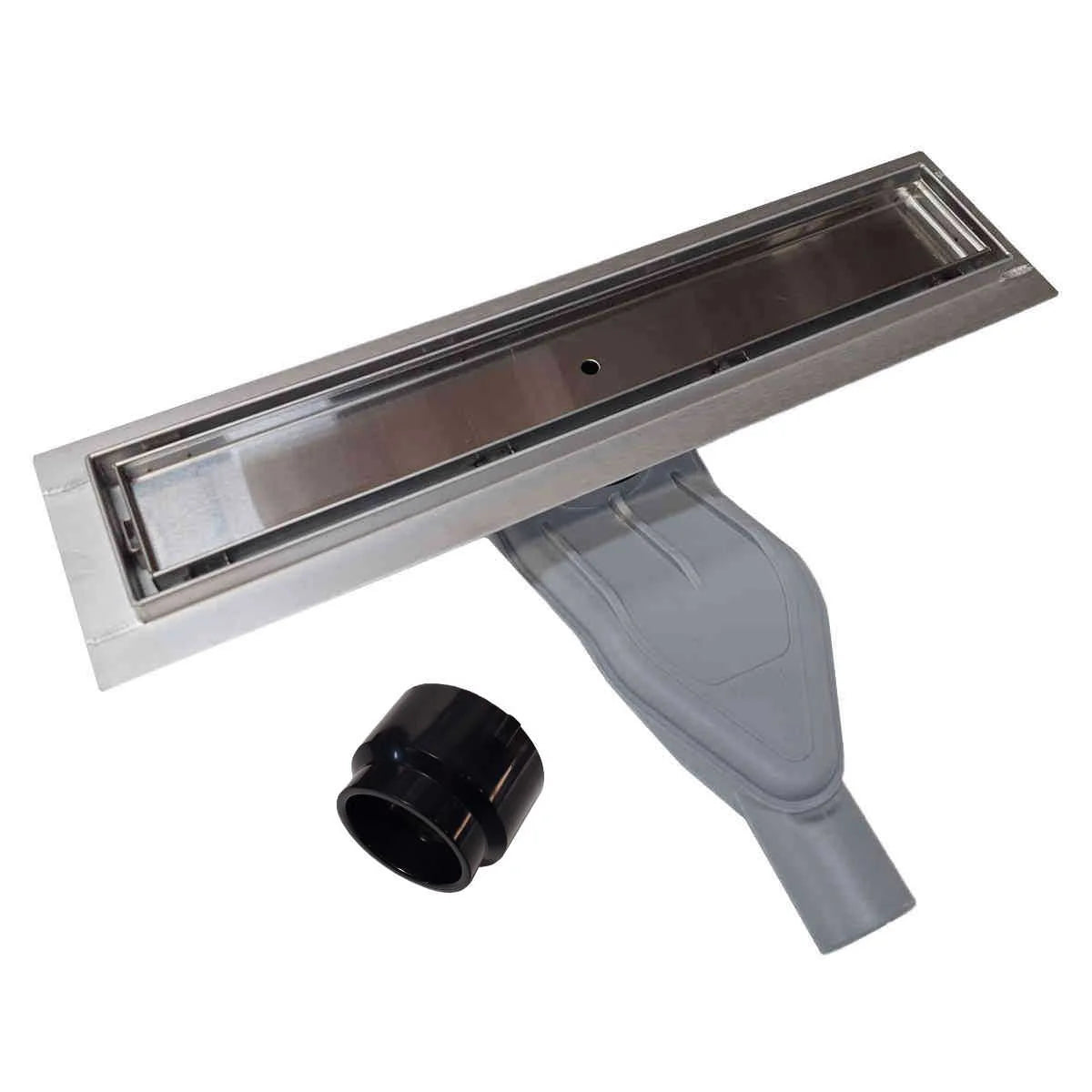

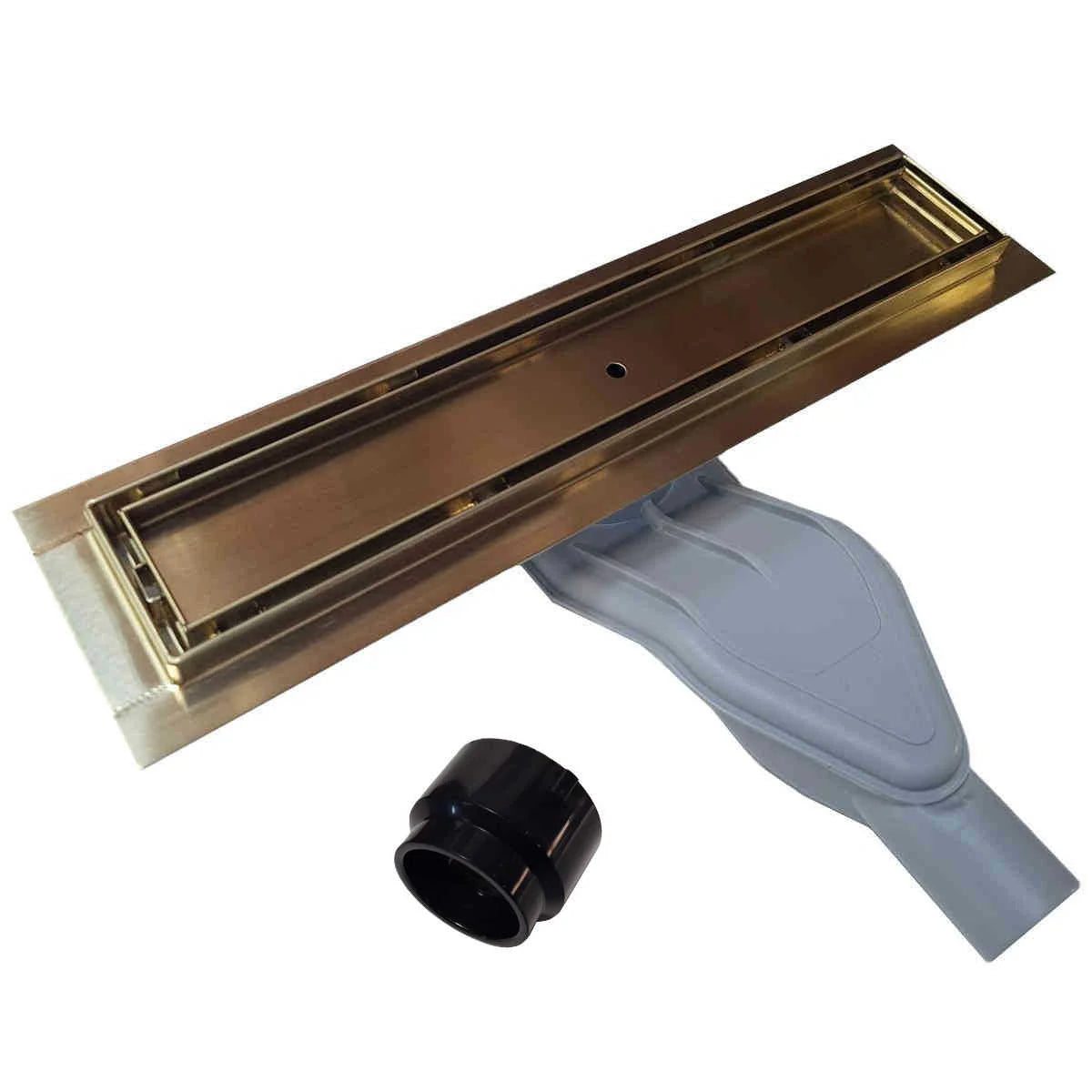

Side Outlet Converter Includes: Base discharge, rubber fitting, and adapter for connecting the drain’s 1.5" outlet to a standard 2" plumbing pipe. An extension fitting is available to increase the drain connection height if needed.

Value: Save $40.99 when you purchase this bundle.

Free Shipping - In Stock Ready To Ship Today!

Drain Features:

• 16 gauge 304 stainless steel Satin Gold finish.
• Superior quality laser cut electro-polish finish.
• Bodies are fully welded and leak tested prior to dispatch.
• 2 Inch diameter central vertical outlet.
• Designed to be installed into any 2" shower drain flange.
• Compatible with tiles up to 10mm depth (14mm lip).
• Sized to match standard 1/2", 1", 2, and 4" tile without cutting.
• Pre-Slope channel. Channel width: 2 3/4" (70 mm).

• Flow rate: at entrance of shower - 6.3GPM (0.4 l/s); against the wall - 9.5GPM (0.6 l/s).
• Flange body edge designed for use with all types of waterproofing: hot mop, painted or liquid membranes, sheet membrane, vinyl waterproofing etc.

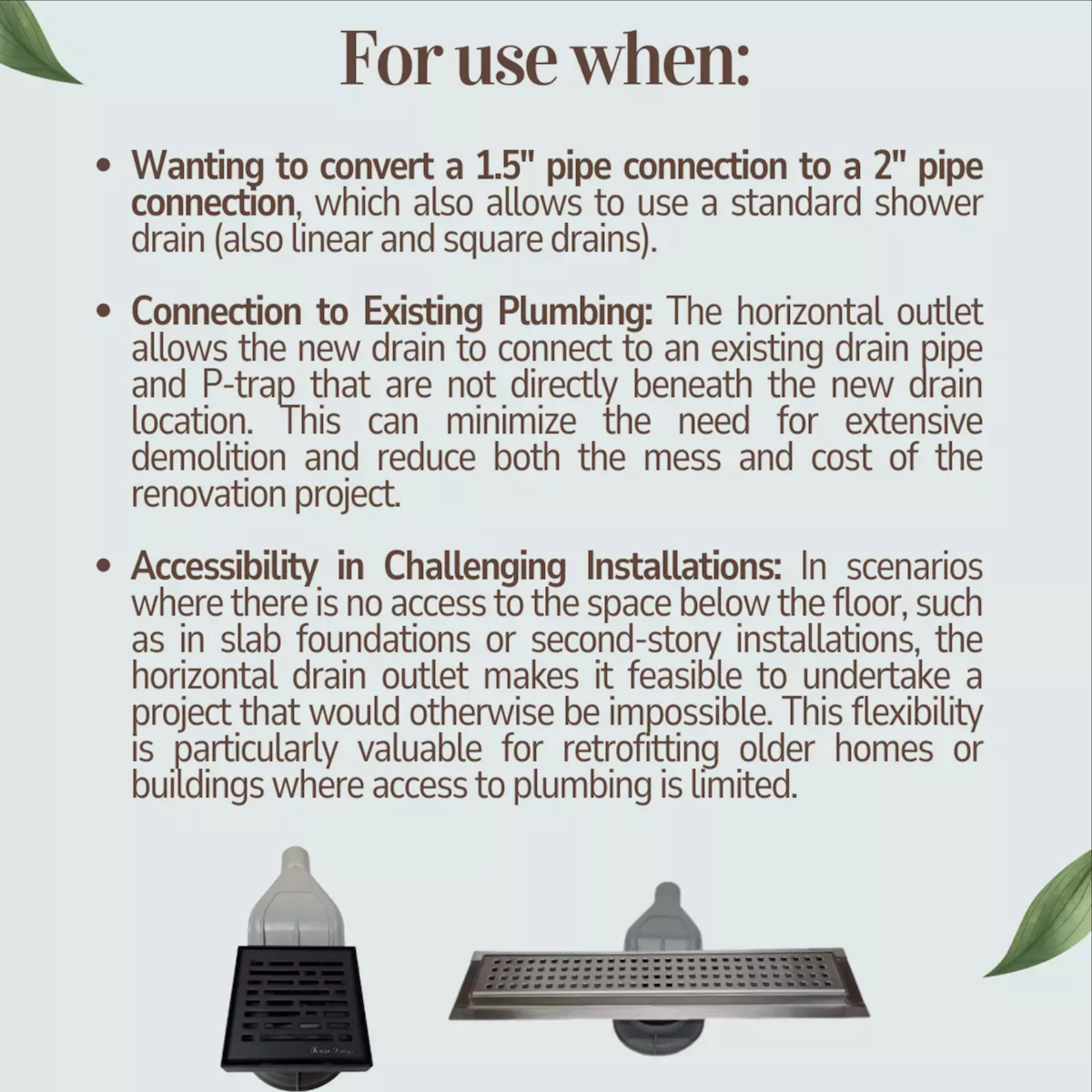

Advantages of Horizontal Side Discharge Outlet Shower Drains

• Space Efficiency: Perfect for bathrooms with limited floor thickness, such as in older homes or buildings with shallow floor cavities.
• Flexible Plumbing: Simplifies connections to existing horizontal plumbing, reducing the need for extensive modifications.
• Improved Water Drainage: Efficiently handles a larger volume of water, preventing pooling.
• Better Slope Management: Allows the shower floor to have a single slope toward the drain, simplifying design and construction.
• Enhanced Accessibility: Ideal for walk-in showers and barrier-free environments.
• Reduced Clogging: Designed to minimize the likelihood of clogs and make them easier to clear.
